Lopolight NLC Navigation Light Control Panel, 14 Channels

Overview

The Lopolight NLC is a 14-channel push-button control panel for the Navigation Light Control system, allowing operators to manage and monitor up to 14 navigation lights from a central control interface. The panel includes four group buttons, supports paired lights with automatic changeover, and provides visible and audible alarms for light and power failures.

Available with or without two dedicated dimmer controls, the panel accommodates different lighting control requirements. Both configurations are approved to IEC 60945 and certified by ABS/LR to IACS E10 and IEC 60945, supporting integration into marine navigation light control installations.

Key features

• 14-channel push-button interface for controlling and monitoring up to 14 navigation lights.

• Four group buttons for operating designated lighting groups.

• Automatic changeover capability for paired navigation lights.

• Visible and audible alarms indicating navigation light or power failures.

• IEC 60945 approval and ABS/LR certification to IACS E10 and IEC 60945.

• Available with two additional dimmer controls for panel illumination and selected vessel lights.

Variants

The control panel is available in two configurations, both supporting 14 navigation light channels within the Lopolight NLC system.

The primary difference is the availability of two dedicated dimmer controls. Both configurations retain the four group buttons, paired-light changeover capability, and visible and audible failure alarms.

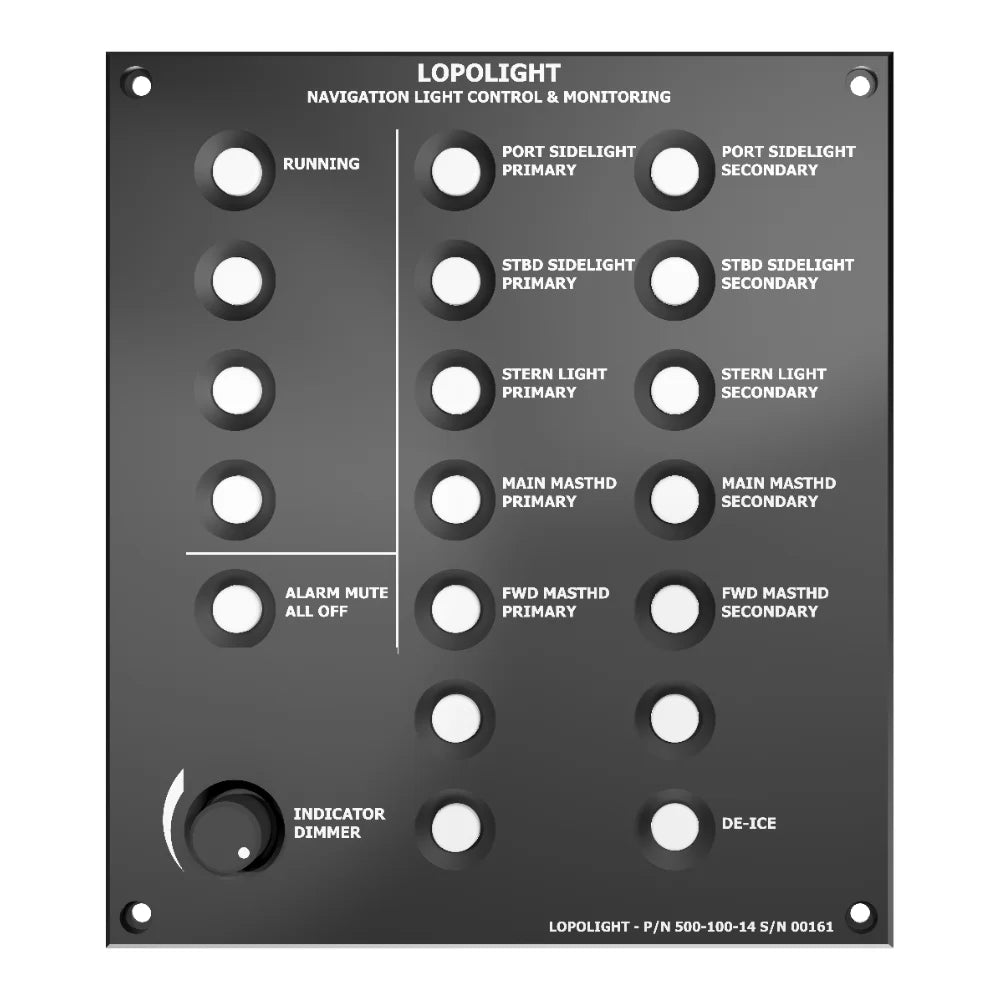

• 500-110-14, 14 Channels: A 14-button navigation light control panel with group controls, automatic changeover capability, and light and power failure alarms.

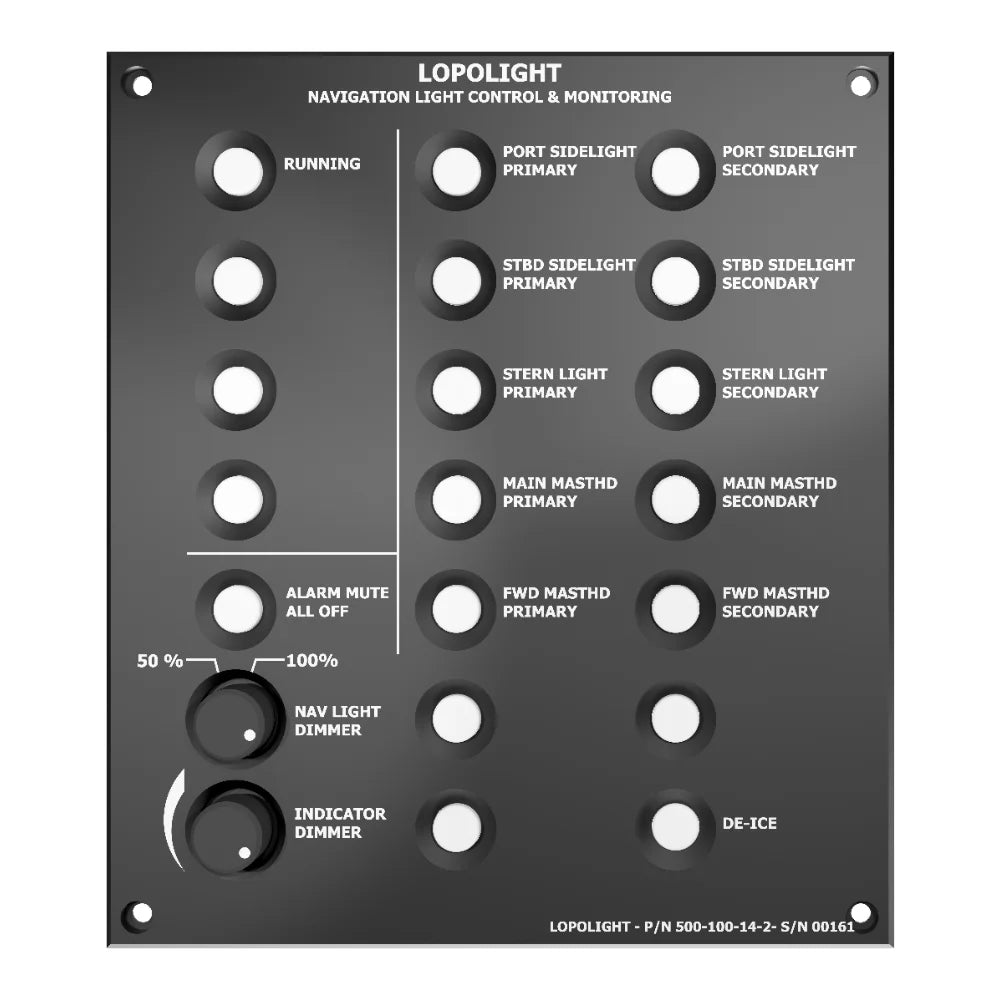

• 500-110-14-2, 14 Channels + 2 Light Dimmers: Adds separate dimmer controls for panel illumination and selected vessel lights, including steering lights and Navy/SAR lighting.

Compatibility and system integration

These panels function as control interfaces within the Lopolight Navigation Light Control system. They allow navigation lights to be operated individually or through designated groups, while the alarm functions provide immediate indication of light and power failures.

The paired-light changeover capability supports installations using primary and secondary navigation lights. The configuration with additional dimmers also accommodates applications requiring separate adjustment of control panel illumination and compatible vessel lighting.
