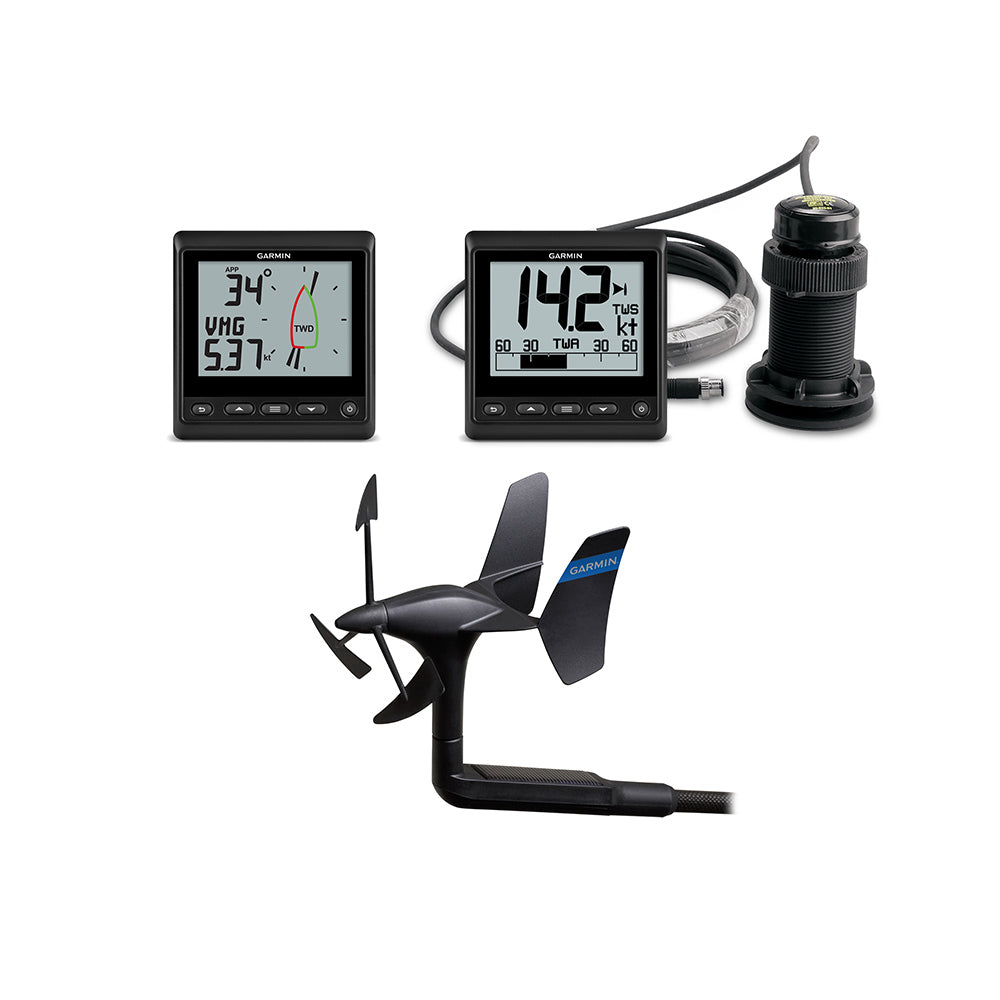

Garmin GNX Wireless Sail Pack 52, GNX Wind, GNX 20, gWind Wireless 2, DST800, NMEA 2000

Overview

The Garmin 010-01616-20 is a GNX Wireless Sail Pack 52 that bundles wind, depth, speed-through-water, and water temperature into a NMEA 2000 instrument system for sailboats. The two GNX displays are IPX7-rated and share the same case size of 4.3 in x 4.5 in x 1.2 in, with power drawn from the NMEA 2000 bus (9 to 16 V) and low display consumption of 0.35 W in daytime mode and 0.4 W with a mid-level backlight at night.

Wind data comes from the gWind Wireless 2 masthead transducer, which sends measurements over ANT and avoids running a wind cable through masts up to 50 ft. The transducer body measures 13.6 in x 24 in, is rated IPX6, and runs on a rechargeable battery supported by its solar panel.

For underwater data, the included DST800 thru-hull smart transducer feeds the NMEA 2000 network with depth, speed, and temperature, using a 100 W element that can read depths up to 330 ft. This pack is a practical fit when you want wind and water data on dedicated cockpit displays, with the option to share that information across a NMEA 2000 network.

Key features

• Two dedicated sailing displays: GNX Wind plus GNX 20, each with a glass-bonded monochrome LCD (4.0 in diagonal) in a 4.3 in x 4.5 in x 1.2 in housing
• NMEA 2000 certified instruments with IPX7 water rating and a temperature range of -15 to 70 C
• GNX Wind screen layout supports two data fields and a digital wind rose at the same time for true and apparent wind, plus additional NMEA 2000 sailing data when available
• GNX 20 shows depth, speed-through-water, water temperature, and 50+ additional NMEA 2000 parameters, with digits scalable up to 36 mm
• gWind Wireless 2 masthead sensor sends wind data over ANT, eliminating mast wiring for installations up to 50 ft, and is powered by a rechargeable battery supported by a solar panel
• gWind Wireless 2 rated IPX6 with wind speed range of 0.8 to 90 knots, angle accuracy better than ±1.5 degrees, and wind speed accuracy better than ±3%
• DST800 NMEA 2000 thru-hull smart transducer combines depth, speed, and temperature in one fitting (100 W, reads to 330 ft)
• Low draw on the NMEA 2000 bus for the displays: 0.35 W daytime and 0.4 W at night with mid-level backlight

What’s included

• gWind Wireless 2 transducer with mast bracket
• GNX Wind marine instrument
• GNX 20 marine instrument
• DST800 thru-hull smart transducer
• NMEA 2000 power cable
• NMEA 2000 terminators
• 2 NMEA 2000 drop cables (2 m)
• 4 NMEA 2000 T-connectors
• Mounting hardware
• NiMH battery
• Documentation

Installation and setup

The GNX displays mount flush or on a flat surface, so they work well on a nav pod, bulkhead, or cockpit panel where you can read them while trimming sails. Each display connects to a NMEA 2000 T-connector with a drop cable, and the included terminators and power cable support building out a basic backbone. If you need more reach between stations, plan on additional backbone cable and any extra T-connectors required for your layout.

The gWind Wireless 2 installs at the masthead using the supplied bracket and transmits wind data over ANT to the GNX Wind instrument or to a compatible Garmin GPSMAP chartplotter. The DST800 requires a thru-hull install below the waterline, so it is typically handled during a haul-out with proper bedding, sealing, and routing of the sensor cable to the NMEA 2000 network connection point.

Compatibility and fit

This pack is built around NMEA 2000, so it fits best on boats that already have a NMEA 2000 backbone or where you plan to install one. The instruments operate from the NMEA 2000 supply voltage range of 9 to 16 V, which aligns with standard NMEA 2000 power practices even on vessels with higher-voltage house banks.

For placement near a compass, the compass-safe distance is listed as 8.25 in for the GNX Wind and GNX 20 displays. For the underwater sensor, confirm your hull location has clean water flow for accurate speed and depth readings, and that you have access inside the boat for tightening and servicing a thru-hull fitting.

On-board use

On a racing boat, the GNX Wind display layout helps keep wind angle and wind rose information in view while helming and calling trim changes. On a cruising boat, the GNX 20 and DST800 combination keeps depth, speed-through-water, and temperature visible at a glance when entering unfamiliar anchorages or navigating skinny water.

This setup is a strong match for sailors who want dedicated cockpit instruments rather than relying only on a chartplotter screen, and for boats where pulling new mast wiring is a headache but you still want reliable wind data at the helm.
