Lopolight DLXi LED Masthead Light with 6W Decklight, 2nm, 225°

Overview

The Lopolight DLXi is a combined LED masthead navigation light and 6W decklight for sailboat installations. Its white masthead light provides 2 nautical miles of visibility across a 225° arc, while the integrated decklight illuminates the foredeck from the same fixture. The decklight features a 26° beam angled 25° forward to direct illumination farther out over the deck.

Operating on 10-32V DC with IP68 ingress protection, the fixture combines navigation and deck lighting in a compact, vertically mounted housing. It is available in silver and black finishes to accommodate different mast appearances.

Key features

• White LED masthead navigation light with 2nm visibility and 225° horizontal coverage.

• Integrated 6W LED decklight with a 26° beam angled 25° forward.

• 10-32V DC operating range, compatible with 12V and 24V electrical systems.

• IP68 ingress protection for exposed marine installations.

• Vertical mounting configuration with dimensions of 54 x 38.7 x 72.2 mm.

• Aluminum housing construction with a PMMA lens and A4 stainless steel mounting screws.

• DNV certification and approvals including COLREG 72 and IEC 60945.

Variants

This combined masthead and decklight is available in two exterior finishes: silver and black.

Both configurations maintain the same white masthead navigation light, 2nm visibility, 225° coverage, 6W decklight, and vertical mounting arrangement. The exterior finish distinguishes the variants.

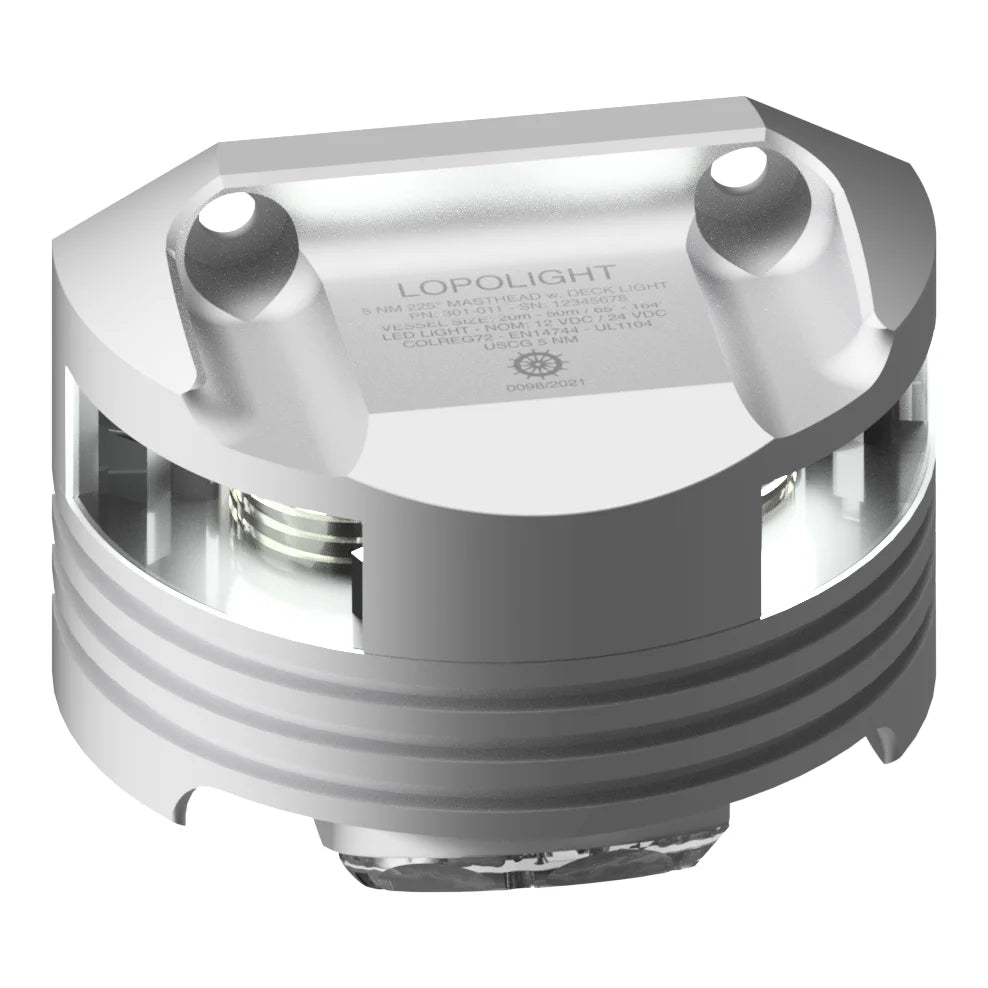

• 201-010DLXI 15M: Silver finish with an anodized aluminum exterior.

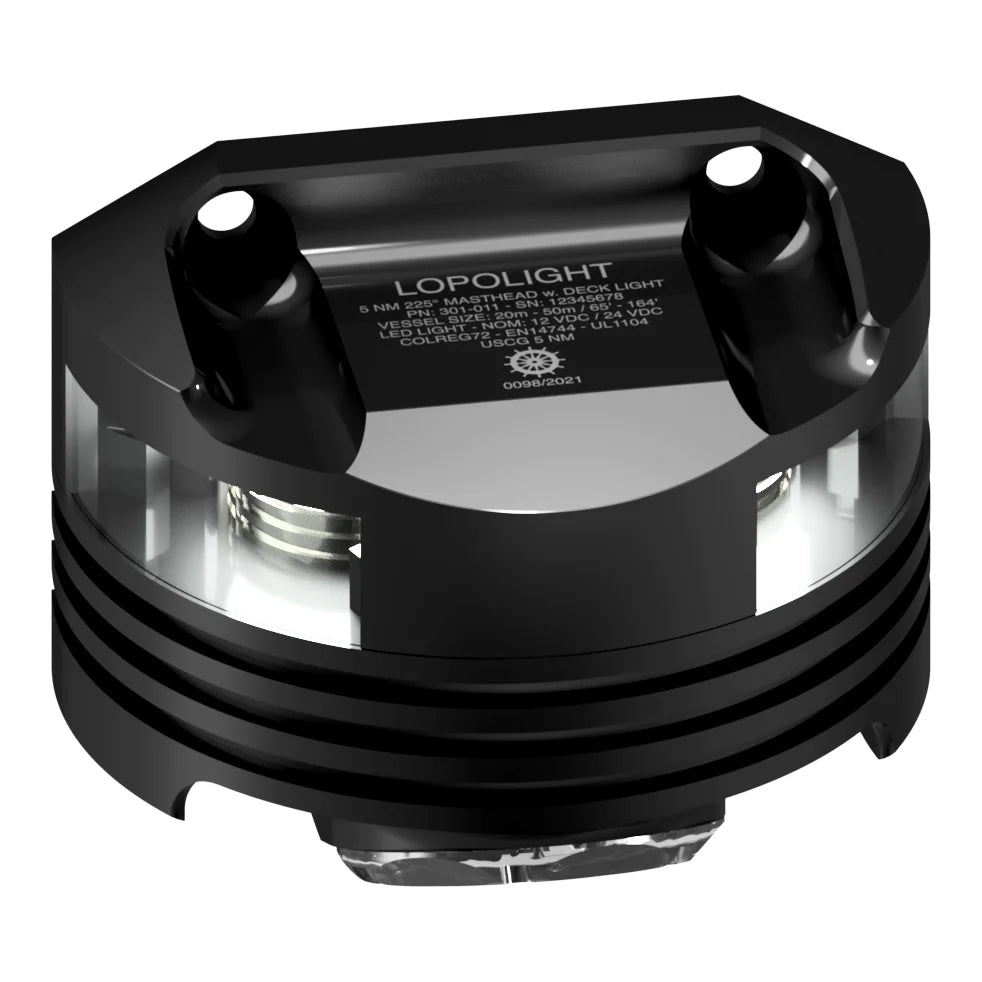

• 201-010DLXI-B 15M: Black finish with a darker exterior housing appearance.

Installation and setup

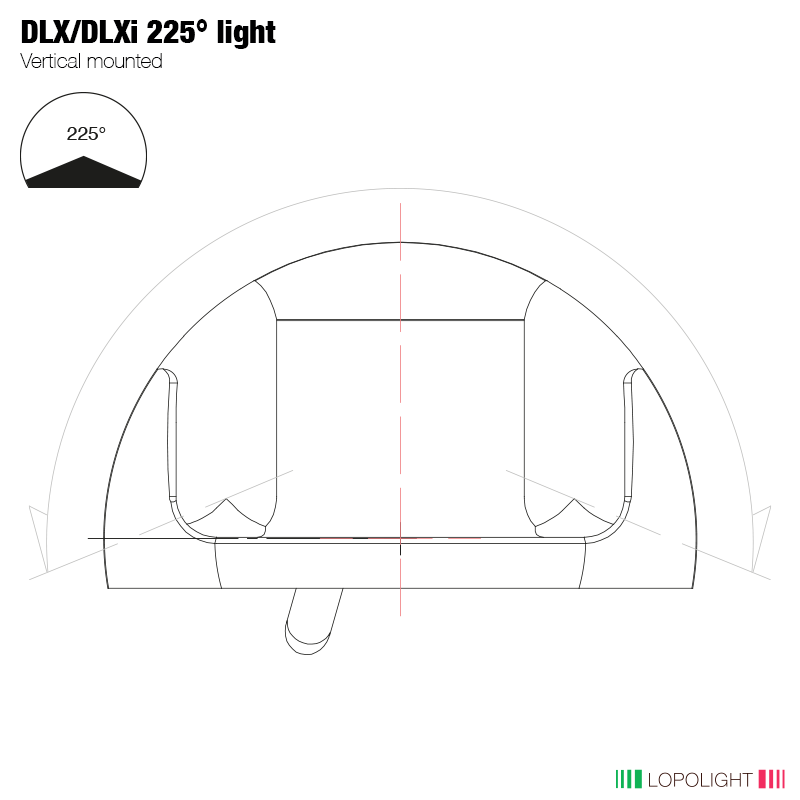

The fixture mounts vertically at the front of the mast, combining the required forward-facing masthead navigation light with downward deck illumination. The decklight's 25° forward orientation and 26° beam angle are important considerations when determining mounting height and the area of deck to be illuminated. The compact housing extends approximately 54 mm from the mounting surface.

What's included

• 1 combined LED masthead navigation light and decklight fixture, pre-cabled

• 2 mounting screws, M6 x 8 mm

• Installation guide
