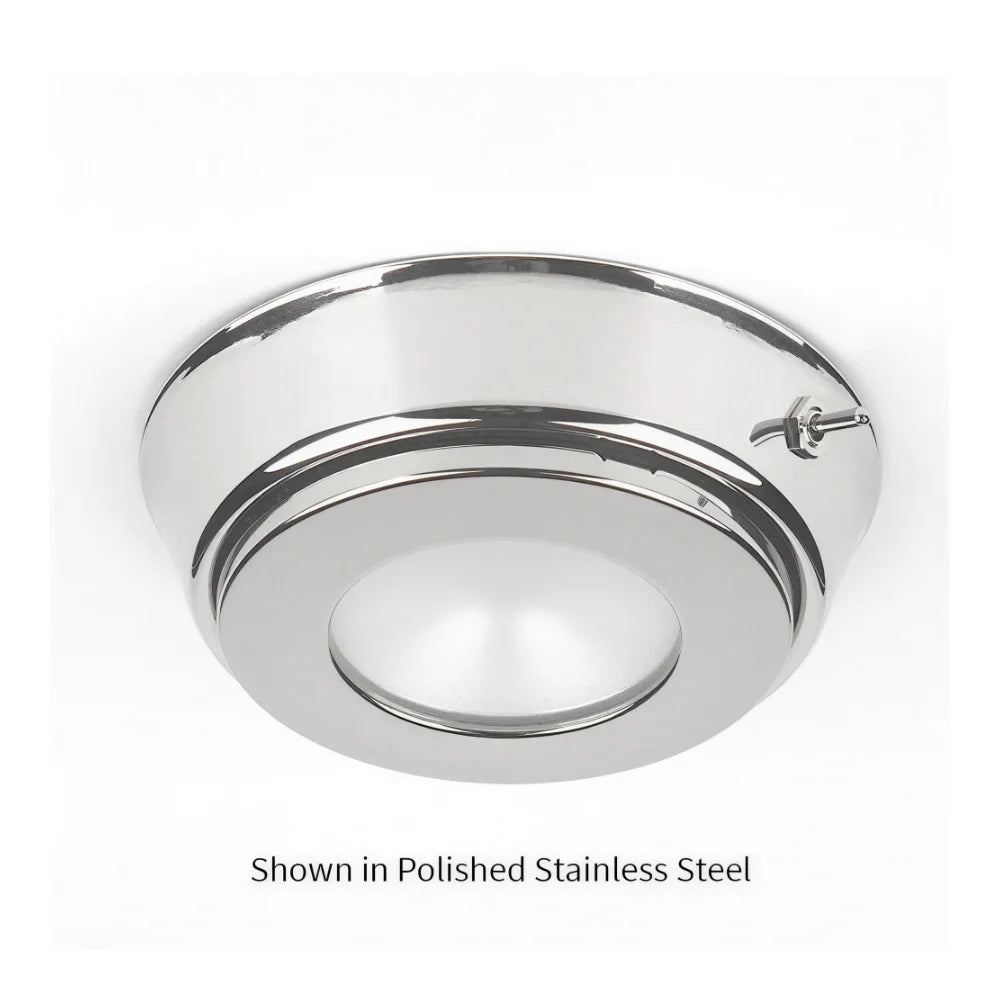

Imtra Tide PowerLED Downlight, 10-40VDC, Warm White, Built-In Switch

Overview

The Imtra ILIM58000 is a Tide PowerLED surface-mount downlight with an integrated switch, white base, and warm white LED illumination. Operating on 10-40VDC with a power consumption of 3.2W, it provides efficient interior lighting for marine applications without requiring a separate LED driver.

The fixture features a white-finished stainless steel bezel, frosted glass lens, and 2800K warm white output. Its compact surface-mount design incorporates the switch directly into the base, allowing convenient local light control.

Key features

• 10-40VDC input voltage with 3.2W power consumption.

• Integrated switch for local lighting control.

• Warm white LED output at 2800K with a frosted glass lens.

• White-finished stainless steel twist-on bezel.

• IP40 ingress protection for interior installations.

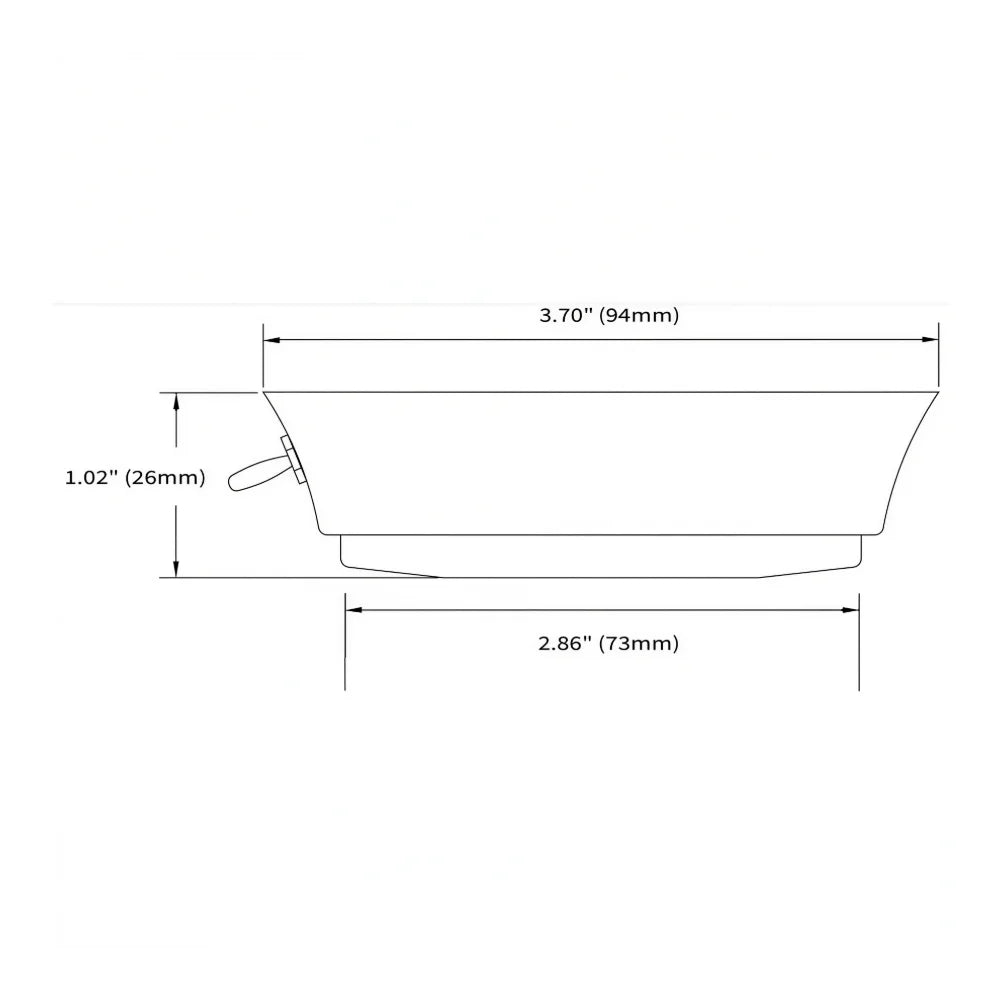

• 94mm mounting base diameter with 26mm exposed height.

• Integrated LED driver with reverse polarity and transient voltage protection.

• Compatible with Imtra PowerLED PWM dimming controllers.

Installation and electrical connections

The surface-mount base allows installation without a recessed fixture opening. The light uses a two-wire DC power connection and can be integrated with compatible Imtra PWM dimming controls when adjustable brightness is required.

Installation requires a location protected from water exposure, particularly behind the fixture. Maintain at least 13mm of clearance around the housing for ventilation and heat dissipation. The IP40 rating makes this configuration suitable for protected interior mounting locations rather than areas exposed to water spray.
