Lopolight LED Port Sidelight, 2nm, 10-32VDC, IP68, 6m Cable

Overview

This Lopolight LED Port Sidelight is a vertically mounted navigation light that emits red light across a 112.5° sector with a visibility range of 2 nautical miles. Operating on 10-32V DC with a power draw of 1.2W, it features a 6m cable for connection to the vessel's electrical system.

The fixture has an IP68 rating and an anodized aluminum housing with a PMMA lens and A4 stainless steel screws. Measuring 92.5 x 28 x 49.7 mm, it is suitable for port-side navigation light installations on vessels from 12 to 50 meters. Silver and black housing finishes are available, with the same red light output and electrical specifications.

Key features

• Red LED port navigation light with a 112.5° visibility sector and 2 nautical mile range.

• 10-32V DC operating range with 1.2W power consumption.

• IP68-rated enclosure for protection against water and dust ingress.

• Vertical mounting configuration with a 6m electrical cable.

• Anodized aluminum housing, PMMA lens, and A4 stainless steel fasteners.

• Light intensity greater than 5.4 candela.

• Approved to COLREG 72, EN 14744, IEC 60945, IACS E10, USCG, ABS, MED, DNV, and LR standards and requirements.

Variants

This port sidelight is available in two housing finishes: Silver and Black. Both configurations use anodized aluminum construction.

The finish changes the exterior appearance of the fixture, while the red LED output, 112.5° sector, 2 nautical mile visibility, vertical mounting arrangement, and 6m cable remain consistent.

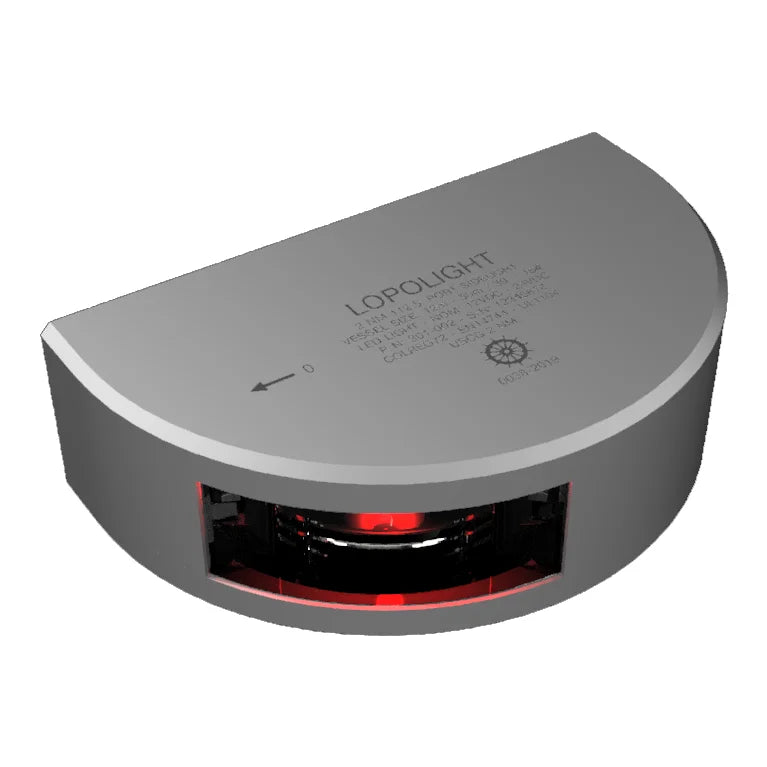

• 301-002 6M - Finish: Silver. Silver anodized aluminum housing for installations requiring a metallic silver exterior.

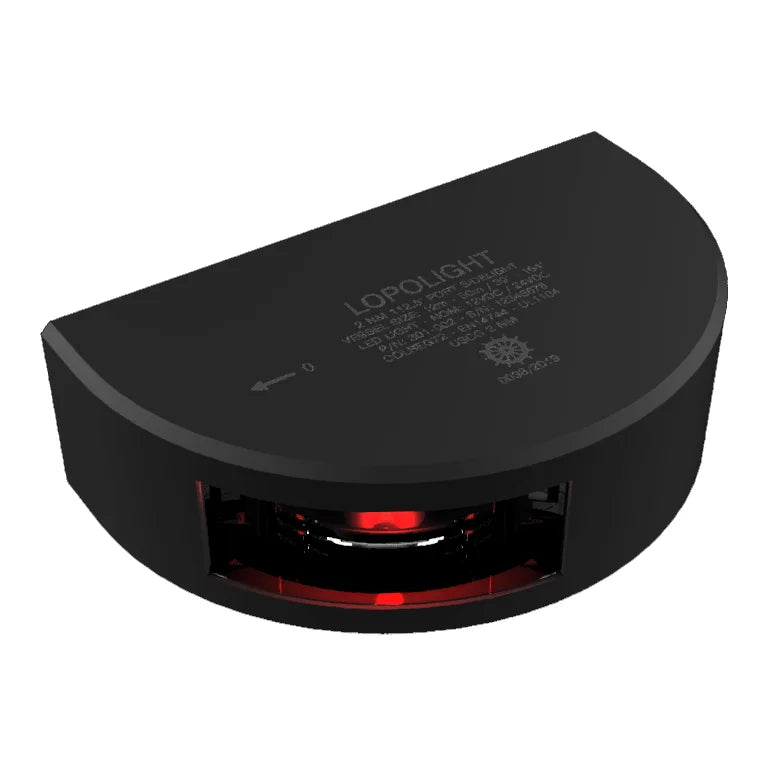

• 301-002-B 6M - Finish: Black. Black anodized aluminum housing for installations requiring a black exterior.

Installation and electrical integration

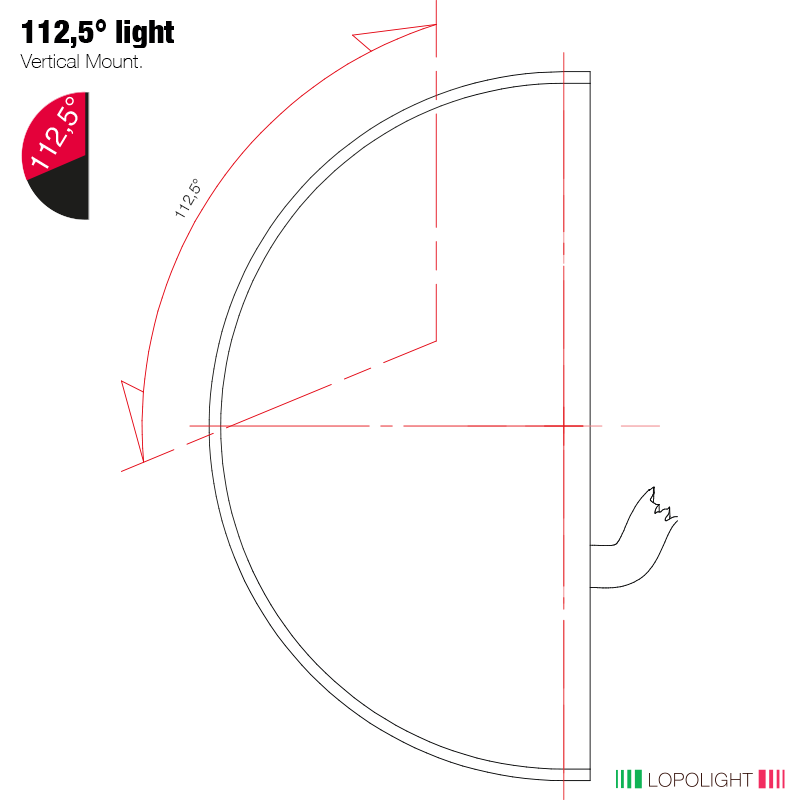

The light is configured for vertical mounting on the port side of the vessel. Its 6m cable allows routing to the navigation lighting electrical circuit, while the 10-32V DC operating range accommodates compatible 12V and 24V DC systems. Current consumption is approximately 90mA at 12V DC and 50mA at 24V DC.

The fixture measures 92.5 x 28 x 49.7 mm. Installation planning should account for the mounting orientation, the required navigation light visibility sector, and the cable routing path. The specified minimum feed wire size is 0.5 mm² (AWG 22).

What's included

• 1 LED port navigation light with 6m cable

• 2 mounting screws (M6 x 8 mm)

• Installation guide
