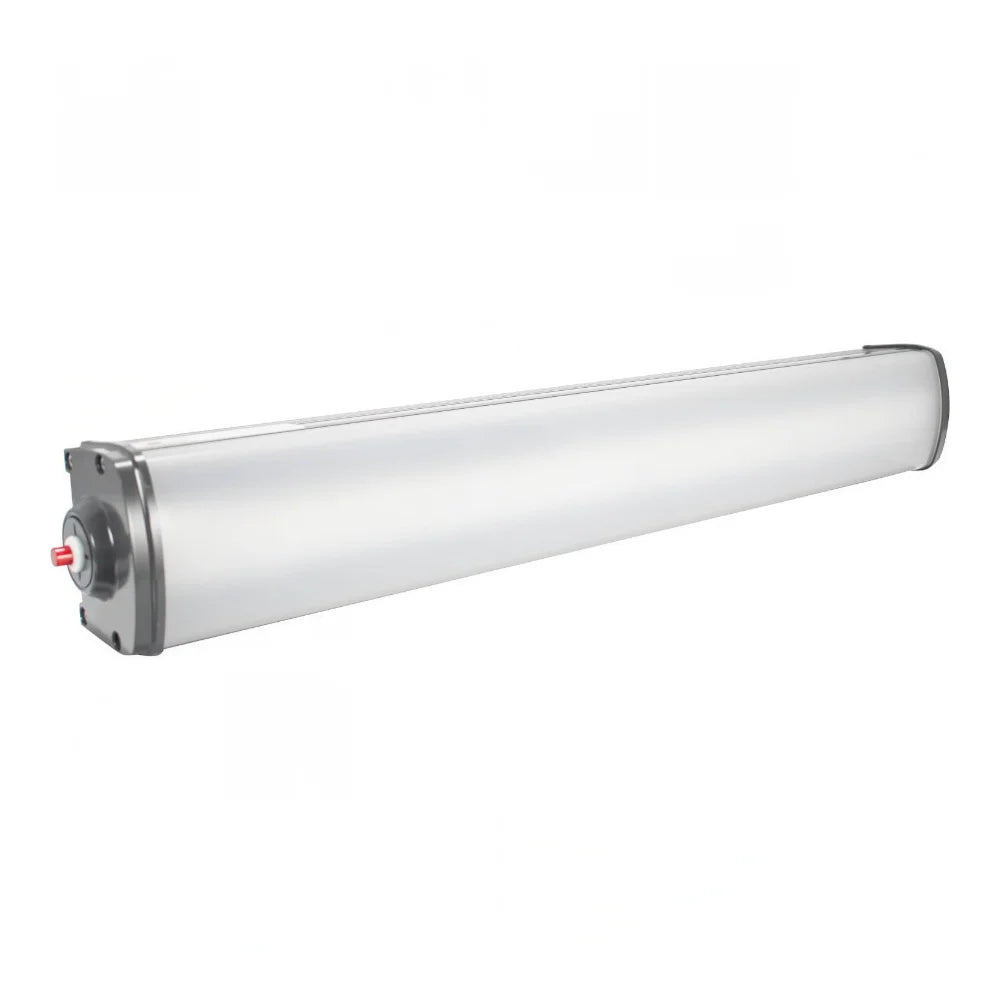

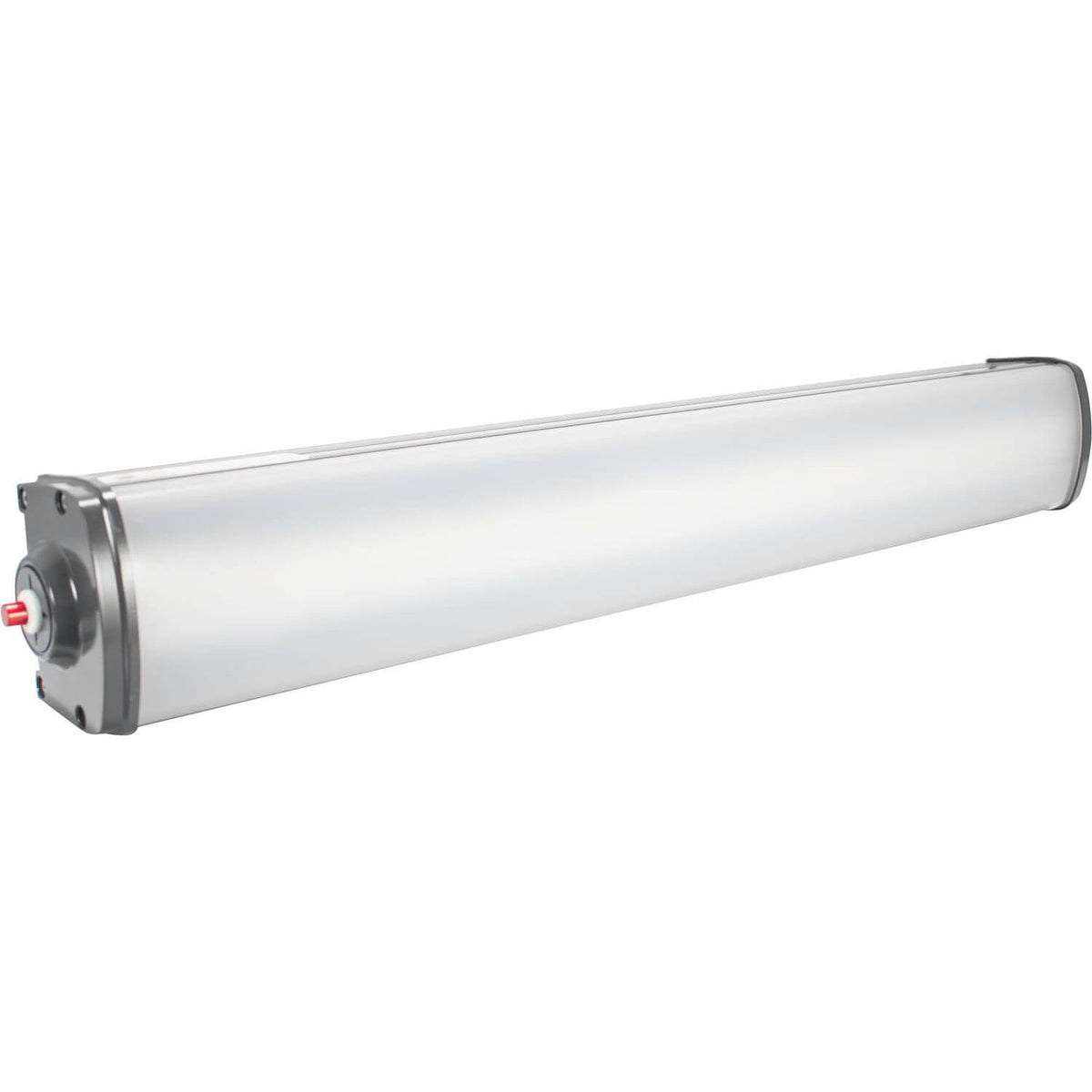

Imtra Linear HO Marine LED Fixture, 2 ft, 60W, Battery Backup

Overview

The Imtra IL-8K-GR-BATT is a 2-foot linear high-output marine LED fixture with an integrated battery-backed emergency lighting system. Operating on 120-277V AC at 60W, it delivers approximately 7,800 lumens through a wide 180-degree beam. Its IP67-rated construction and grey aluminum housing make it suitable for demanding marine installations, including engine compartments, generator spaces, and utility areas.

The built-in Bodine BSL310SB emergency power supply automatically activates when normal electrical power is interrupted, maintaining illumination at reduced output for at least 90 minutes. Pulse Width Modulation, electronic thermal management, and redundant circuit technology support continued operation in challenging environments.

Key features

• Integrated Bodine battery backup with a minimum 90-minute emergency runtime.

• IP67 ingress protection against dust and temporary water immersion.

• Die-cast 6061 aluminum construction with a grey finish and polycarbonate lens.

• Wide 180-degree beam for broad, uniform illumination.

• Stainless steel mounting brackets with adjustable mounting positions.

• Redundant circuit design allows partial operation if one section of the LED system is damaged.

• Daisy-chain capability for connecting multiple fixtures.

Emergency lighting operation

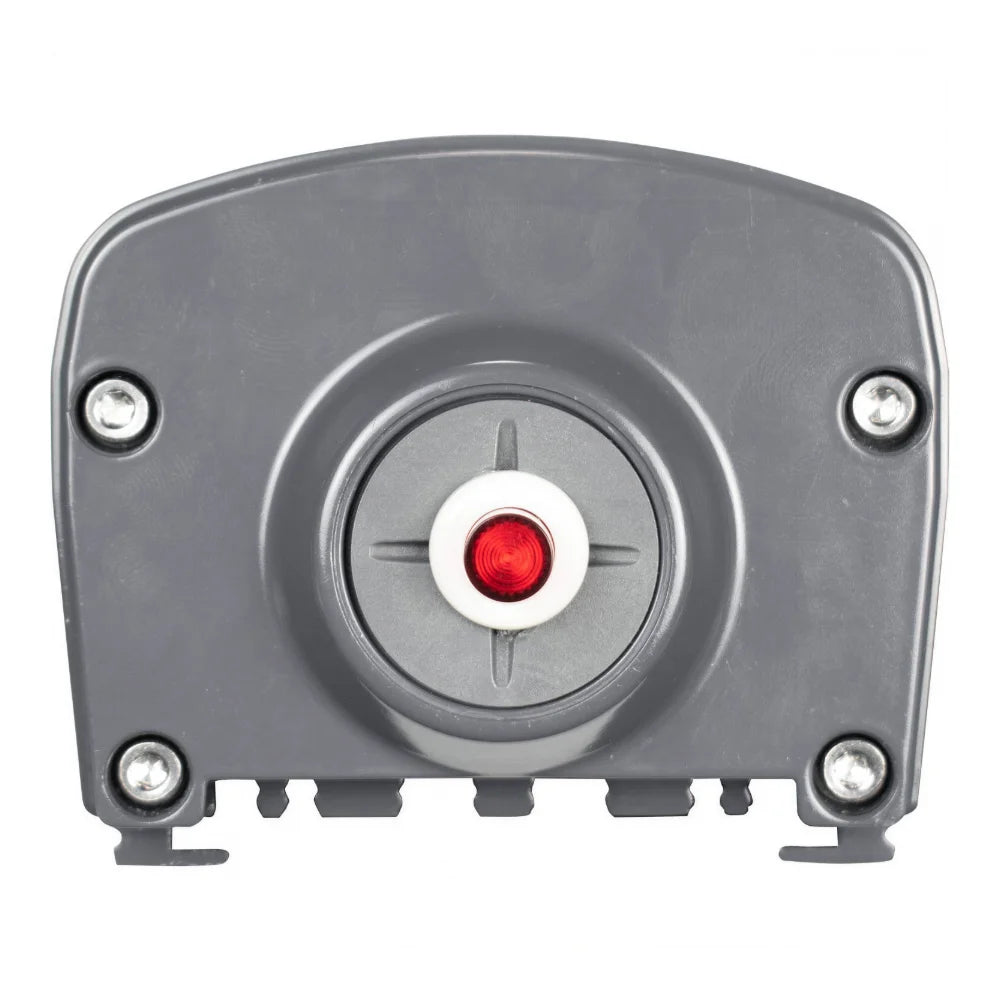

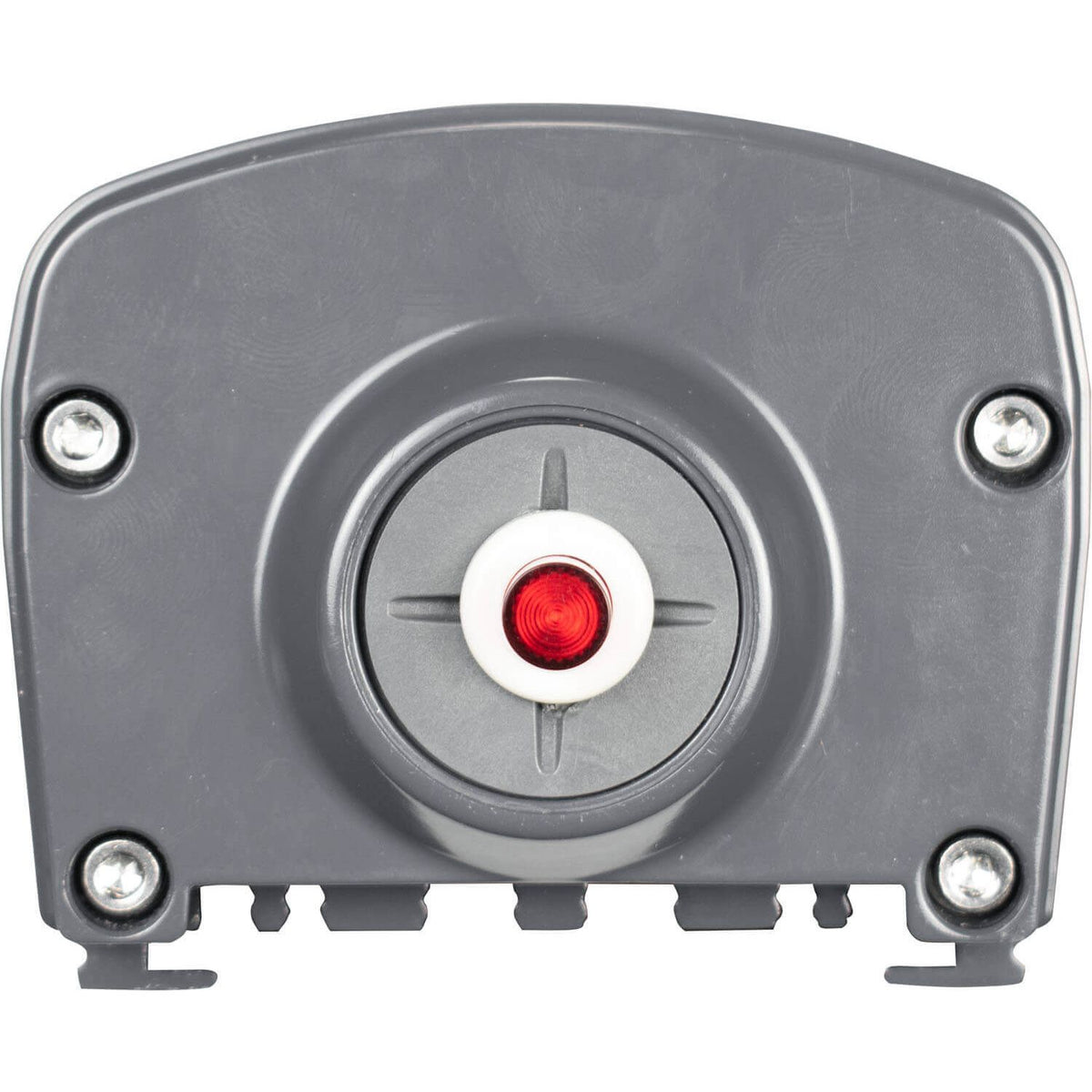

When the normal AC supply fails, the emergency driver automatically powers the LED load at reduced brightness. The battery backup system requires activation through its internal connector during installation. An accessible test button allows the emergency lighting function to be checked after installation.

Installation and electrical connections

The fixture supports surface mounting on suitable walls or ceilings using adjustable stainless steel brackets. Its 600 mm (23.62 in) housing has adjustable bracket positions that accommodate different mounting lengths. Installation requires a compatible AC supply and appropriate wiring connections, including protective grounding.

Electrical installation should be performed by a qualified electrician in accordance with applicable marine electrical regulations. Proper cable sealing and a drip loop help protect the wiring entry from moisture intrusion.

What's included

• 1 linear LED fixture with integrated battery backup.

• 2 stainless steel mounting brackets with mounting hardware.
