Garmin LiveScope Plus Ice Fishing Kit, GLS 10, LVS34, 12Ah Battery

Overview

The Garmin 010-02706-30 is a portable LiveScope Plus ice fishing kit that lets you run LiveScope Forward and LiveScope Down views from a compatible Garmin ECHOMAP or GPSMAP display on the ice. It includes the LiveScope Plus System (GLS 10 sonar module and LVS34 transducer) plus a 12 Ah rechargeable lead-acid battery, so you can power the setup without relying on the boat.

LiveScope gives a live, real-time sonar picture so you can watch fish move and see how they react to your jig. Forward mode and Down mode both support viewing out to 200 ft, which helps you decide where to drill and how deep to work a spot.

The carrying case is sized to fit ECHOMAP 7 inch or 9 inch units and GPSMAP 7 inch and 9 inch units, along with the included mounts, cables, and battery. A compatible display is required and not included.

Key features

• LiveScope Plus real-time sonar with Forward and Down views for tracking fish and lure movement as it happens
• Up to 200 ft viewing range in LiveScope Forward and LiveScope Down modes
• Includes LiveScope Plus System components: GLS 10 sonar module and LVS34 transducer
• Portable carry case sized for ECHOMAP 7 inch or 9 inch units and GPSMAP 7 inch and 9 inch units
• 12 Ah rechargeable lead-acid battery with charger for away-from-shore power
• Ice fishing mount and swivel pole mount for setting transducer angle and depth at the hole
• Includes a transducer adapter cable and flexible power cable for tidy routing inside the bag

What's included

• LiveScope Plus System
• Panoptix ice fishing mount
• Swivel pole mount for the LiveScope transducer
• Power cable
• Transducer adapter cable

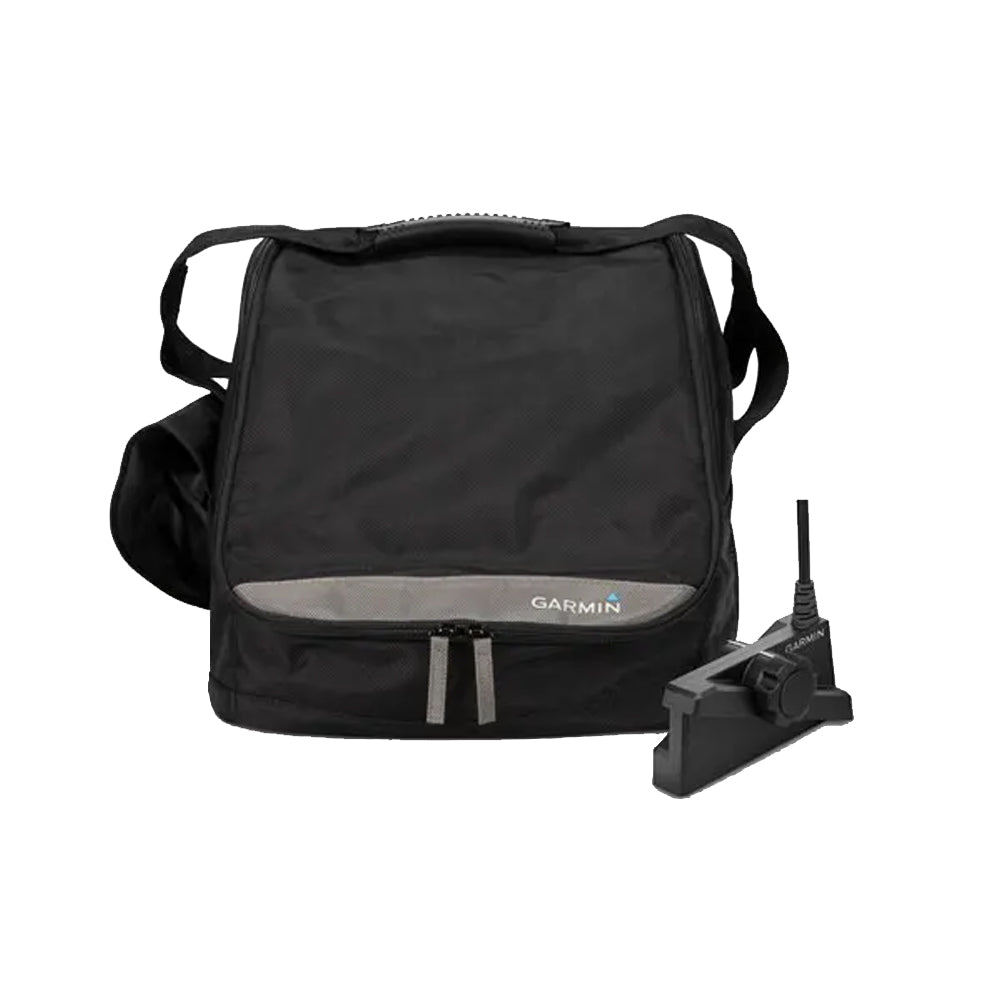

• Portable fishing kit bag with handle
• Rechargeable battery
• Battery charger
• Documentation

Compatibility and fit

This kit is meant for anglers who already own a compatible Garmin ECHOMAP or GPSMAP unit and want to move that screen from the boat to the ice. The bag is sized around 7 inch and 9 inch ECHOMAP and GPSMAP units, so check your display size and mounting footprint if you plan to travel with the unit installed in the case.

Because the LiveScope Plus System uses a dedicated sonar module, you will also want enough room in the case to keep the module, cables, and battery laid out without pinching connectors when the bag is zipped.

Installation and on-ice setup

On the ice, the typical setup is to place the LiveScope transducer on the supplied pole mount, lower it below the ice, and set the transducer angle for Forward or Down viewing. The transducer connects to the LiveScope sonar module, and the module connects to your compatible display. Power is supplied from the included battery through the flexible power cable.

For clean sonar returns, keep the transducer face free of slush, avoid bumping it against the edge of the hole, and re-check alignment if you rotate the pole or move to a new hole.

Use cases on board

This setup makes the most sense for boat owners who run an ECHOMAP or GPSMAP system in open water and want the same sonar capability for hardwater season without building a separate portable electronics package. It is also a solid fit for tournament-style ice fishing where quick moves and fast feedback matter more than sitting on a hole all day.

Maintenance and storage

Rinse and dry any parts that contact water, then let everything air out before packing it back into the bag to prevent corrosion on connectors. Keep the battery charged between trips, and store the kit in a cool, dry place so cables and seals do not stiffen or crack over time.
