Blue Sea Systems PowerBar 600A BusBar, 300V AC, 48V DC, 3/8-16 Stud

Overview

The Blue Sea Systems PowerBar 600A BusBar is a high-current bus bar for organizing heavy DC and AC cable connections in marine electrical systems.

It is rated for 600A DC and 545A AC continuous service, with a maximum voltage rating of 48V DC or 300V AC. The 3/8"-16 stud terminals suit large cable lugs used in battery banks, inverter feeds, windlass circuits, thrusters, charging systems, and main distribution points where clean cable routing matters.

The bus is tin-plated copper CDA 110/UNS11000 on a UL 94-V0 rated glass-reinforced thermoplastic base, giving installers a compact way to build a central positive, negative, or ground bussing point while keeping high-amperage terminations accessible for inspection and service.

Key features

• 600A DC and 545A AC continuous rating for high-current marine distribution work.
• Maximum voltage rating of 48V DC or 300V AC for use in common marine DC systems and applicable AC distribution layouts.
• 3/8"-16 stud terminals accept large cable lugs used on battery cables and other heavy conductors.
• Tin-plated copper bus helps maintain conductivity in demanding onboard electrical environments.
• UL 94-V0 rated glass-reinforced thermoplastic base adds insulation and support for panel or bulkhead mounting.
• Terminal stud torque rating of 140 in-lb helps installers tighten connections to a defined value instead of guessing.

Variants

This PowerBar 600A BusBar range is offered in two terminal-count configurations, so the main difference is how many high-current stud connections are available on the same style of bus bar.

Both variants use 3/8"-16 stud terminals and share the same 600A DC, 545A AC, 48V DC, and 300V AC ratings. The right configuration depends on how many heavy cable takeoffs need to land at the bussing point.

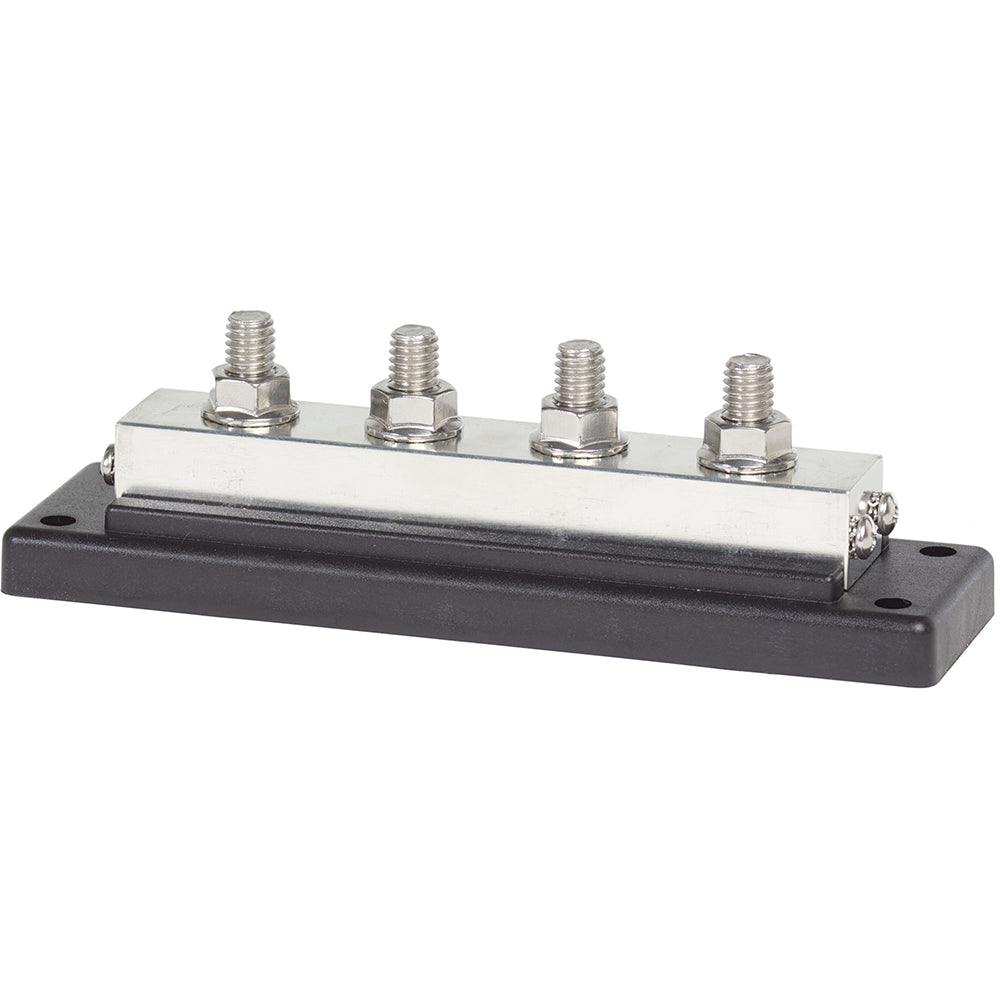

• 2104: 4 terminals. This version suits smaller high-current layouts, such as a main battery connection with a limited number of branch cables or charging leads.

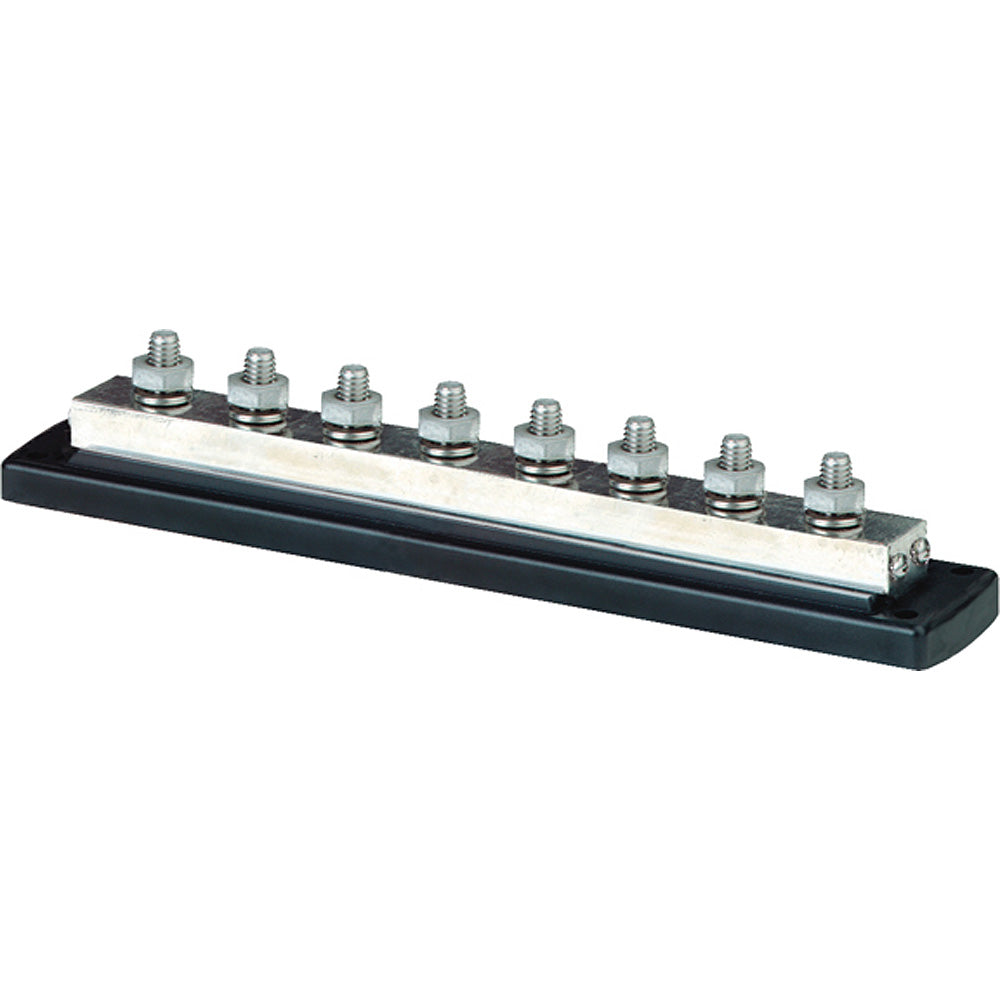

• 2107: 8 terminals. This version gives more landing points for systems with multiple heavy cable runs, such as larger battery banks, inverter circuits, windlass wiring, or grouped distribution feeds.

Installation and setup

Mount the bus bar where cable runs can be kept short, supported, and protected from accidental contact. Engine rooms, battery compartments, electrical panels, and service lockers are common locations, provided the mounting surface is solid and the terminals remain accessible.

Use properly crimped marine cable lugs sized for the conductor and stud, then tighten the stud hardware to the specified torque. High-current connections should be checked as part of routine electrical maintenance, especially after installation, after heavy vibration, or after work has been done near the battery or charging system.

Compatibility and fit

This bus bar is a fit for boats that need a compact high-amperage junction point rather than stacking multiple heavy cables directly on a battery post or device terminal. It is useful on cruising boats, fishing boats, workboats, and refits where the electrical system is being cleaned up or expanded.

Before installation, confirm cable lug hole size, available mounting space, conductor routing, circuit protection, and whether the bus bar will be used for positive, negative, or ground bussing in the vessel’s wiring plan.

Materials and corrosion resistance

The tin-plated copper bus supports conductivity while giving the exposed metal surface better resistance to the conditions found around marine electrical compartments. The insulated base helps separate the energized bus from the mounting surface, but the installation should still be protected from loose gear, tools, and unintended contact.
