Hella Marine Slim Line Surface Mount Spacer Ring, UV-Resistant Plastic, 3in OD x 2in ID x 5/8in

Overview

The Hella Marine Slim Line Spacer Ring is a plastic surface-mount spacer for round courtesy lamps when a flush recess is not practical on your boat. It spaces the lamp off the mounting surface by 15 mm and uses a 75 mm outside diameter footprint, which helps when you are working with thin liners, tight clearances behind panels, or places where you want to avoid a deep cutout.

This ring is made from UV-resistant plastic and is intended for typical onboard conditions like sun exposure, salt air, and vibration. It is a simple way to get a clean finished look while giving the wiring a little more room behind the lamp.

Key features

• Adds 15 mm stand-off depth for surface mounting compatible round courtesy lamps
• 75 mm outside diameter ring size for a consistent fit on round lamp footprints in this family
• UV-resistant plastic for use in bright cabins, cockpits, and other sun-exposed areas
• Offered in black or white to match common headliner and trim colors
• Useful for refits where you want to minimize panel cutouts and keep wiring tucked behind the lamp

Variants

This spacer ring is offered in multiple configurations based on finish color.

The form and function remain the same across the range, with the visible ring color being the change between options.

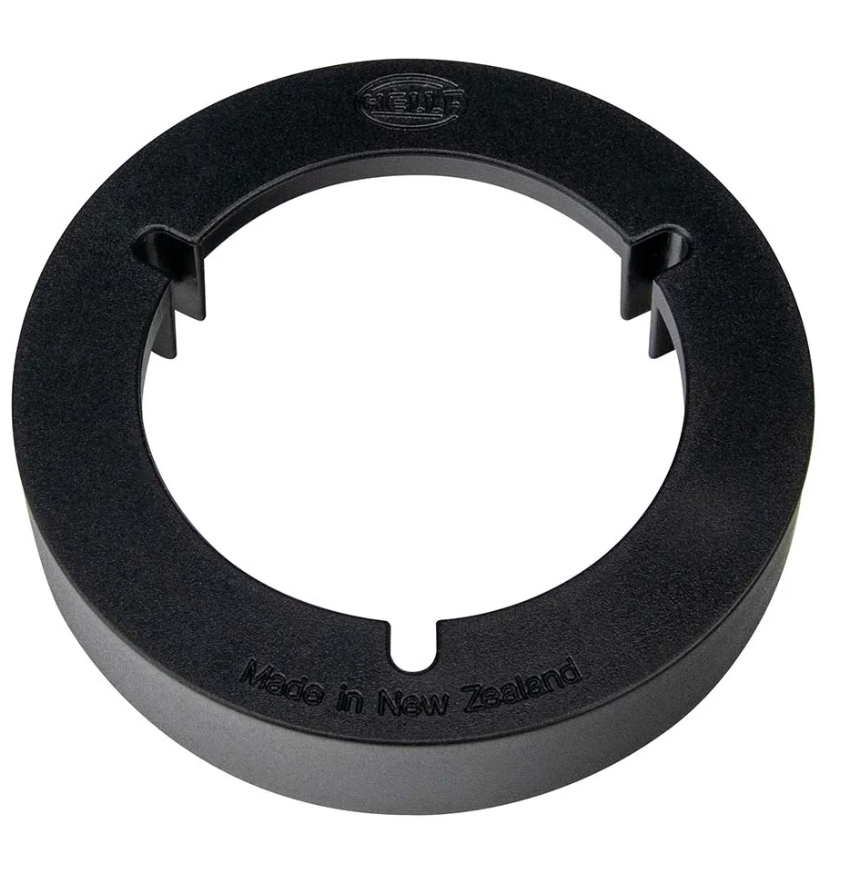

• 959993102: Product color Black. A good match for dark trims, instrument surrounds, and shadowed mounting areas where you want the ring to blend in.

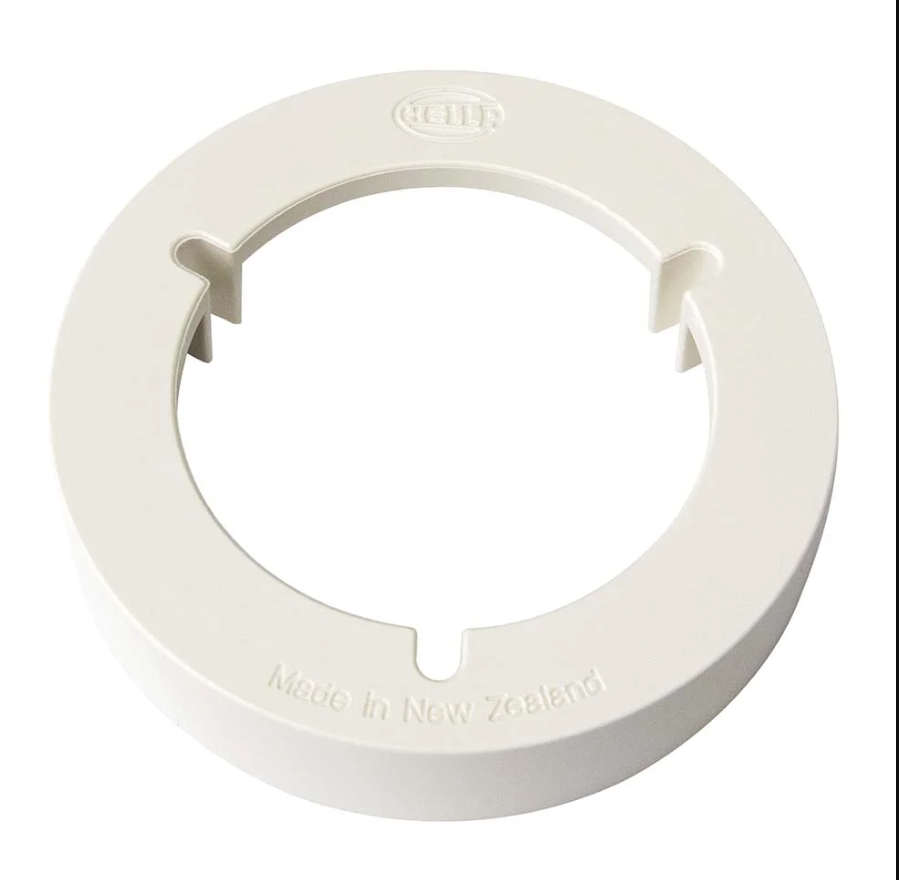

• 959993112: Product color White. Commonly used on light headliners, fiberglass liners, and bright interior panels for a more uniform look.

Installation and setup

Mount the spacer ring to the chosen surface first, then bring the lamp wiring through in a way that keeps it protected and strain-relieved behind the light. Once the ring is secured, the courtesy lamp mounts on top of it, giving you extra room for cable management without forcing a deep recess into the panel.

Compatibility and fit

This part is intended for Hella Marine Slim Line round courtesy lamp applications and the related round lamp footprint in this size family. Before ordering, confirm your existing lamp is the Slim Line round style and that the mounting area has room for a 75 mm outside diameter ring and a 15 mm stand-off.

Use cases on board

This spacer is a practical add-on for step and toe-kick lighting in the cockpit, companionway areas, under-gunnel courtesy lighting, and locker or cabin entry lighting where there is limited space behind the mounting panel. It suits owners doing retrofits on finished interiors who want surface mounting without major fiberglass or woodwork.
