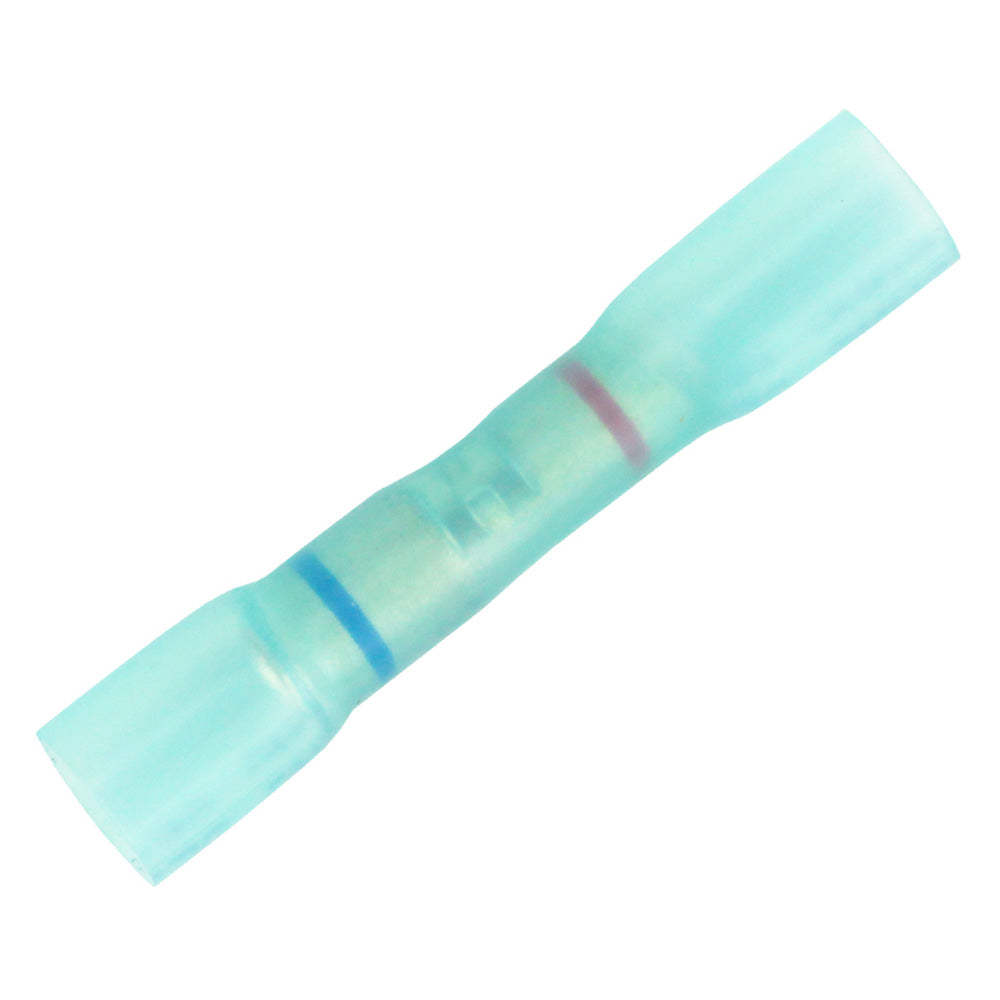

Pacer Group - Step-Down Butt Splices - With Blue Heat Shrink, 22-18 AWG to 16-14 AWG

Secure Connections in the Harshest Environments

When it comes to marine electrical systems, reliable and durable connections are paramount. The Pacer Step-Down Butt Splices with Blue Heat Shrink are specifically designed to provide secure, moisture-resistant connections, ensuring your wiring remains intact and functional, even in the toughest conditions.

Pacer Step-Down Butt Splices are essential for connecting wires of different gauges or for merging multiple wires. These butt splices come with blue heat shrink that offers exceptional moisture protection, making them ideal for marine environments. With an adhesive liner, these splices create a durable, environmentally sealed connection that withstands physical abuse, water, salt, and other corrosive elements. They are perfect for joining wires ranging from 22-18 AWG to 16-14 AWG, ensuring a robust and reliable connection every time.

Key Features

• Moisture Protection: Guards terminations against water, condensation, salt spray, and corrosion.
• Enhanced Durability: Provides added vibration protection and strain relief in rugged environments.
• Quick and Reliable: Easy to use with rapid installation, offering long-lasting durability.
• Adhesive Liner: Ensures a tough, environmentally sealed connection.

Compliances

• UL: Meets Underwriters Laboratories standards.
• CSA: Certified by the Canadian Standards Association.
• RoHS: Compliant with the Restriction of Hazardous Substances directive.

Technical Specifications

• Shrink Ratio: Approximately 3:1 at 135 degrees C.
• Operating Temperature: -55 degrees C to 125 degrees C.
• Volume Resistivity: 10^15 Ohm-cm^3.
• Dielectric Strength: 900V/mil.
• Voltage Rating: 600V.
• Gauge (AWG): 22-18 AWG to 16-14 AWG.
• Max. Wire Insulation Outer Diameter: 0.21 in.
• Heat Shrink Color: Blue.

Product Dimensions

• Wire Gauge Range: 22-18 AWG to 16-14 AWG.
• Max. Outer Diameter: 0.21 in.

Variants List

• 100 Pack: TBSDE14-18-100
• 500 Pack: TBSDE14-18-500

Unmatched Performance in Every Connection

These step-down butt splices are designed for quick, secure, and reliable connections in marine applications. The blue heat shrink ensures a visually identifiable and durable bond, protecting against harsh environmental conditions. Whether you're working on a small boat or a large marine vessel, Pacer Step-Down Butt Splices with Blue Heat Shrink are your go-to solution for dependable wiring connections.

Equip your marine electrical system with the best. Choose Pacer Step-Down Butt Splices and ensure your connections are protected, durable, and reliable.
