BocaTech Mini LED Nav/Anchor Push Button Switch, 12/24V DC, 2 Channel

Overview

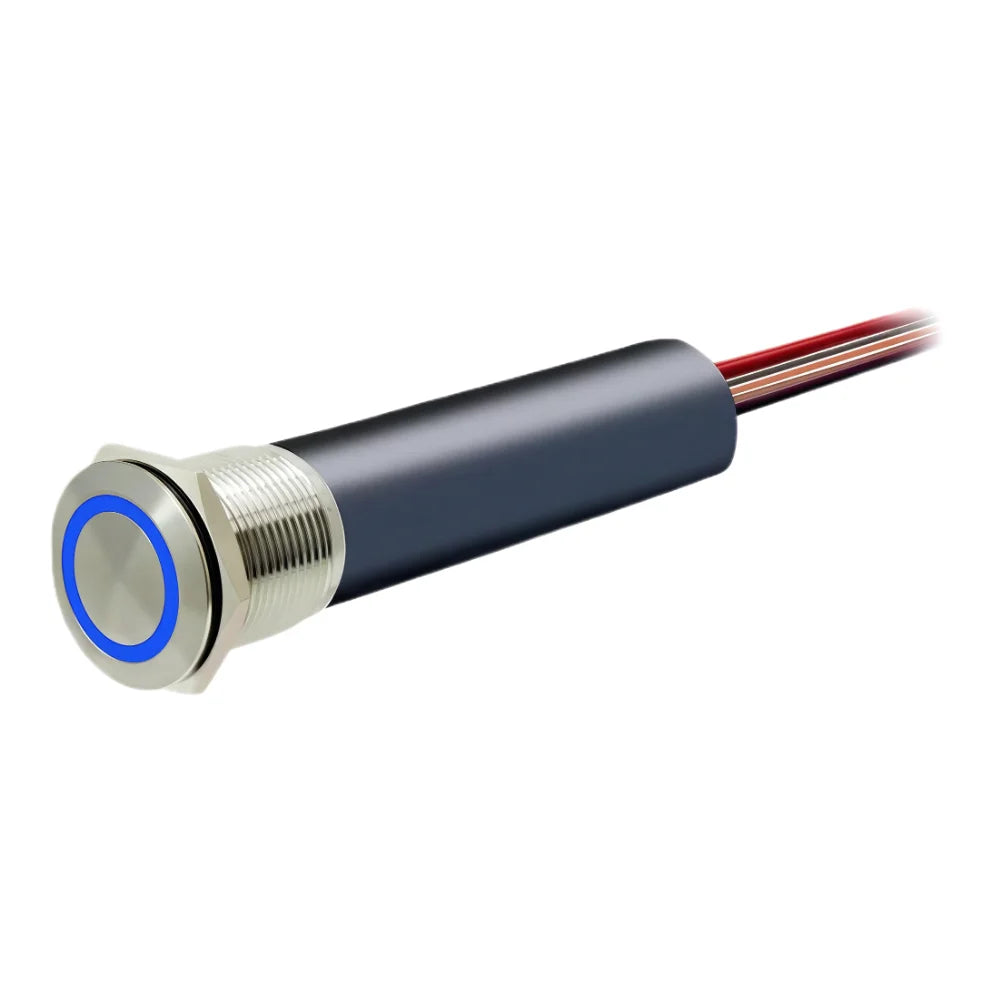

The BocaTech BTNAVLEDSW is a compact, two-channel LED push button switch that controls a boat's navigation and anchor lights from a single panel-mounted control. Operating on 12V or 24V DC systems, it supports up to 5A per channel and uses a three-position switching sequence to manage both lighting circuits without separate switches.

Each press changes the lighting configuration. The first press activates both navigation and anchor lights, illuminating the switch's LED ring blue. The second press turns off the navigation lights while keeping the anchor light on, changing the indicator to red. A third press switches both circuits off. The switch incorporates 316 stainless steel components, solid-state circuitry, and a compact housing suitable for helm panels where mounting space is limited.

Key features

• Two independent 5A DC output channels for navigation and anchor lighting control.

• Compatible with 12V and 24V DC marine electrical systems.

• Three-position push button operation with blue and red LED status indication.

• 316 stainless steel construction with ignition-proof and vibration-resistant design.

• IP67 protection at the switch face and IP44 protection at the rear.

• 19mm (3/4 in) panel mounting hole with support for panel thicknesses from 1mm to 10mm.

• Integrated surge protection and solid-state switching circuitry.

Installation and setup

The switch mounts through a 19mm (3/4 in) panel opening and accommodates panel thicknesses up to 10mm. Its compact configuration allows navigation and anchor lighting controls to occupy a single mounting position, reducing the space required on a helm or electrical control panel.

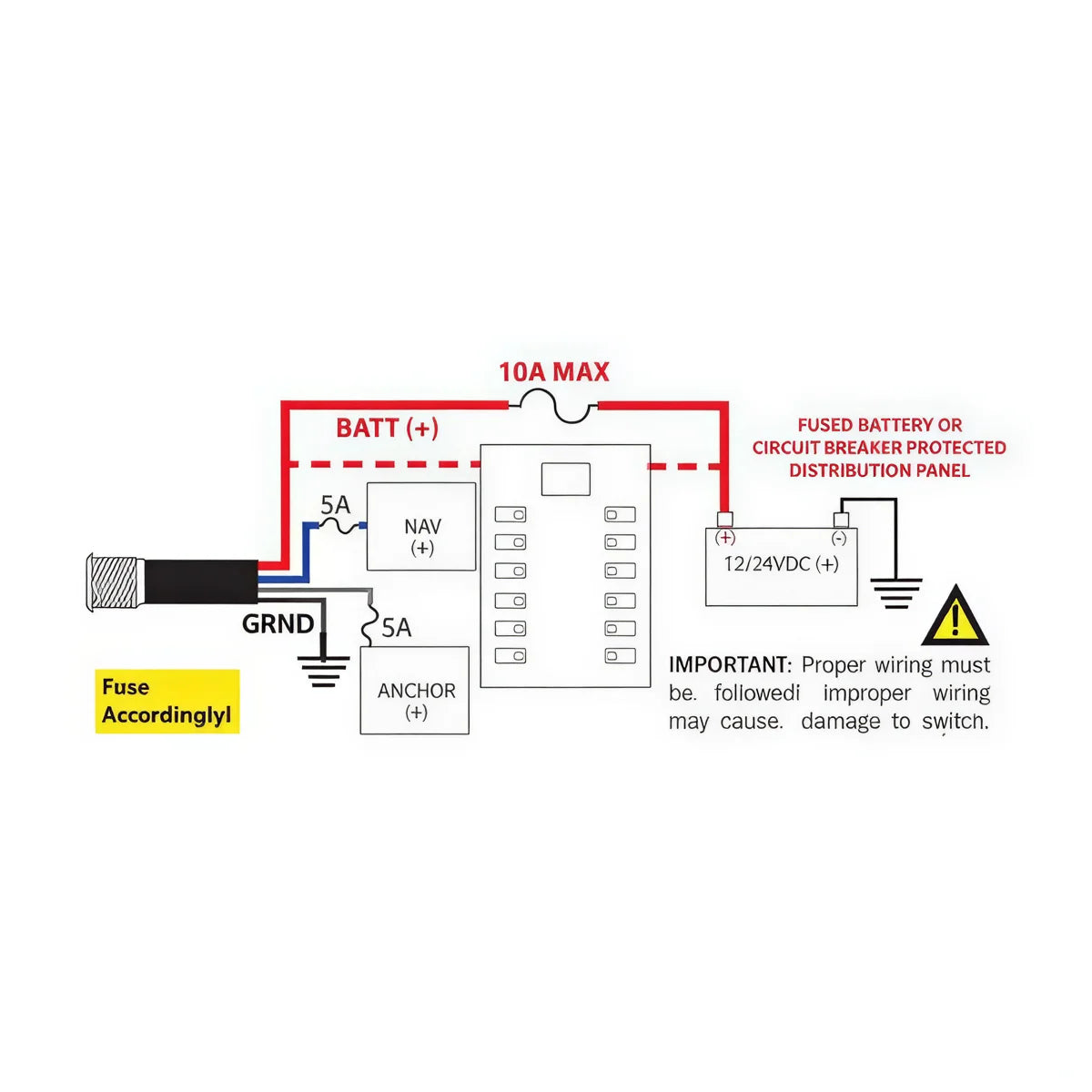

The two output channels connect to the vessel's navigation and anchor lighting circuits. Each channel supports a maximum load of 5A DC. Because the switch does not incorporate a resettable circuit breaker, appropriate external circuit protection is required as part of the electrical installation.
