Lopolight 360° Yellow LED Strobe Signal Light, 10-32VDC, IP68

Overview

This Lopolight 360° yellow LED signal light combines constant illumination and 2 Hz strobe operation in a single marine navigation fixture. Operating on 10-32VDC, it features an IP68-rated aluminum base, a plug connector, and downward cable routing through M16 glands.

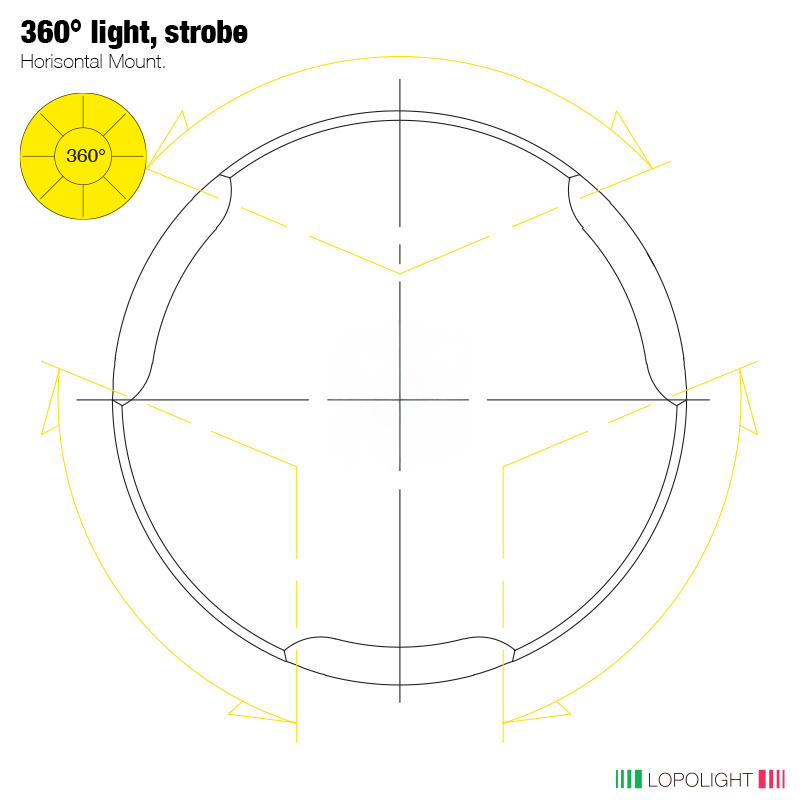

The light is configured for horizontal mounting and measures 92.5 mm (3.6 in) in diameter and 74.5 mm (2.9 in) in height. Its PMMA lens delivers yellow light through a full 360° horizontal arc, with luminous intensity exceeding 15 cd. The fixture is available in silver or black anodized aluminum finishes.

Key features

• 360° yellow LED illumination with constant-on and 2 Hz strobe operating modes.

• 10-32VDC operating range, with current consumption of 300 mA at 12VDC and 151 mA at 24VDC.

• IP68-rated aluminum base with a plug connector and cable-down M16 glands.

• Horizontal mounting configuration with a 92.5 mm diameter and 74.5 mm overall height.

• PMMA lens, anodized aluminum construction, and A4 stainless steel screws.

• Tested to IEC 60945 for maritime navigation and radiocommunication equipment.

• Operating temperature range of -25°C to 55°C.

Variants

This signal light is available in two housing finishes: silver and black anodized aluminum.

The housing finish varies between configurations, while both versions retain the same yellow light output, constant-on and strobe functions, 10-32VDC operating range, IP68 protection, and horizontal mounting arrangement.

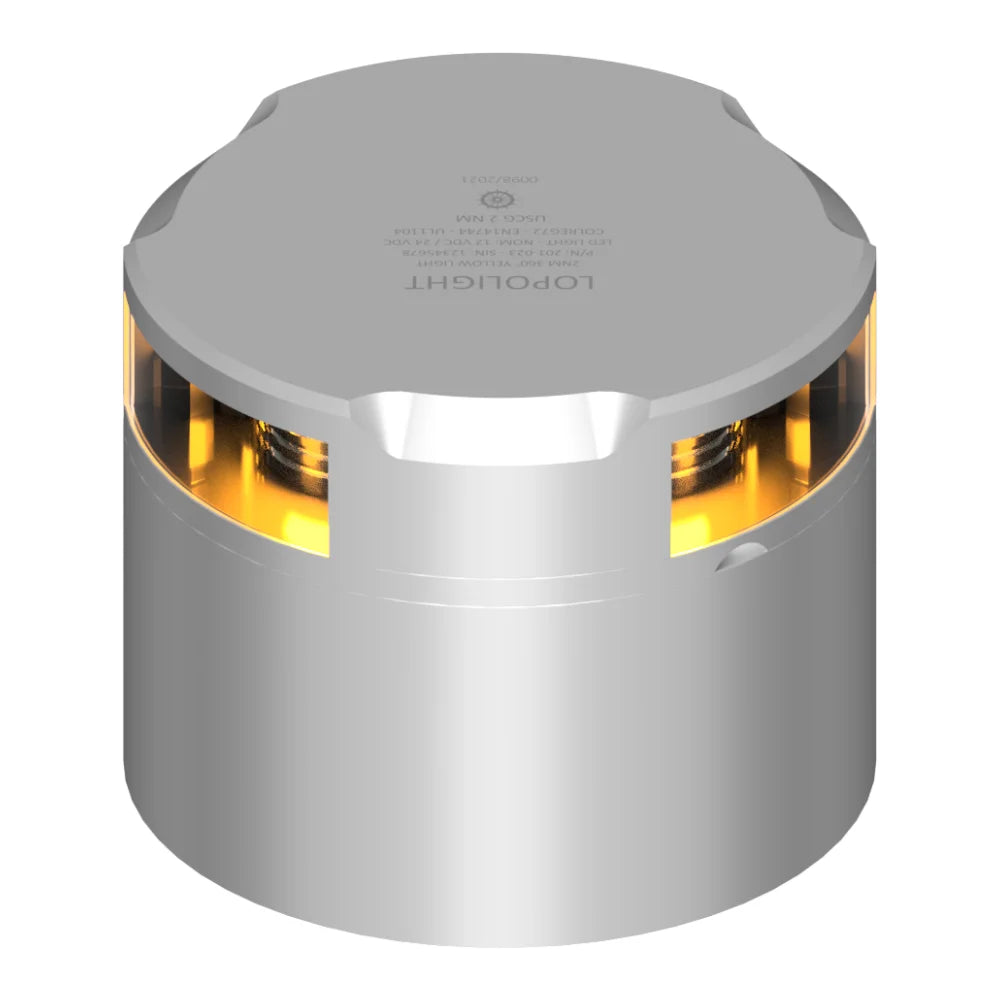

• 201-023S-CD: Silver finish. Features a silver anodized aluminum housing with the standard plug connector and cable-down aluminum base.

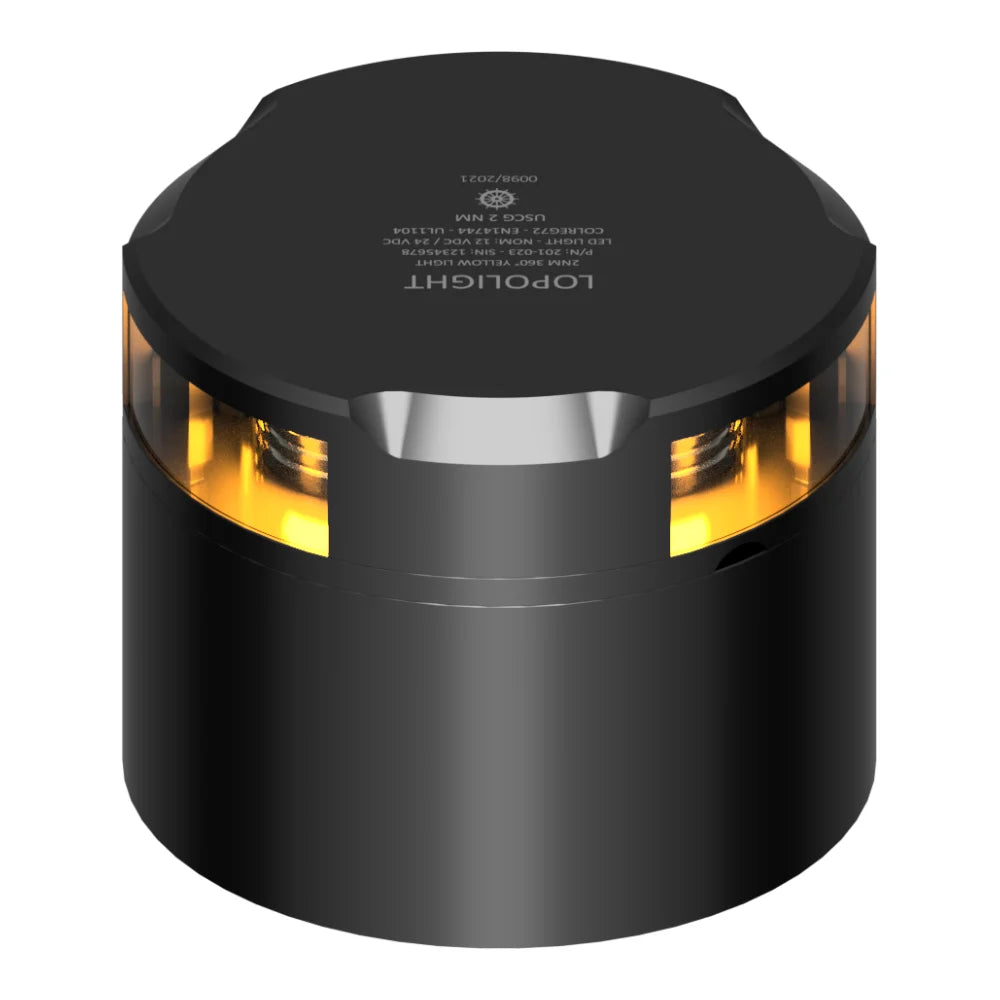

• 201-023S-B-CD: Black finish. Features a black anodized aluminum housing with the same electrical functions, connector, and mounting arrangement.

Installation and setup

The fixture mounts horizontally, with electrical wiring routed downward through the M16 cable glands in the aluminum base. Its plug connector provides the electrical connection, while the 10-32VDC operating range accommodates compatible DC marine electrical systems. The constant and strobe functions allow the fixture to serve installations requiring either continuous yellow illumination or a flashing yellow signal.

What's included

• 1 LED navigation signal light in the selected finish.
