Garmin ECHOMAP Ultra 2 Flush Mount Kit, Size-Specific

Overview

The Garmin Flush Mount Kit is a size-matched mounting kit that lets a compatible ECHOMAP Ultra chartplotter sit flush in a helm panel or other flat surface. It is offered for 10-inch, 12-inch, and 16-inch displays, with the cutout and hardware matched to the screen size so the unit sits cleanly in the dash instead of on a bracket.

Flush mounting is a good fit for center consoles, pilothouses, and electronics boxes where you want a low-profile face that is easier to wipe down and less likely to get bumped by knees, rods, or lines. Plan your install with enough clearance behind the panel for cable bends and service access before cutting the opening.

Key features

• Flush-mount style install for compatible Garmin ECHOMAP Ultra chartplotters on most flat boat surfaces
• Size-specific options for 10-inch, 12-inch, and 16-inch displays so the cutout and face fit the unit frame
• Includes a cutout template to help lay out the opening before you drill and cut
• Mounting hardware is included for securing the chartplotter to the panel
• Works well in tight helm layouts where a bracket mount would protrude into the cockpit or walkway

Variants

This product is offered in multiple sizes to match different ECHOMAP Ultra display formats.

The screen size is what changes between versions, along with the matching panel cutout and mounting layout. Hardware, installation instructions, and a template are included with each size kit.

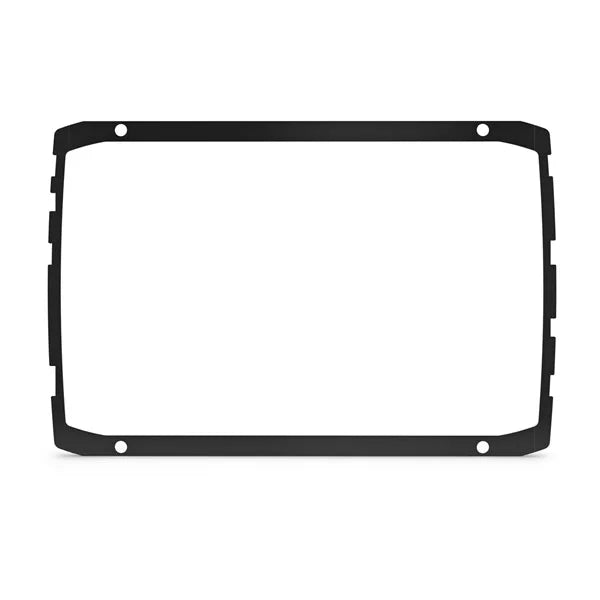

• 010-12841-03: Size 10-inch. Used for ECHOMAP Ultra 102sv/106sv and ECHOMAP Ultra 2 10-inch chartplotters, with the cutout and fasteners sized for that frame.

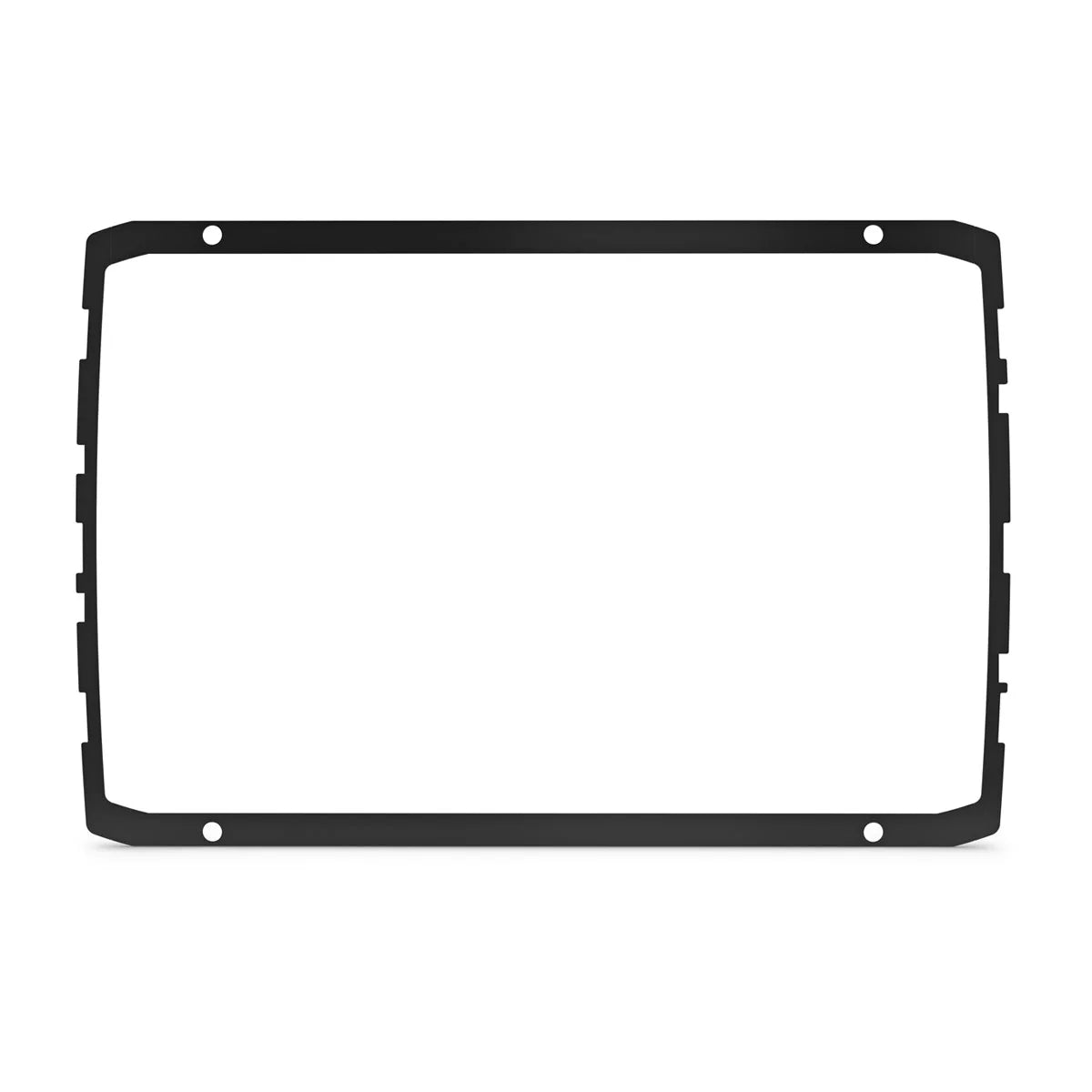

• 010-12842-03: Size 12-inch. Used for ECHOMAP Ultra 122sv/126sv and ECHOMAP Ultra 2 12-inch chartplotters, with the cutout and mounting layout matched to the 12-inch face.

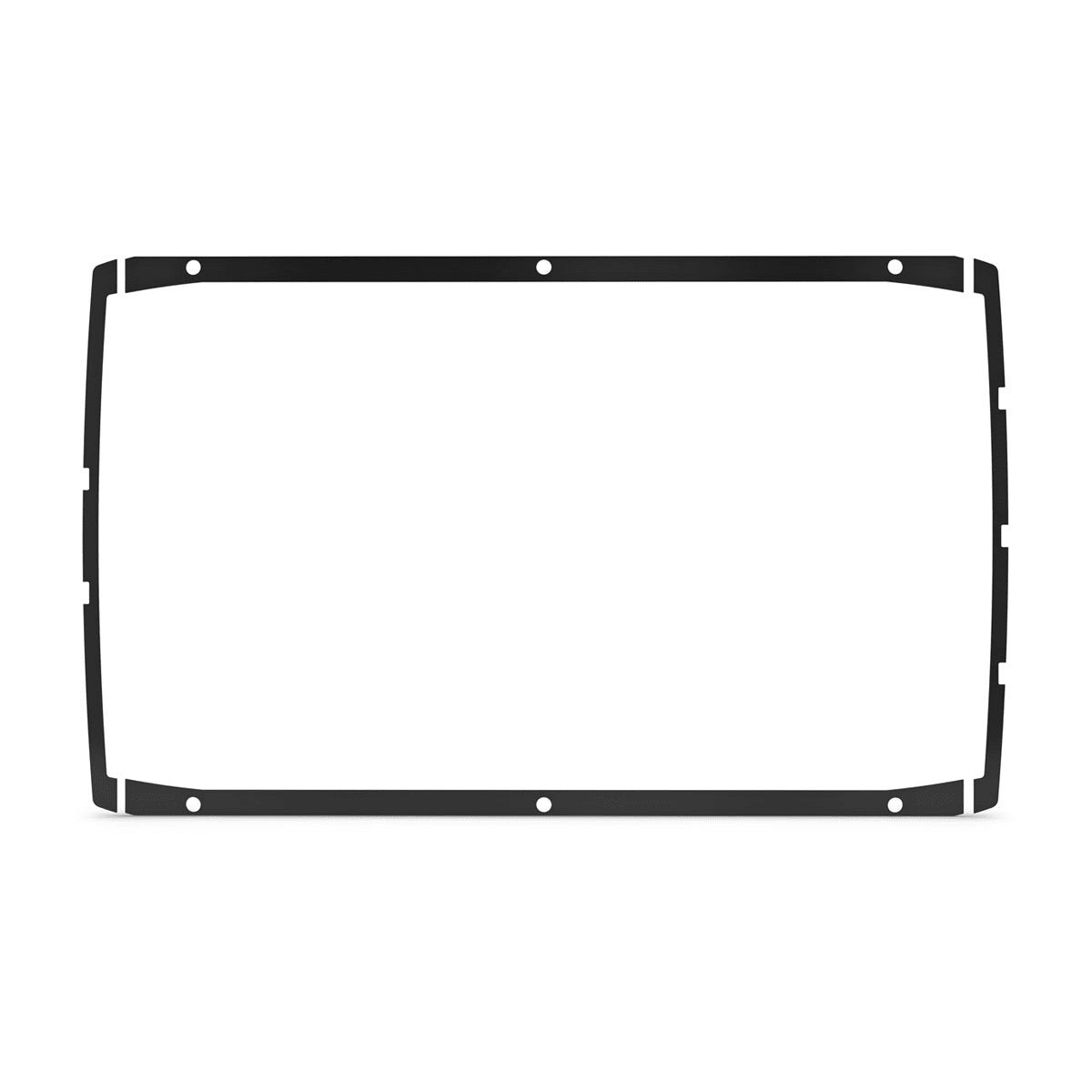

• 010-13352-13: Size 16-inch. Used for ECHOMAP Ultra 2 16-inch chartplotters, with the panel opening and mount pattern matched to the larger chassis.

What’s included

• Flush mount hardware
• Installation instructions
• Mounting template

Installation and setup

Start by choosing a flat mounting area with enough room behind the panel for connectors and cable routing. Use the included template to mark the cutout and fastener locations, then drill pilot holes and cut the opening carefully.

On cored fiberglass panels, sealing the raw cut edges helps keep moisture out of the laminate. After the unit is seated and fastened, confirm the display face sits evenly against the panel and that the keypad and card access (if applicable) remain usable.

Compatibility and fit

Fit is determined by the chartplotter screen size and model family, not just the diagonal measurement you prefer at the helm. Match the kit size to your ECHOMAP Ultra unit: 10-inch kits cover 102sv and 106sv formats, 12-inch kits cover 122sv and 126sv formats, and the 16-inch kit is for ECHOMAP Ultra 2 16-inch units.

This kit is a good match for boaters who already know where they want the chartplotter mounted and need a clean, flush install in a dash, helm pod, or electronics enclosure.
