Imtra X-Beam G4 LED Bulb, 10-30VDC, Side Pin, Cool White

Overview

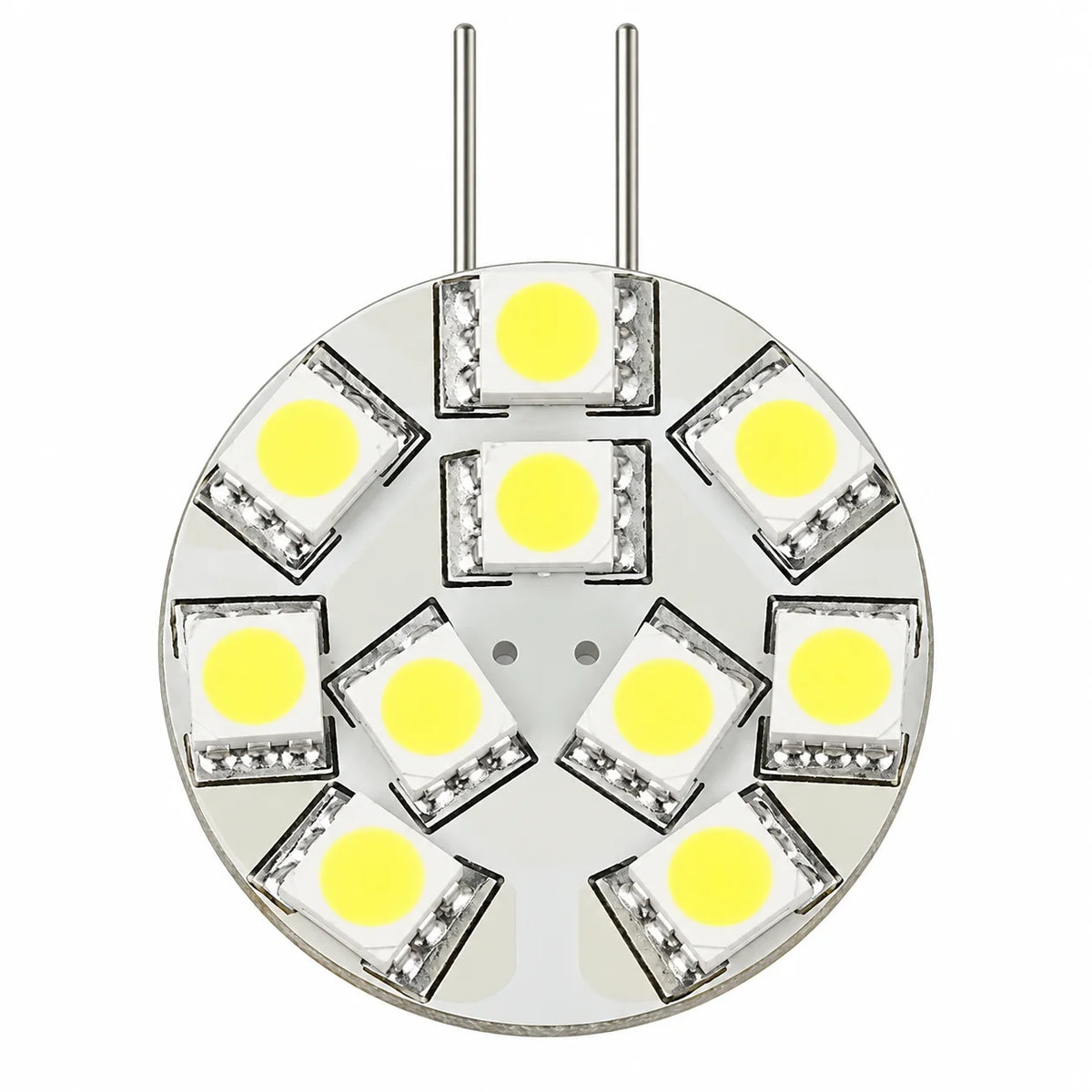

The Imtra ILSPG4-10C is an X-Beam directional LED replacement bulb with a G4/GU4 side-pin connection and cool white light output. Operating on 10-30VDC with a maximum power consumption of 2.2W, it delivers 150 lumens through 10 surface-mounted LEDs, making it suitable for compatible marine ceiling fixtures and spotlights.

The bulb uses PWM constant-current circuitry to regulate LED operation and incorporates thermal protection, reverse-polarity protection, and transient voltage suppression. Its compact circular design allows it to replace compatible G4 bulbs without replacing the entire light fixture.

Key features

• Cool white LED output rated at 150 lumens.

• 10-30VDC operating range with 12VAC transformer compatibility.

• Maximum power consumption of 2.2W.

• G4/GU4 side-pin socket configuration.

• 31.5 mm bulb diameter.

• Directional illumination with a beam angle greater than 90 degrees.

• PWM constant-current drive with automatic thermal rollback protection.

• Reverse-polarity protection and transient voltage suppression up to 60V.

Compatibility and installation

This bulb is intended for compatible G4 side-pin fixtures, including certain dome-style ceiling lights and spotlights. Before installation, verify the socket type, available clearance, and pin-hole orientation. The socket holes must align with the bulb's side pins; fixtures with a different orientation may require socket realignment.

The wide DC input range supports compatible 12V and 24V marine electrical systems. The bulb can also operate from a suitable 12VAC transformer supply.
