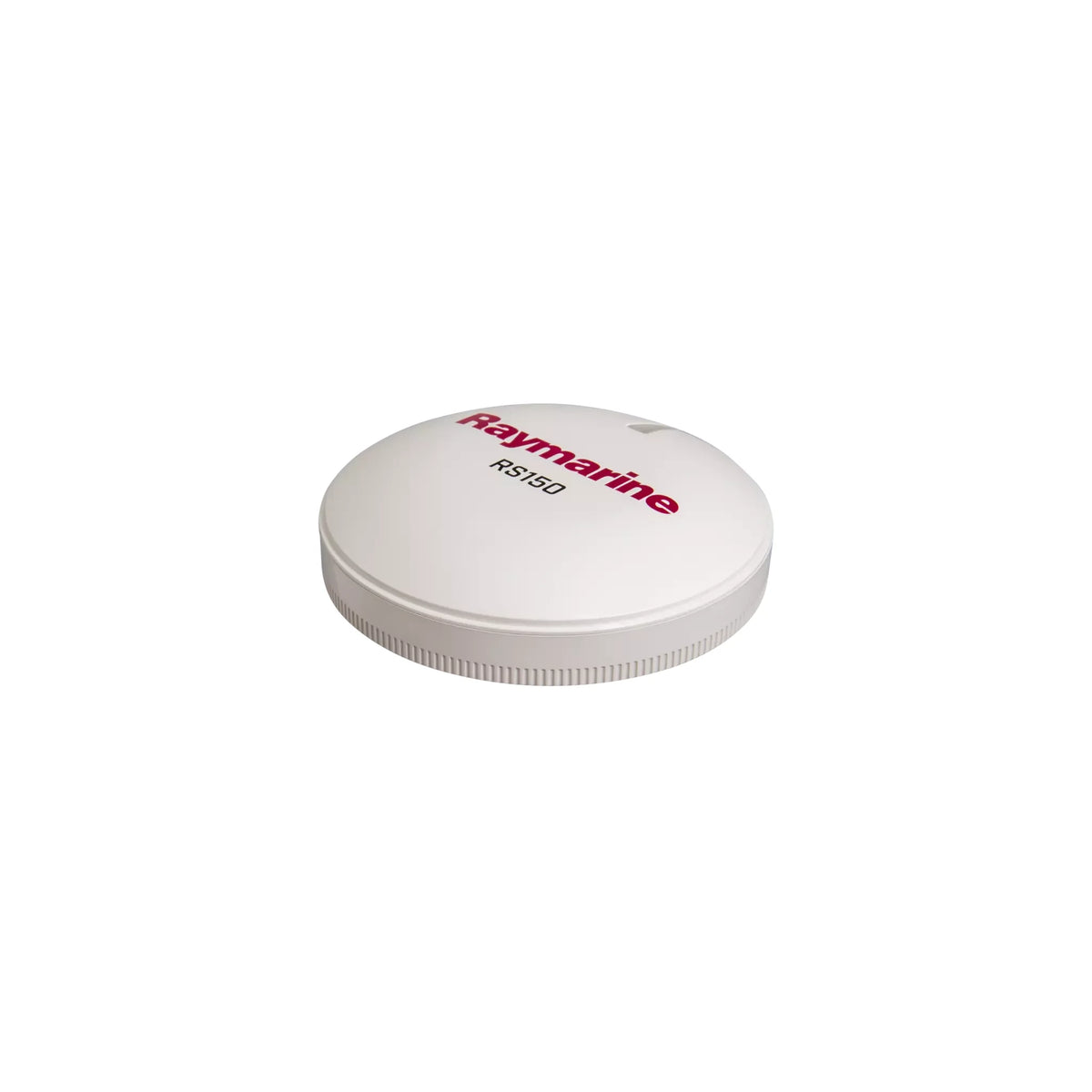

Raymarine RS150 GPS Receiver, 72-Channel, 10Hz, SeaTalkng, NMEA 2000 Compatible

Overview

The Raymarine RS150 is a self-contained GPS/GNSS receiver for feeding accurate position data into Raymarine navigation systems. It uses a 72-channel receiver with fast 10 Hz position updates, making it a practical choice when the boat needs a dedicated remote GPS sensor rather than relying only on the receiver built into a display.

The unit connects through SeaTalkng and can also be used with NMEA 2000 networks when the correct DeviceNet adapter cable is fitted. It runs from a 12 V dc SeaTalkng network, draws only 30 mA with a 1 LEN load, and supports SBAS corrections from WAAS, EGNOS, MSAS and GAGAN for improved position accuracy where those services are available.

With an IPx6 waterproof rating, a low-profile body, and support for surface or pole mounting depending on the selected configuration, the RS150 suits exposed electronics areas such as hardtops, arches, pilothouse roofs, consoles and other clear-sky mounting points on cruising, fishing and sailing vessels.

Key features

• 72-channel GPS/GNSS receiver for remote position sensing on Raymarine navigation systems.
• 10 Hz position updates help chartplotters, instruments and networked displays react smoothly as the vessel moves.
• SBAS support includes WAAS, EGNOS, MSAS and GAGAN for differential GPS correction in supported regions.
• GLONASS compatibility adds another satellite constellation for better positioning coverage.
• SeaTalkng connection for straightforward integration with compatible Raymarine networks.
• NMEA 2000 compatibility is available when used with a suitable DeviceNet adapter cable.
• 12 V dc operation from the SeaTalkng network, with a 9 V dc to 16 V dc operating range and protection up to 32 V dc.
• Low power draw of 30 mA, equal to 1 LEN on an NMEA 2000 network.
• IPx6 waterproof rating helps the receiver handle spray and washdown exposure in normal marine use.
• Compact housing measures 108.48 mm in diameter and 26.61 mm high for a clean, low-profile installation.

Variants

The RS150 is offered in two configurations. Both versions refer to the same RS150 GPS/GNSS receiver family, with the mounting package being the key difference between them.

The standard configuration is set up for low-profile surface mounting, while the pole-mount version adds the hardware needed when the receiver needs to sit higher or in a position with a clearer view of the sky.

• E70310: Configuration Standard. This version suits installations where the receiver can be surface mounted on a hardtop, deck, console, arch or other location with a clear sky view.
• T70327: Configuration With Pole Mounting Kit. This version includes the pole mounting kit for installations where raising the antenna helps avoid shadows from rails, canvas, electronics boxes or other topside equipment.

Compatibility and system integration

The RS150 is made for Raymarine navigation networks using SeaTalkng. In a typical installation, it shares position data with compatible Raymarine multifunction displays and instruments through the onboard network, so the display does not need to be the only source of GPS position.

For mixed electronics systems, the receiver can also be integrated with NMEA 2000 equipment when the correct adapter cable is used. This matters on boats where chartplotters, instruments, autopilot components or other devices need a consistent GPS/GNSS source across the network.

Mounting and installation

Mount the receiver where it has the clearest practical view of the sky and away from equipment that could block satellite reception. Common locations include the cabin top, flybridge hardtop, radar arch, pilothouse roof or a dedicated electronics pole.

The low-profile standard mount works well when the mounting surface is already high and unobstructed. The pole-mount configuration is useful when the receiver needs extra height or a cleaner horizon around it, especially on boats with canvas, rails, domes or other topside equipment close by.

Use on board

This receiver is a good match for owners adding or replacing a dedicated GPS source on a Raymarine network, especially when reliable position data is important for chartplotting, waypoint work, speed over ground, course over ground and general navigation. It fits well on coastal cruising boats, fishing boats, sailboats and larger vessels that benefit from a dedicated receiver mounted where satellite reception is stronger.
