Imtra Tower Navigation Bayonet LED Bulb, BAY15d, 10-30VDC

Overview

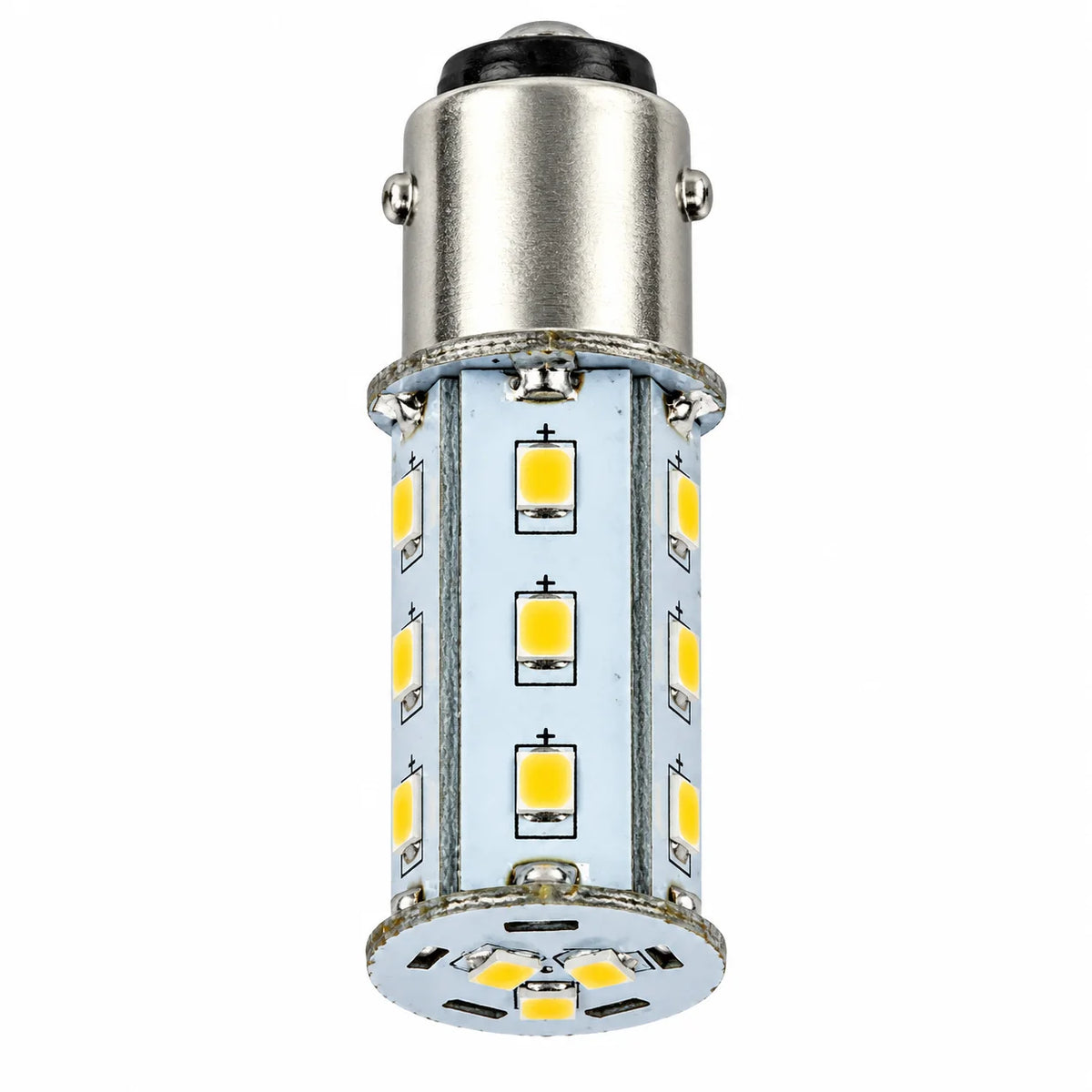

The Imtra Tower is a bayonet-base LED replacement bulb for marine navigation and anchor light fixtures using a BAY15d double-contact socket with offset pins. It operates on 10-30VDC systems and uses 18 surface-mount LEDs arranged across six planes to produce a 360° illumination pattern.

The bulb supports all-around navigation lighting applications, including anchor, stern, and running lights when paired with appropriate fixtures and lens colors. Its PWM constant-current circuitry regulates LED operation across the supported voltage range, making it suitable for compatible 12V and 24V marine electrical systems.

Key features

• BAY15d bayonet base with double contacts and offset locking pins.

• 18 surface-mount LEDs arranged for 360° light distribution.

• 10-30VDC input for compatible 12V and 24V electrical systems.

• PWM constant-current driver with over-voltage protection.

• Compatible with specified Aqua Signal Series 40, 41, 42, and 50, Hella 2984, and Perko 200 navigation light fixtures.

Variants

The bulb is available in two output colors for different navigation light lens applications.

Both configurations retain the BAY15d socket, 10-30VDC operating range, and omnidirectional LED arrangement. The primary difference is the emitted light spectrum and its suitability for clear or colored navigation lenses.

• ILTW1157-SMC, Cool White: Produces higher white-light output for clear-lens fixtures, particularly anchor and stern lights.

• ILTW1157-SMW, Warm White: Produces a broader light spectrum suited to colored navigation lenses, including red, green, bi-color, and tri-color configurations.

Compatibility and installation

The BAY15d base uses two electrical contacts and offset locking pins. Confirm the existing fixture's socket configuration and available internal clearance before replacing its original bulb. Lens color must also match the selected LED output to maintain the intended navigation light color.

Navigation light compliance

Navigation lights are tested and approved as complete fixtures with their original light sources. Substituting an LED bulb does not independently establish compliance with USCG, COLREG, or other applicable navigation lighting regulations. The suitability of the modified fixture must be verified for its intended use.
