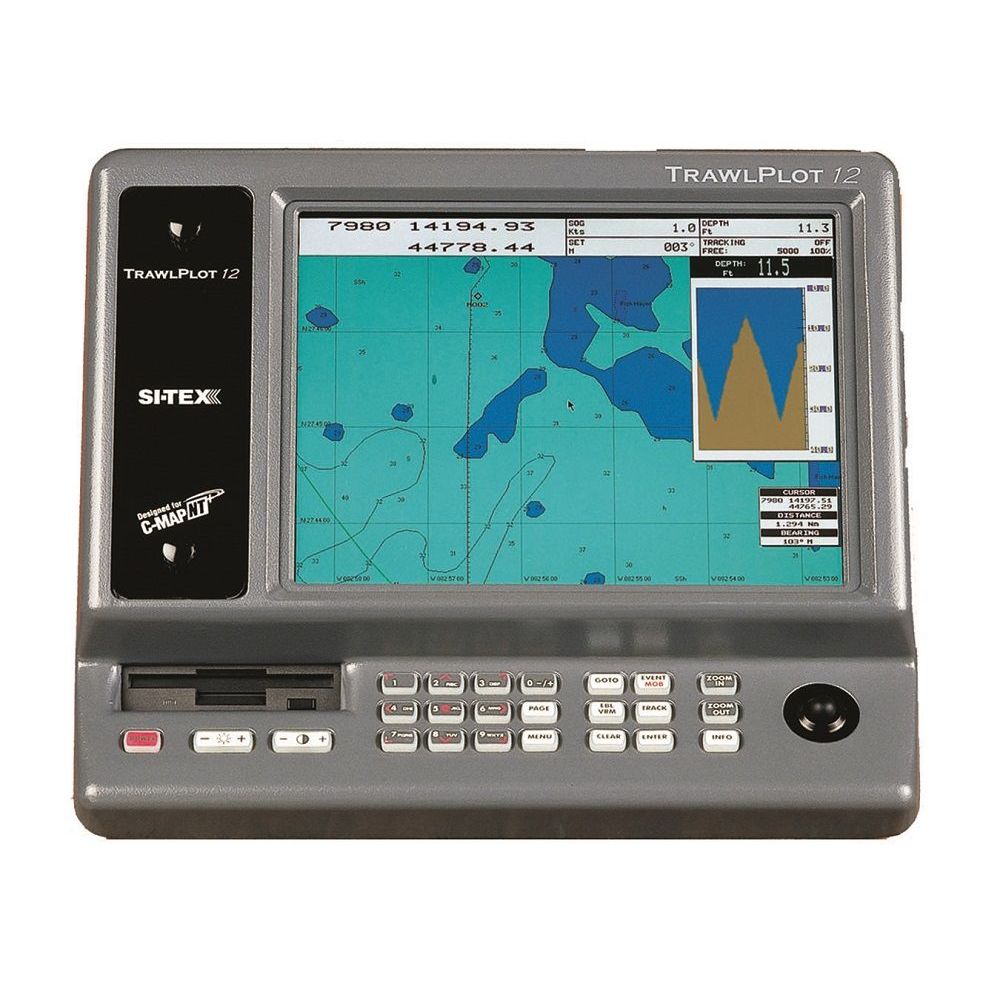

SI-TEX - Trawlplot 12 SD Plotter

Advanced Marine Navigation with the Si-Tex TrawlPlot 12 SD

The Si-Tex TrawlPlot 12 SD is a high-performance marine chart plotter designed for professional and commercial applications. Engineered with cutting-edge technology, this system offers precise navigation, rapid response times, and seamless integration with essential marine electronics. Its robust feature set ensures reliability in demanding marine environments, making it an indispensable tool for trawlers, commercial vessels, and professional mariners.

High-Definition Display for Enhanced Visibility

Equipped with a 12.1-inch XVGA Color LCD TFT display, the TrawlPlot 12 SD provides exceptional clarity with an 800 x 600 resolution. The daylight-viewable screen ensures optimal visibility in varying lighting conditions, offering clear and detailed charting information.

Powerful GPS and Loran Positioning

The external GPS/WAAS receiver delivers pinpoint accuracy, placing your vessel within three meters of your set waypoint. Additionally, an optional external GPS/Loran receiver variant (TrawlPlot 12SDL) supports True Loran Positioning, enhancing navigational precision.

Lightning-Fast Processing for Instant Chart Updates

Powered by an Intel XSCALE high-speed processor, this plotting system enables near-instant screen changes and zoom adjustments, regardless of the level of chart detail displayed. Mariners can navigate efficiently without delays, ensuring smooth operation even in complex marine environments.

C-MAP MAX Compatibility for Advanced Charting

The system supports C-MAP MAX, one of the most advanced charting formats available, offering enhanced navigational details, interactive points of interest, and seamless integration with real-time data. It can function either as a full-featured chart plotter with four C-Card slots or as a track plotter without a map display.

Anti-Grounding Protection and Safety Features

The Guardian™ Programmable Anti-Grounding feature provides real-time alerts if the vessel’s course approaches charted shoals, obstructions, or shallow waters, adding an essential layer of safety.

Expandability for a Complete Marine System

The TrawlPlot 12 SD can be expanded into an all-in-one navigation system with optional modules, including:

• ES502 Fishfinder Module for enhanced depth tracking
• 2kW to 4kW MDS Radar Sensors for comprehensive situational awareness

Depth Tracking and Tide Information

A Depth Graph feature accepts input from an onboard sounder or optional Active Transducer, providing a graphical representation of current and historical depth readings. Additionally, the built-in Tide Info feature uses local C-Card data to generate tide graphs for nearby ports.

Advanced Route and Data Management

• Stores up to 5,000 waypoints and 50 routes
• Tracks up to 50,000 points with unlimited data storage via optional SD memory cards
• "One-Touch" event mark for easy storage and retrieval of key waypoints
• Find Function locates essential marine services such as boatyards and fuel stations using C-Card data

Intuitive Controls and Connectivity

Featuring a joystick-controlled on-screen cursor, the TrawlPlot 12 SD allows for effortless plotting, panning, zooming, and waypoint management. The system also includes two NMEA-0183 data ports for seamless integration with other onboard marine electronics.

Product Dimensions

• Height: 13.5 inches
• Width: 15 inches
• Depth: 8.9 inches

Technical Specifications

• Display Size: 12.1 inches
• Display Type: XVGA LCD TFT
• Resolution: 800 x 600 pixels
• Power Input: 10-35V DC
• Power Draw: 15W

Key Highlights

• High-definition 12.1-inch XVGA LCD display for superior clarity
• External GPS/WAAS with precision within three meters
• Intel XSCALE processor for rapid screen updates
• C-MAP MAX chart compatibility for detailed navigation
• Expandable to include fishfinder and radar functionalities
• Guardian™ Anti-Grounding feature for added safety
• Large storage capacity for waypoints, routes, and track points
• NMEA-0183 data ports for seamless connectivity

The Si-Tex TrawlPlot 12 SD is a professional-grade navigation system, built for mariners who demand precision, reliability, and efficiency on the water.
