Vimar LINEA Two 2P+E USA SICURY Outlet, 15A, 127V, 3-Module, Flush-Mounted

Overview

The Vimar LINEA Series is a range of dual American-standard SICURY outlets with two 15 A, 127 V receptacles in a 3-module flush-mount format. Across the listed variants, the electrical layout stays the same, with screw-terminal connection, enhanced contact protection, and an IP20 rating for protected interior spaces.

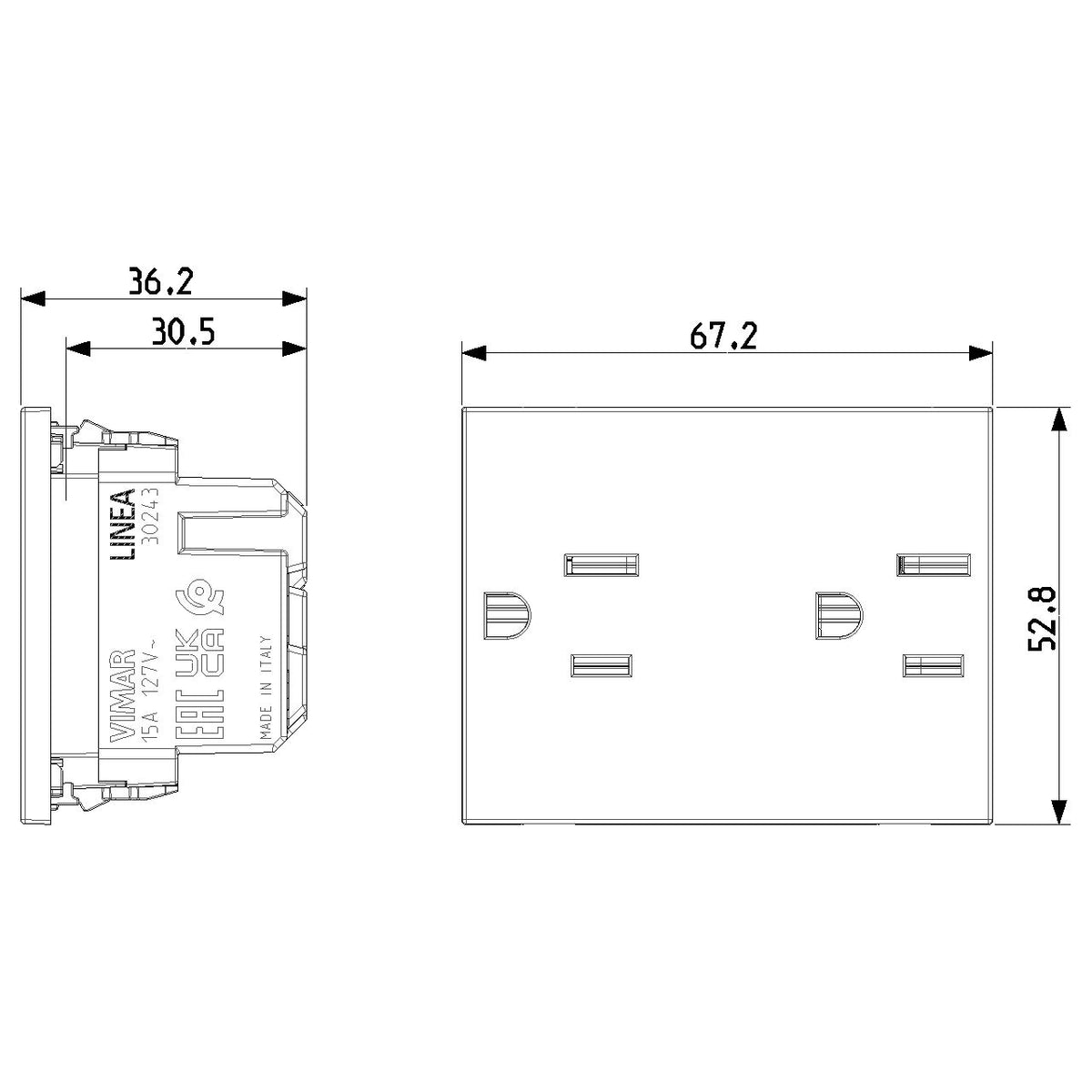

This outlet is suited to cabins, saloons, galleys, and other dry locations on board where a clean flush finish matters and two receptacles are needed in one compact opening. The body is thermoplastic, halogen-free, and finished with an untreated matt surface, with overall dimensions of 67.2 x 52.8 x 36.2 mm.

Because it is a 127 V, 15 A outlet, it should be matched to vessels and shore power systems that use that voltage standard. It is not a weather-exposed deck fitting, and it does not include built-in fault current protection, overvoltage protection, or a miniature fuse.

Key features

• Two American-standard SICURY outlets in one 3-module insert
• Rated 15 A, 127 V, 50 to 60 Hz
• Flush-mounted body with snap mounting for LINEA modular installations
• Screw-terminal connection for fixed wiring
• Enhanced contact protection at both outlets
• Thermoplastic construction that is halogen-free with a matt untreated finish
• IP20 rating for protected interior locations
• Compact dimensions of 67.2 x 52.8 x 36.2 mm

Variants

This product is offered in multiple finish options within the same LINEA outlet format.

The listed variants change by color finish. The verified electrical rating, dimensions, module size, mounting method, connection type, and IP rating remain the same across these options.

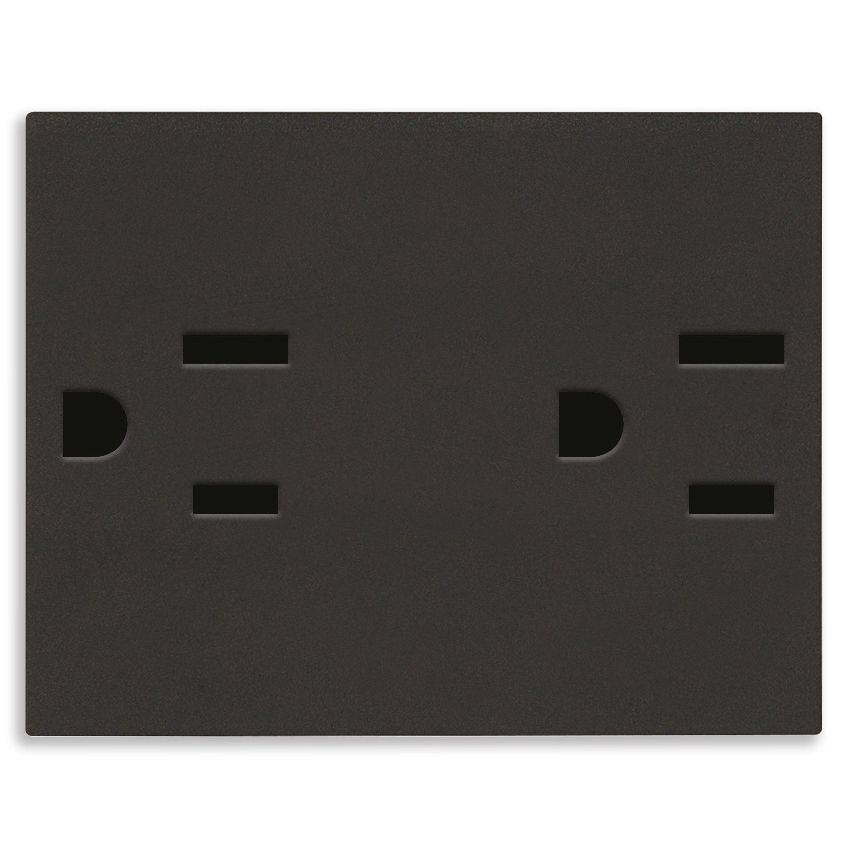

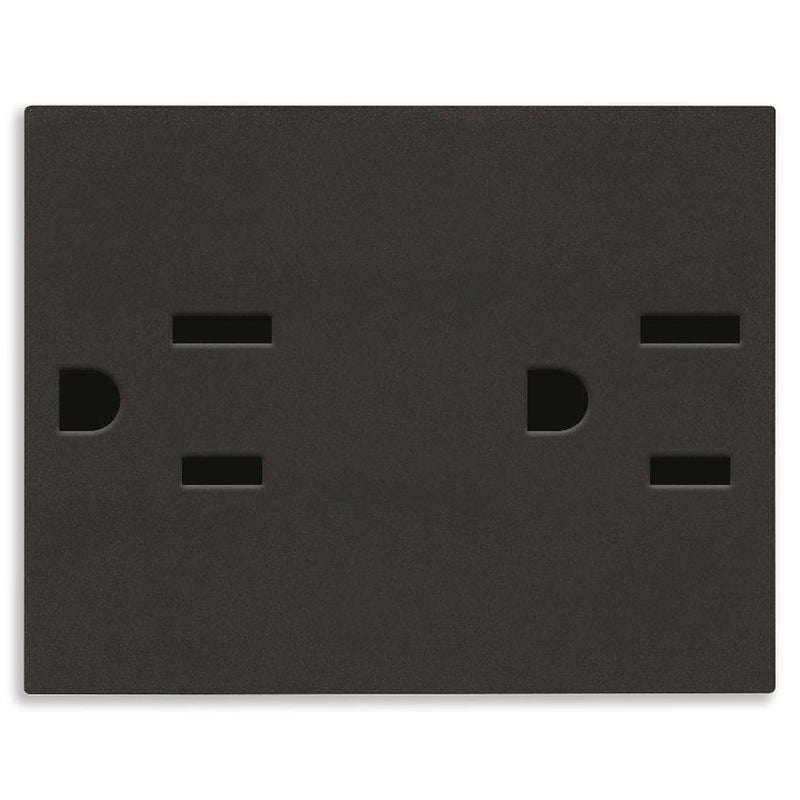

• VM30243.G: Black, RAL 7021. This finish works well with darker switch surrounds, helm panels, and contemporary interior joinery.

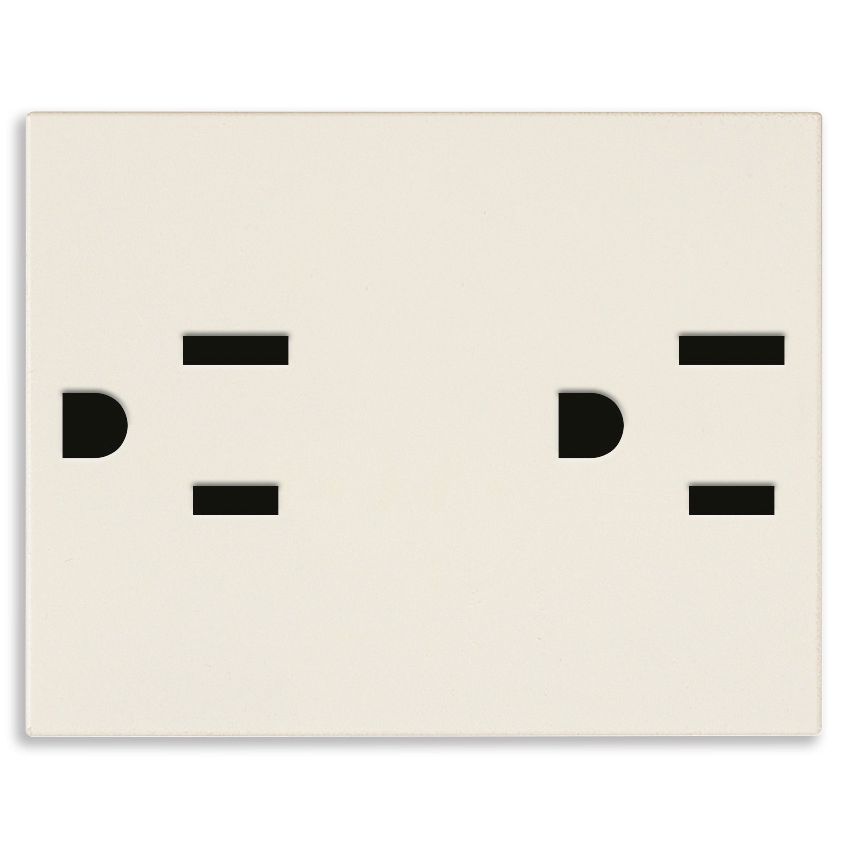

• VM30243.C: Canvas, RAL 7032. This is a softer neutral tone that blends more easily with warm off-white and beige interiors.

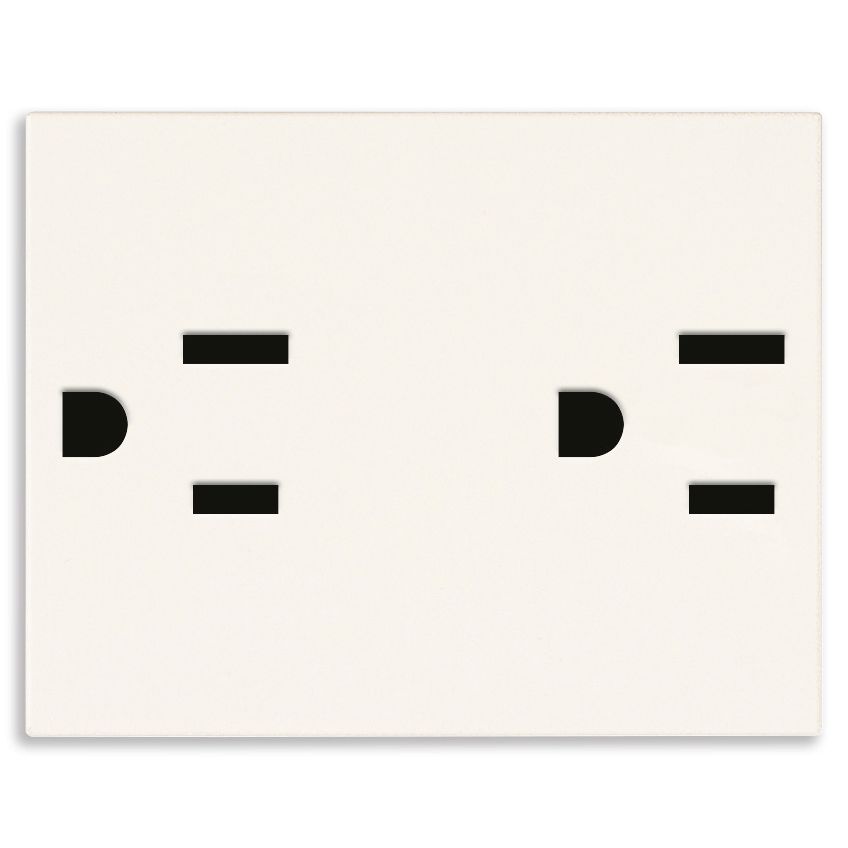

• VM30243.B: White, RAL 9016. This finish keeps the outlet visually light on white liners, cabinetry, and bright interior panels.

Installation and fit

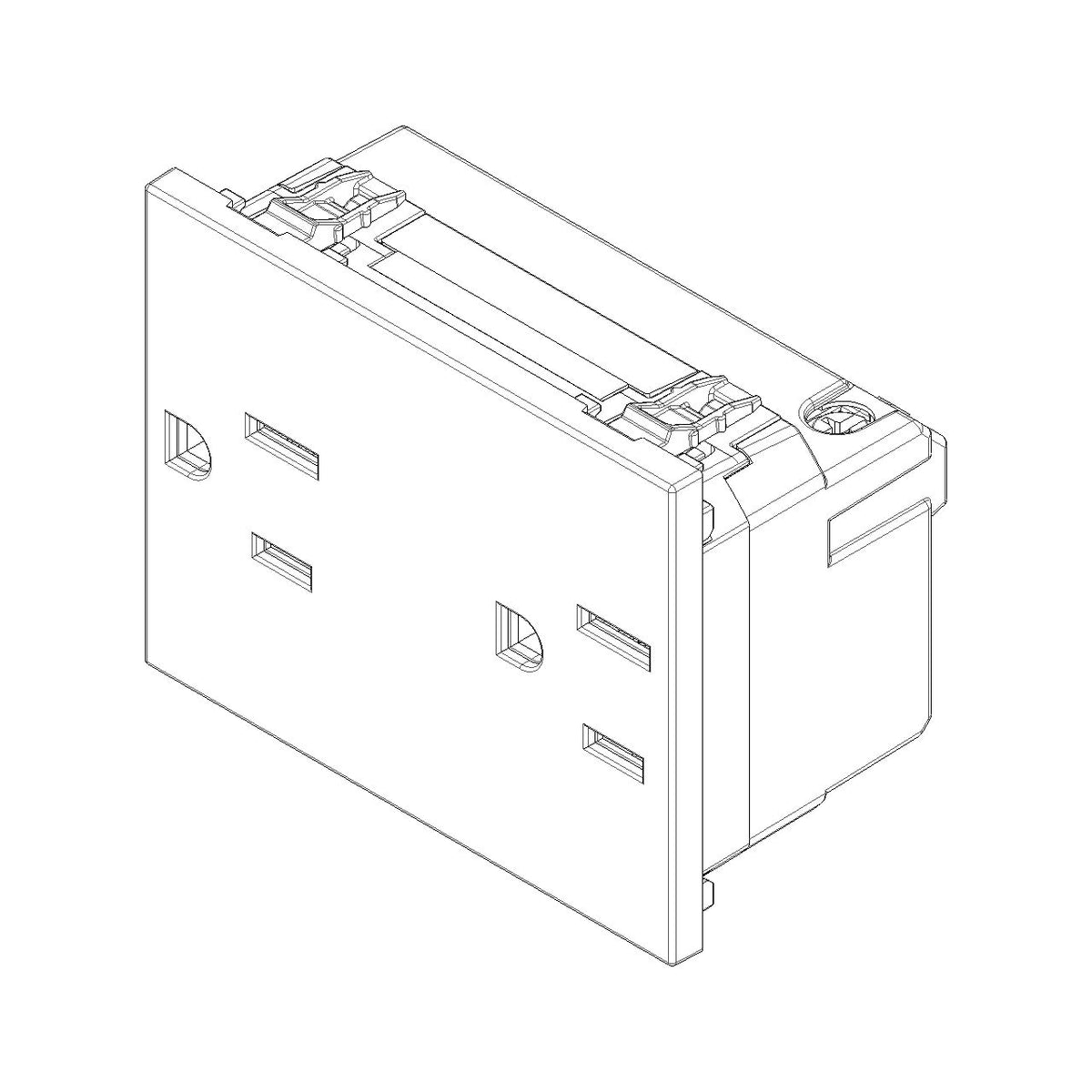

This is a flush-mounted outlet insert with snap engagement, so it belongs in a compatible LINEA modular frame and plate setup. The 3-module format is important when planning the cutout and when matching it with other Vimar LINEA devices on the same panel.

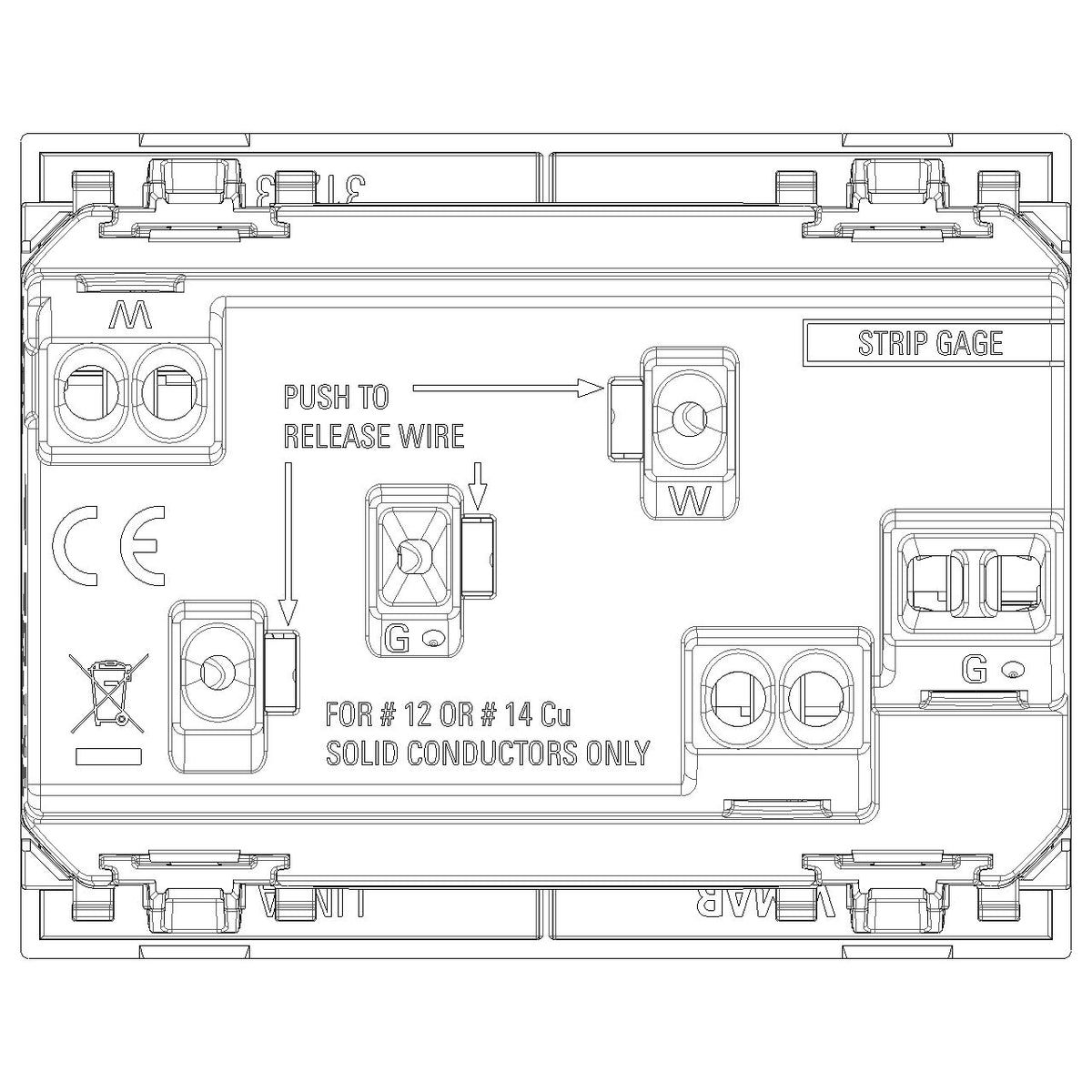

Wiring is through screw terminals, which makes it a practical choice for fixed AC circuits in protected interior joinery. On a boat, that usually means checking not only the faceplate finish, but also the module space behind the panel and the vessel's 127 V AC distribution layout before installation.

Use on board

This outlet suits boats that already use Vimar LINEA switching or refits where a 127 V American-standard receptacle is needed in a neat two-outlet layout. It makes sense in guest areas, cabins, saloons, or service spaces where small domestic loads are plugged in and where the outlet will stay out of direct spray and washdown.
