Raymarine Axiom 7 DV 7 in MFD Chartplotter, DownVision Sonar, No Transducer, LightHouse North America Chart

Overview

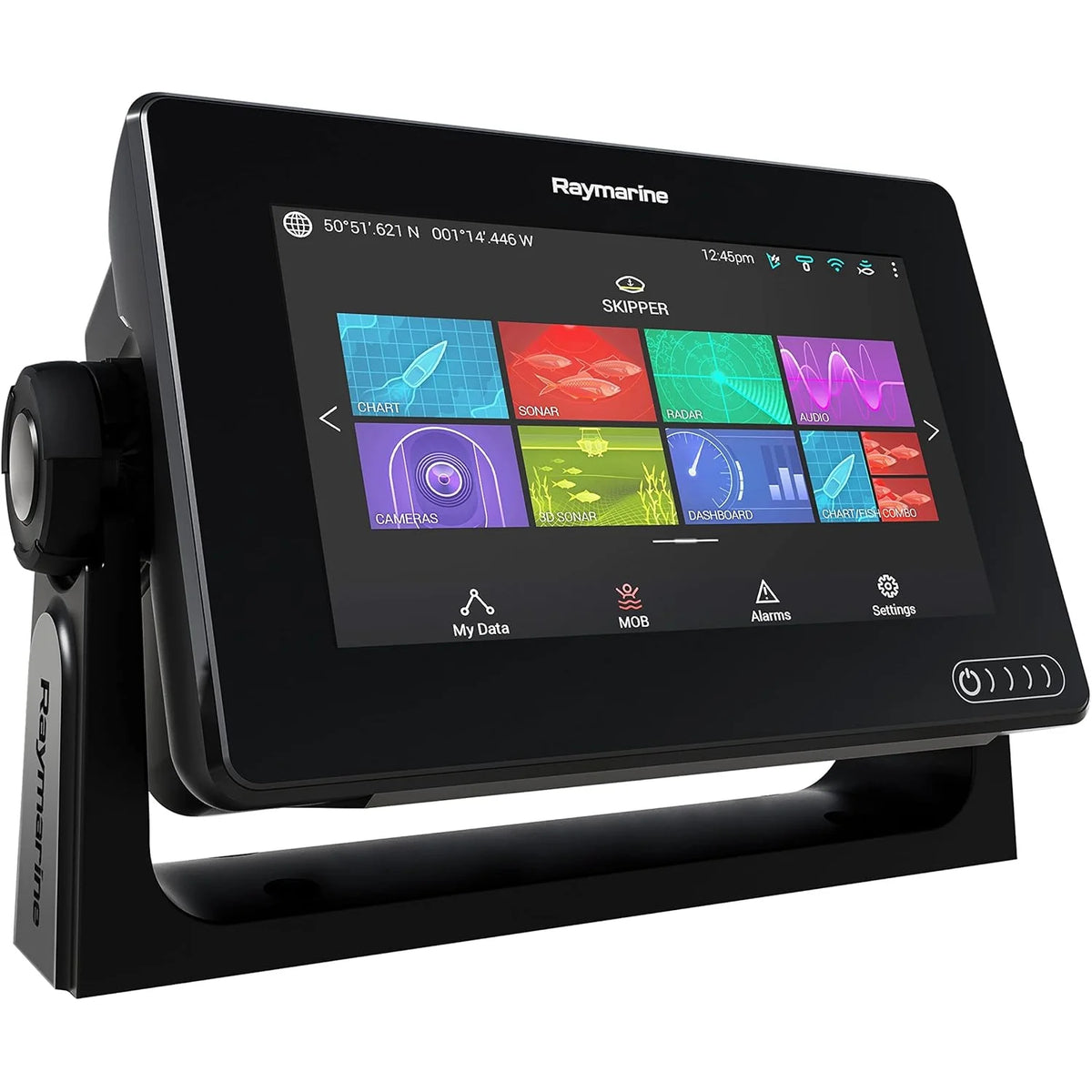

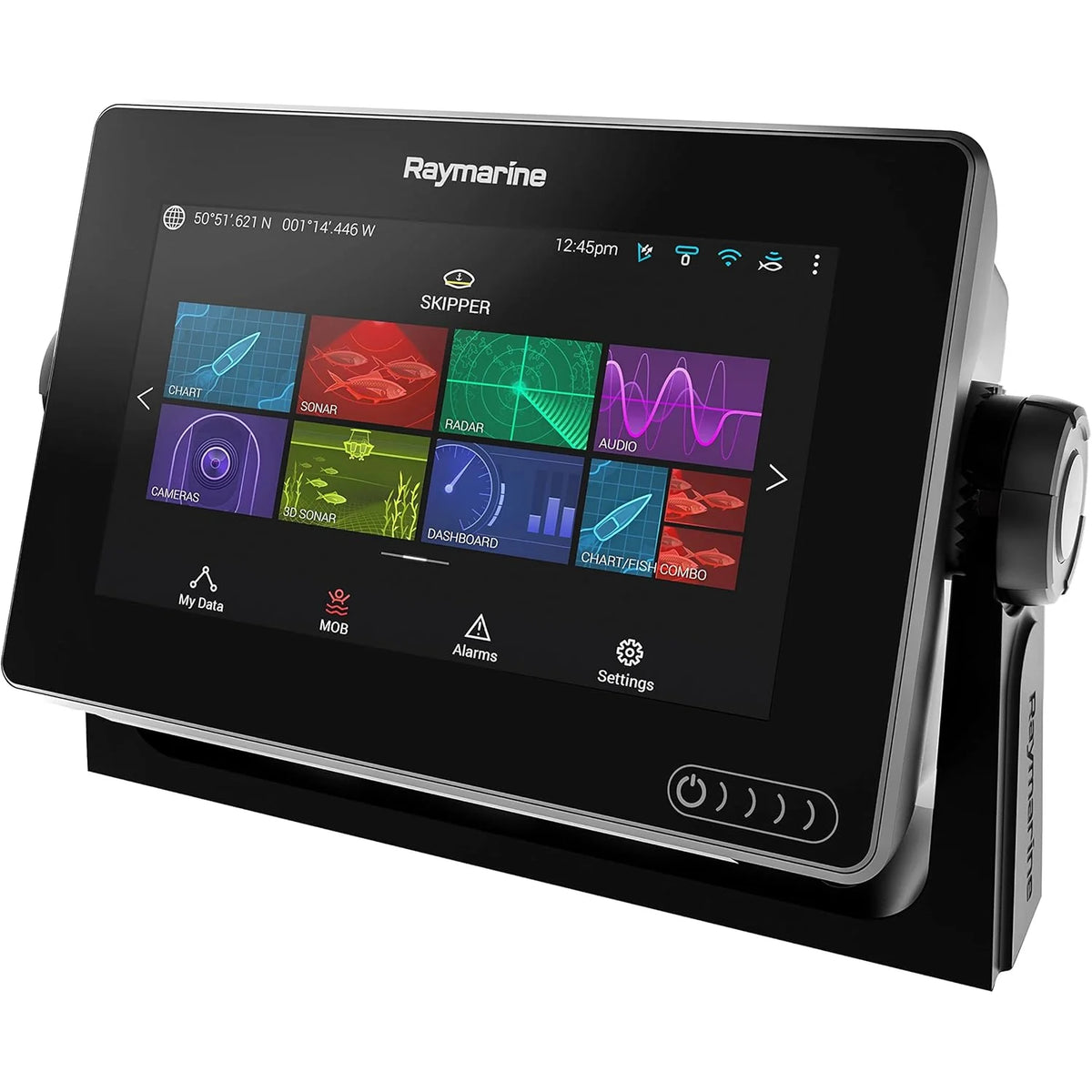

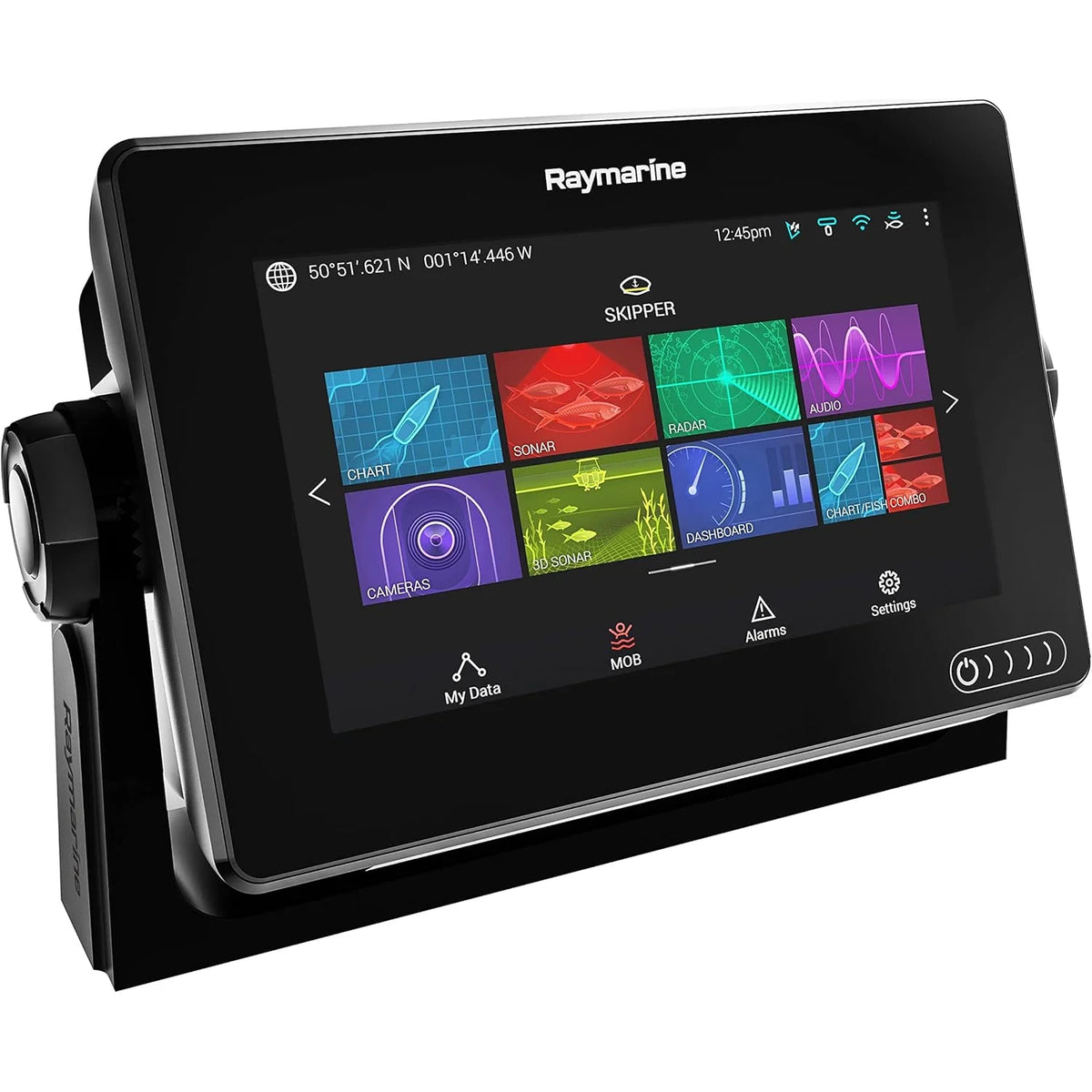

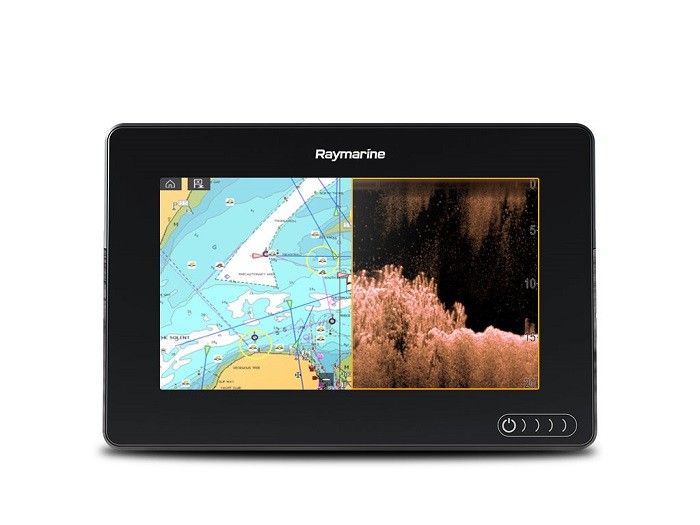

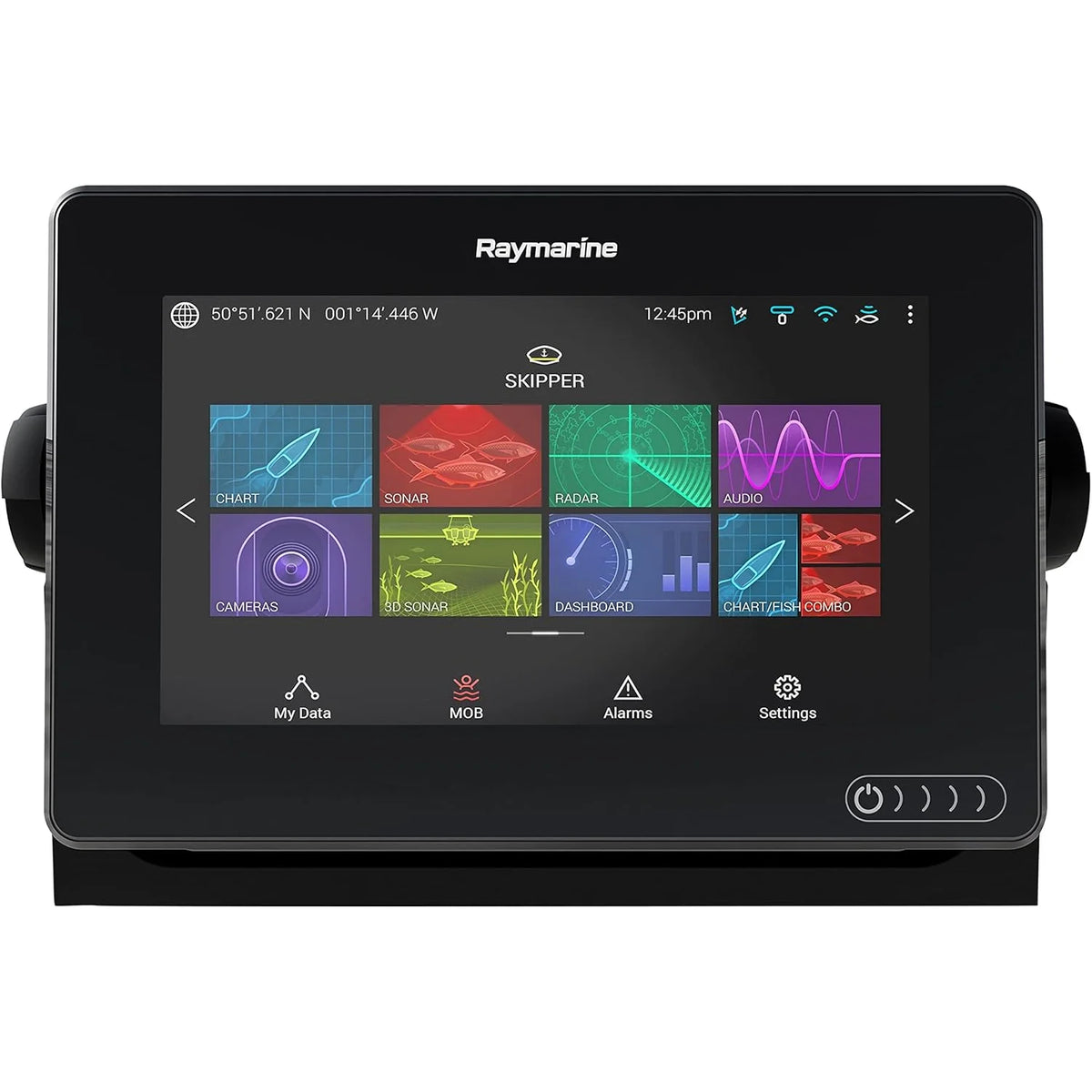

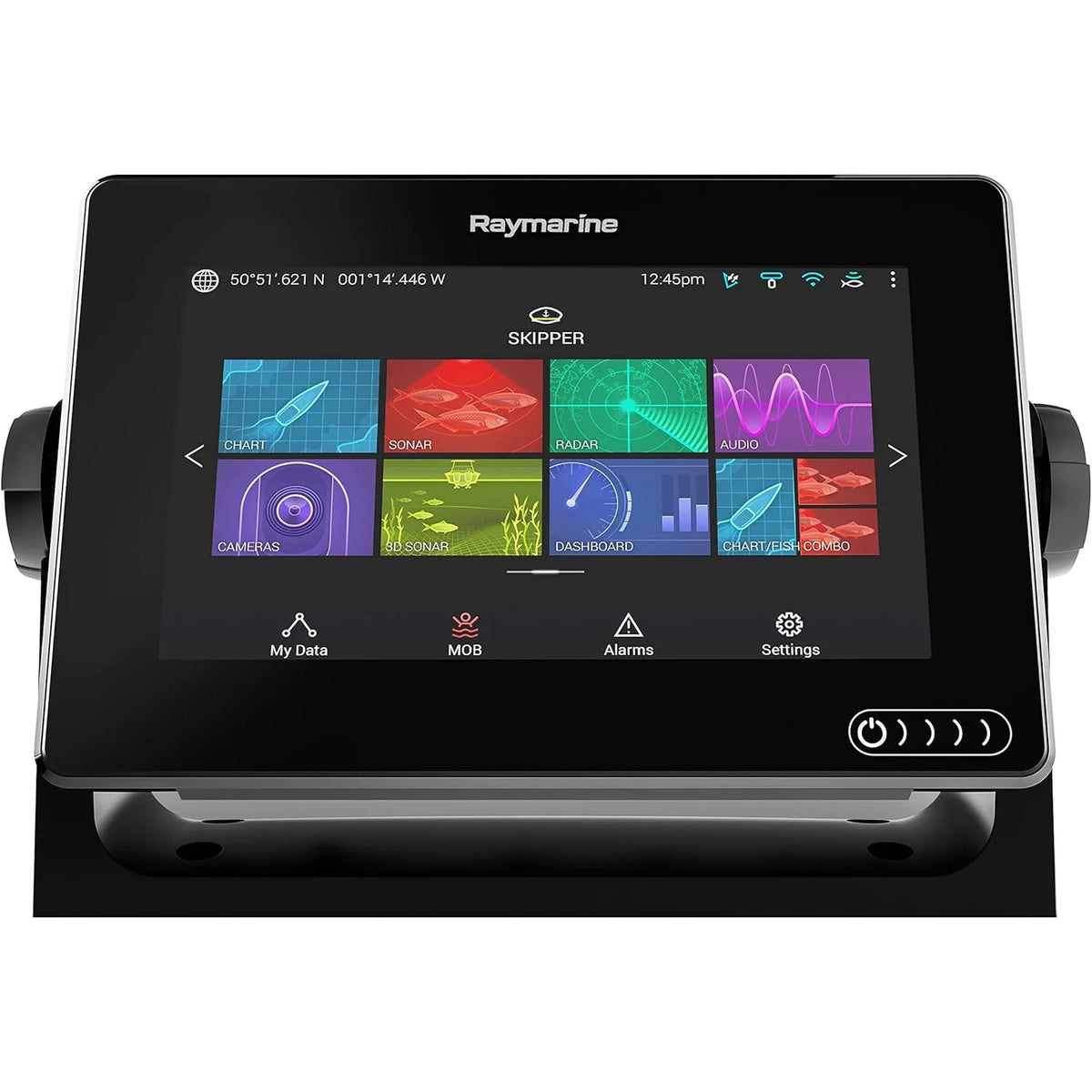

The Raymarine E70364-00-102 is a 7-inch multifunction display with built-in DownVision sonar, internal GPS, and LightHouse North America chart coverage, supplied without a transducer. It combines chartplotting and fishfinding in one compact unit, with an 800 x 480 WVGA touchscreen, IPX6 and IPX7 waterproofing, and a 12 V nominal power input with an operating range of 8 to 16 Vdc.

This version makes sense when you want the Axiom 7 DV platform but need to choose the transducer separately or already have a compatible setup planned. The internal sonar module supports DownVision and 600 W CHIRP sonar through the 9-pin transducer port, and the built-in GNSS receiver uses GPS, GLONASS, and BeiDou for position updates at the helm.

Key features

• 7-inch touchscreen display with 800 x 480 resolution and 1200-nit illumination for good visibility in open helms and bright daylight.
• Built-in DownVision and 600 W CHIRP sonar module with a 9-pin transducer connection; transducer is not included.
• Internal GNSS receiver supports GPS, GLONASS, and BeiDou for fast position updates without adding an external antenna for most installs.
• RayNet Ethernet and NMEA 2000 connectivity let it tie into radar, autopilot, engine data, instruments, and additional displays.
• One MicroSDXC card slot plus Wi-Fi and Bluetooth support for charts, software, and wireless device connectivity.
• IPX6 and IPX7 waterproof rating with an operating temperature range from -25°C to +55°C.

Compatibility and fit

This is a practical choice for center consoles, bay boats, pilothouse boats, and smaller cruisers where a 7-inch screen fits the dash without taking over the helm. It also works well in replacement jobs where the owner wants current charting and network features but prefers to select a transducer based on hull style, target depth, and mounting position.

Because the operating range is 8 to 16 Vdc, it belongs on a 12 V system. Boats with a 24 V house bank will need proper voltage conversion before connection. For network expansion, the unit supports RayNet Ethernet and NMEA 2000, and NMEA 0183 integration is available through an optional converter.

Installation and setup

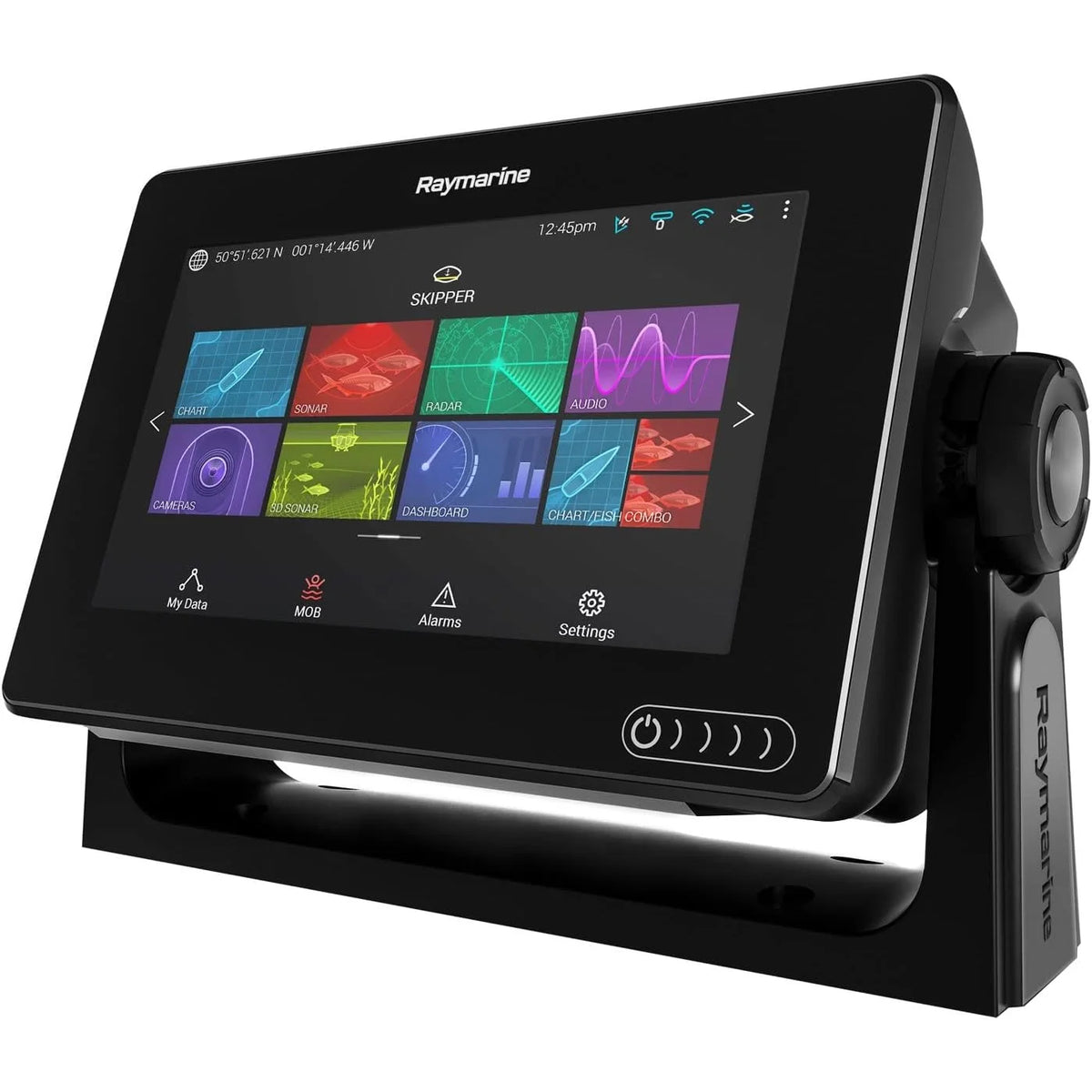

The housing is set up for trunnion bracket mounting or surface and flush mounting, which gives some flexibility when you are working around a tight console or an existing electronics panel. Leave enough room behind the display for the power and network leads, the transducer cable, and the card slot access if you plan to load charts or update software at the helm.

Power draw is modest at 10 W, and the recommended fuse rating is 7 A. The waterproof rating allows installation in exposed helm positions, but like any touchscreen MFD, placement still matters if the boat sees heavy spray or direct washdowns on a regular basis.

What's included

• MFD
• Trunnion mounting bracket
• Trunnion knobs x 2
• Trunnion-mount suncover
• Panel mount gasket for surface or flush mounting
• M3x5 screw, M3 spring washer, and M3 crimp terminal for the optional grounding point
• M5x58 threaded studs x 4
• M5 thumb nuts x 4
• Documentation pack
• Power and NMEA 2000 cable with a 1.5 m power lead and 0.5 m NMEA 2000 lead
