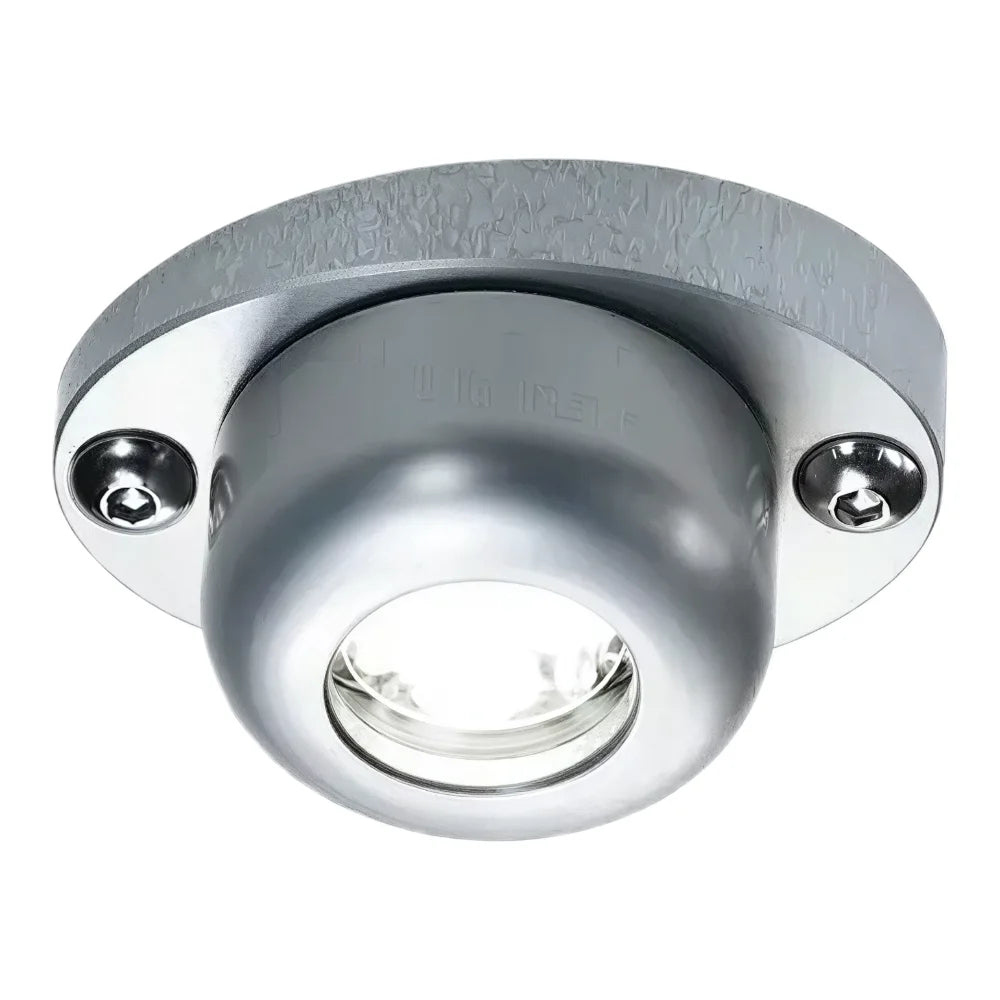

Imtra 6500 Port LED Spreader Light, 12/24V, 3.6W, 16° x 43°

Overview

The Imtra MC6509P is a port-side LED spreader light from the 6500 series, intended to illuminate the deck below the port spreader on mid- to large-size sailing yachts. It operates on 12V and 24V DC electrical systems with a 10-30VDC input range, consuming 3.6W while producing 500 lumens of cool white light. Its 16° x 43° elliptical beam distributes light across the deck while limiting illumination outside the intended area.

The fixture features an anodized aluminum housing with a titanium finish and an IP67 protection rating. Its angled oval mounting base accommodates the curved and swept-back geometry of modern sailboat spreaders. An integrated LED driver and a 60-inch insulated duplex cable support installation and electrical connection.

Key features

• Port-side LED spreader light for illuminating sailboat decks from the underside of the port spreader.

• Compatible with 12V and 24V DC systems, with a 10-30VDC operating input range.

• 3.6W power consumption and 500-lumen light output.

• 16° x 43° elliptical beam with 4500K cool white illumination and CRI greater than 80.

• IP67-rated housing for protection against dust and water ingress.

• Anodized aluminum construction with a titanium finish.

• Angled oval mounting base for swept-back spreader profiles.

• Integrated LED driver and 60-inch insulated duplex connection cable.

• Compact housing measuring 2.55 inches long, 1.73 inches wide, and 1.22 inches high.

• Rated LED operating lifetime of 40,000 hours.

Installation and mounting

The light mounts beneath the port spreader using M5 screws or stainless steel rivets, which are not included. The angled mounting base follows the geometry of swept-back spreaders, helping position the elliptical beam toward the deck. The 60-inch duplex cable allows connection to the vessel's DC lighting circuit, while the integrated driver eliminates the need for a separate external LED driver.

Electrical and lighting performance

The 10-30VDC input range accommodates both nominal 12V and 24V onboard electrical systems. Its 3.6W consumption supports continuous deck illumination with relatively low electrical demand. The 4500K cool white output and elongated beam pattern distribute light across the area beneath the spreader rather than producing a circular spotlight.

Marine installation considerations

The IP67 enclosure and titanium-anodized aluminum finish support installation in exposed spreader locations. The compact housing and port-specific beam configuration suit sailing yachts with swept-back spreaders where lighting must be directed downward onto the deck. Port and starboard configurations use different beam orientations, making the mounting side an important consideration when matching the fixture to an existing lighting arrangement.
