Imtra 6500 Starboard LED Spreader Light, 12/24V, 3.6W, IP67

Overview

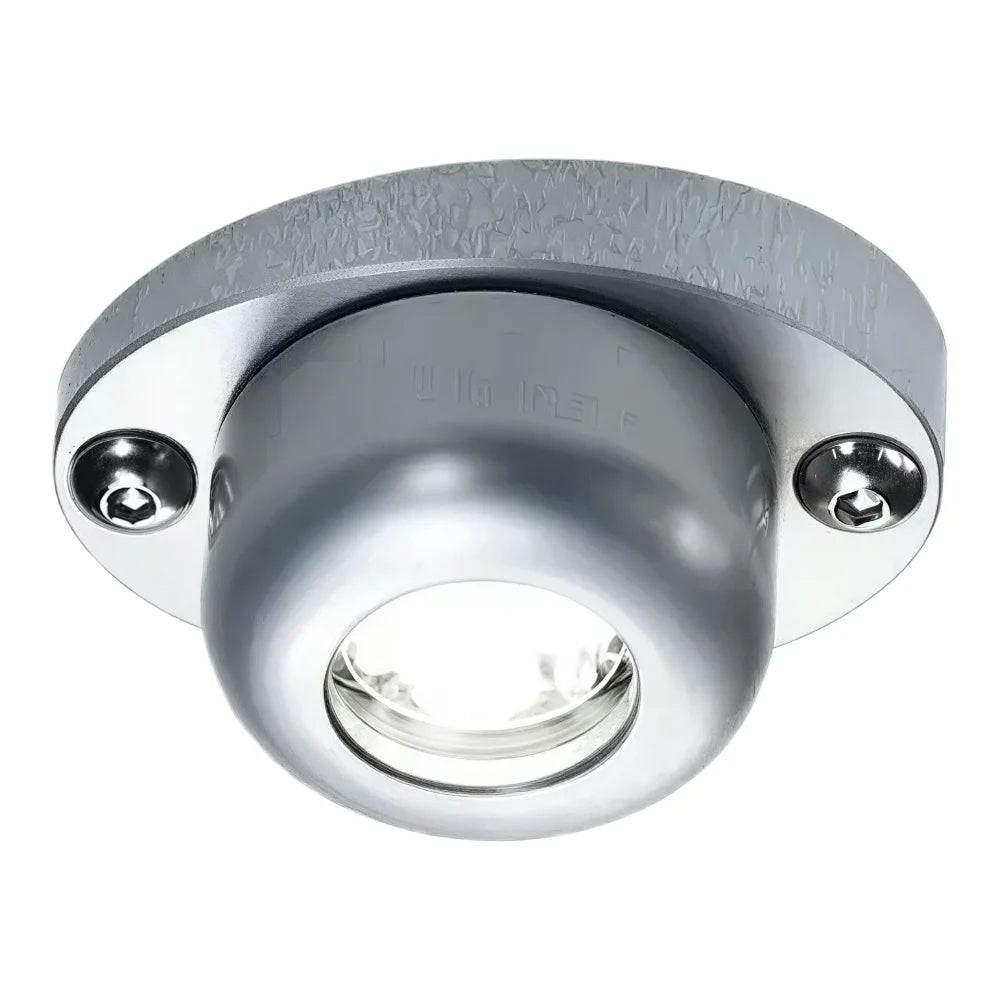

The Imtra MC6509S is a starboard LED spreader light for illuminating the deck below the spreader on sailing yachts. Part of the Cabin 6500 series, it operates on 12V and 24V DC electrical systems with a 3.6W power consumption. Its cool white LED produces 500 lumens through a 16° x 43° elliptical beam, directing illumination toward the deck while limiting unwanted light spillage.

The fixture features a titanium-anodized aluminum housing and an IP67 ingress protection rating for exposed marine installations. Its angled oval mounting base accommodates the curved, swept-back spreader profiles commonly found on modern sailboats, allowing the light to sit beneath the starboard spreader.

Key features

• Starboard-specific configuration for downward deck illumination.

• 12V/24V DC compatibility with an integrated LED driver.

• 3.6W power consumption and 500-lumen output.

• Cool white illumination with a 4500K color temperature.

• 16° x 43° elliptical beam distribution.

• IP67-rated titanium-anodized aluminum housing.

• 60-inch duplex-insulated electrical cable.

• Angled oval mounting base for swept-back spreaders.

Installation and compatibility

The light mounts beneath the starboard spreader using M5 screws or stainless steel rivets, with mounting hardware supplied separately. Its compact housing measures approximately 2.55 inches long, 1.73 inches wide, and 1.22 inches high. Confirm the spreader profile, mounting clearance, and fastener locations before installation.

The electrical connection between the fixture cable and the vessel wiring must be protected against water ingress. An IP68-rated plug and socket, IP68 junction box, or adhesive-lined heat-shrink tubing can be used to protect the connection. The fixture is suited to sailing yachts requiring focused deck lighting from an exposed spreader installation.
