BCM - 5403 Side Wave Neonflex - 24VDC

Flexible LED Lighting for Marine and Outdoor Applications

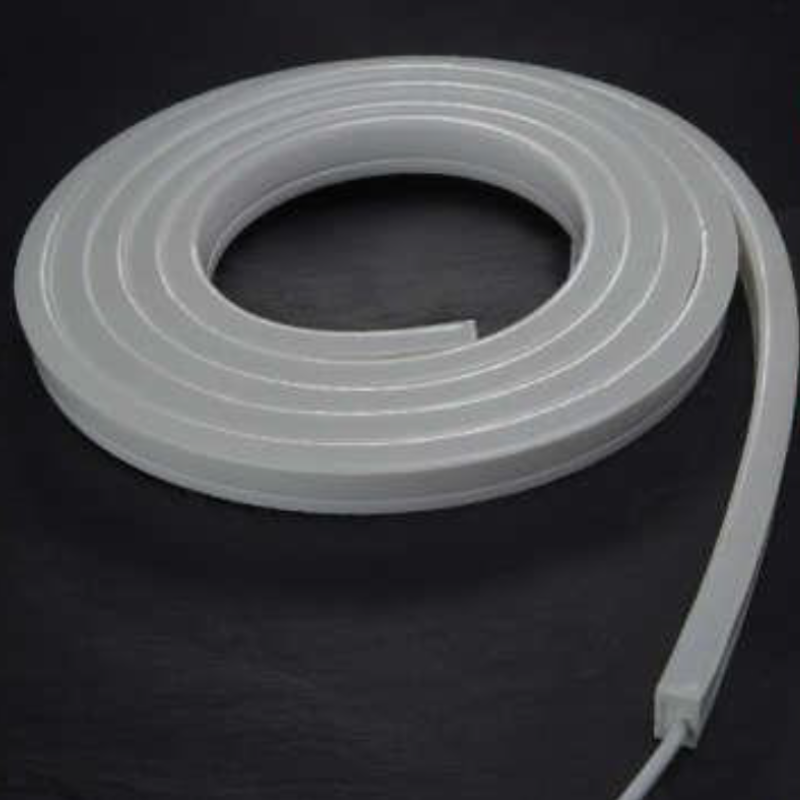

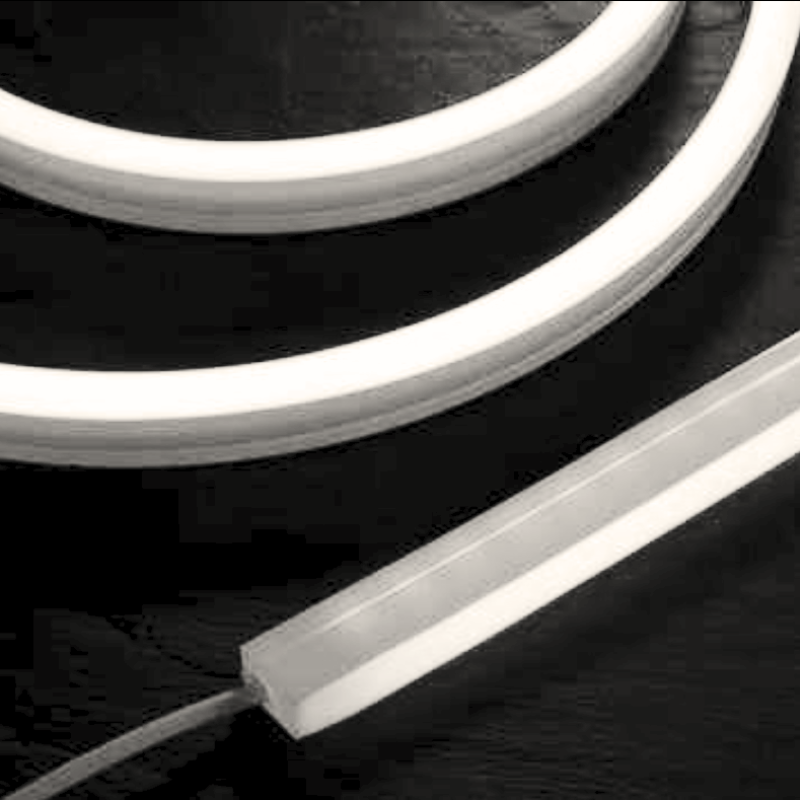

BCM 5403 Side Wave Neonflex is an innovative lighting solution designed to meet the demands of marine, outdoor, and indoor applications. Offering a flexible, side-bending design, it provides seamless integration into curved and linear spaces such as headliners, stairwells, ceilings, and walls. Engineered for versatility, its diffused light output enhances any environment, whether for decorative or functional purposes.

This high-performance lighting system operates at 24VDC with a power consumption of 10W per meter. Its IP68 rating ensures resistance to water and dust, making it suitable for challenging environments. Additionally, the product is cuttable every 50mm, providing adaptability for custom installations.

Technical Specifications

• Light Source: LED Strip
• Voltage: 24VDC
• Power Consumption: 10W per meter
• Dimmable: Yes
• Beam Angle: Wide
• IP Rating: IP68 (suitable for outdoor and marine use)
• Color Temperature Options: 6000K, 4000K, 3000K, 2700K, RGB, Blue, Red, White/Red/Green/Blue (W-R-G-B)
• Materials: PU (Polyurethane)

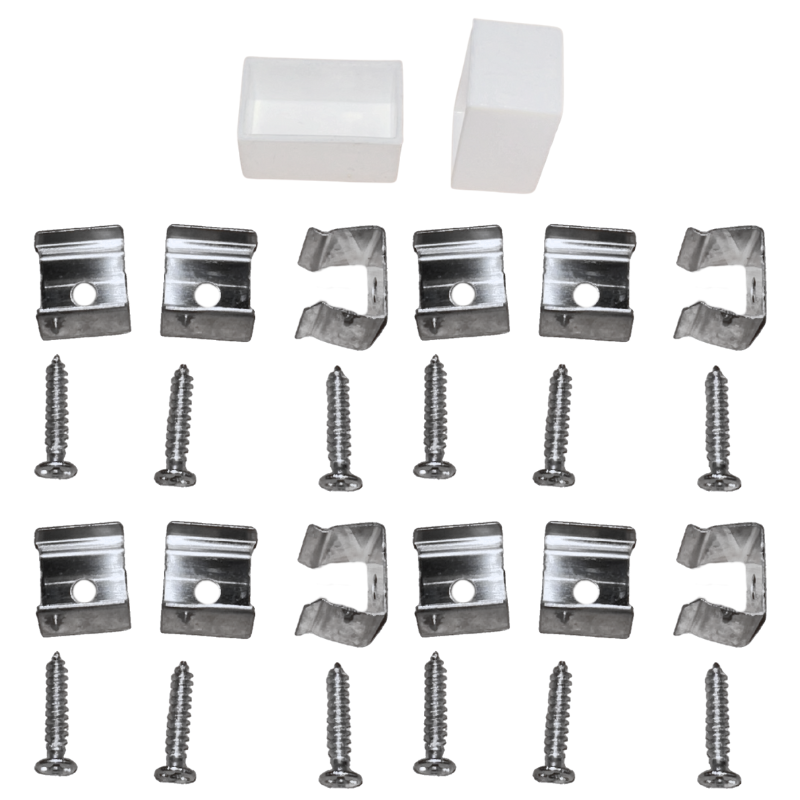

• Mounting System: Clips (3 per meter included)

Product Dimensions

• Length: Available in 1m, 2m, 3m, and 4m reels

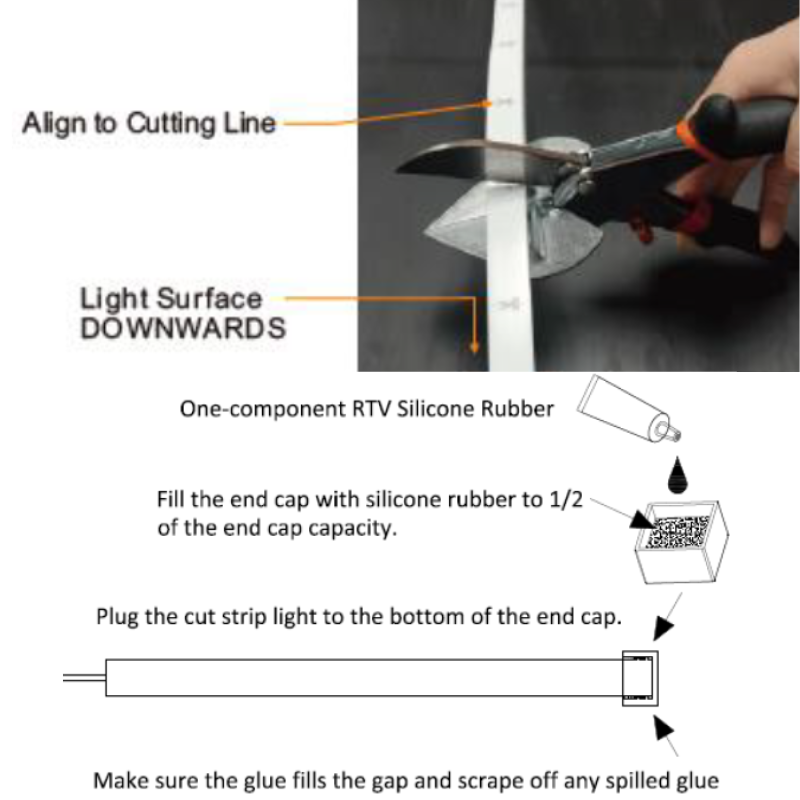

• Cuttable Lengths: Every 50mm on marked cut lines

Finishes

Crafted with high-quality polyurethane, the BCM 5403 Side Wave Neonflex offers a durable and flexible finish, ideal for marine and exterior installations.

Highlights

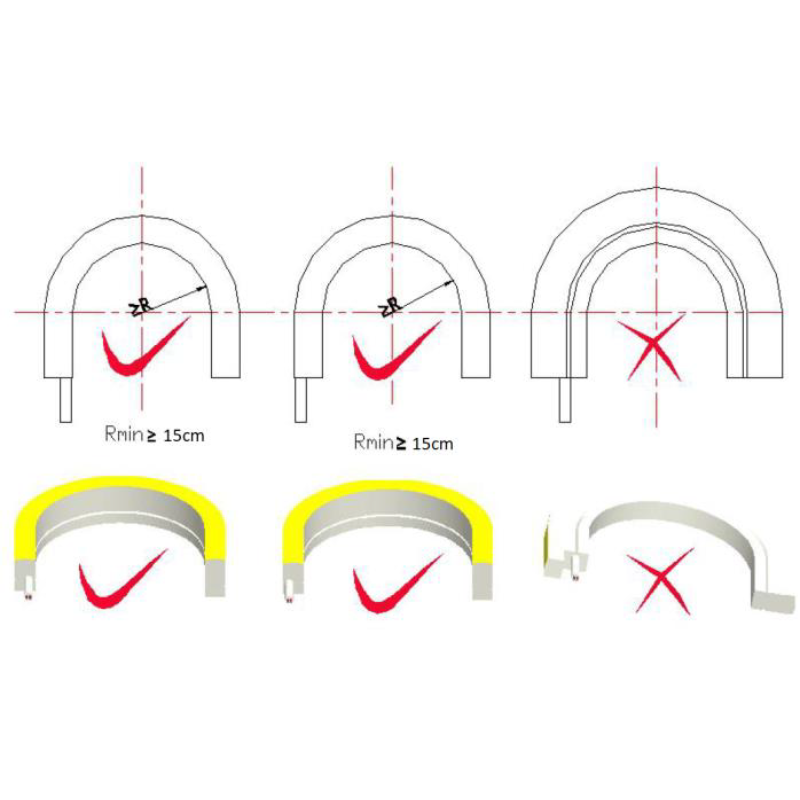

• Flexible side-to-side bending for curved and linear applications
• IP68-rated for water and dust resistance
• Operates at 24VDC for efficiency and safety
• Diffused light for uniform illumination
• Cuttable every 50mm for custom lengths

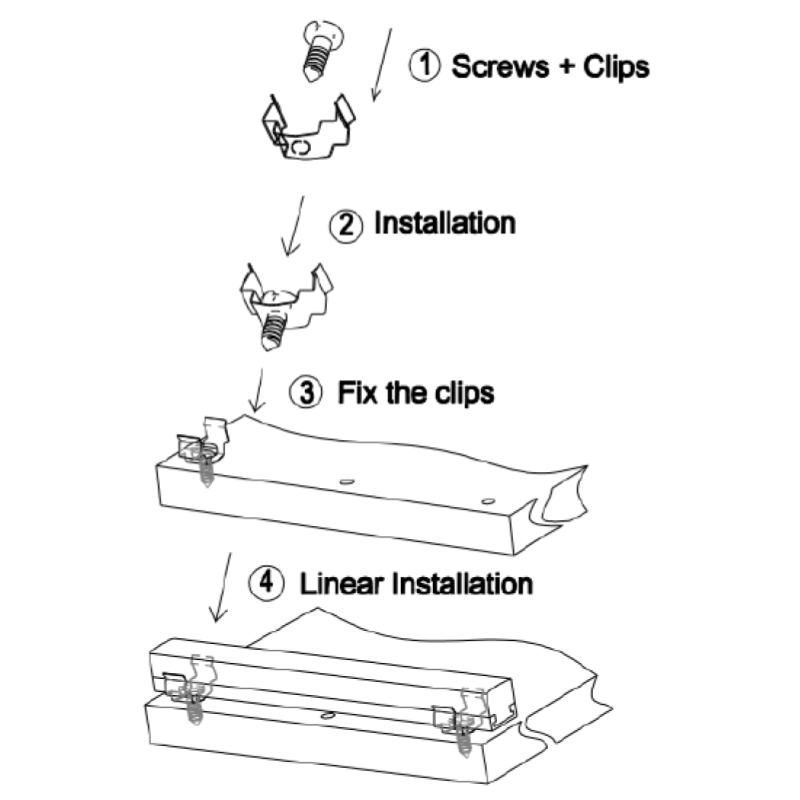

• Mounting clips included for secure installation

Variations List

• 1 Meter Reel (BCM3404-30G3MT1): Includes three mounting clips and screws.
• 2 Meter Reel (BCM3404-30G3MT2): Includes six mounting clips and screws.
• 3 Meter Reel (BCM3404-30G3MT3): Includes nine mounting clips and screws.
• 4 Meter Reel (BCM3404-30G3MT4): Includes twelve mounting clips and screws.

Whether enhancing the ambiance of a yacht interior or illuminating outdoor stairways, BCM 5403 Side Wave Neonflex provides a reliable, stylish, and highly customizable lighting solution tailored to marine and outdoor needs.
