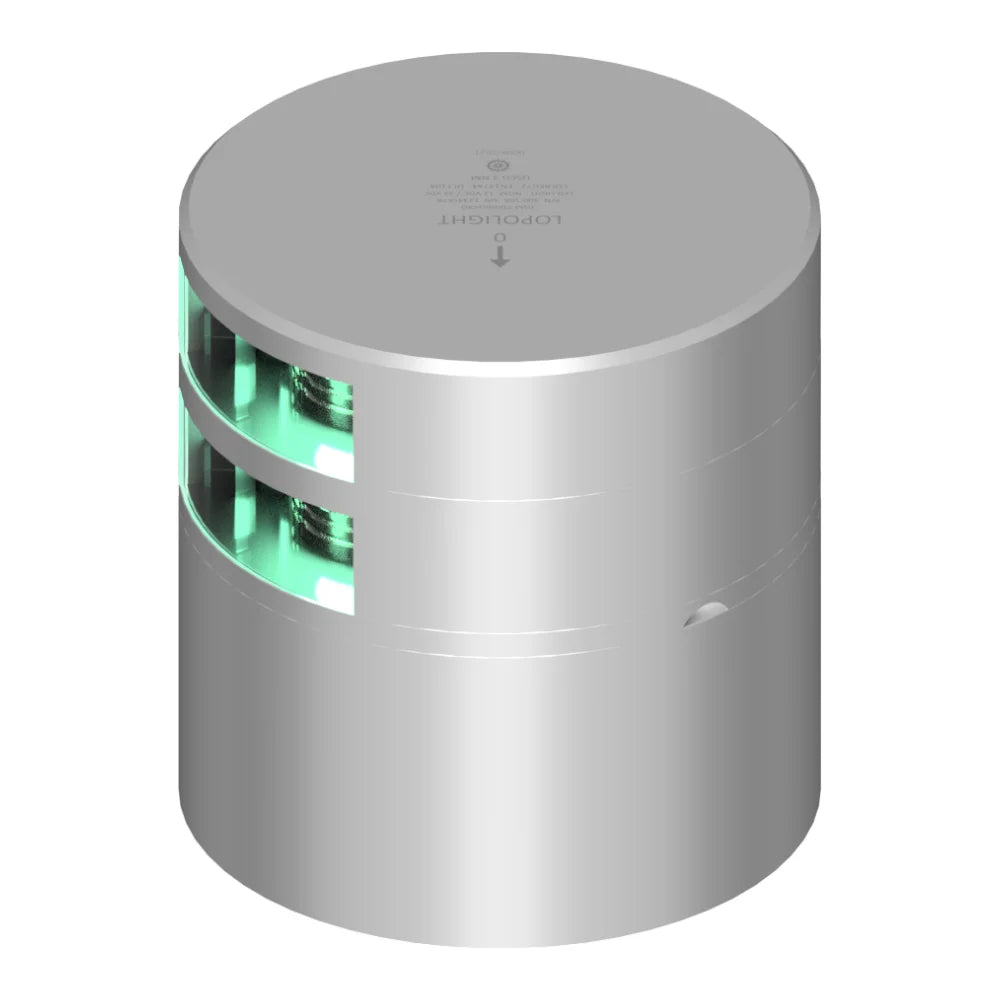

Lopolight Double Starboard LED Navigation Light, 2nm, 10-32VDC, CS/CD Base

Overview

The Lopolight Double Starboard LED Navigation Light is a green navigation light with a double-light configuration, a 112.5° visibility sector, and a 2 nautical mile range. Operating on 10-32VDC, it is intended for horizontal mounting on vessels from 12 to 50 meters and features a plug connector with an aluminum CS/CD mounting base.

The fixture has an IP68 rating, a PMMA lens, and anodized aluminum construction with A4 stainless steel screws. Measuring 92.5 mm in diameter and 96.5 mm in height (approximately 3.6 x 3.8 inches), it combines the double-light arrangement with a compact cylindrical housing. The green LED output delivers a luminous intensity greater than 5.4 candela, with current consumption of 110 mA at 12VDC and 60 mA at 24VDC.

Key features

• Double starboard LED configuration with green light output, a 112.5° sector, and 2 nautical mile visibility.

• 10-32VDC operating range supports marine DC electrical systems.

• IP68-rated construction with an anodized aluminum housing, PMMA lens, and A4 stainless steel screws.

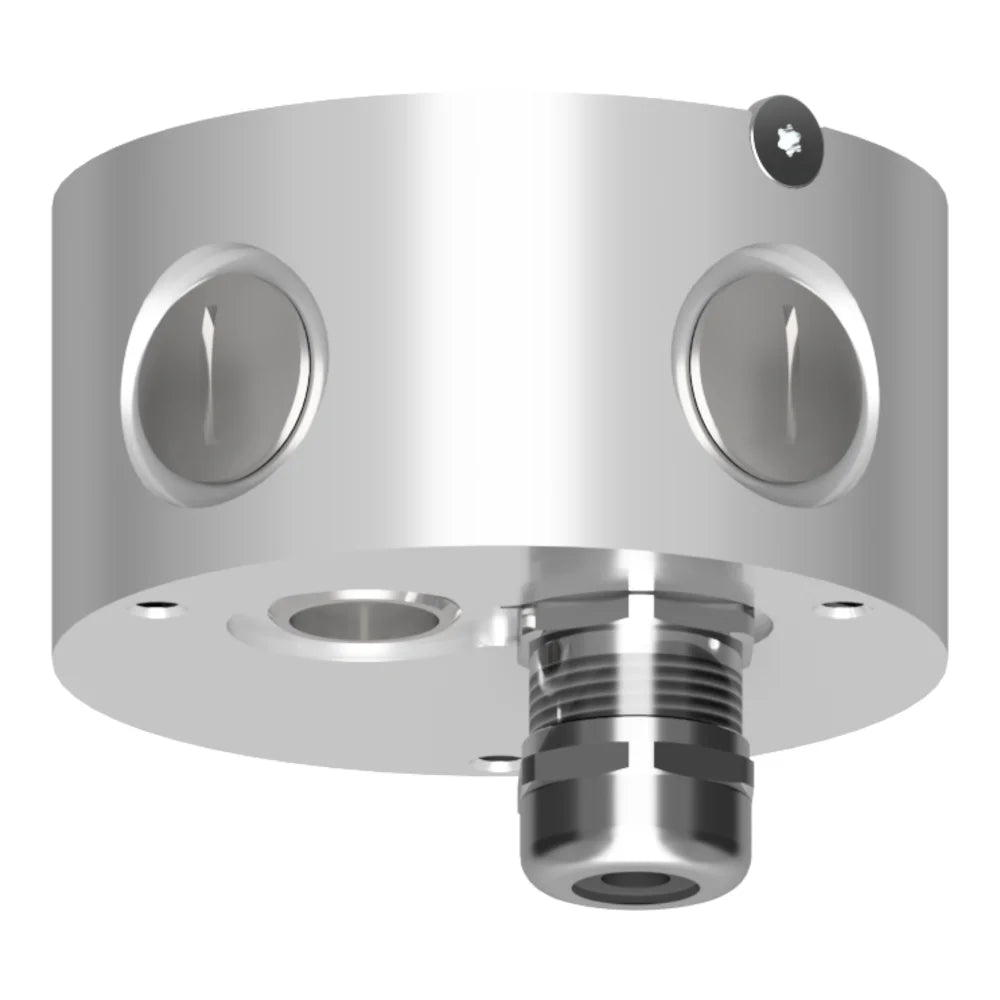

• CS/CD aluminum mounting base with plug connector for horizontal installation.

• Overall dimensions of 92.5 mm diameter x 96.5 mm height (3.6 x 3.8 inches).

• Current consumption of 110 mA at 12VDC and 60 mA at 24VDC.

• DNV certified, with approvals including COLREG 72, EN 14744, IEC 60945, IACS E10, USCG, ABS, MED, and LR.

• Operating temperature range of -25°C to 55°C.

Variants

This double starboard navigation light is available in two anodized aluminum finishes: Silver and Black. Both configurations use the same green LED light output, double-light arrangement, plug connection, and CS/CD mounting base.

The finish is the only difference between these variants. Both retain the same 2 nautical mile visibility, 112.5° light sector, 10-32VDC operating range, IP68 rating, and overall dimensions.

• 301-008ST-CSCD - Finish: Silver. Silver anodized aluminum housing and mounting base, providing a metallic exterior finish.

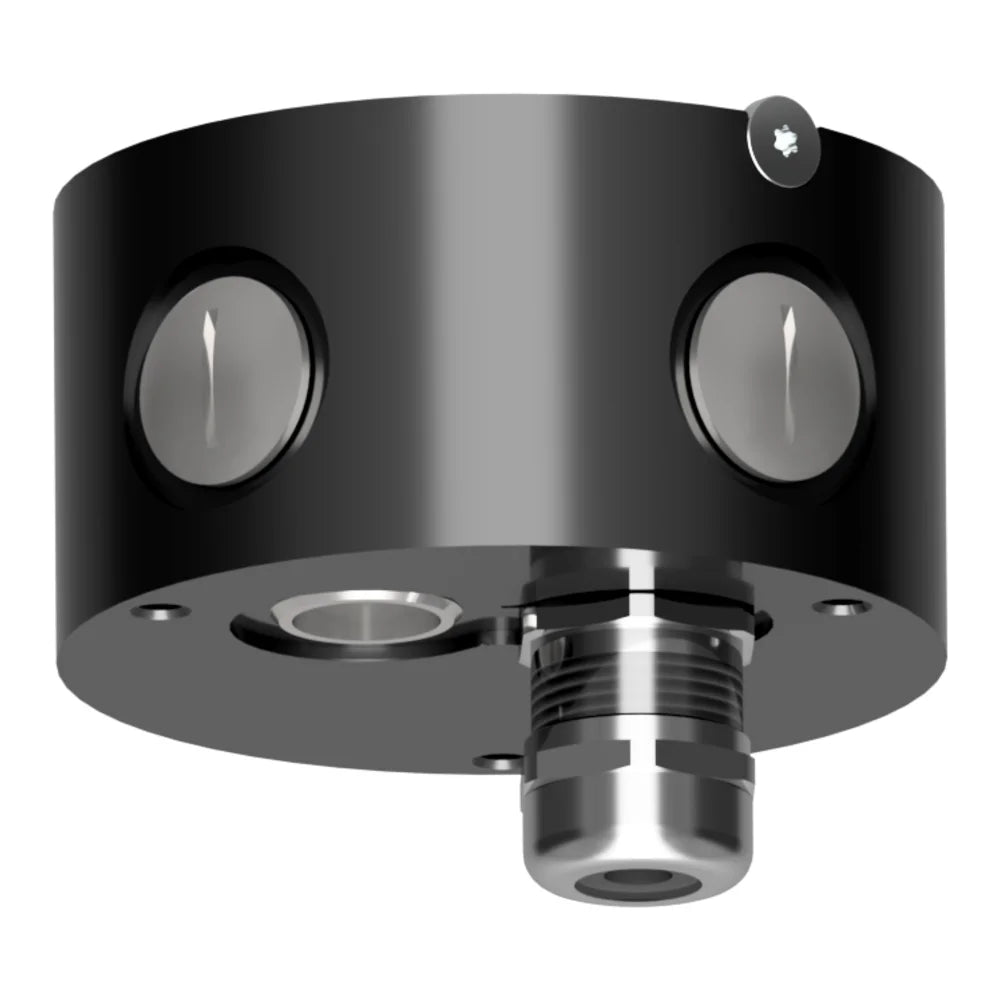

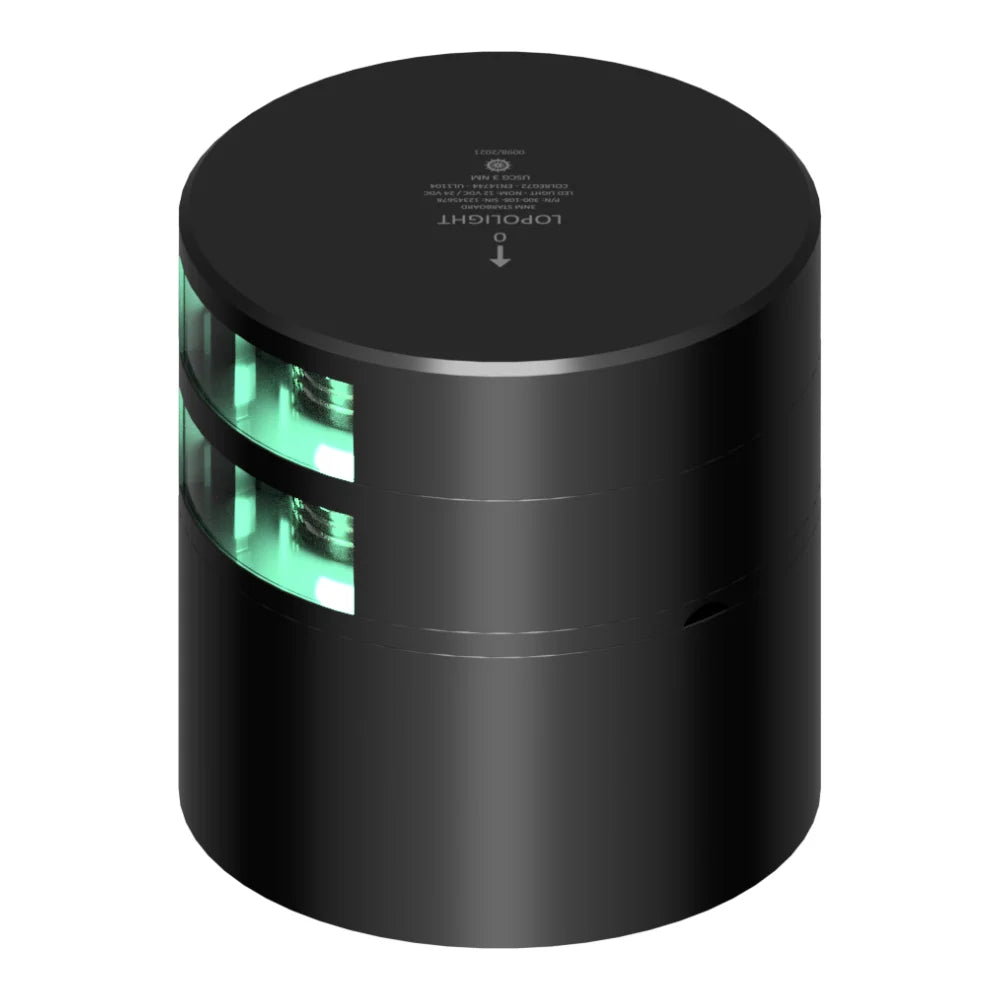

• 301-008ST-B-CSCD - Finish: Black. Black anodized aluminum housing and mounting base, providing a dark exterior finish.

Installation and setup

The light is configured for horizontal mounting using its CS/CD aluminum base. Its plug connector provides the electrical connection to the vessel's navigation lighting circuit. The 10-32VDC operating range accommodates both nominal 12V and 24V DC installations.

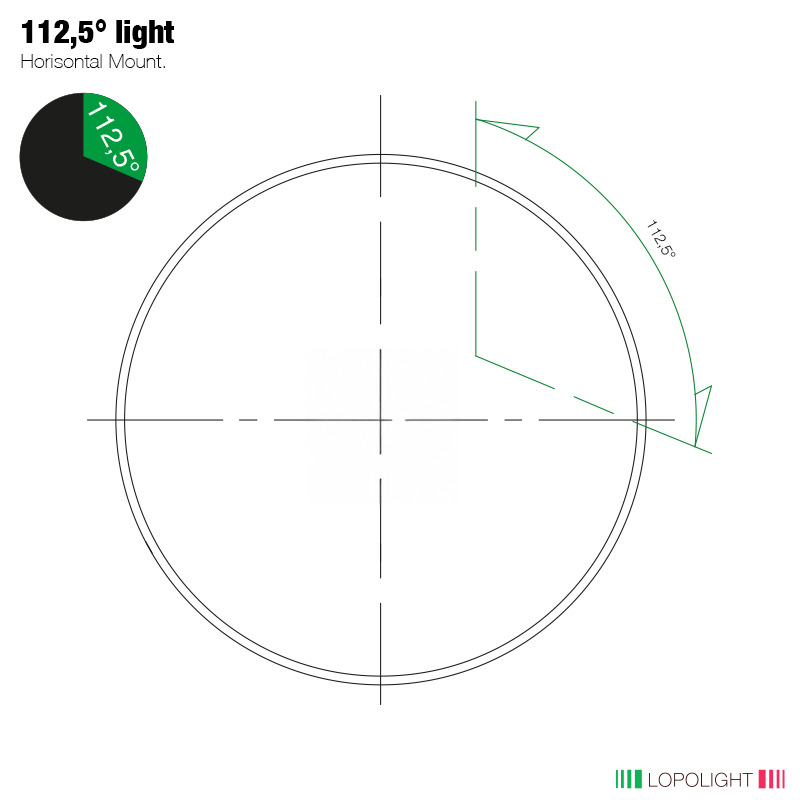

Installation should maintain the specified 112.5° starboard visibility sector and an unobstructed light output. The overall fixture dimensions should be considered when planning mounting clearance and placement.

Use on board

This fixture serves as the green starboard sidelight within a vessel's navigation lighting arrangement. Its double-light configuration and 2 nautical mile visibility rating suit marine installations requiring this particular navigation light format. The IP68 enclosure and anodized aluminum construction accommodate exposure to water in marine operating environments.

What's included

• 1 Double starboard LED navigation light

• 1 Installation guide
