Imtra IML LED Cockpit and Deck Flood Light, IP67

Overview

The Imtra IML is a series of LED cockpit and deck flood lights for exterior marine illumination. With IP67 protection and compatibility with 12V and 24V DC electrical systems, these fixtures provide cool white lighting for nighttime deck activities, cockpit work areas, and other exposed onboard locations.

The series includes bracket-mounted and recessed configurations with different housing finishes, light outputs, and power requirements. The fixtures use aluminum housings with protective exterior coatings and LED technology that reduces electrical consumption compared with traditional halogen flood lights. Their compact profiles accommodate installations on T-tops, cabin structures, spreaders, and overhangs, depending on the mounting configuration.

Key features

• IP67 ingress protection for exposed marine installations.

• Compatible with 12V and 24V DC electrical systems.

• Cool white LED illumination for cockpit and deck areas.

• Aluminum housing construction with protective exterior finish.

• Bracket-mounted and recessed configurations for different installation requirements.

• LED light output and power consumption vary by configuration.

Variants

The IML series is available in three configurations distinguished by mounting type and housing finish. Bracket-mounted fixtures use an adjustable stainless steel mounting bracket, while the recessed model incorporates a mounting flange for installation into a prepared opening.

The bracket-mounted configurations share the same lighting assembly and output characteristics, while the recessed configuration uses a different fixture design with lower power consumption and light output. All three configurations retain IP67 protection and cool white illumination.

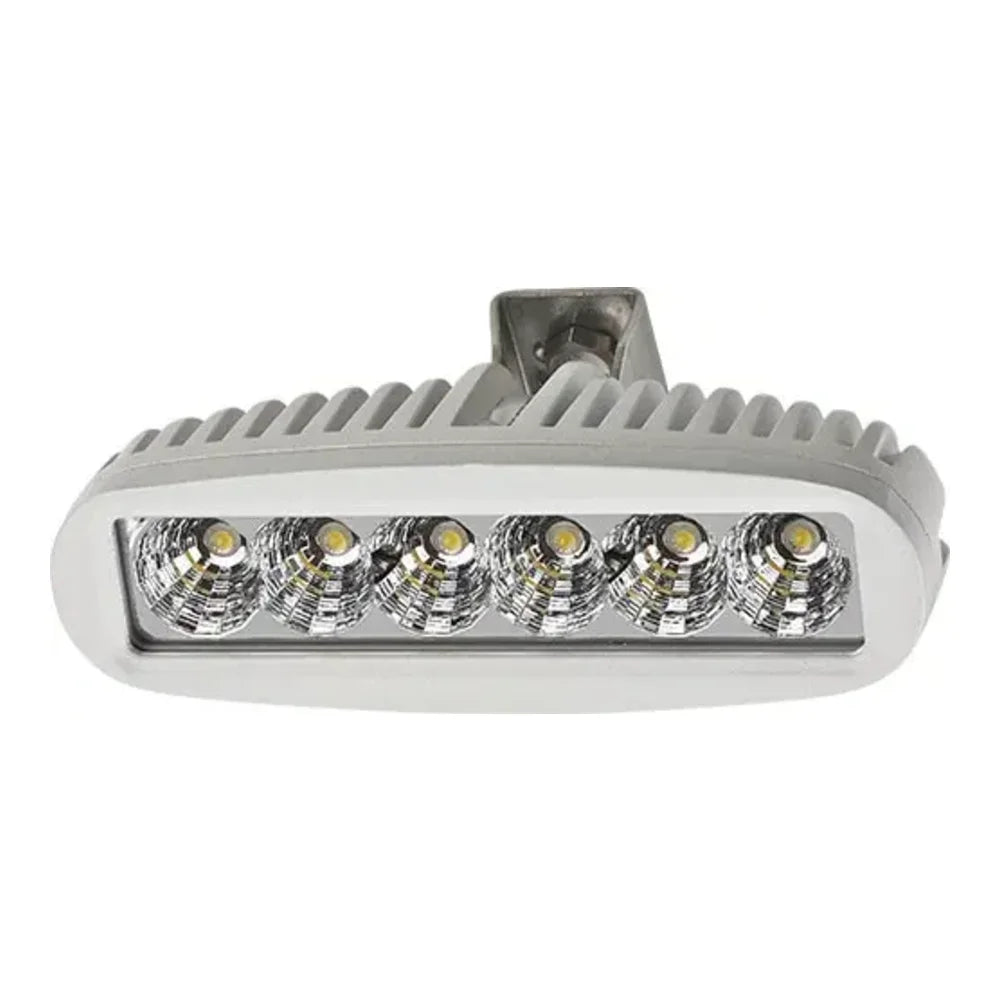

• ILSL-1806F: Bracket-Mount, Satin White Finish. The 18W-class fixture uses six LEDs and delivers 1,050 lumens with an adjustable mounting bracket.

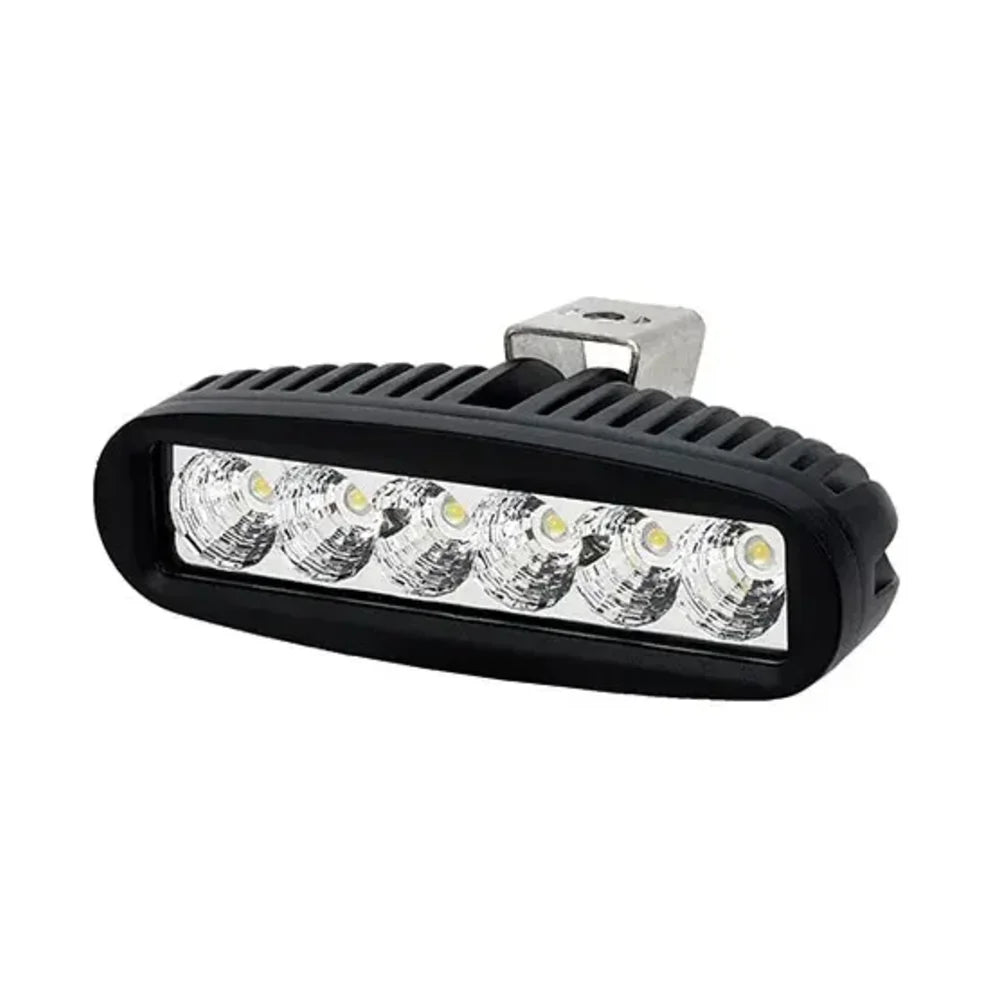

• ILSL-1806FB: Bracket-Mount, Black Finish. The black-coated version shares the six-LED configuration and 1,050-lumen output of the satin white bracket-mounted model.

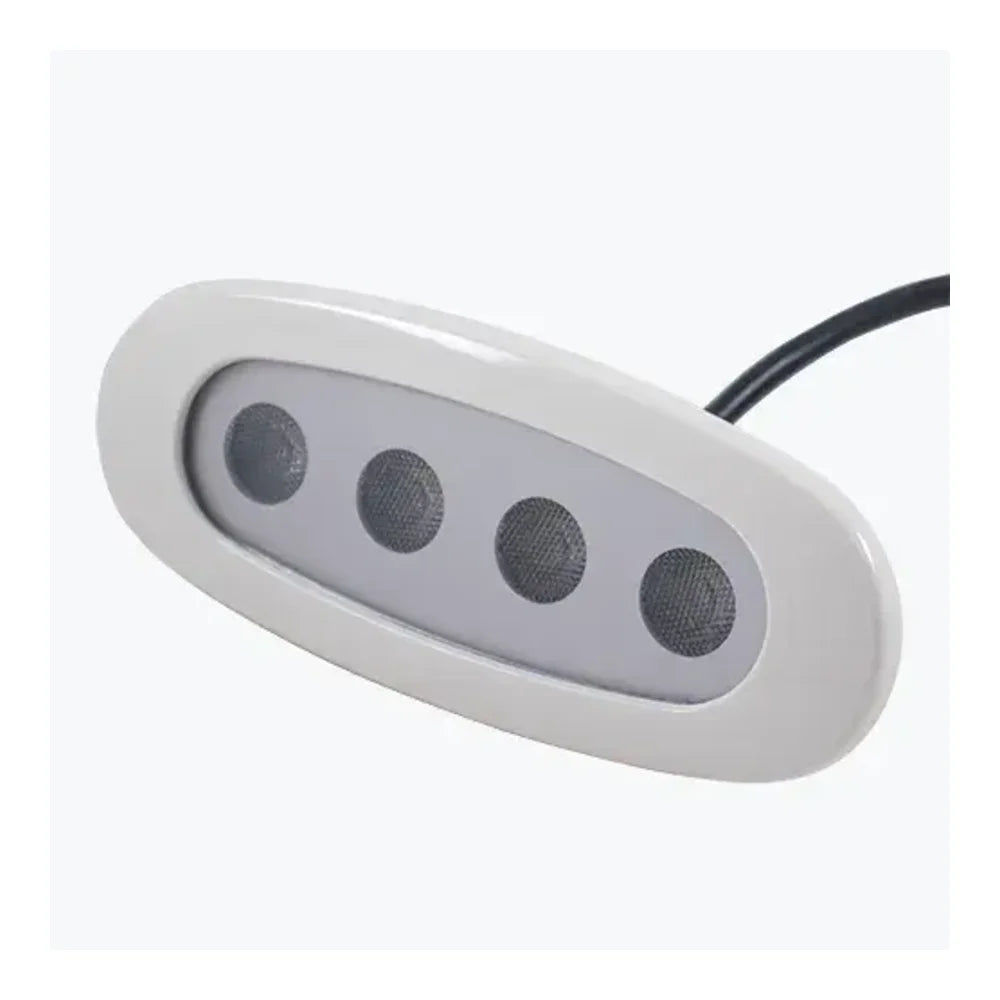

• ILDL-10-04: Recessed-Mount, White Finish. The 10W cockpit flood light delivers 700 lumens and features a mounting flange for recessed installation.

Installation and mounting

The bracket-mounted models allow the light to be aimed toward the intended deck or cockpit area after installation. Their articulated mounting arrangement accommodates exposed mounting locations such as spreaders, arches, and cabin tops.

The recessed configuration fits into a prepared mounting opening, reducing the amount of fixture housing projecting from the installation surface. This arrangement is suitable for fiberglass T-tops and overhangs where a lower-profile installation is required. Mounting dimensions and clearance requirements differ between configurations and should be checked before installation.

Electrical and lighting characteristics

The bracket-mounted models accept 10-32VDC input and have a specified power consumption of 16W, despite their 18W product designation. The recessed model operates on 10-30VDC and has a 10W power rating. These differences should be considered when planning the electrical circuit and comparing fixture output.

The fixtures provide cool white flood illumination rather than a concentrated spotlight beam. Their sealed construction and protective finishes support exterior marine use where lighting equipment is exposed to spray and weather.
