Humminbird - HELIX 5 CHIRP GPS

Unleash Your Inner Angler

The Humminbird HELIX 5 CHIRP/GPS Combo G3 is designed for the avid fisherman who demands precision and reliability on the water. Featuring a bright and clear 5" widescreen color display, this fishfinder provides unparalleled visibility in all conditions. The HELIX 5 CHIRP GPS G3 model comes equipped with Dual Spectrum CHIRP 2D sonar, an internal GPS with Humminbird Basemap, and built-in AutoChart Live, offering compatibility with Humminbird and Navionics premium fishing charts.

Key Features for Ultimate Fishing Success

The HELIX 5 CHIRP/GPS Combo G3 combines cutting-edge technology with user-friendly controls to deliver an exceptional fishing experience.

Key Features:

• Keypad Control: Effortlessly navigate through the pre-loaded views using the intuitive keypad controls, ensuring you can operate your fishfinder reliably in any conditions.
• Dual Spectrum CHIRP Sonar: Gain detailed insights with highly accurate fish arches and a clear view of the fish-holding structure and bottom. The Dual Spectrum CHIRP sonar offers two search modes: Wide Mode for extensive coverage and Narrow Mode for detailed precision.
• Internal GPS and Humminbird Basemap: Navigate with confidence using the enhanced basemap, which provides a clear view of underwater terrain and surrounding points of interest. It includes charts of over 10,000 lakes, plus coastal coverage for the continental U.S.
• Premium Chart Compatibility: Access the most comprehensive range of premium chart options, including Humminbird's LakeMaster® and CoastMaster™ products, as well as compatible Navionics® charts.
• AutoChart Live: Create real-time maps of your favorite fishing spots with access to patented Humminbird® LakeMaster® features. Map depth contours, bottom hardness, and vegetation with eight hours of built-in recording time, expandable with AutoChart Zero Line SD cards for virtually unlimited mapping capacity.

Technical Specifications

Technical Specifications:

• Display Size - Diagonal: 5 inches
• Display Pixel Matrix: 800H x 480V
• Sonar-Standard: Dual Spectrum CHIRP
• Sonar-Coverage: 20°, 42°, & 60° @ -10dB
• Sonar-Optional: 50 kHz, 50/Low Airmar CHIRP
• CHIRP Frequencies Supported: 83/200 kHz (75-155/130-250 kHz), Full Mode (150-220 kHz), Narrow Mode (180-240 kHz), Wide Mode (140-200 kHz)
• Sonar-Frequencies Supported: 50/80/200 kHz
• Depth-Sonar: 1,200 ft (standard transducer), 3,000 ft (optional 50 kHz)

Comprehensive Package

Includes:

• Control head
• Transom-mount transducer
• Power cable
• Gimbal mounting bracket
• Mounting hardware
• 1-Year Limited Warranty

Variations to Suit Every Need

Variants:

• GPS Combo G3 (Model 411660-1): Ideal for anglers looking for a comprehensive GPS and fishfinding solution.
• GPS G3 (Model 411670-1): Perfect for users who prioritize GPS capabilities.

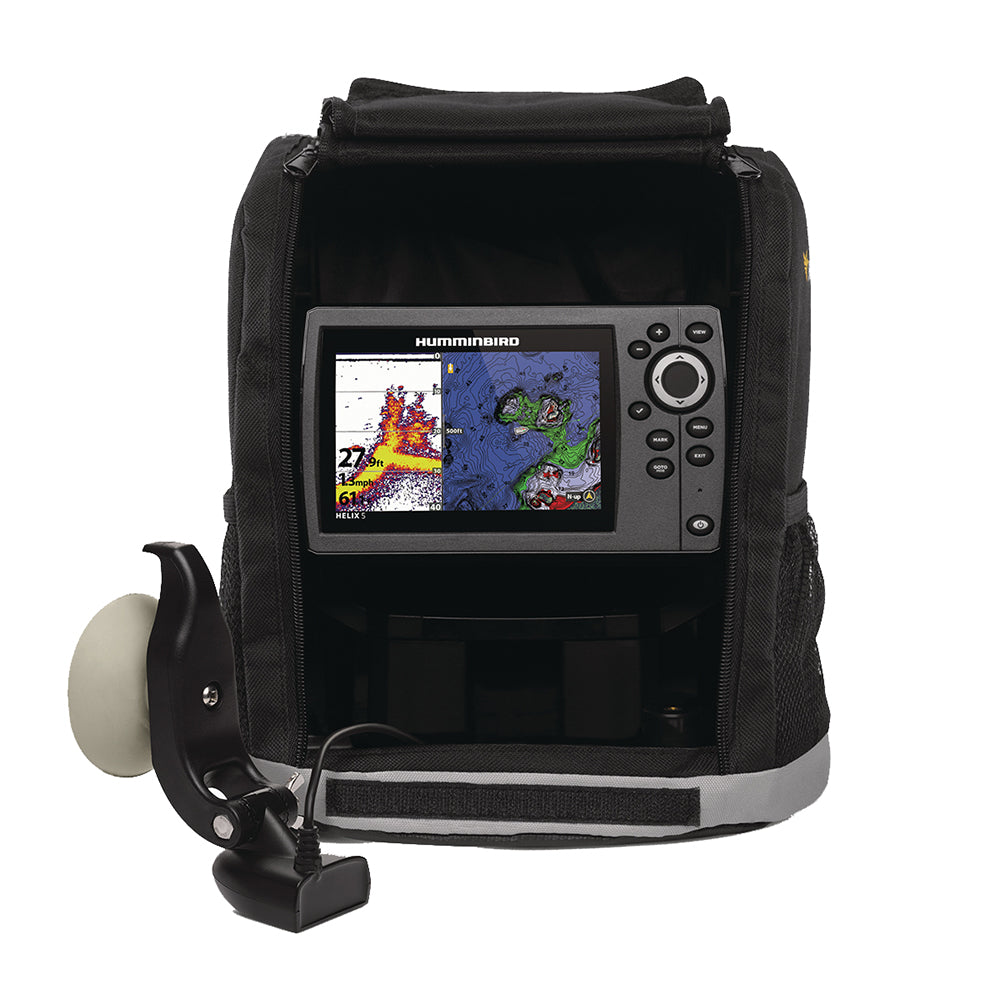

• GPS G3 Portable (Model 411680-1): Designed for portability and easy transport, making it perfect for anglers on the move.

Experience unparalleled precision and clarity with the Humminbird HELIX 5 CHIRP/GPS Combo G3, and take your fishing adventures to the next level.
