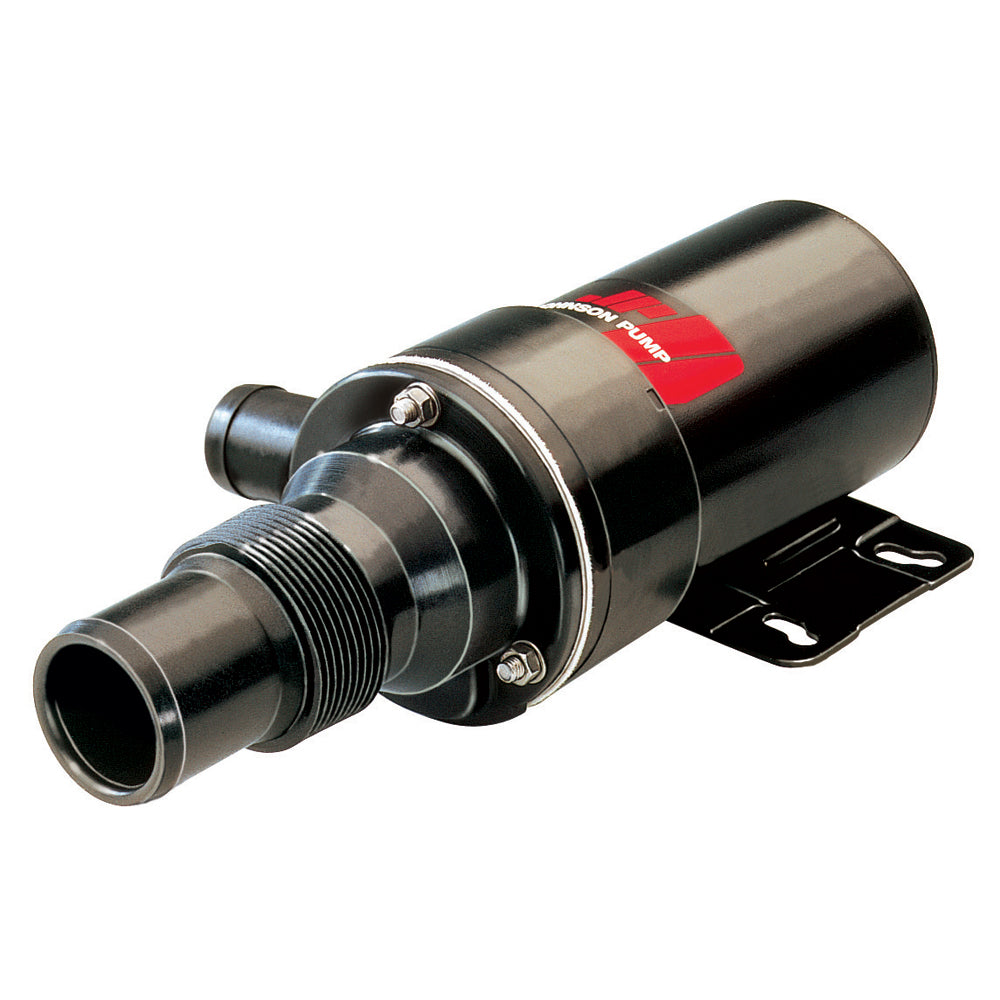

Johnson Pump - Macerator Pump - 12V

Reliable Solution for Marine Waste Disposal

The Johnson Pump Macerator Pump TA3P10-19, 12V is designed to effectively manage marine toilet and livewell waste. This powerful pump shreds waste before it is pumped into or out from the holding tank, ensuring efficient and hygienic waste disposal.

Advanced Features for Optimal Performance

Installing the Johnson Pump Macerator Pump close to the holding tank discharge outlet or the bowl discharge outlet maximizes its efficiency. Note: It is recommended to use unbleached lavatory paper only to prevent blockages and maintain the pump’s longevity.

• Ignition Protected Motor: Conforms to ISO 8846 Marine standards, ensuring safety and reliability.
• Easy Installation: Comes with a mounting bracket for straightforward replacement and setup.
• Energy Efficient: Designed to consume minimal energy while providing powerful waste management.
• Durable Construction: Features a rotary cutter casing made from thermoplastic polyester (PET) for enhanced durability.

Key Features and Benefits

• High Capacity: Pumps 37 liters per minute (10 GPM) at 0.2 bar (6.7 ft), ensuring rapid waste disposal.
• Versatile Connections: Inlet connection for 1½" (38 mm) hose or 1½" NPT, and an outlet connection for 1" (25.4 mm) hose.
• Thermal Protection: Equipped with a 12V DC motor that includes built-in thermal protection for safe operation.
• Robust Components: Constructed with a phenol plastic (PF) pump body, nitrile impeller, thermoplastic polyester (PET) cutter casing, stainless steel shaft, and lip seal for reliable performance.

Technical Specifications

• Capacity: 37 l/min (10 GPM) at 0.2 bar (6.7 ft)
• Amperage: 15 A
• Fuse Size: 20 A
• Motor: 12V DC with built-in thermal protection
• Inlet Connection: 1½" (38 mm) hose or 1½" NPT
• Outlet Connection: 1" (25.4 mm) hose

Product Dimensions

• Length: 230 mm (9.06 inches)
• Width: 108 mm (4.25 inches)
• Height: 82 mm (3.23 inches)
• Weight: 1.9 kg (4.2 lbs)

Why Choose the Johnson Pump Macerator Pump 12V?

The Johnson Pump Macerator Pump TA3P10-19, 12V offers a reliable and efficient solution for marine waste management. Its advanced features, durable construction, and energy-efficient design make it the ideal choice for maintaining hygienic and effective waste disposal systems on your vessel.

Explore the Johnson Pump Macerator Pump 12V

Enhance your marine waste management system with the Johnson Pump Macerator Pump TA3P10-19, 12V. Designed for ease of use and superior performance, this pump ensures that waste is efficiently shredded and pumped, keeping your marine environment clean and sanitary. Invest in quality and reliability to ensure smooth and effective waste disposal on your boat.
