Vimar Eikon Socket Outlet, Italian Standard P17/11, 2P+E, 16A, 250V

Overview

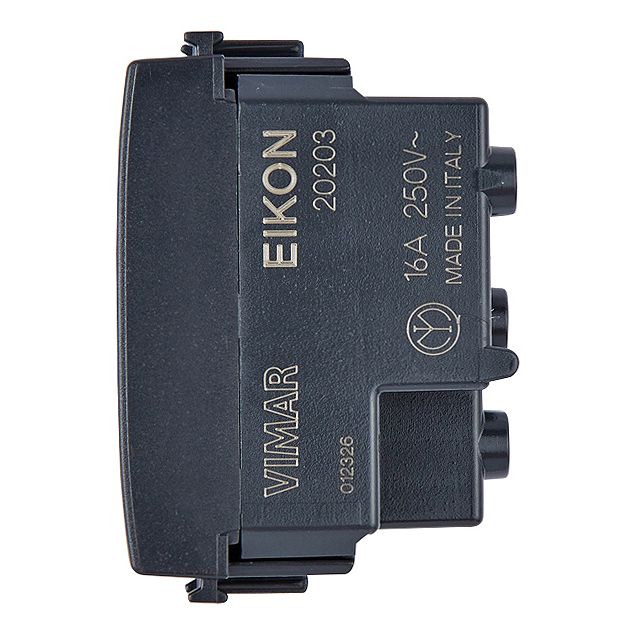

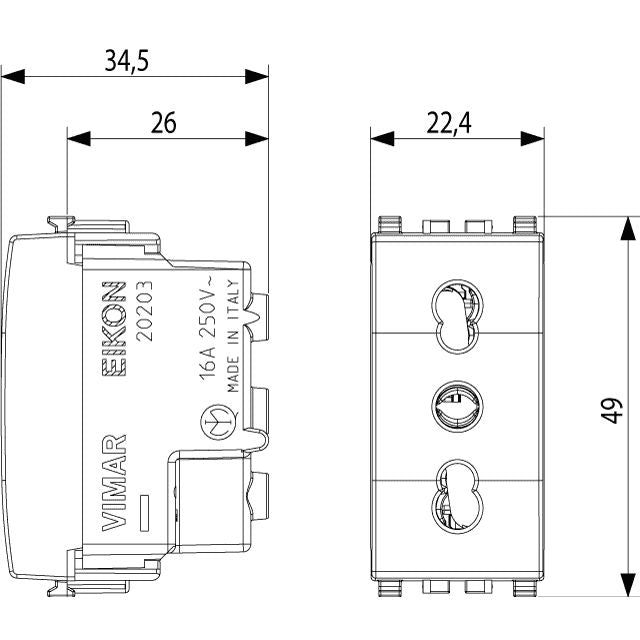

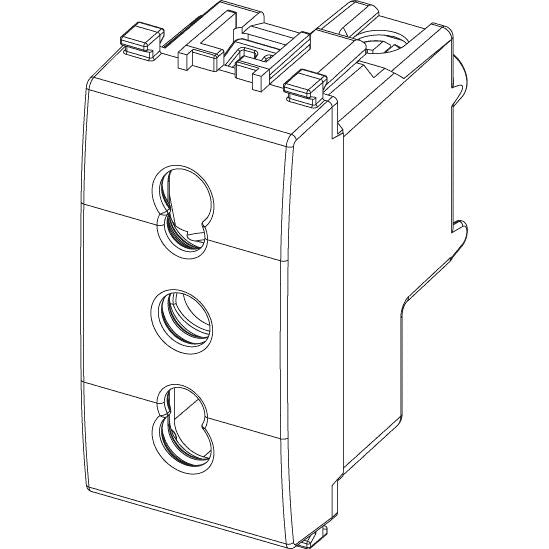

The Vimar Eikon 20203 SICURY P17/11 socket outlet is a 2P+E, 16 A, 250 V flush-mounted outlet insert for Italian standard P17/11 AC installations. It is a one-module device with a compact 22.3 x 49 x 34.5 mm body, which makes it a straightforward fit where panel space is limited and the installation uses the Eikon modular format.

The body is halogen-free thermoplastic with a matte finish, and wiring is made through screw terminals. SICURY contact protection adds an internal shutter that closes when the plug is removed. With an IP20 rating, this outlet belongs in a protected interior location such as a cabin panel, galley bulkhead, or chart table installation, not in open deck, cockpit, or washdown areas.

Key features

• 2P+E Italian type Bipasso outlet in P17/11 format
• Rated 16 A at 250 V, 50 to 60 Hz
• One-module insert for flush-mounted Eikon installations

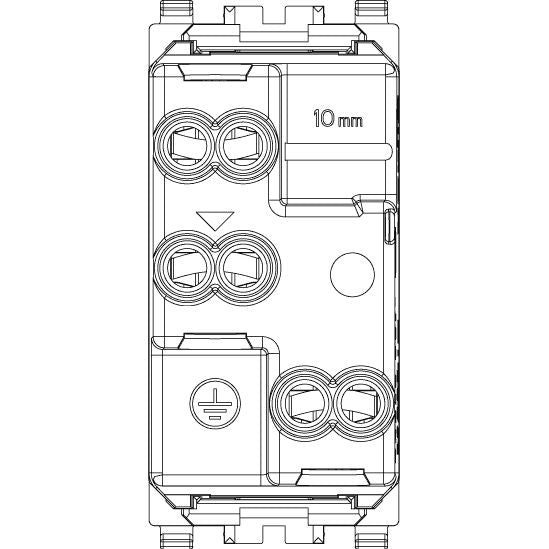

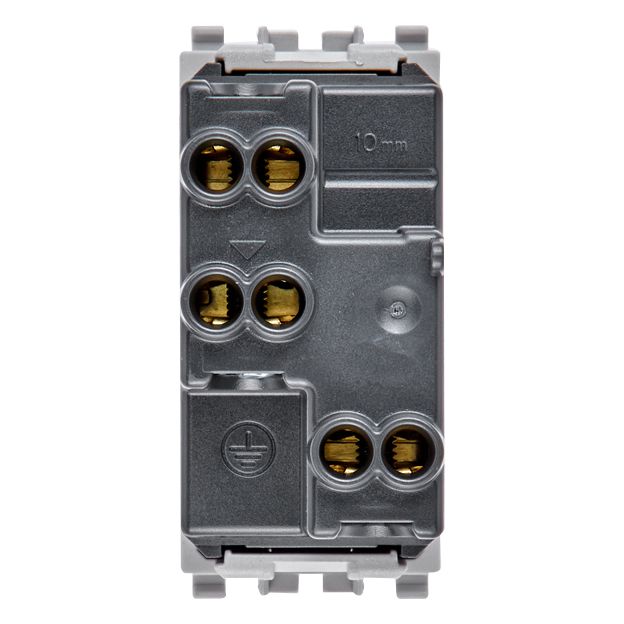

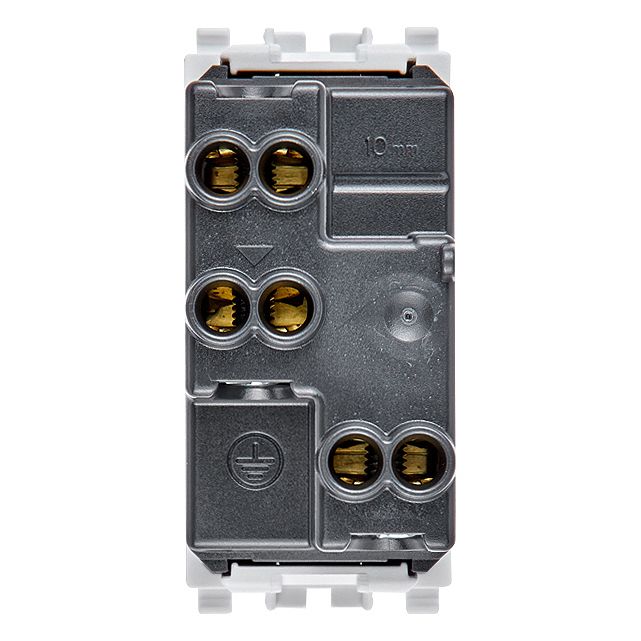

• Screw terminal connection for fixed wiring
• SICURY contact protection with shuttered outlet openings
• Halogen-free thermoplastic body with matte finish
• IP20 protection for dry interior mounting points
• Front label space for circuit identification

Variants

This outlet is offered in four color configurations within the same Eikon 20203 family.

Across the range, the electrical format stays the same: 2P+E Italian standard P17/11, 16 A, 250 V, 50 to 60 Hz, one module, flush mounting, screw terminals, halogen-free thermoplastic construction, IP20 protection, and 22.3 x 49 x 34.5 mm dimensions. The changes between variants are finish and, in the red version, application marking.

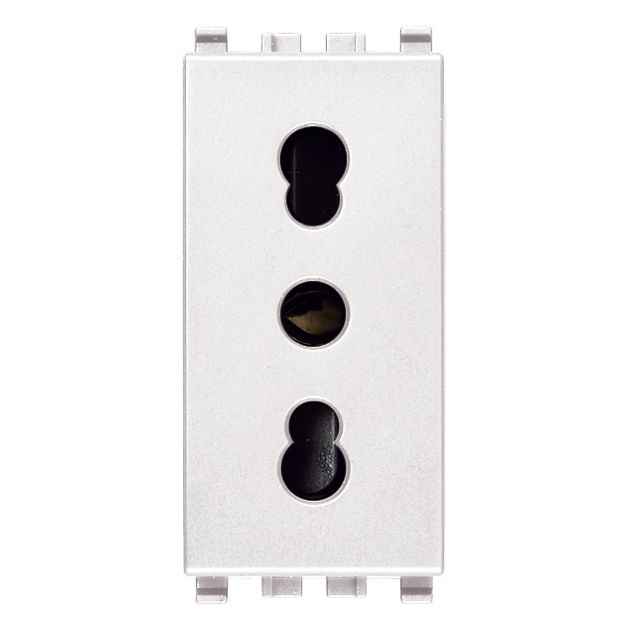

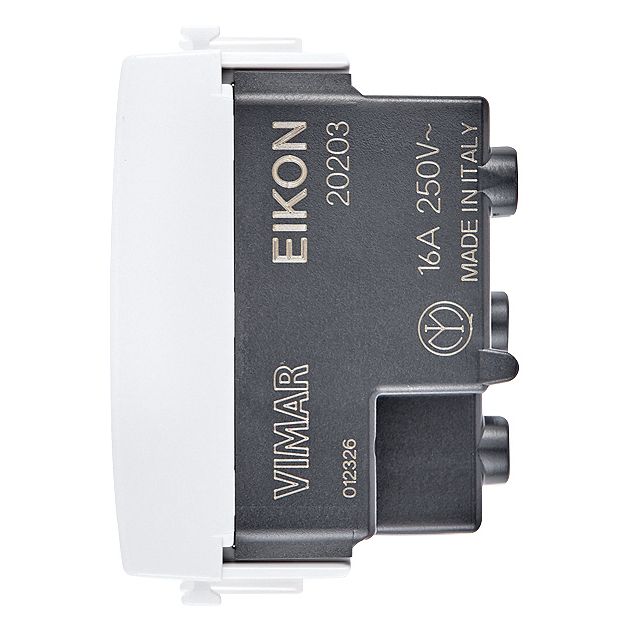

• VM20203.B: Color White. This version keeps the outlet in a light Eikon palette for interiors that use white plates and trim.

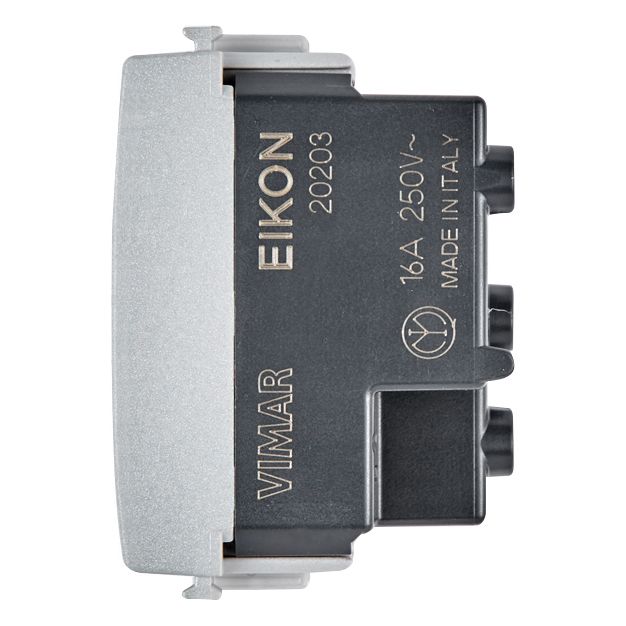

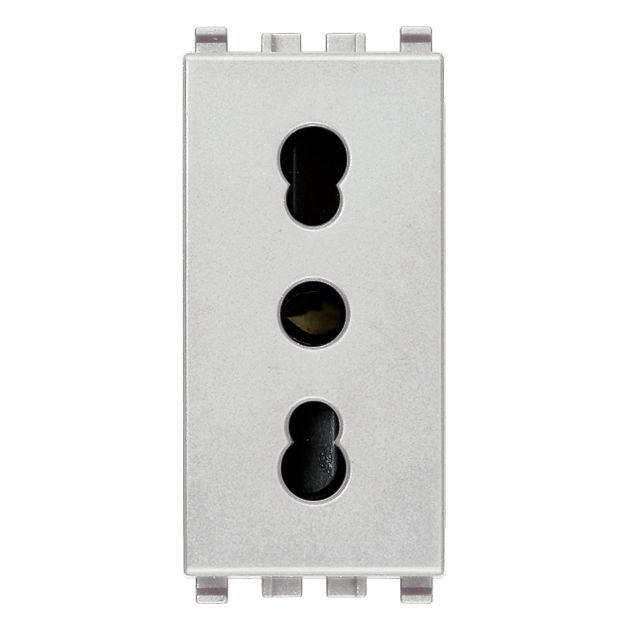

• VM20203.N: Color Silver. This version uses a silver finish with a lacquered matte surface that matches Eikon Next silver hardware.

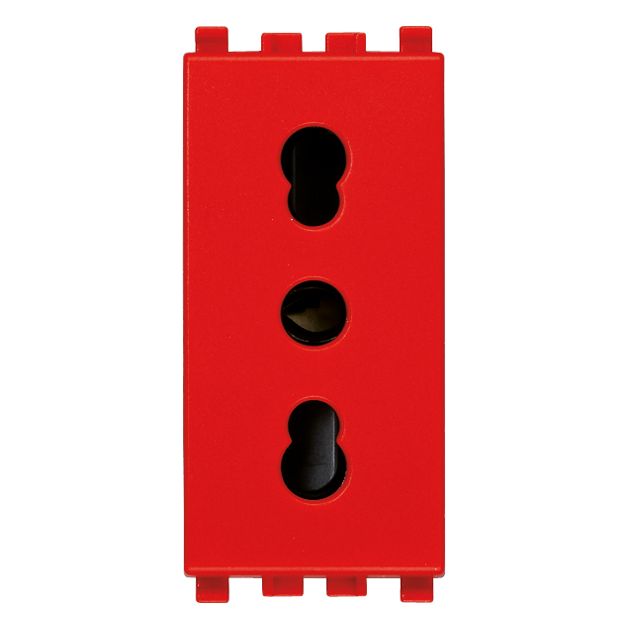

• VM20203.R: Color Red. This version is marked for dedicated supply lines, which helps separate a specific AC circuit from general-purpose outlets.

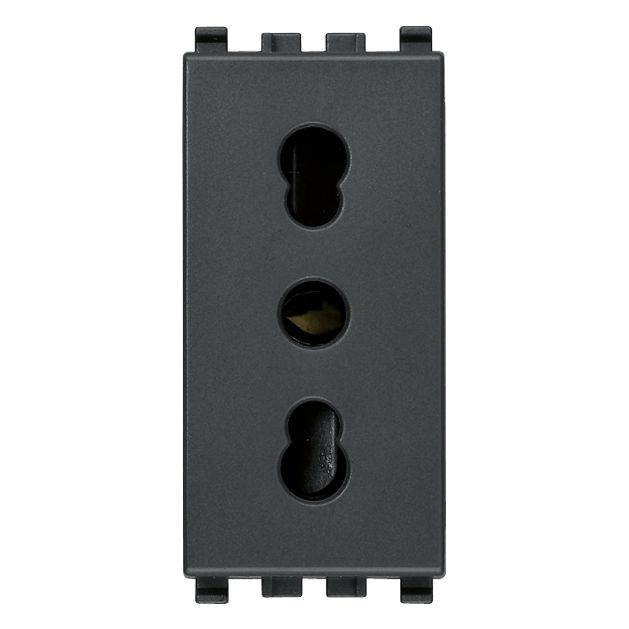

• VM20203: Color Grey. This version keeps the outlet in the darker Eikon palette and gives a lower-contrast look on dark panels.

Compatibility and placement

Check both the plug standard and the modular system before ordering. This insert is for Italian standard P17/11 outlets and uses the Eikon one-module format, so it suits refits where the boat already has that layout in place.

IP20 means it should stay in a protected interior space. It works for cabin, galley, chart table, and other enclosed AC points, but it is not the right choice for open cockpit panels, deck lockers, or other areas that see spray or washdowns.
