Vimar Arké 2P 2-Way Push Button, 10A, 250V, 6 Terminals

Overview

The Vimar Arké 19061 is a 2-pole 2-way push button for built-in modular switch assemblies, with a 10 A, 250 V~ rating, six terminals, directional arrows, and a central OFF position. On a boat, this kind of switch fits protected interior panels where clear up or down identification matters and the control point needs to stay compact.

The body is thermoplastic and halogen-free, and the module mounts by snap engagement. With an IP40 rating and a non-illuminated face, it is better suited to cabins, enclosed helm areas, and other dry interior locations than to exposed weather positions.

Key features

• 2-pole 2-way push button rated 10 A at 250 V~

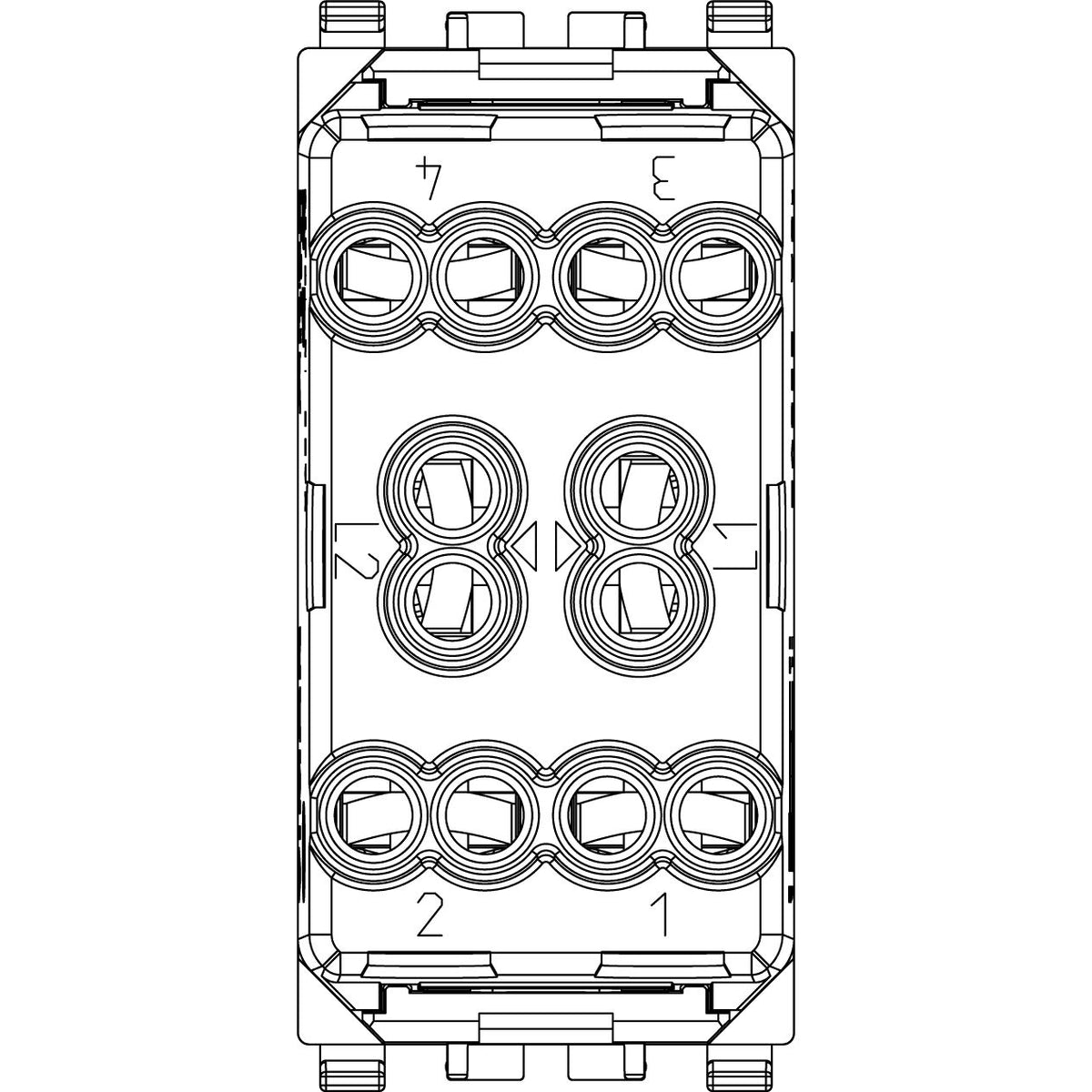

• Six-terminal layout with directional arrows and a central OFF position
• Built-in modular format with snap-in fastening
• Thermoplastic construction that is halogen-free
• IP40 protection for protected interior mounting locations
• Non-illuminated switch face

Variants

This product is offered in three finish options.

The electrical rating, six-terminal layout, built-in snap-in mounting, IP40 protection, and overall size remain the same across the range. What changes between variants is the visible finish and colour of the front piece.

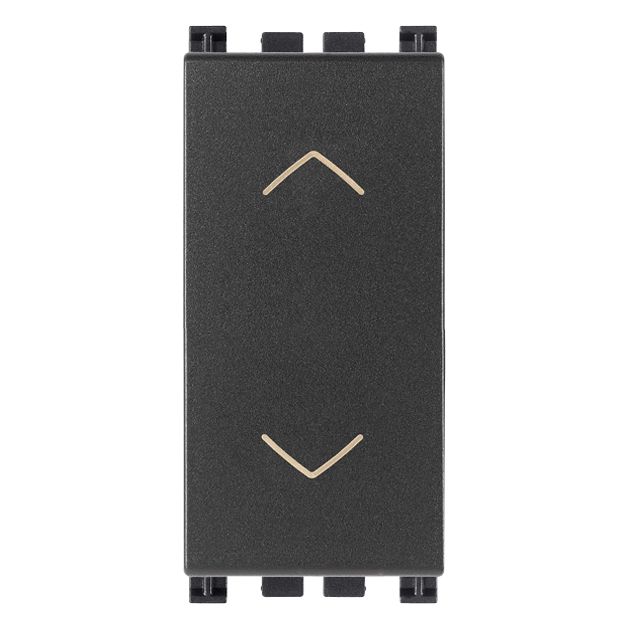

• VM19061 is Grey. It has a matt grey appearance that sits quietly in darker interior panels and utility spaces.

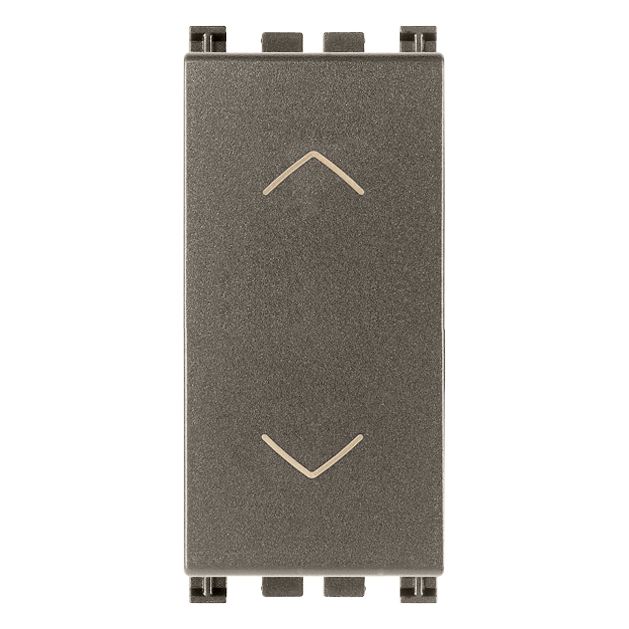

• VM19061.M is Metal. This version keeps the same thermoplastic body, with a metallic aluminium-tone front finish.

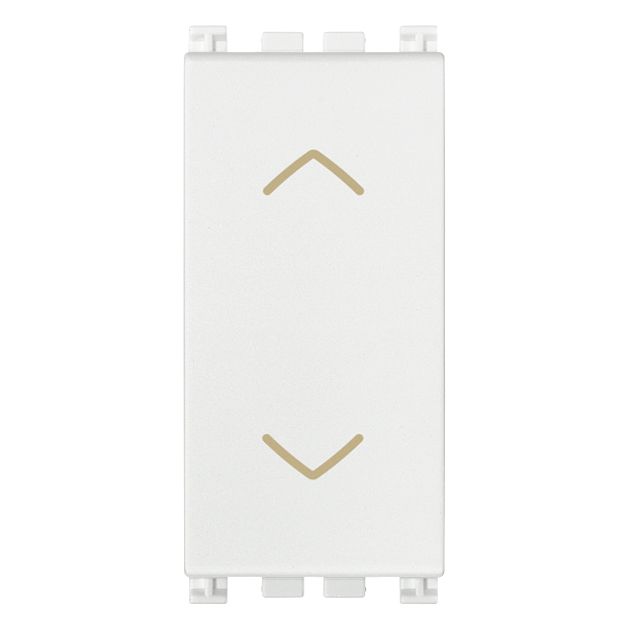

• VM19061.B is White. It has a clean white front finish that stands out clearly on lighter cabin interiors and switch panels.

Installation and fit

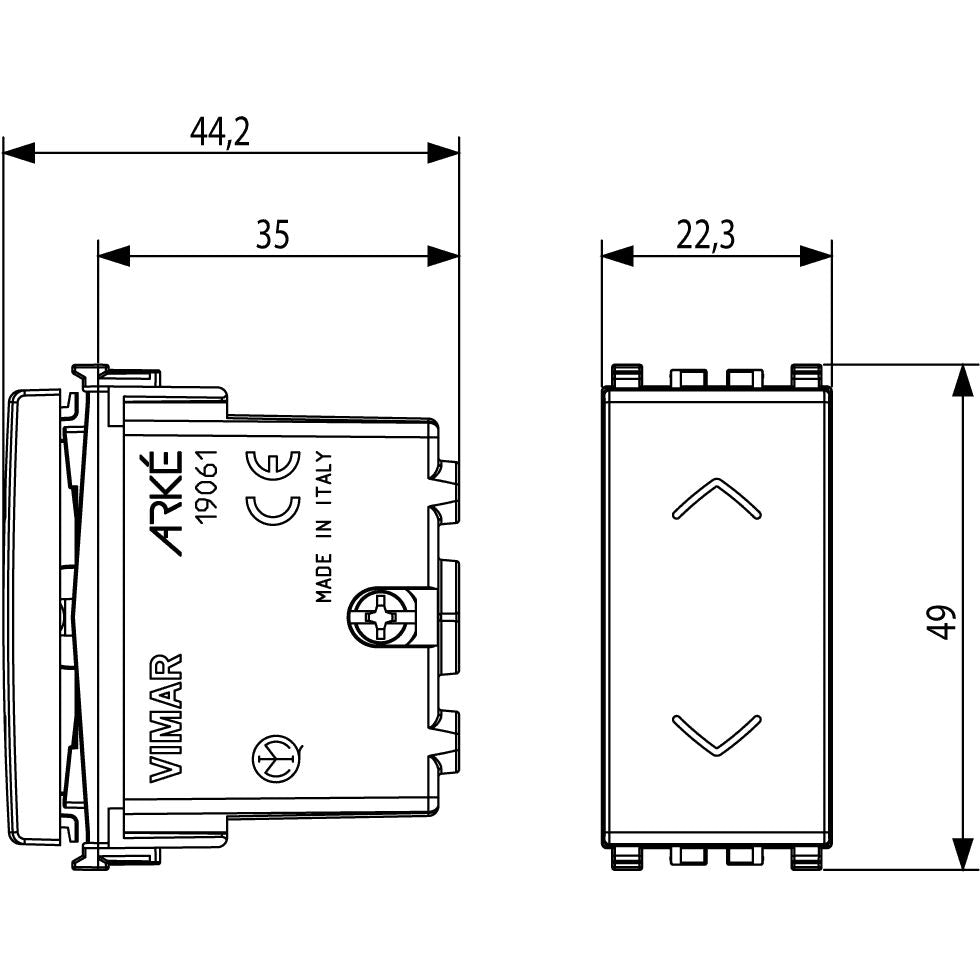

This module measures 22.3 x 49 x 44.2 mm and is made for built-in mounting in compatible modular switch frames. It is not a sealed exterior control, so it belongs in protected spaces away from direct washdown and constant spray.

It fits best where the panel already uses Vimar Arké devices and where the function benefits from a switch face with directional arrows and a centre-off resting position. That can make labeling more intuitive at the helm, in the cabin, or at an interior service panel.
