Maretron - GPS200-01 N2K GPS Antenna Waas Capable

High-Precision GPS Antenna for Marine Navigation

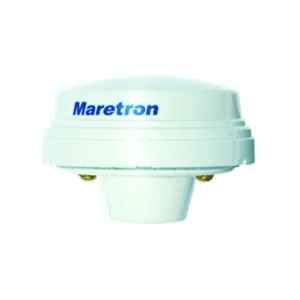

Maretron's GPS200-01 is a cutting-edge 32-channel GPS antenna and receiver designed to deliver highly accurate positioning, speed, and precision timing for marine applications. Engineered to provide five position fixes per second and boat speed updates four times per second, this advanced system enhances navigational performance and reliability. It also broadcasts precision magnetic variation data using the latest world magnetic model (WMM-2010), ensuring optimal course calculations.

With full compliance to the NMEA 2000® standard, the GPS200 seamlessly integrates with marine navigation systems, chart plotters, autopilots, and dedicated instrument displays like Maretron’s N2KView® Vessel Monitoring and Control system or DSM250 graphical display. The waterproof housing and compact design ensure durability, while its plug-and-play functionality simplifies installation.

Advanced Positioning with SBAS Correction

The GPS200 automatically deciphers GPS correction signals from Satellite-Based Augmentation Systems (SBAS), such as the North American WAAS, the European EGNOS, and the Asian MSAS. This advanced capability enhances accuracy to better than 2.5 meters, providing exceptional reliability for marine navigation.

Easy and Versatile Installation

Designed for straightforward mounting, the GPS200 fits any 1-inch standard marine mount with 1”-14 male threads. It can also be mounted directly to the deck or even underneath a fiberglass deck without compromising performance, thanks to its exceptional sensitivity.

Technical Specifications

• Channels: 32-channel GPS receiver
• Position Updates: Five fixes per second
• Speed Updates: Four times per second
• Magnetic Variation: Automatic calculation based on position
• Compatibility: NMEA 2000® standard, fully certified
• Correction Signals: Supports WAAS, EGNOS, and MSAS
• Mounting: 1” standard marine mount (1”-14 male threads) or direct deck installation
• Waterproof Rating: Built to withstand harsh marine environments

Product Dimensions

• Mounting Thread Size: 1”-14 male threads

Highlights

• High-precision GPS antenna and receiver for marine navigation
• Real-time position fixes with advanced accuracy
• Automatic magnetic variation data broadcasting
• Seamless integration with NMEA 2000® networks
• Supports major SBAS correction systems for enhanced positioning
• Rugged, waterproof housing for durability in marine conditions
• Flexible mounting options, including deck and mast installations

Applications

• Marine navigation systems
• Autopilot integration
• AIS (Automatic Identification System)

This high-performance GPS antenna is an essential tool for precise and reliable marine navigation, ensuring optimal data accuracy and seamless integration with vessel systems.
