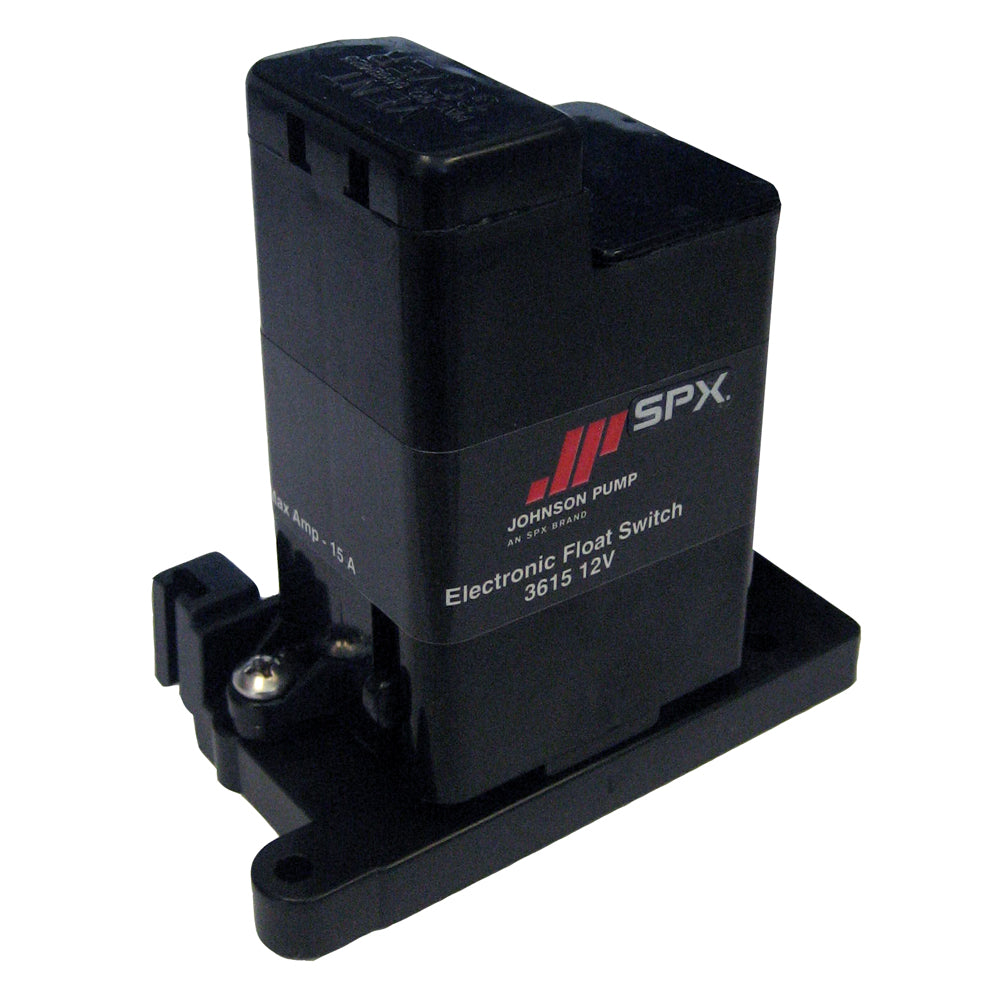

Johnson Pump - Electro Magnetic Float Switch

Precision Water Level Management for Marine Use

Introducing the Johnson Pump Electro Magnetic Float Switch, a compact and reliable solution designed for precise water level control on marine vessels. This advanced switch integrates solid-state electronics with a sealed float mechanism, ensuring accurate and dependable operation. Engineered to meet the rigorous demands of marine environments, this float switch offers exceptional performance and longevity.

Superior Features for Optimal Water Management

The Johnson Pump Electro Magnetic Float Switch is built with high-impact plastic and encapsulated electronics, providing robust durability and resistance to harsh marine conditions. It activates the pump at a 2-inch water level and deactivates it at a 3/4-inch water level, ensuring efficient water management. This switch handles up to 15 amps, making it suitable for various applications on your vessel. The false start prevention feature ensures reliable operation without unnecessary wear and tear on your pump.

Key Features:

• Reliable Activation: Activates pump at 2" water level and deactivates at 3/4" water level for precise control.
• Solid-State Electronics: Combines reliability and accuracy with encapsulated components for durability.
• High Impact Plastic: Ensures the switch can withstand the tough marine environment.
• False Start Prevention: Reduces unnecessary pump wear, extending the lifespan of your equipment.
• Mercury-Free: Environmentally friendly design without hazardous materials.
• High Capacity: Handles up to 15 amps, suitable for a wide range of marine pumps.

Technical Specifications

• Voltage: 12V (also available in 24V)
• Activation Level: 2" water level
• Deactivation Level: 3/4" water level
• Amps: Up to 15 amps
• Material: High impact plastic
• Electronics: Encapsulated solid-state

Compact and Durable Design

The Johnson Pump Electro Magnetic Float Switch is designed to be both compact and rugged, fitting easily into tight spaces while standing up to the demands of marine use. Its high-impact plastic construction and sealed electronics ensure it will continue to perform reliably over time, even in challenging conditions.

Efficient and Eco-Friendly Operation

This float switch is mercury-free, making it a safe and environmentally friendly option for your vessel. Its solid-state design reduces false starts, conserving energy and extending the life of your pump.

Product Variations

1. 12V Version:

• Voltage: 12V
• Ideal for standard marine electrical systems, providing reliable water level control.

1. 24V Version:

• Voltage: 24V
• Suitable for higher voltage systems, offering the same reliable performance for different electrical setups.

General Dimensions

The Johnson Pump Electro Magnetic Float Switch is designed to be compact and easy to install, fitting seamlessly into your marine setup without taking up excessive space.

The Johnson Pump Electro Magnetic Float Switch is the perfect choice for dependable and efficient water level management on your marine vessel. Its robust design, precise control, and environmentally friendly features make it an essential addition to any marine environment, ensuring your pump operates smoothly and effectively. Choose the Johnson Pump Electro Magnetic Float Switch for reliable and efficient water control on the water.
