Lopolight LED Towing Navigation Light, 10-32VDC, 3nm, 135° Arc, IP68

Overview

This Lopolight LED towing navigation light emits a yellow signal across a 135° arc with 3 nautical miles of visibility. Intended for vessels over 50 meters, it operates on 10-32VDC and features a horizontal mounting configuration with an aluminum base and PE base plate.

The fixture has an IP68 protection rating, draws 2.2W, and uses a plug connection. Cable routing can be arranged through the side or bottom of the mounting assembly. Silver and black anodized aluminum finishes are available, with identical light output and electrical specifications.

Key features

• Yellow LED towing signal with 135° coverage, 3nm visibility, and luminous intensity exceeding 15cd.

• 10-32VDC operating range with 2.2W power consumption.

• IP68-rated construction with a 25-micron anodized aluminum housing, PMMA lens, and A4 stainless steel screws.

• Horizontal mounting on an aluminum base with PE base plate and side or bottom cable routing.

• Compact dimensions of 92.5mm diameter by 74.5mm height.

• Plug connector for electrical integration.

• Approved to COLREG 72, EN 14744, IEC 60945, and applicable marine navigation light standards.

Variants

This towing navigation light is available in two anodized aluminum housing finishes: Silver and Black. The finish affects the exterior appearance of the fixture rather than the emitted light color.

Both configurations retain the same yellow LED output, 135° coverage, 3nm visibility, electrical characteristics, dimensions, and horizontal mounting arrangement.

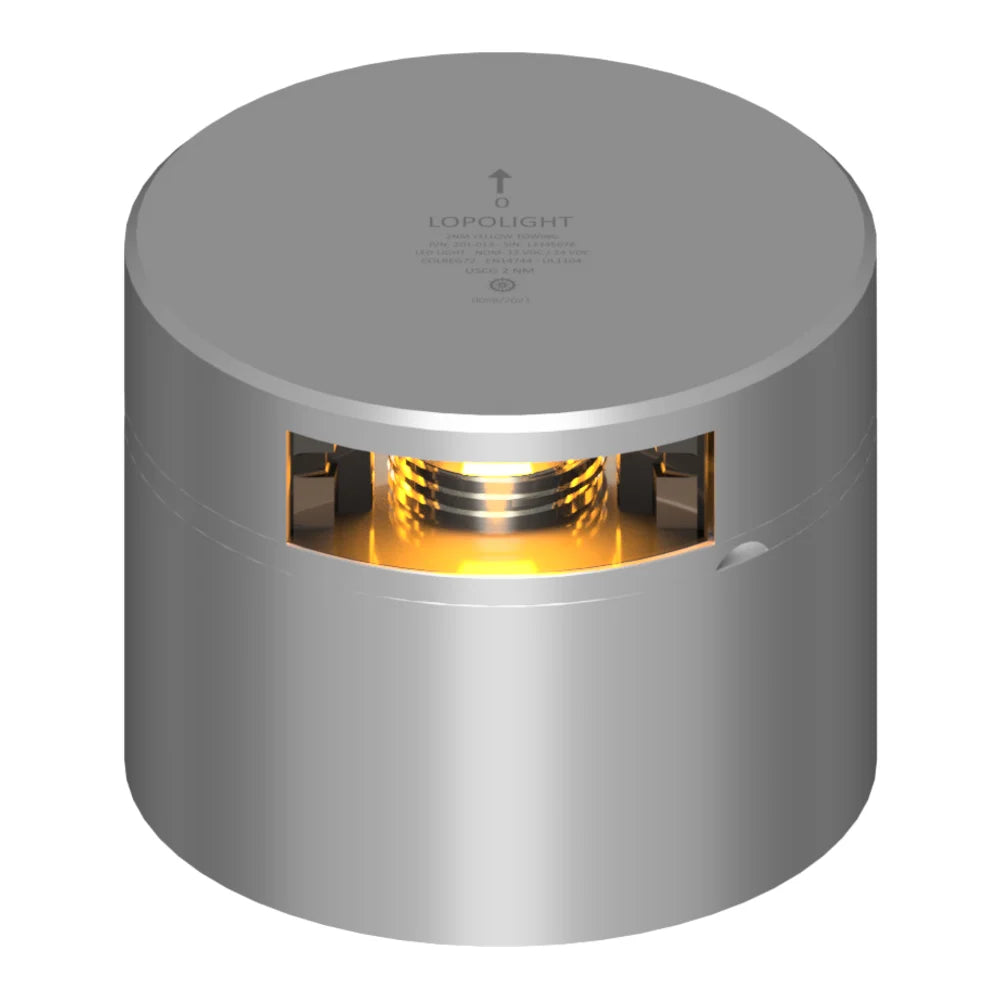

• 301-113, Finish: Silver. Silver-anodized aluminum housing with a 25-micron protective finish and yellow light output.

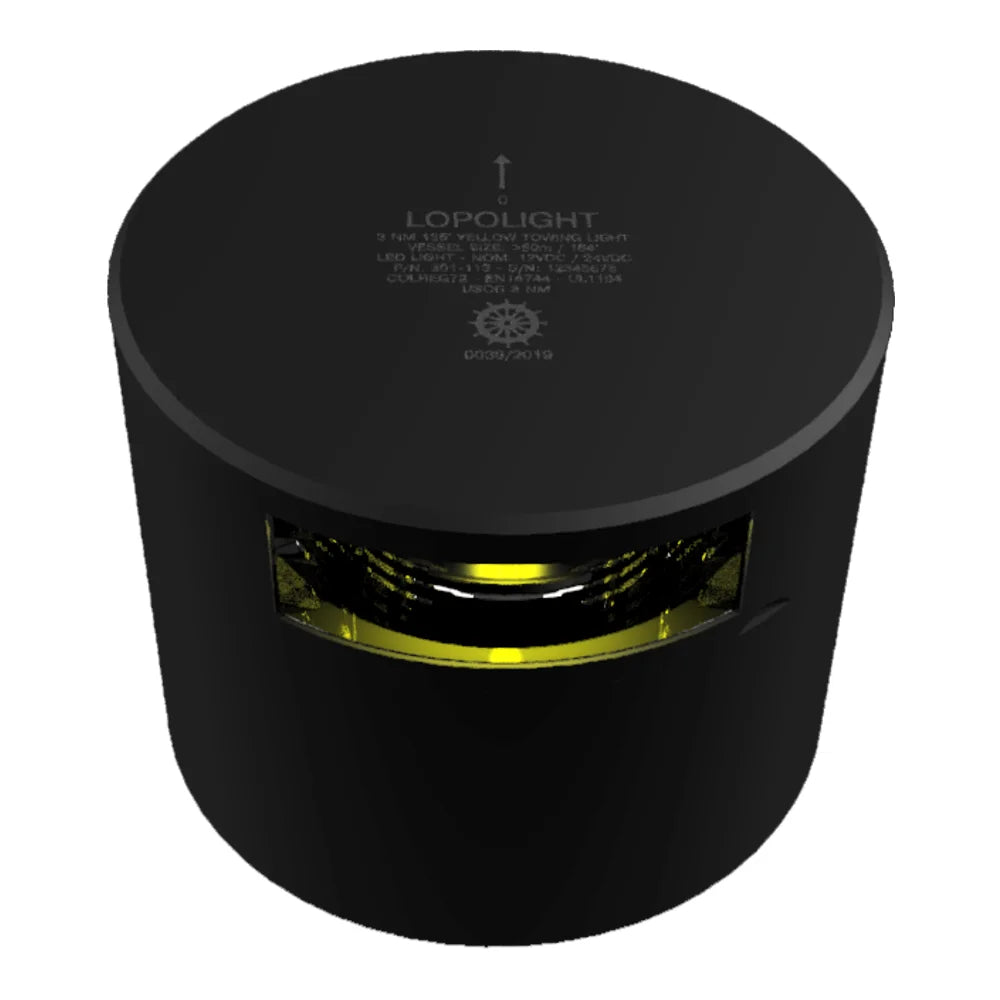

• 301-113-B, Finish: Black. Black-anodized aluminum housing with a 25-micron protective finish and yellow light output.

Installation and setup

The horizontal mounting assembly accommodates cable routing from either the side or bottom, allowing the electrical connection to be positioned according to the installation layout. The fixture measures 92.5mm in diameter and 74.5mm in height, with a minimum feed wire gauge of 0.5mm² (AWG 22). Its operating temperature range is -25°C to 55°C.

What's included

• 1 LED towing navigation light with mounting base

• 2 mounting screws, M6 x 8mm

• Installation guide
