Hella Marine 4532 Series Halogen Chart Reading Lamp, 12V, 295mm Arm, Wall Mount, Red Lens Included

Overview

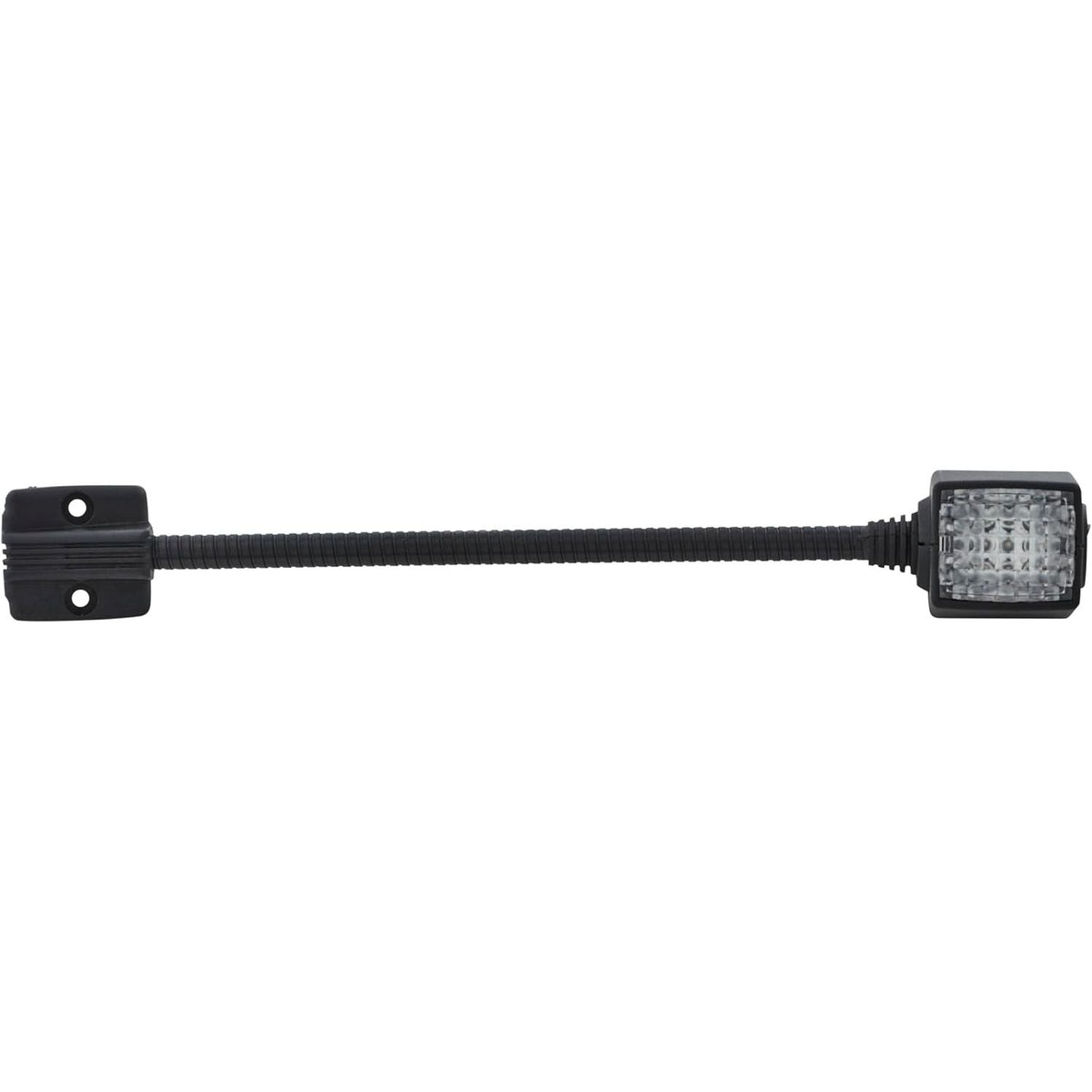

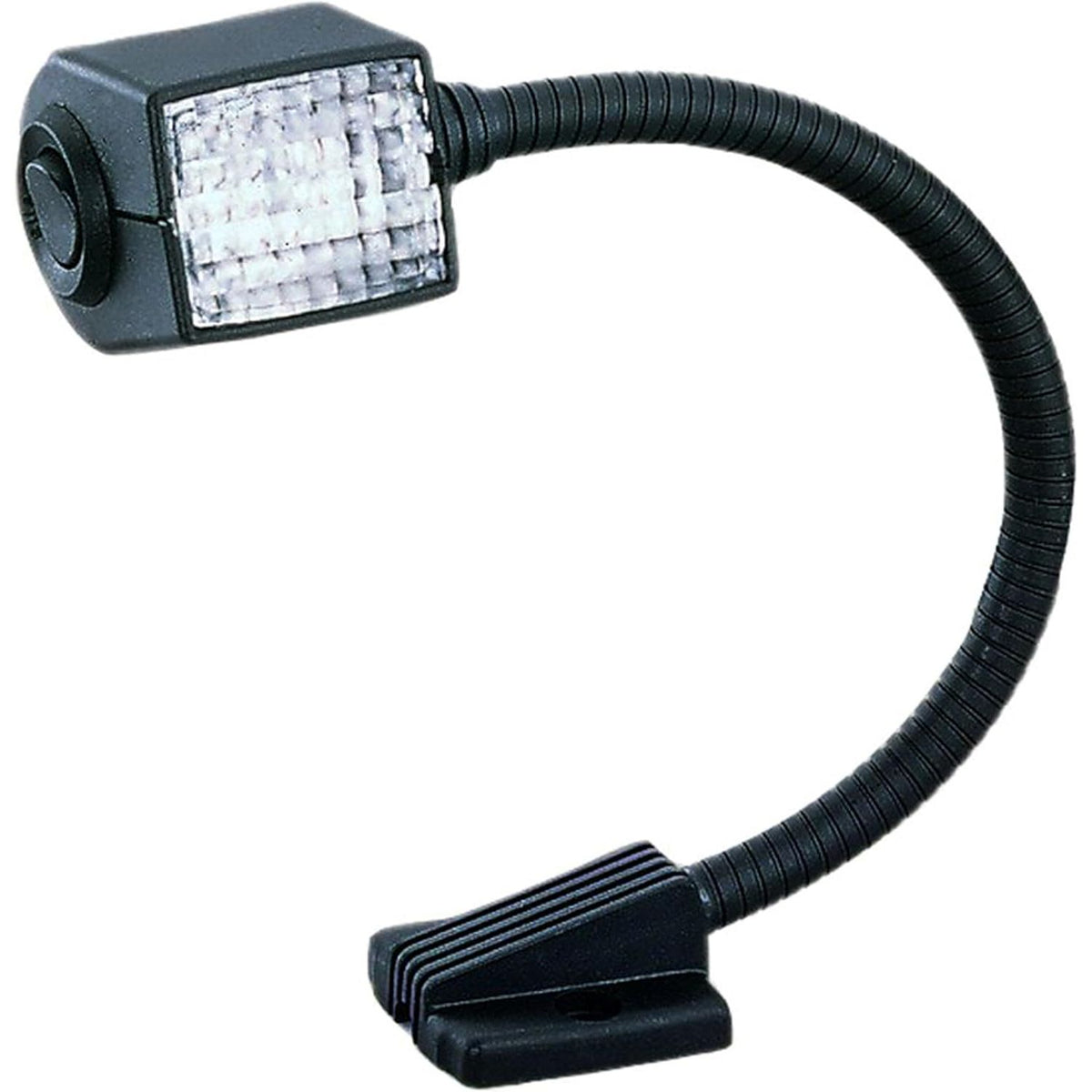

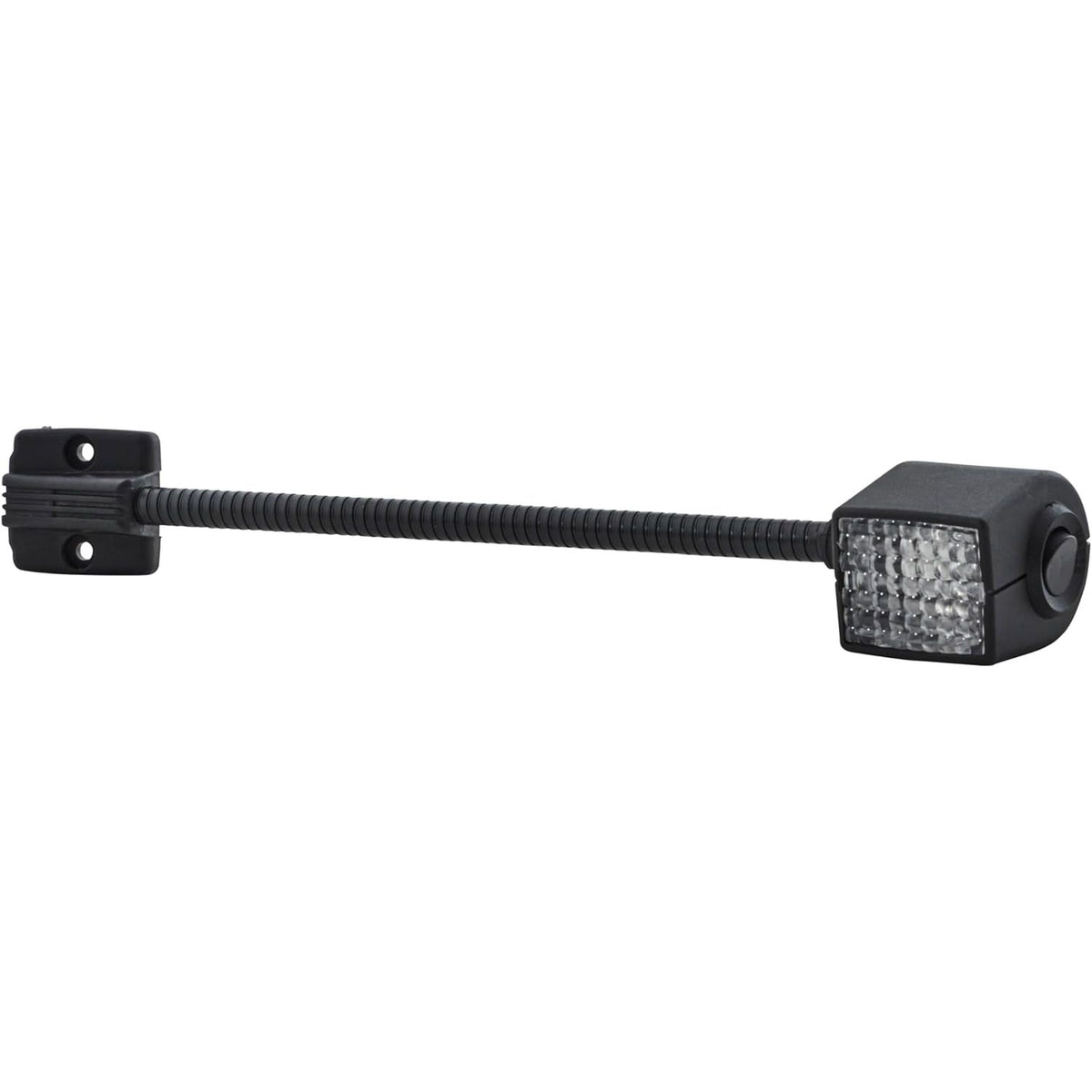

The Hella Marine 004532171 is a wall-mount chart and reading lamp with a flexible metal arm, built for 12V DC systems and supplied with a 5W halogen bulb.

The arm reach is about 295 mm, so you can place the light over a chart table, berth, or a small work surface without needing a large fixture. The lamp head has its own on/off switch, and the patterned lens helps keep the beam usable at close range without harsh glare.

A separate red lens is included for night running, when you want to see what you are doing while keeping night vision for the helm and outside watch.

Key features

• 12V DC halogen reading/chart lamp with a 5W bulb (overall draw up to 6W)

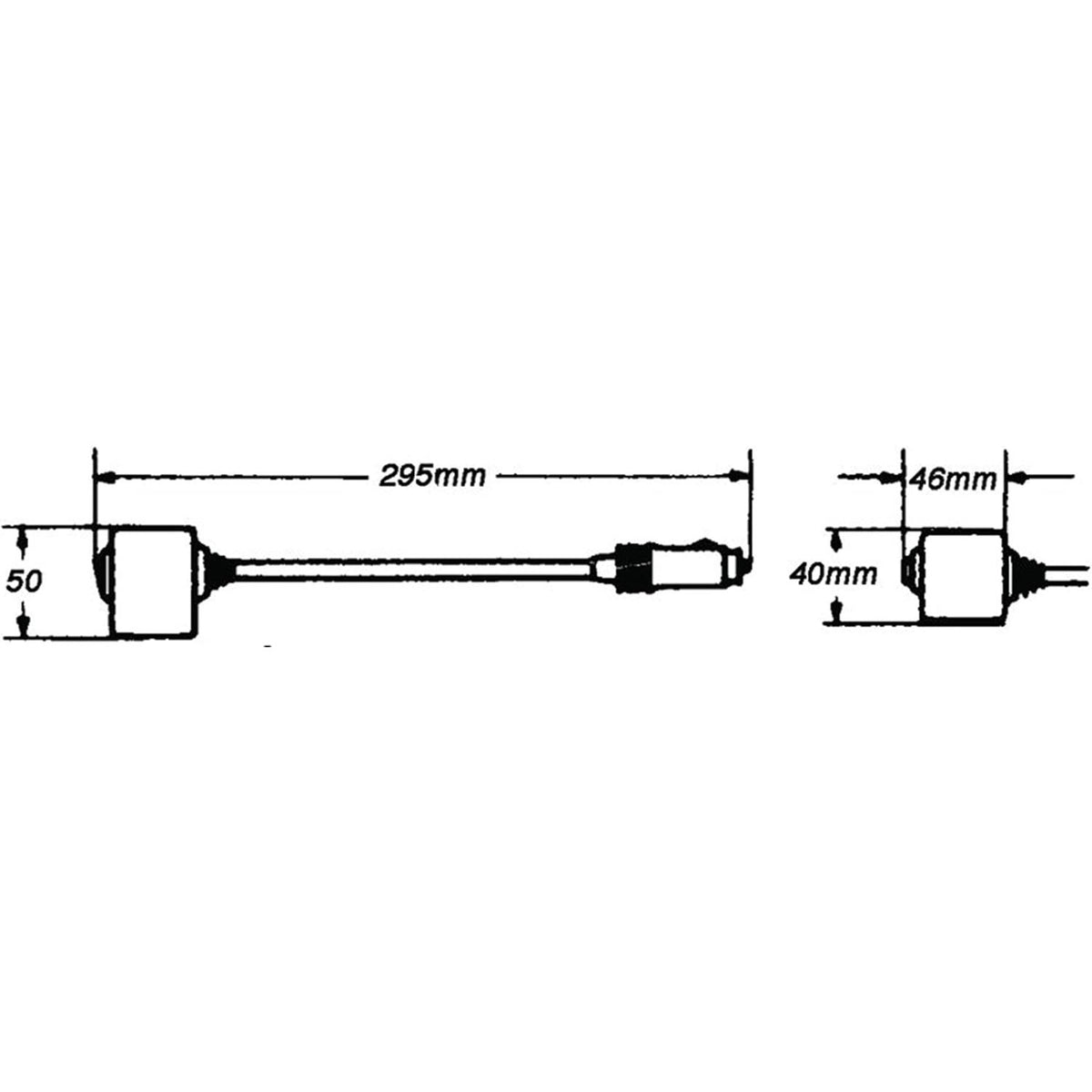

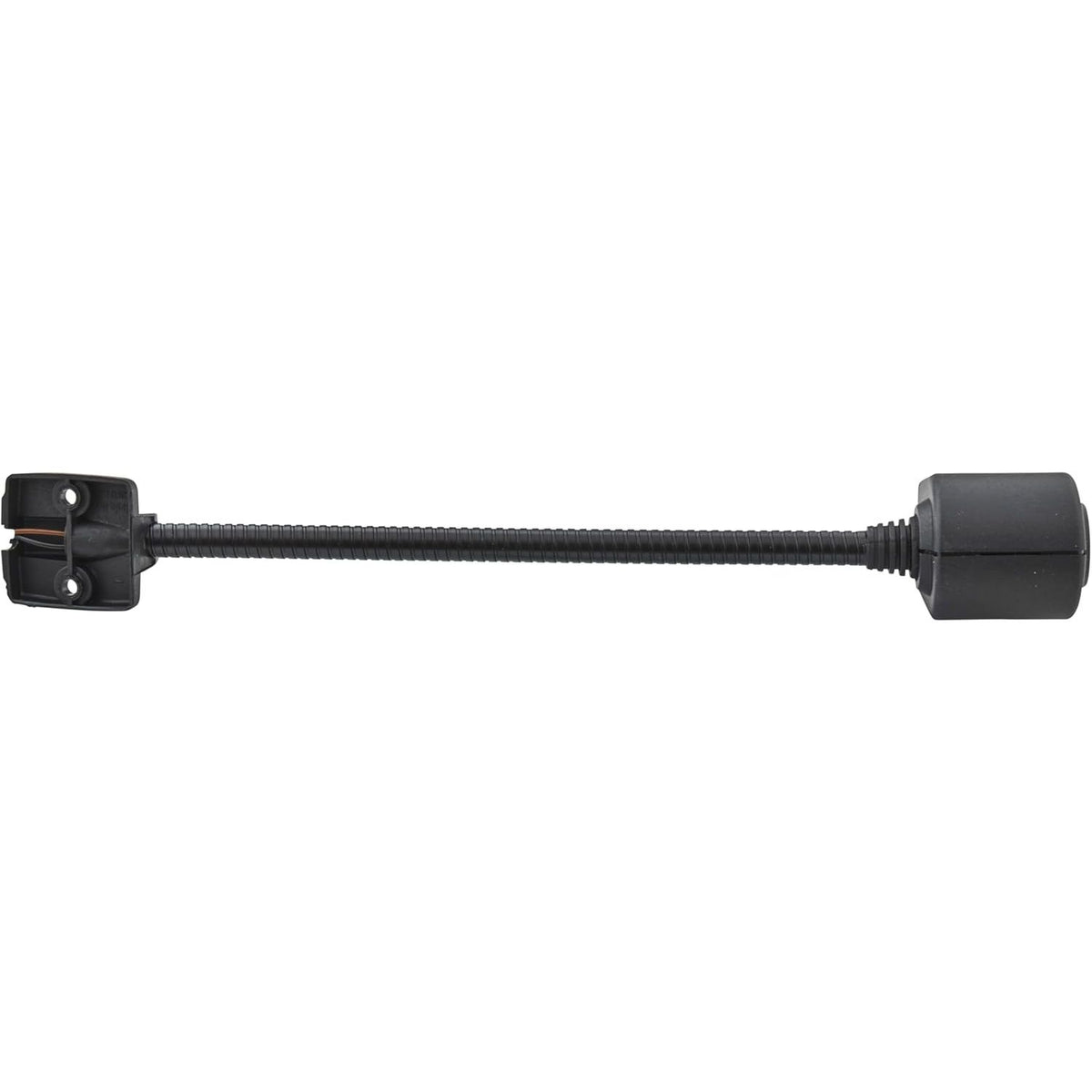

• Approx. 295 mm flexible metal arm for aiming light exactly where you need it

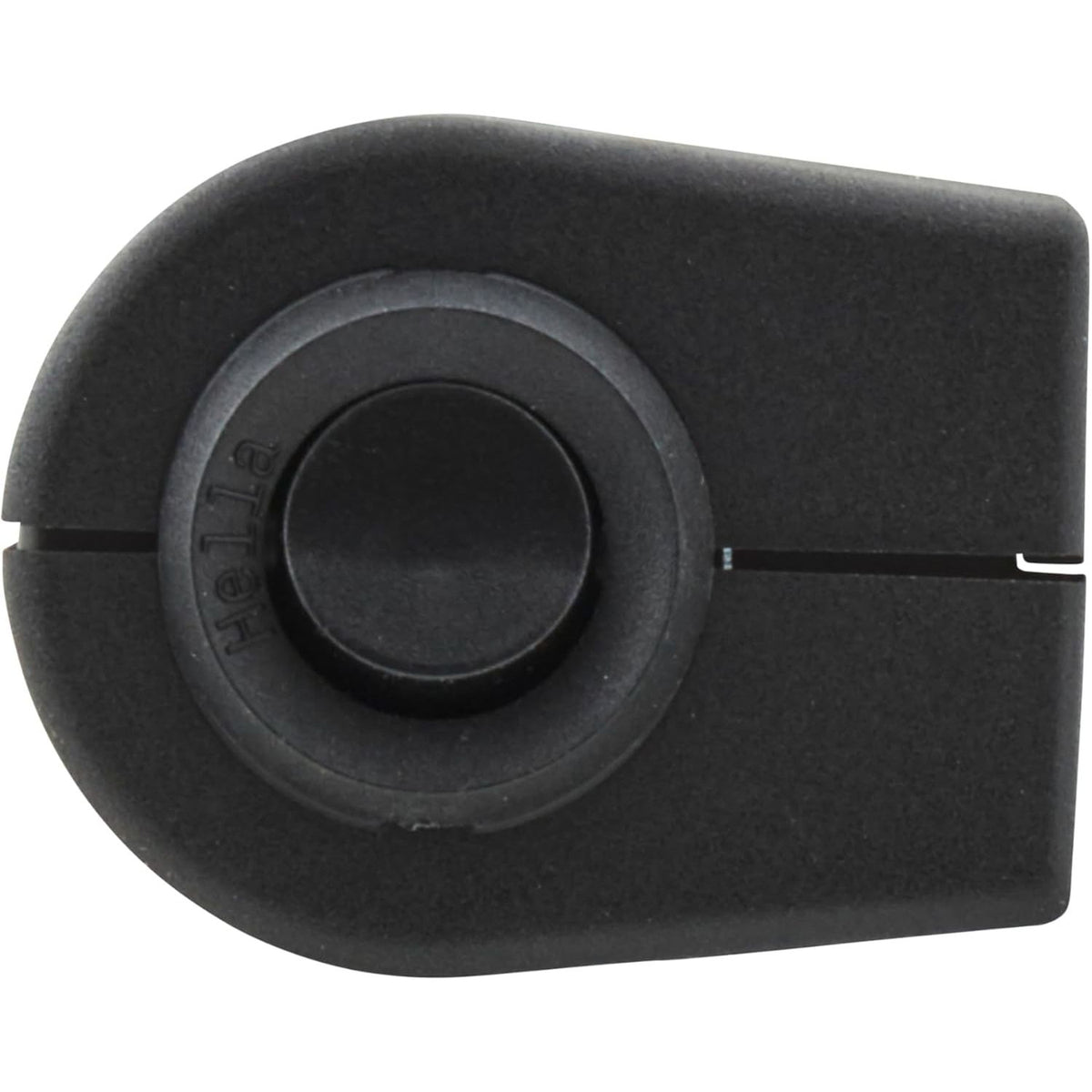

• On/off switch integrated into the lamp head for quick control at the point of use

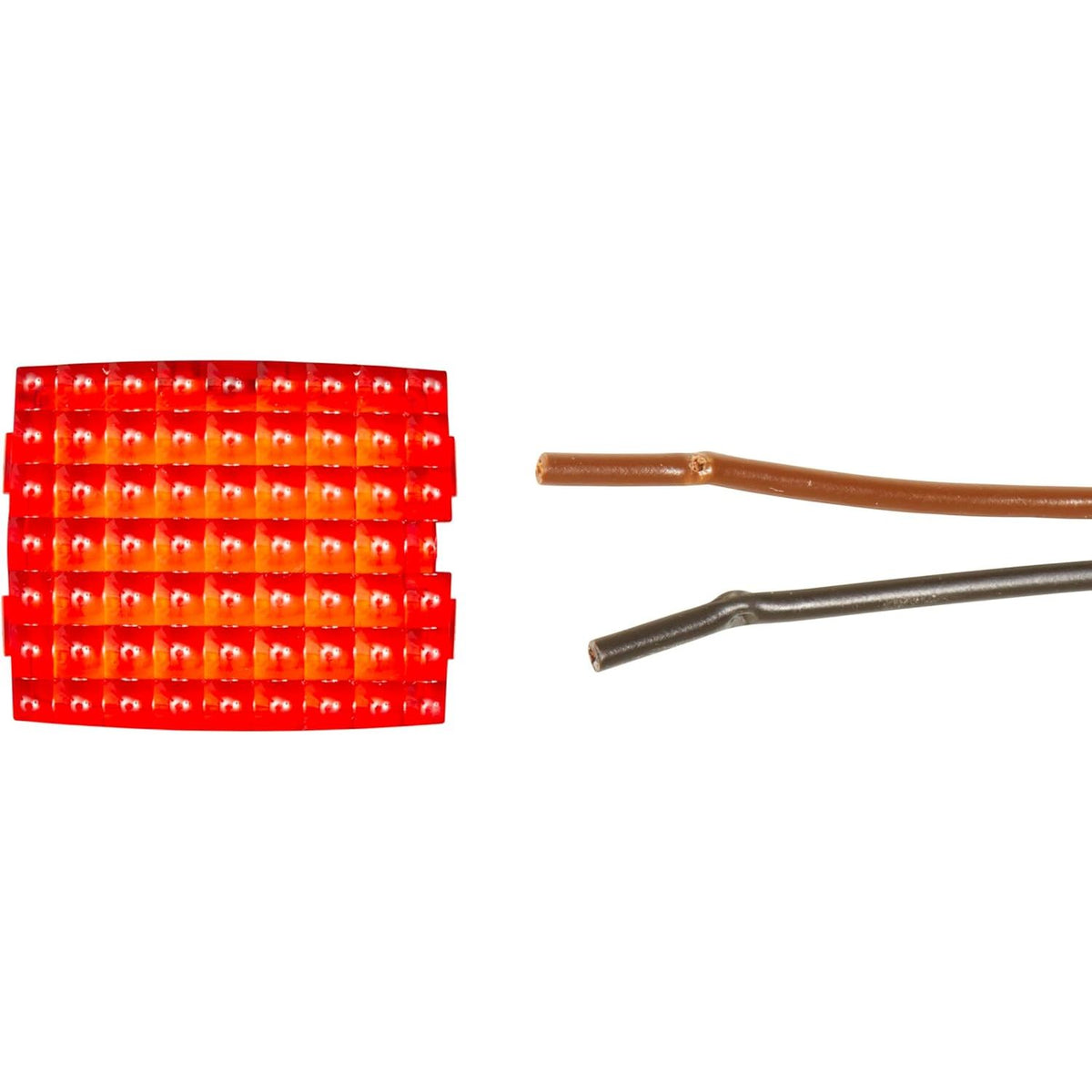

• Red lens included for night-vision friendly lighting when underway
• Patterned lens for task lighting that is easier on the eyes at close distance
• Pre-wired with an approx. 100 mm connection lead for straightforward wiring
• Arm retaining clip included to help hold the arm position when you want it fixed

Installation and setup

Mount the base on a solid, flat surface such as a bulkhead, nav station side panel, or a berth surround where the arm can move freely. Route the pre-wired lead to a properly fused 12V lighting circuit, and keep connections supported so vibration does not work them loose over time.

Set the light so it washes across the work area instead of pointing straight at your eyes. For night passages, fit the red lens before you leave the dock so you are not handling small parts in the dark.

Compatibility and fit

This lamp is for 12V DC systems. On 24V boats, use a suitable DC-DC converter or a 24V version, since connecting a 12V halogen lamp directly to 24V can quickly damage the bulb.

Allow clearance for the lamp head to pivot and for the arm to sweep through its full range. A spot near the nav station or inside a pilothouse tends to work well, especially where the fixture is protected from direct spray.

Use on board

Common installs include chart tables, navigation stations, bunk reading spots, and small interior utility areas where you want light you can aim with one hand. The red lens is especially useful for night navigation when you need to read paper notes or check instruments without losing dark adaptation.

This is a good match for boaters who want a straightforward halogen task light with a flexible arm and a built-in switch at the lamp head.

Maintenance and care

Wipe the lens with a soft cloth and mild soap to keep the pattern clear. When replacing the bulb, let the lamp cool first and avoid touching the glass with bare fingers, which can shorten bulb life.

What’s included

• Wall-mount reading/chart lamp with flexible arm (pre-wired with approx. 100 mm lead)
• 12V 5W halogen bulb
• Red lens
• Arm retaining clip
