Lopolight Double Masthead and Anchor LED Navigation Light, 6nm and 3nm

Overview

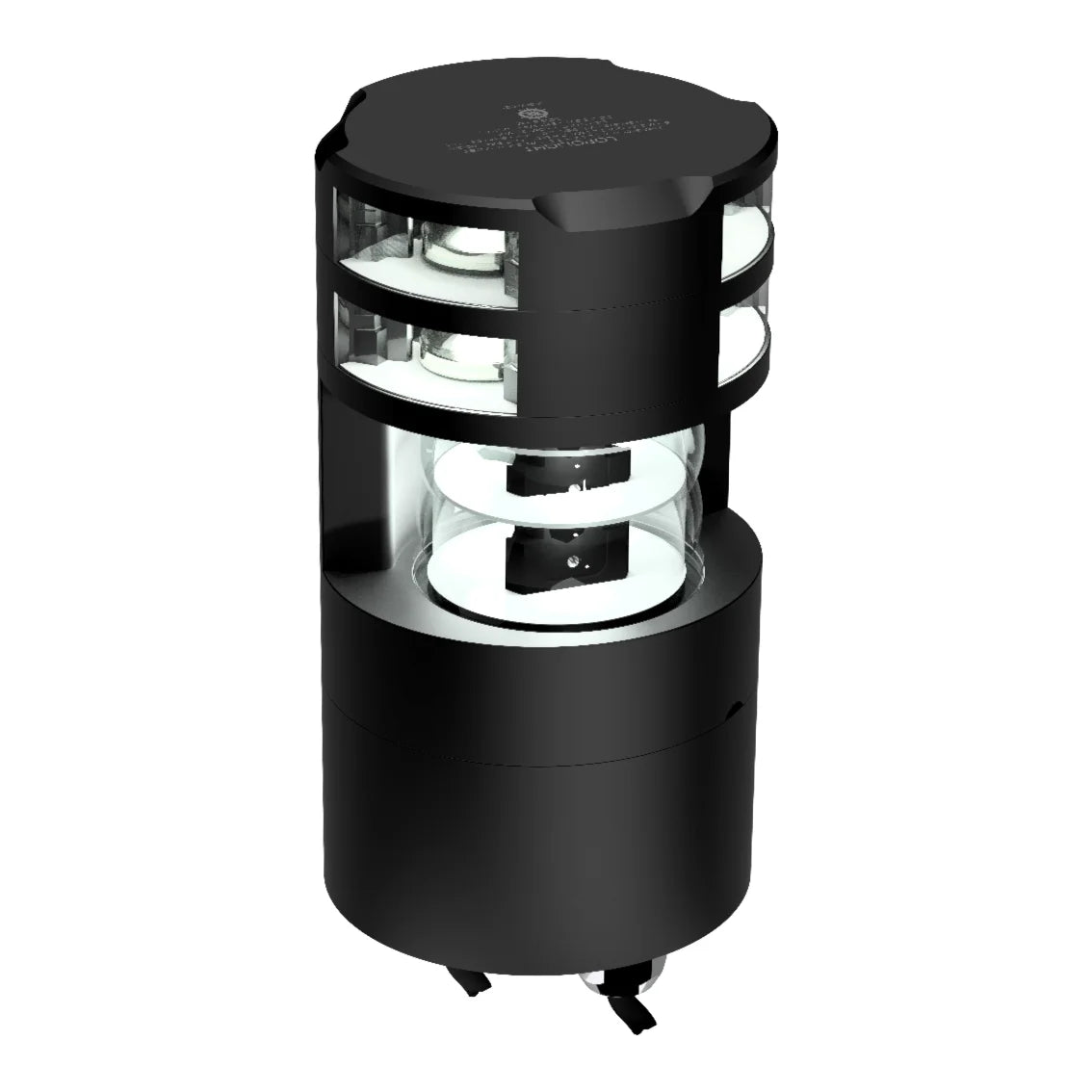

The Lopolight 300-138+112G2ST-B is a combined LED masthead and anchor navigation light for vessels over 50 meters. It integrates a double 6nm masthead light with a double 3nm, 360° all-round white light in a single assembly, supporting two navigation lighting functions within one fixture.

Operating on 20-32V DC with a 7W power draw, the unit features an IP68-rated black anodized aluminum housing, a PMMA lens, and A4 stainless steel screws. Its horizontal mounting configuration and plug connector accommodate installation in large yacht and commercial marine navigation lighting systems.

Key features

• Combined double 6nm masthead and double 3nm all-round white LED navigation light configuration.

• 360° white light coverage for the all-round navigation light function.

• 20-32V DC operating range with 7W power consumption.

• IP68 ingress protection for marine installations.

• Black anodized aluminum housing with a PMMA lens and A4 stainless steel screws.

• Horizontal mounting configuration with plug connector.

• Fixture dimensions of 3.6 inches in diameter and 6.6 inches in height (92.5 x 169 mm).

• DNV certified, with approvals including COLREG 72, EN 14744, IEC 60945, USCG, ABS, MED, and LR.

• Specified for vessels over 50 meters in length.

Installation and fit

The fixture is configured for horizontal installation on a cable-down aluminum mounting base (part number 400-035). Its plug connection and specified minimum feed wire size of 0.5 mm² (AWG22) should be considered when planning the electrical installation. The operating temperature range is -25°C to 55°C.

The combined masthead and all-round light configuration is suited to navigation lighting arrangements on superyachts and other vessels over 50 meters that require both functions. The black anodized finish provides a consistent exterior appearance for exposed installations.

What's included

• 1 combined masthead and all-round LED navigation light

• Installation guide
