Lopolight PRO 360° Red LED Signal Light, 3NM, 10-32VDC, IP68

Overview

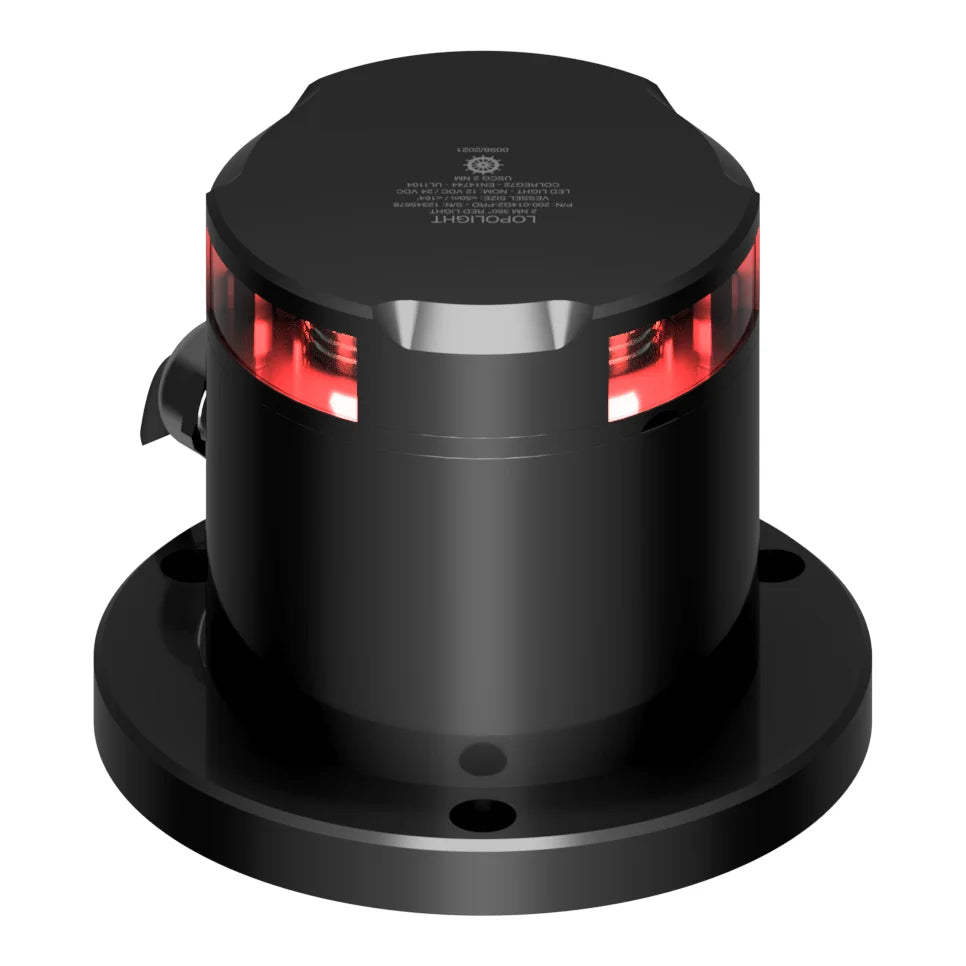

The Lopolight 300-114G2-PRO is a 360° red LED signal light for commercial vessels over 50 meters. It delivers all-round red illumination with a 3 nautical mile visibility rating and luminous intensity exceeding 15 candela. Operating on 10-32V DC with IP68 ingress protection, the fixture supports both 12V and 24V marine electrical systems.

The light features a black hard-coat anodized aluminum housing, a PMMA lens, and A4 stainless steel screws. Its horizontal mounting configuration uses a POM base with a side-facing cable connection, making it suitable for commercial vessel installations requiring a 360° red navigation signal.

Key features

• 360° red LED illumination with 3 nautical mile visibility and luminous intensity greater than 15 cd.

• 10-32V DC operating range with 2.9W power consumption, drawing 210mA at 12V DC and 120mA at 24V DC.

• IP68 ingress protection and DNV certification, with approvals including COLREG 72, EN 14744, IEC 60945, and USCG.

• Black aluminum housing with a 50-micron hard-coat anodized finish, PMMA lens, and A4 stainless steel screws.

• Compact fixture dimensions of 92.5 mm in diameter and 89.5 mm in height, excluding the additional HDPE base plate.

• Operating temperature range of -25°C to 55°C.

Installation and fit

The fixture mounts horizontally on a 400-037 POM base with the cable routed through a side connection. It uses a plug connector and cable glands accommodating cable diameters from 7 to 13 mm. The specified minimum feed-wire size is 0.5 mm² (AWG 22).

With the HDPE base plate installed, the mounting assembly measures 130 mm in diameter and 103.5 mm in height. These dimensions should be considered when planning mounting clearance and cable routing. The light is specified for commercial vessels over 50 meters in length.

What's included

• 360° red LED signal light with 400-037 POM mounting base

• HDPE base plate
