Lopolight Double LED Masthead Light, 6NM, 225°, 20-32VDC, White Housing

Overview

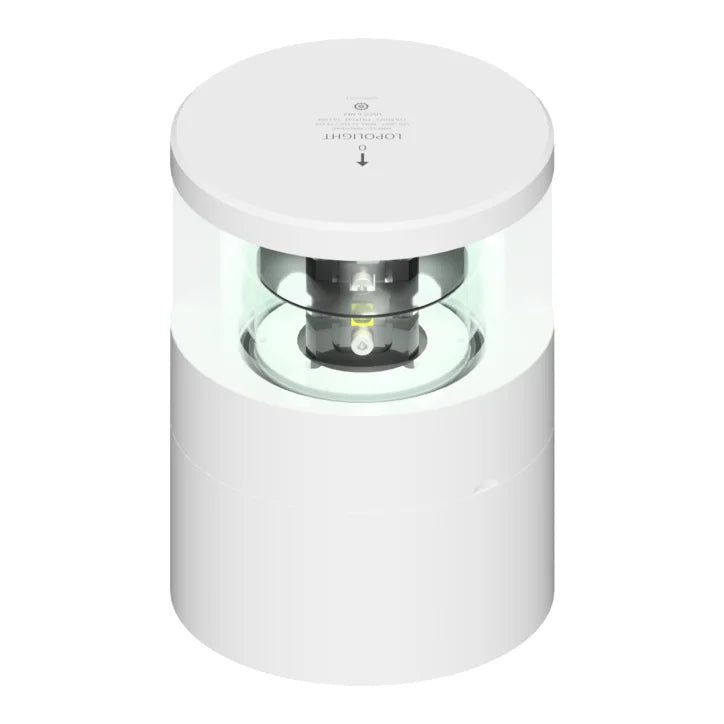

The Lopolight 300-138-WH is a double LED masthead navigation light with a 225° white light sector and 6 nautical mile visibility, intended for vessels over 50 meters. It operates on 20-32VDC, draws 12W, and features a white ceramic-coated aluminum housing with IP68 protection.

The fixture combines a double masthead configuration with horizontal mounting and a downward cable connection. Its PMMA lens, A4 stainless steel screws, and sealed construction suit exposed marine installations. The light is Wheelmarked based on DNV certification and meets applicable navigation lighting requirements, including COLREG 72.

Key features

• Double LED masthead configuration with white light output, 225° coverage, and 6NM visibility.

• 20-32VDC operating range with 12W power consumption and 580mA current draw at 24VDC.

• IP68-rated construction with a white ceramic-coated aluminum housing, PMMA lens, and A4 stainless steel screws.

• Wheelmarked navigation light with approvals including COLREG 72, EN 14744, IEC 60945, IACS E10, USCG, ABS, MED, DNV, and LR.

• Horizontal mounting with a white aluminum mounting base, downward cable routing, and plug connector.

• Overall dimensions of 3.6 inches in diameter by 5 inches in height (92.5 x 128mm).

• Operating temperature range of -25°C to 55°C.

Installation and electrical connection

This masthead light is configured for horizontal installation with the cable routed downward through the mounting base. It uses a plug connector and requires a minimum feed wire size of 0.5mm² (AWG 22). The standard configuration includes a black PE baseplate, while a white ceramic-coated baseplate is available as an option.

The 20-32VDC operating range makes the fixture suitable for compatible 24V marine electrical systems. Its 225° light sector and 6NM visibility rating serve masthead navigation lighting requirements on vessels over 50 meters, subject to the applicable installation and positioning rules.

What's included

• 1 Lopolight double LED masthead navigation light with white ceramic-coated housing

• 1 black PE baseplate
