Imtra DHR40 Red Port LED Navigation Light, 24V, 2NM, IP66

Overview

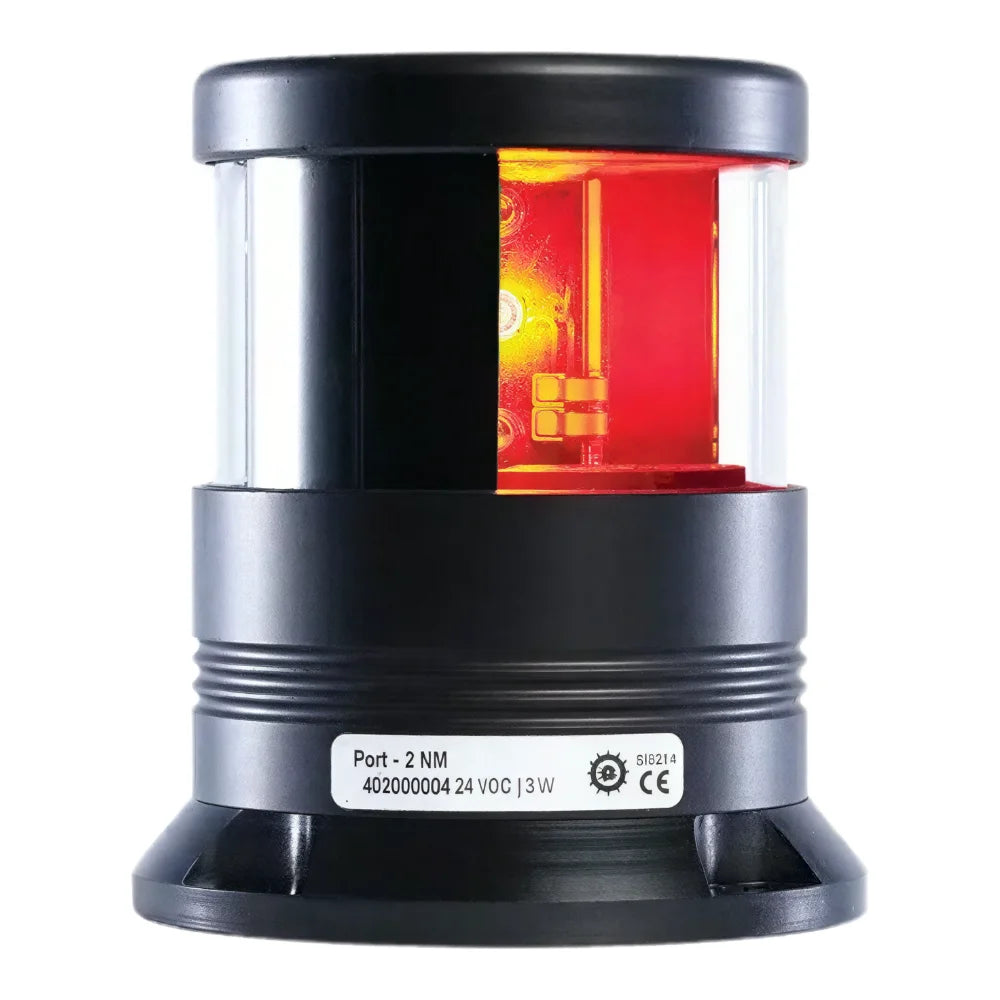

The Imtra DHR40 is a red LED port navigation light for vessels under 20 meters in length. Operating on a 24V DC electrical system with 3.2W power consumption, it provides 2 nautical miles of visibility across a 112.5° horizontal sector. The fixture has an IP66 protection rating and is available in base-mount and side-mount configurations.

The light features a matte black, hard-anodized aluminum housing, a borosilicate glass lens, and a POM mounting base that helps prevent galvanic corrosion. An epoxy-potted LED driver protects the electronics, while the LED system has a rated operating life of 50,000 hours. Its compact construction and visibility at high vertical angles support navigation lighting on smaller vessels.

Key features

• Red port navigation light with 2NM visibility and a 112.5° sector

• 24V DC operation with 3.2W power consumption

• IP66 protection against dust and powerful water jets

• Matte black, hard-anodized seawater-resistant aluminum housing

• Borosilicate glass lens and electrically insulating POM base

• Epoxy-potted LED driver and 50,000-hour rated LED lifetime

• CE-EMC tested for electromagnetic compatibility with onboard radio equipment

• Serviceable construction with replacement parts available

Variants

The DHR40 red port navigation light is available in two mounting configurations to accommodate different installation arrangements.

Both configurations retain the same red LED output, 24V DC operation, 2NM visibility, 112.5° sector, and IP66 protection rating. The difference is the mounting arrangement.

• DH40020001 - Side-Mount: Uses a side-mounting arrangement for installation against a suitable vertical mounting surface.

• DH40020000 - Base-Mount: Uses a base-mounting arrangement for installation on a suitable mounting surface beneath the fixture.

Installation and compatibility

The fixture is intended for installation on the port side of a vessel as part of its navigation lighting system. Mounting position and orientation must maintain the required 112.5° visibility sector without obstruction. The selected configuration should match the available mounting surface and installation clearances.

Electrical installation requires a compatible 24V DC supply. The DHR40 is suitable for marine navigation lighting installations requiring a red port light with a 2NM visibility rating, subject to applicable vessel and navigation-light requirements.
