Hella Marine 0869 Surface Mount Oblong LED Courtesy Lamp, 12/24V DC, IP67, Polished 316 Stainless Steel Bezel, 84 mm Wide

Overview

The Hella Marine LED Surface Mount 0869 Oblong Courtesy Lamp is a surface-mount LED light for low-level lighting around steps, toe kicks, companionways, and lockers on 12V or 24V DC systems. It runs on Multivolt 12/24V DC and draws 0.5W (less than 0.04A at 12V and less than 0.02A at 24V).

It is IP67 sealed, so it can be installed in wet or dry areas on board. The polished 316 stainless steel rim frames a UV-resistant lens, and the low-profile body sits about 9 mm proud of the mounting surface.

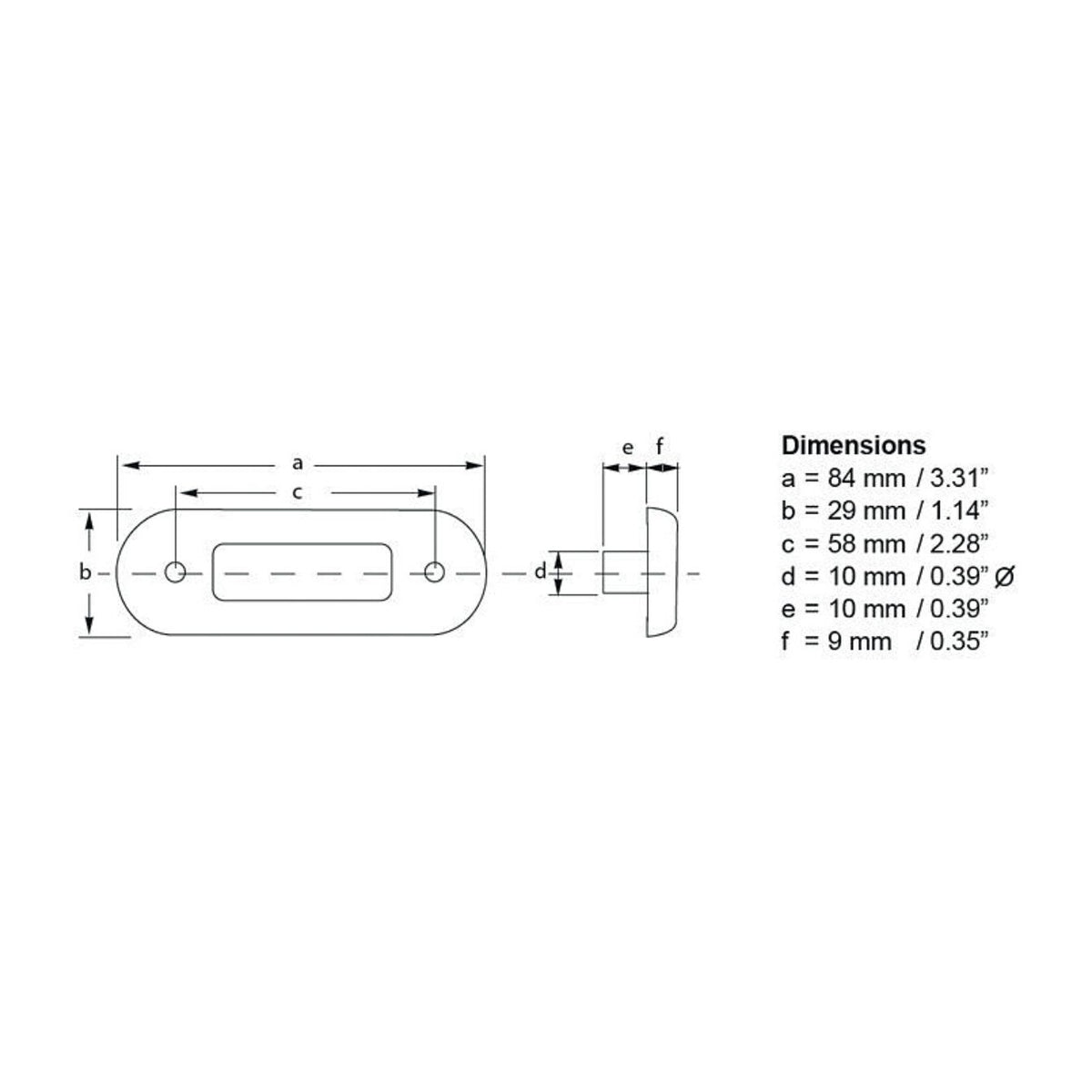

Fit-wise, the face is 84 mm wide by 29 mm high, with about 10 mm mounting depth behind the panel. It comes pre-wired with 120 mm of marine cable, so plan a nearby connection point behind a liner, in a locker, or inside a console.

Key features

• Multivolt 12/24V DC input with 0.5W power draw (less than 0.04A at 12V and less than 0.02A at 24V)
• IP67 completely sealed construction for washdowns and exposed mounting locations
• Low-profile surface mount: about 9 mm height above the surface and about 10 mm mounting depth
• 84 mm by 29 mm oblong footprint for steps, toe kicks, and narrow passageways
• Polished 316 stainless steel rim and a UV-resistant, impact-resistant lens
• Pre-wired with 120 mm of marine cable; a 10 mm cable pass-through hole is typically all that is needed
• Reverse polarity protection to help prevent wiring mistakes during install

Variants

This lamp is offered in multiple light colors while keeping the same mounting style and electrical requirements.

Across the range, the lamp remains a Multivolt 12/24V DC, IP67 sealed, surface-mount unit with a polished 316 stainless steel rim. The main change between variants is the LED light color.

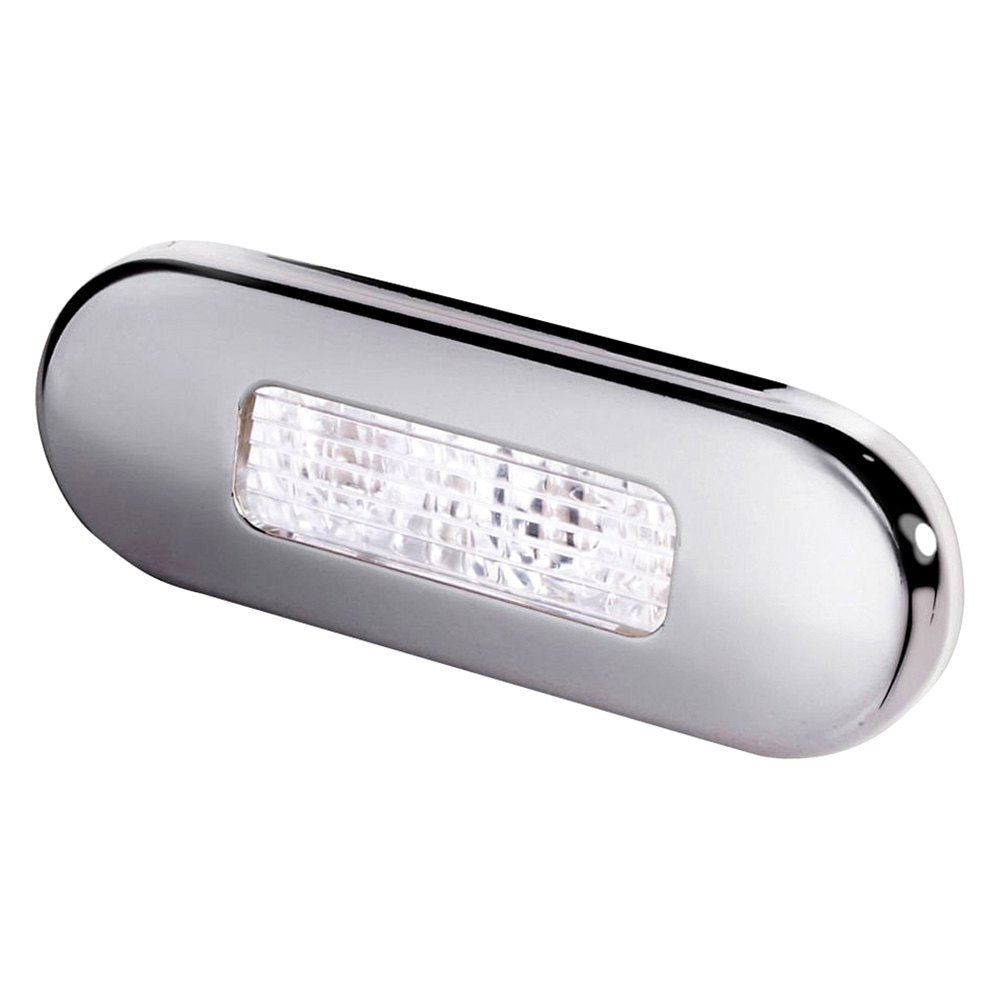

• 980869301: Light color White. A neutral white output that suits general walkway and step lighting.

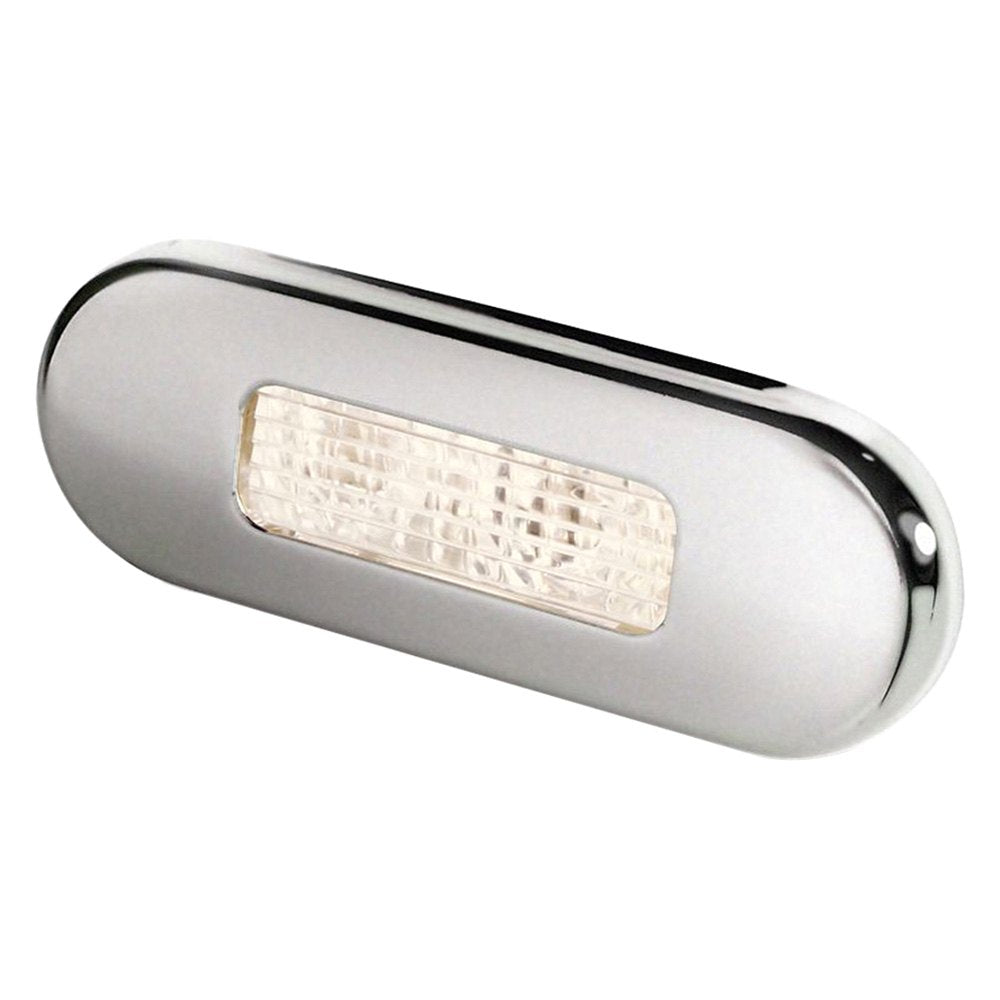

• 980869401: Light color Warm White. A warmer tone that feels softer in cabins and companionways.

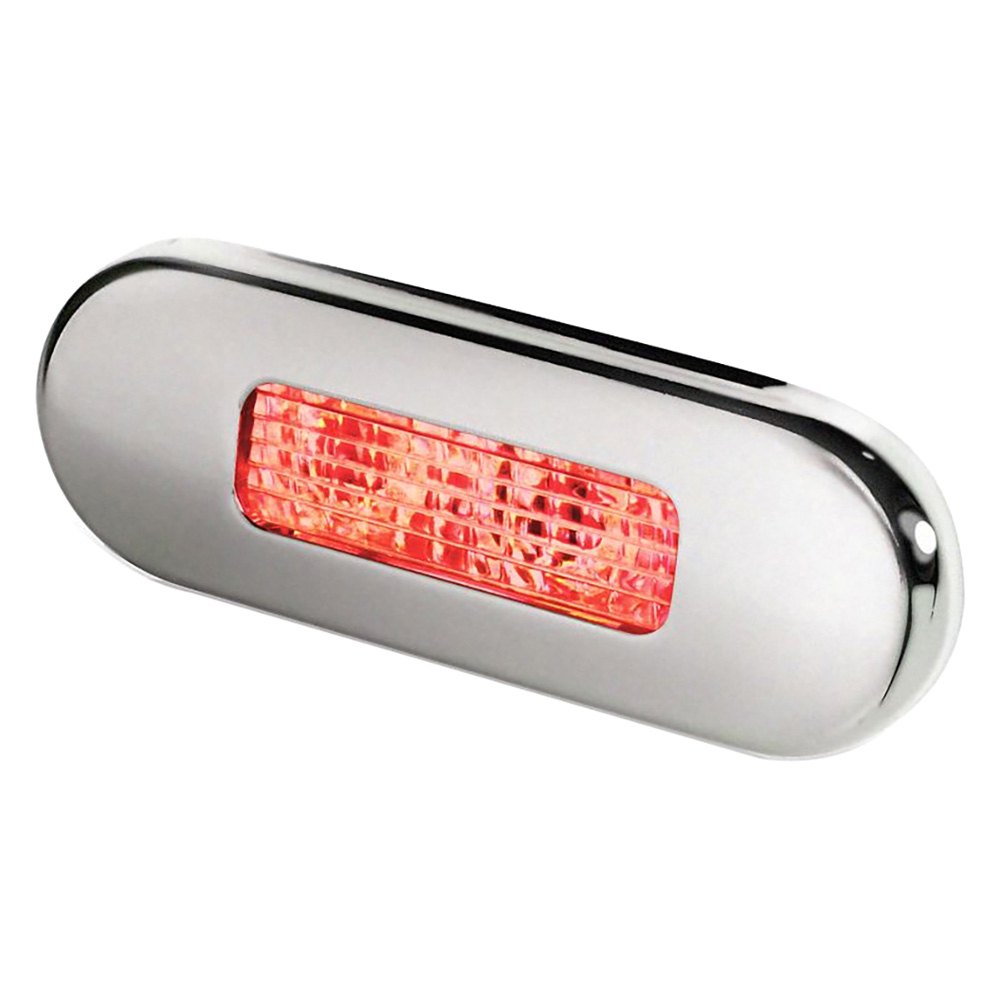

• 980869501: Light color Red. A low-level red output that keeps the space darker while still marking steps and edges.
• 980869601: Light color Blue. A blue output that works well for subtle deck or cockpit accent lighting.

What's included

• Surface-mount oblong LED courtesy lamp with polished stainless steel rim
• 120 mm pre-wired marine cable
• Stainless steel mounting screws

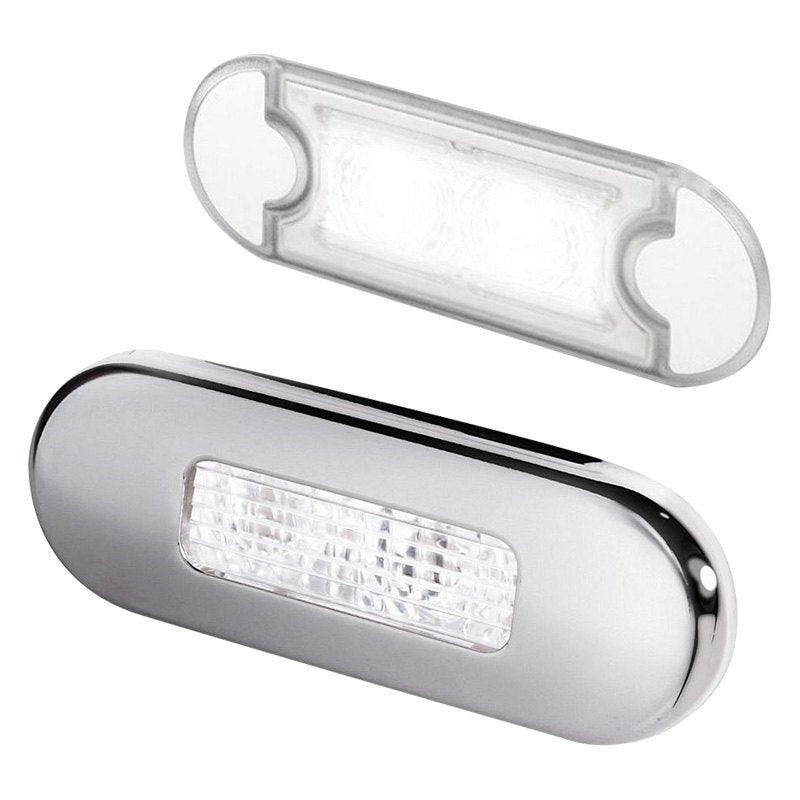

• 2 black end caps
• 2 white end caps

Installation and setup

Mounting is straightforward: drill a 10 mm hole for the cable, feed the lead through, make the two-wire connection, and fasten the lamp with the supplied stainless screws. The end caps are used to finish the ends after mounting, keeping the install tidy around the fasteners.

Because the lead is 120 mm, it helps to place a connection point close to the lamp. Use marine-grade connections and seal splices from moisture, especially when mounting in cockpits, transoms, or exterior steps.

Compatibility and fit

Before ordering, confirm you have room for an 84 mm by 29 mm footprint and about 10 mm of depth behind the mounting surface. If you are replacing an older courtesy light, also check that the 10 mm cable pass-through hole location will work with existing wiring runs.

Electrical and system integration

This is a DC courtesy light for 12V or 24V boats, with Multivolt electronics to handle either system. Current draw stays very low, which makes it practical to run multiple lights on a circuit for steps, toe kicks, or cockpit seating areas.

Use on board

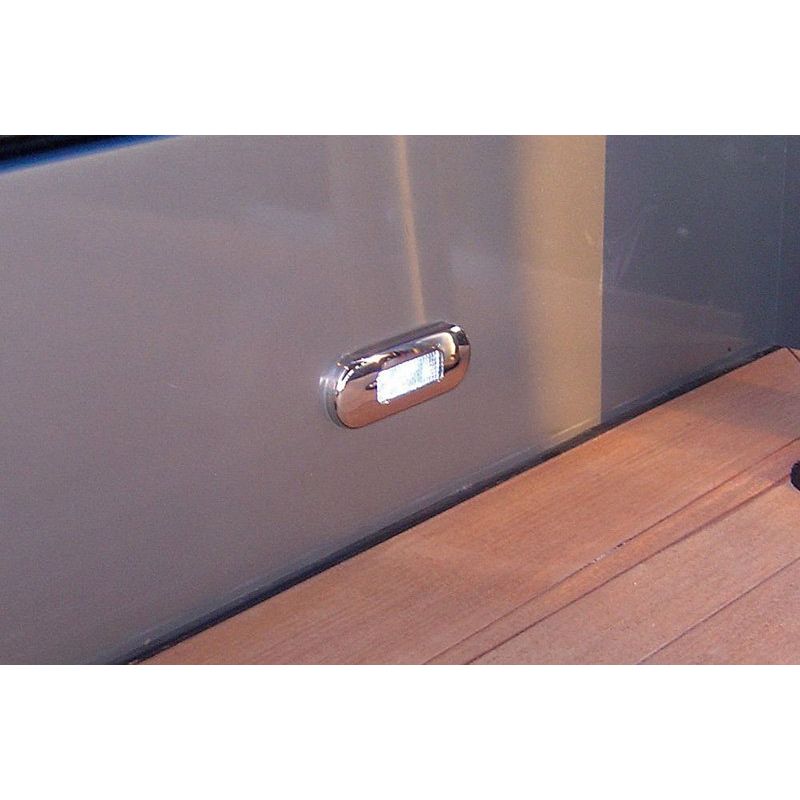

Common installs include stairs, steps, toe kicks in galleys, cockpit coamings, companionways, storage access points, and around switches where you want location lighting without lighting up the whole space.

It is a good match for boats that need a small surface-mount light with IP67 sealing in areas that see spray, vibration, and frequent traffic.

Maintenance and care

Rinse salt buildup during regular washdowns and wipe the rim and lens with a soft cloth. Avoid abrasive cleaners that can haze the lens or scratch the stainless finish.
