Lumishore - ECLIPSE Command Center - 12VDC, 30A

Seamless Lighting Integration with the ECLIPSE Command Center

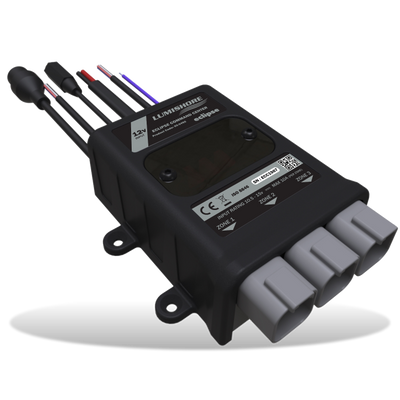

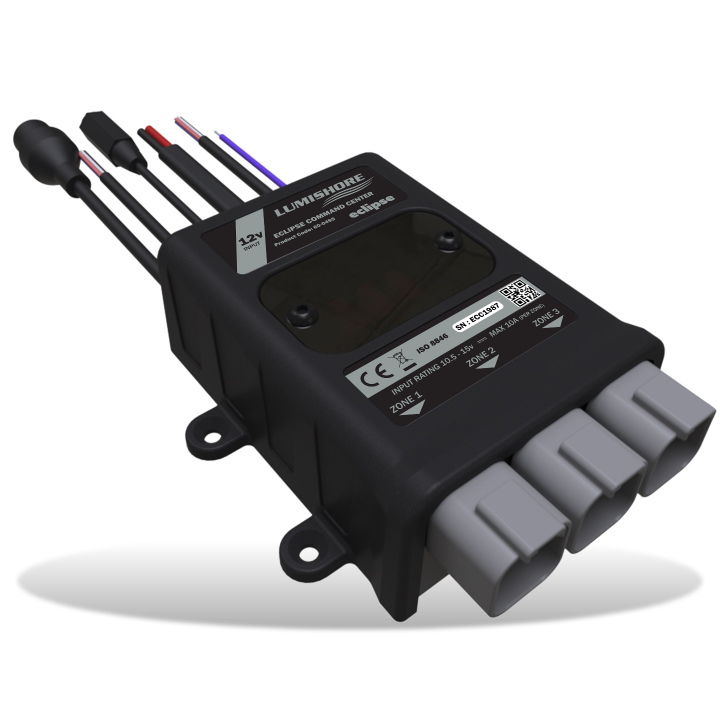

The ECLIPSE Command Center is a cutting-edge solution designed to bring unmatched control and versatility to your marine lighting systems. With its ultra-compact design, it seamlessly integrates with your ECLIPSE lights via your Multi-Function Display (MFD), offering centralized control for an enhanced user experience. Whether you're managing lighting zones for ambiance, safety, or functionality, this system makes it easy to configure and operate.

The command center comes equipped with three configurable lighting zones, each capable of controlling multiple lights, with expansion options to support up to six zones. It also features built-in drivers, Wi-Fi connectivity for smart device integration, and an intuitive interface, ensuring simplicity in operation and setup. Whether connected to an MFD via Ethernet or operated through a simple switch, the ECLIPSE Command Center provides ultimate flexibility for marine lighting management.

Advanced Technical Specifications

• Supply Voltage Range: 12V DC Only (10 - 15V DC)
• Maximum Current Draw: 30A (3 Zones of 10A)
• Surge Protection: Integrated
• Number of Zones: 3 zones (expandable to 6 with additional modules)
• Maximum Current Per Zone: 10A
• Maximum Lights Per Zone: Up to 16 lights (total current draw = 10A)
• Low Voltage Protection: Included
• Reverse Polarity Protection: Included
• Ingress Protection: IP67 (suitable for marine environments)
• Dimming Capability: Yes
• Color Selection: Yes
• Sound-to-Light Synchronization: Yes
• Strobe Functionality: Yes

Compact and User-Friendly Design

• Simple Installation: Designed for straightforward installation to save time and effort.
• Plug-and-Play Setup: No complicated configuration required—just connect and control.
• Wi-Fi Connectivity: Direct smart device integration for added convenience.

Highlights

• Ultra-compact design with built-in drivers and configurable zones.
• Seamlessly integrates with compatible MFDs for centralized lighting control.
• Expandable lighting zones, supporting up to six zones with additional modules.
• Robust protection against surges, reverse polarity, and low voltage.
• Fully customizable lighting with dimming, strobe, and sound-to-light features.
