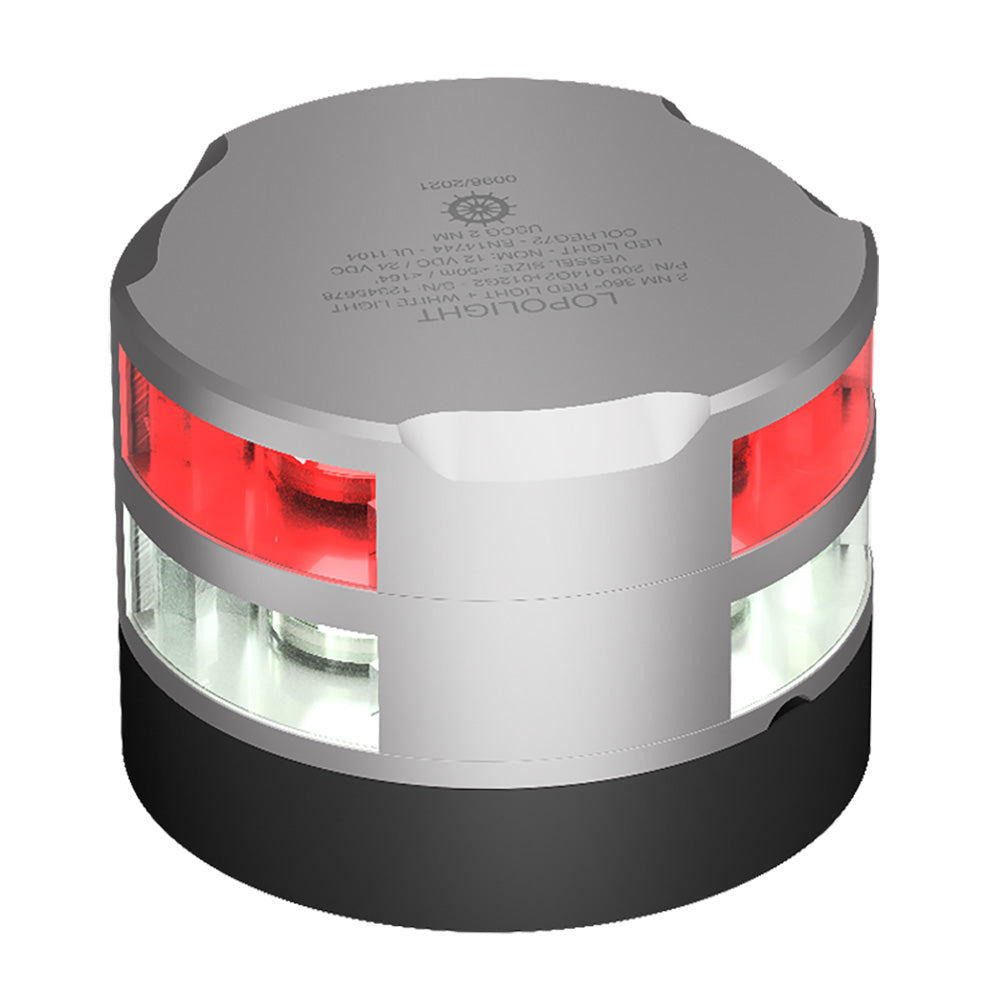

Lopolight 2nm 360 Red/White Navigation Light, For Vessels Up to 50m, 10-32VDC, IP68, Silver Anodized Housing, Horizontal Mount

Overview

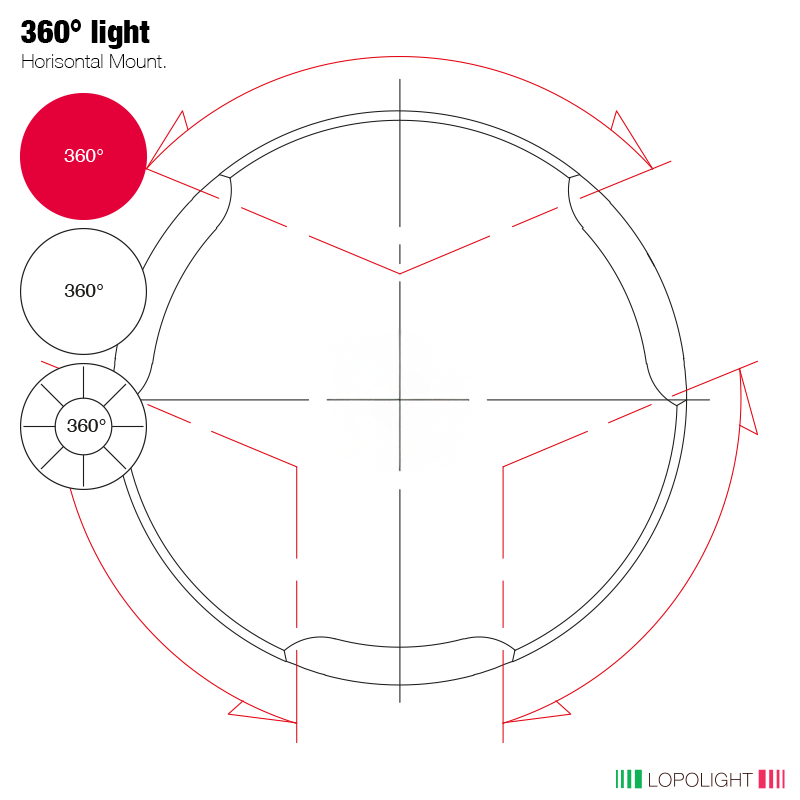

The Lopolight 200-014G2+012G2 is a 360 degree navigation light with separate all-round red and all-round white outputs, each rated for 2 nautical miles on 10-32 VDC systems.

The housing is silver anodized aluminum with a PMMA lens and A4 stainless screws, sealed to an IP68 rating for wet decks and washdowns. It measures 92.5 mm in diameter by 68 mm tall and draws 2.1 W (150 mA at 12 VDC, 85 mA at 24 VDC).

On board, this style of combined red and white all-round light helps keep the mast, hardtop, or radar arch cleaner when you need both signals from the same mounting point.

Key features

• Two outputs in one housing: 360 degree red and 360 degree white
• 2 nautical mile visibility
• 10-32 VDC input for 12 V and 24 V DC systems
• IP68 sealed housing for exposure to spray, rain, and washdowns
• Low draw: 2.1 W, 150 mA at 12 VDC and 85 mA at 24 VDC
• Horizontal mounting with a compact body size of 92.5 mm diameter x 68 mm height
• Approved to COLREG72, EN14744, IEC 60945, IACS E10, and USCG (plus ABS, MED, DNV, and LR)

What’s included

• Navigation light
• 0.75 m shielded marine grade cable (pre-attached)
• Installation guide

Installation and setup

Mount the light on a level surface so the lens sits true and the beam clears 360 degrees without being blocked by antennas, radar mounts, or a bimini edge. Keep it positioned to maintain the required visibility and separation for your vessel’s navigation light arrangement.

Because the unit is pre-cabled, plan the cable route before drilling. Keep bends gentle, protect the wire where it passes through metal, and seal deck penetrations so water cannot track along the cable into a core or overhead.

Electrical and system integration

It operates from 10 to 32 VDC and can be wired into a 12 V or 24 V DC distribution panel. Use switching that matches how your boat controls the red and white circuits so the correct signal is shown when selected.

Minimum feed wire gauge is 0.5 mm2 (AWG22). On longer runs, stepping up wire size helps keep voltage drop down, especially on a 12 V system.

Compatibility and compliance

The approvals cover COLREG72 and USCG requirements and also include EN14744, IEC 60945, and IACS E10. It is listed across vessel size categories under 12 m, 12 to 20 m, and 20 to 50 m, with final fit determined by your local rules and your vessel’s navigation light plan.

Use on board

This is a good match for boats that need an all-round white light and an all-round red signal light from the same mounting point, such as workboats, tenders, and yachts where space is tight on the mast or hardtop. It also suits refits where you want LED efficiency without adding a second fixture and extra cable runs.

Maintenance and care

Rinse salt off the lens and housing after trips and avoid abrasive cleaners that can haze PMMA. During seasonal checks, confirm the mounting screws stay tight, the cable jacket is intact, and the sealant around the cable pass-through is still sound.
