Garmin ECHOMAP Ultra 10 Bail Mount, Quick-Release Cradle, Tilt

Overview

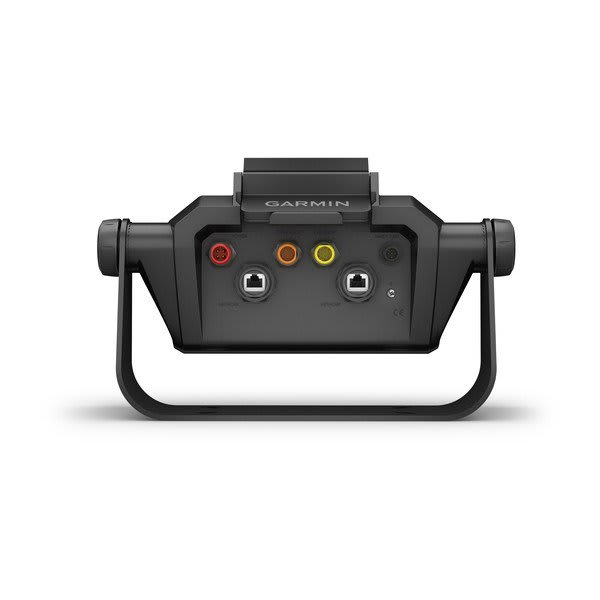

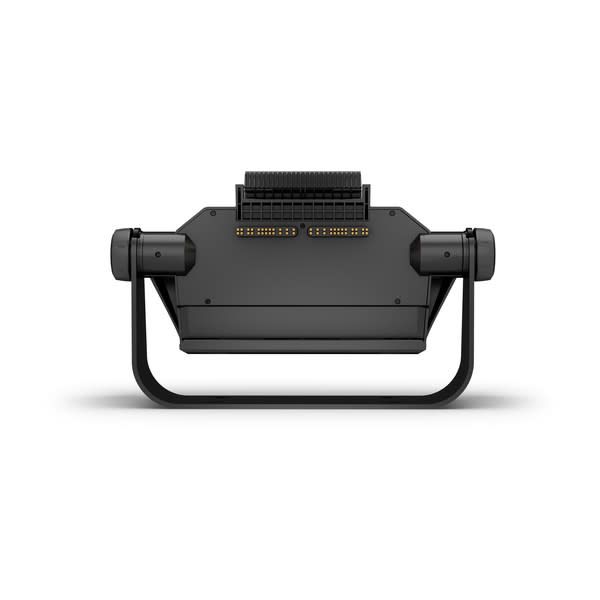

The Garmin 010-12841-00 is a bail mount with a quick-release cradle for surface-mounting a compatible ECHOMAP Ultra 10 inch chartplotter or chartplotter and sounder combo.

It lets you set the screen angle with the side knobs, then lift the display on and off the cradle without disconnecting the plugs each time. Cables stay connected at the cradle, which helps keep wiring tidy behind the helm and reduces wear from repeated plug cycles.

Key features

• Surface (bail) mount setup with side knobs for tilt adjustment and viewing comfort
• Quick-release cradle keeps connected cables at the mount so the display can be seated and removed quickly
• Compatible fit for ECHOMAP Ultra 10 inch units such as 102sv and 106sv
• Helps reduce strain on connectors by avoiding frequent plug and unplug cycles at the back of the display
• Black mount and cradle to match common helm and console finishes

Installation and setup

This mount is meant for a flat, solid surface at the helm, console, or electronics box where the unit can tilt freely and the buttons and screen remain easy to reach. Leave room behind the cradle for the cable bends and routing, especially if you have a tight dash or a small electronics pod.

Once the base is secured, the display seats into the cradle and locks in place, and the tilt is set with the side knobs. For open boats, route cables so they are supported and not hanging on the connectors, and seal any deck penetrations to keep water out of the console.

Compatibility and fit

This cradle is specific to the ECHOMAP Ultra 10 inch form factor. Confirm your exact model name on the front bezel or in the unit settings before ordering, since other ECHOMAP families and different screen sizes use different cradles and hole patterns.

Use cases on board

This style of mount works well when you want the display removable at the dock, when trailering, or when you move electronics between stations. It is also a good match for center consoles and fishing boats where you may adjust the viewing angle often as you change seating positions or stand at the helm.
