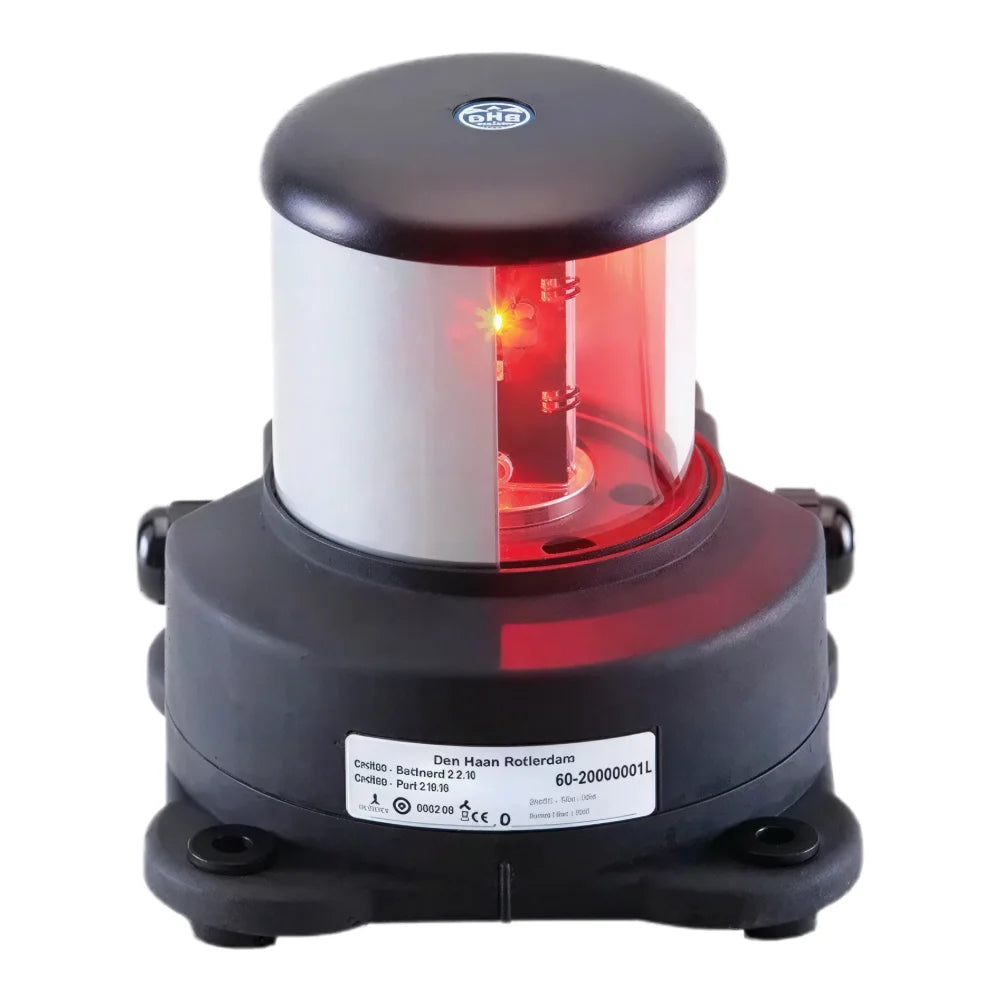

Imtra DHR60 Port Red LED Navigation Light, 24V, 2NM, IP66

Overview

The Imtra DH60020000 is a DHR60 LED port navigation light with red illumination, a 2 nautical mile visibility range, and a 112.5° horizontal coverage arc. Operating on a 24V DC marine electrical system with 4.3W power consumption, this base-mounted fixture features an IP66-rated black anodized aluminum housing for protected exterior installation.

Part of the DHR60 navigation light series, this fixture is suitable for seagoing vessels from 20 to 50 meters in length and inland navigation vessels measuring 20 meters or longer. It incorporates a primary LED and a galvanically isolated backup LED and driver module, allowing continued operation through the spare lighting system when servicing is required.

Key features

• Red LED port navigation light with 112.5° horizontal coverage and 2NM visibility.

• 24V DC nominal operation with 4.3W power consumption.

• IP66 ingress protection against dust and powerful water jets.

• Matte black, hard-anodized aluminum housing with a borosilicate glass lens.

• Integrated primary and backup LED and driver modules for serviceable redundancy.

• POM mounting base helps prevent galvanic corrosion.

• Epoxy-potted LED driver provides additional electrical component protection.

• Rated LED service life of 50,000 hours.

Installation and maintenance

The base-mount configuration supports fixed installation at the vessel's designated port navigation light position. The fixture includes provisions for cable routing through its mounting base, while the integrated driver supports connection to a compatible 24V DC electrical system. Installation should maintain the required horizontal visibility arc and comply with applicable navigation light placement requirements.

The primary and backup LED assemblies are serviceable, with replacement parts and repair kits available for maintenance. The borosilicate glass lens, anodized housing, and protective mounting base support continued use in exposed marine environments.
