Attwood Marine LightArmor LED Navigation Lights, Vertical Surface Mount, Stainless Steel, 2NM

Overview

The Attwood Marine LightArmor LED navigation light is a 2 NM vertical surface-mount sidelight range for port, starboard, or paired red/green installations on 12V boats. It uses an LED light engine in a round stainless steel housing, giving the bow area a clean low-profile look while keeping the red and green navigation sectors clear and easy to identify.

These lights are made for vessels up to 65 ft (20 m) where 2 nautical mile side visibility is required. The housing is water-resistant to IP67, the LEDs are rated for 50,000+ hours, and the LightArmor layout includes color-indicated cores to help reduce wiring mistakes during installation.

Key features

• 2 NM USCG-certified visibility for port and starboard side navigation lighting.
• Vertical surface-mount format for installation on flat bow or hull-side mounting areas.
• Round stainless steel housing with a compact footprint that fits well on modern fiberglass and aluminum boats.
• 12V LED operation with a light engine that stays cool during use.
• IP67 water-resistant construction for exposed bow locations that see spray, rain, and washdowns.
• Rated LED service life of 50,000+ hours for low-maintenance navigation lighting.
• Sharper cut-off angles help separate the red and green sectors for proper port and starboard visibility.
• Color-indicated cores support cleaner installation and easier service checks.

Variants

This LightArmor vertical mount navigation light is offered in three configurations for different bow-light layouts.

The main difference is the side and lens color. The stainless steel round housing, vertical mount style, LED lighting, 12V operation, and 2 NM rating remain consistent across the range.

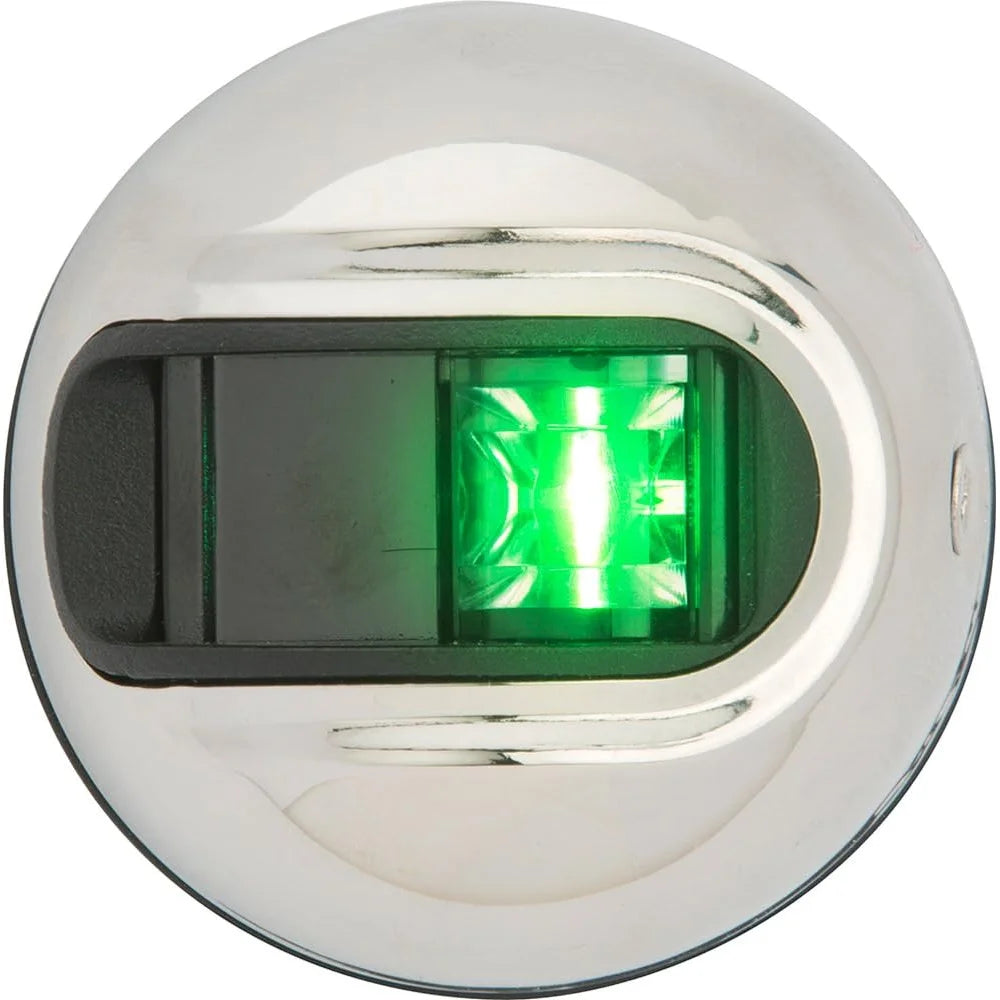

• NV3012SSG-7: Side light with starboard green lens color. This configuration is used on the starboard side of the vessel where a green navigation sector is required.

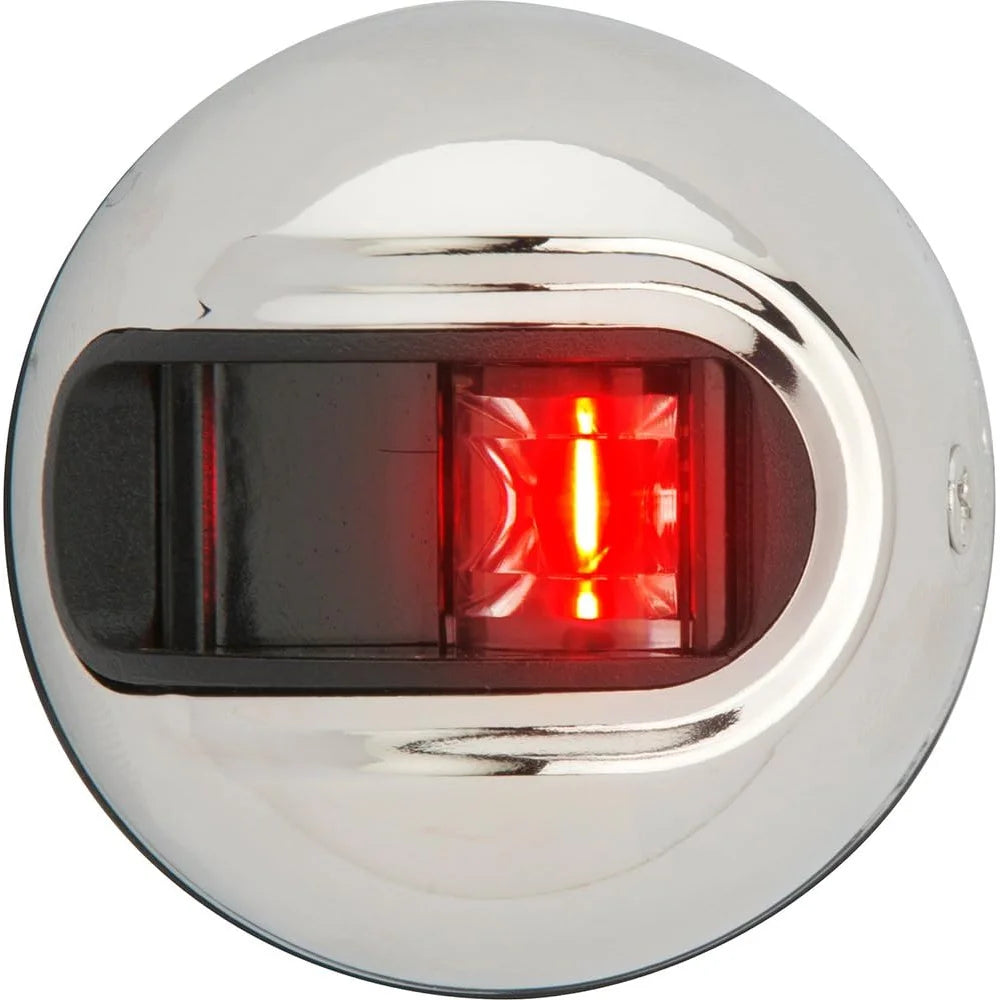

• NV3012SSR-7: Side light with port red lens color. This configuration is used on the port side of the vessel where a red navigation sector is required.

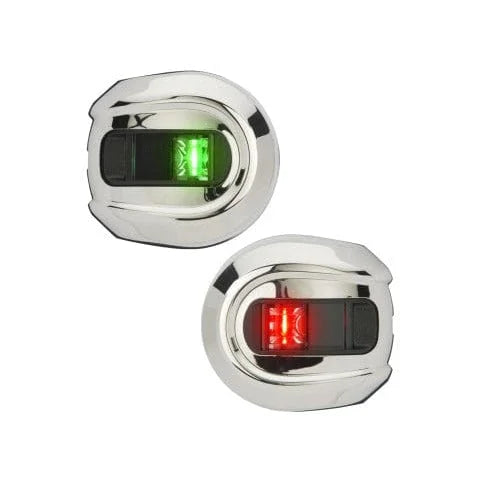

• NV3012SS-1: Side light set with red/green lens color. This paired configuration covers both port and starboard side lighting for a matching bow installation.

Installation and fit

These lights are intended for vertical surface mounting, so the mounting face should be flat, clean, and positioned where the light sectors are not blocked by rails, trolling motors, anchors, bow pulpits, canvas, or deck hardware. They are a practical fit for bow side-light replacements on center consoles, runabouts, fishing boats, and small cruisers that use separate red and green side lights.

Because the lights are used in exposed areas, wiring should be protected with proper marine connectors, strain relief, and a sealed wire exit. Confirm the vessel wiring is 12V and check the existing light footprint before drilling new holes or reusing previous mounting points.

Use on board

This range is a good match for owners replacing worn vertical sidelights or upgrading to LED navigation lights with stainless steel housings. The 2 NM rating and 20 m vessel guidance make it suitable for many recreational boats used for evening returns, early departures, coastal cruising, and fishing runs where clear navigation light visibility matters.

Maintenance and care

Rinse the stainless housing and lens with fresh water after saltwater use, especially around the mounting edge and fasteners. Keep the lens clear of wax buildup, salt film, and cover residue so the red or green sector remains visible and the cut-off pattern stays clean.
