Lopolight 180° White LED Navigation Light, 3nm, 10-32VDC

Overview

This Lopolight 180° white LED navigation light is a vertically mounted fixture with a 3 nautical mile visibility range for vessels over 50 meters. It emits white light across a 180° horizontal sector and operates on 10-32VDC electrical systems, with an IP68 rating for protection against water and dust ingress.

The fixture measures 104 x 37 x 45 mm and delivers a luminous intensity exceeding 15 candela. Its compact aluminum housing is available in silver anodized, black anodized, and white ceramic-coated finishes, allowing the external appearance to match different vessel installations without changing the light color or optical coverage.

Key features

• White LED navigation light with 180° coverage and 3nm visibility.

• 10-32VDC operating range for compatible vessel electrical systems.

• IP68-rated enclosure for protection against water and dust ingress.

• Vertical mounting configuration with a prewired cable connection.

• Compact dimensions of 104 x 37 x 45 mm.

• Luminous intensity greater than 15 cd.

• Operating temperature range from -25°C to 55°C.

• Listed approvals include COLREG72, EN14744, IEC 60945, USCG, and MED.

Variants

This navigation light is available in three housing finishes, each identified by a separate part number.

The variants differ in their exterior finish and coating. All three retain the same white light output, 180° coverage, 3nm visibility, 10-32VDC operating range, and vertical mounting configuration.

• 300-124G2, Silver finish: Silver anodized aluminum housing with a metallic exterior appearance.

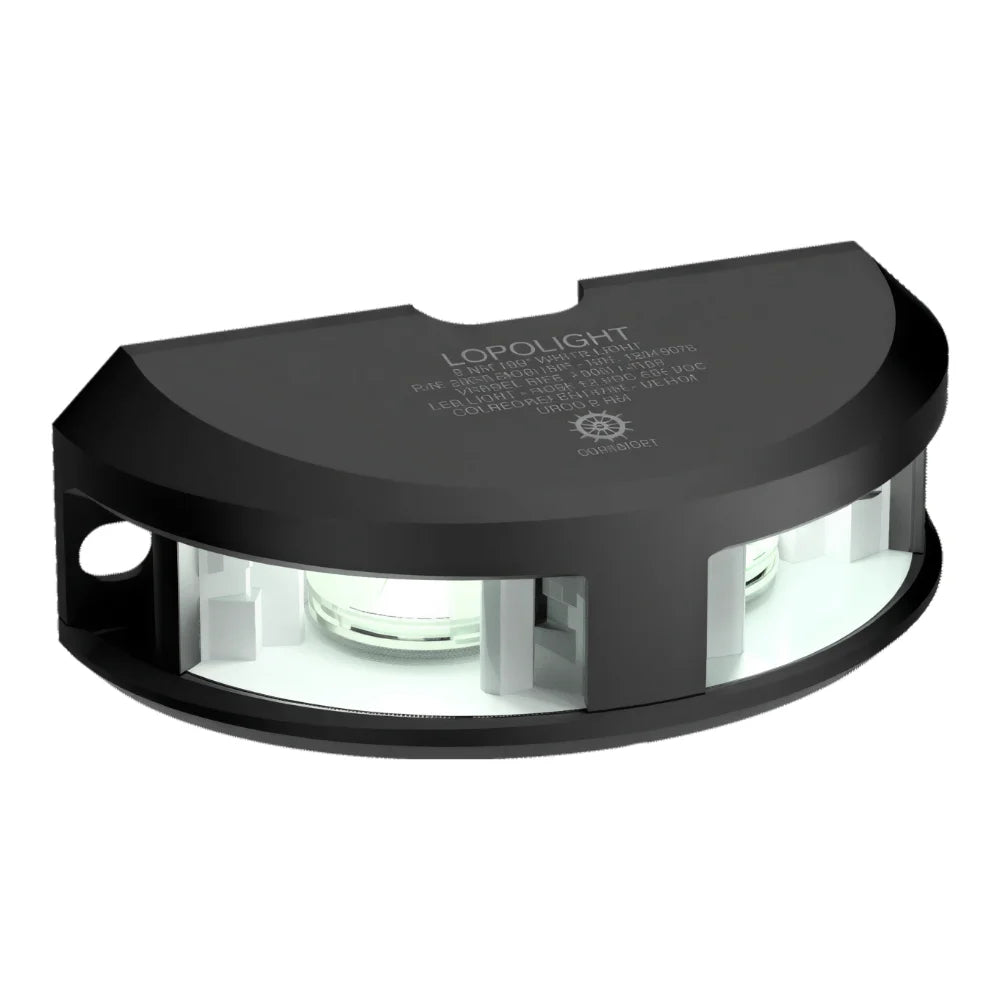

• 300-124G2-B, Black finish: Black anodized housing for installations using dark-colored fixtures.

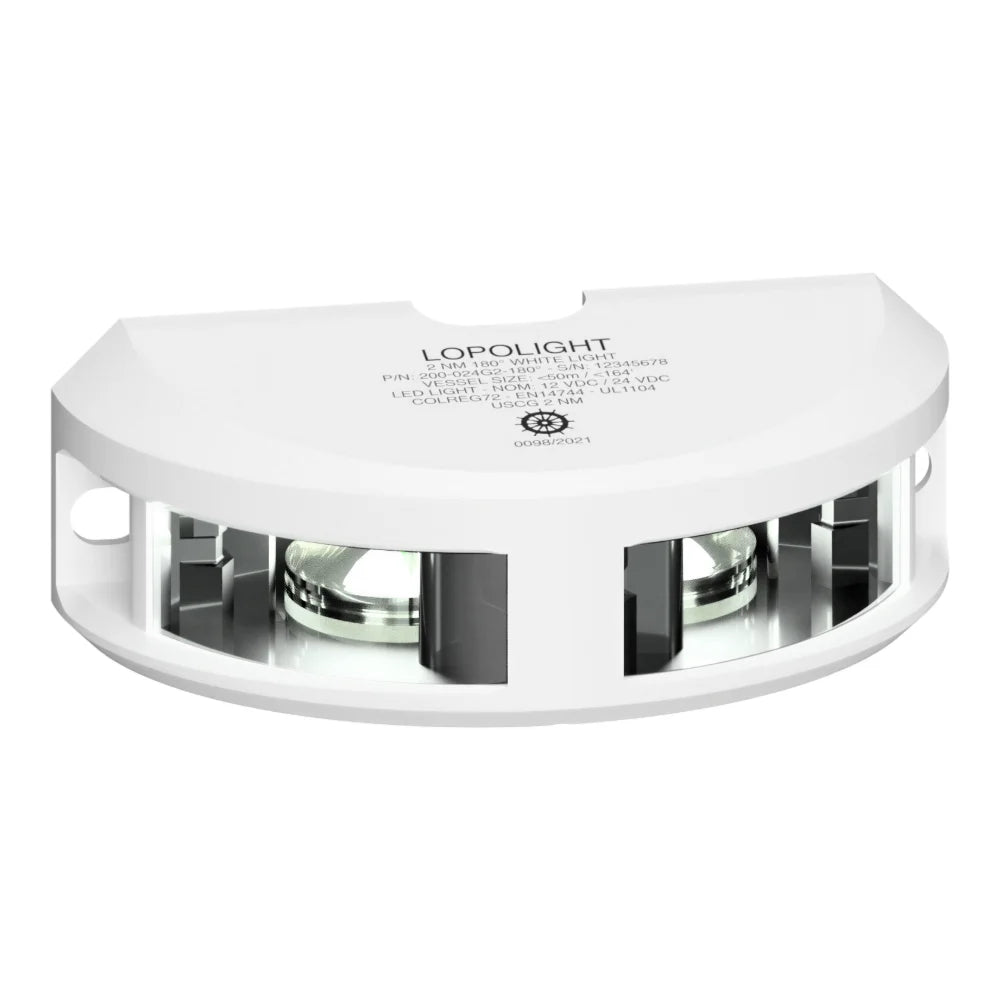

• 300-124G2-WH, White finish: White ceramic-coated aluminum housing with a white exterior appearance.

Electrical and installation considerations

The light draws approximately 232 mA at 12VDC and 127 mA at 24VDC. These values support electrical load calculations when integrating the fixture into a vessel's navigation lighting circuit.

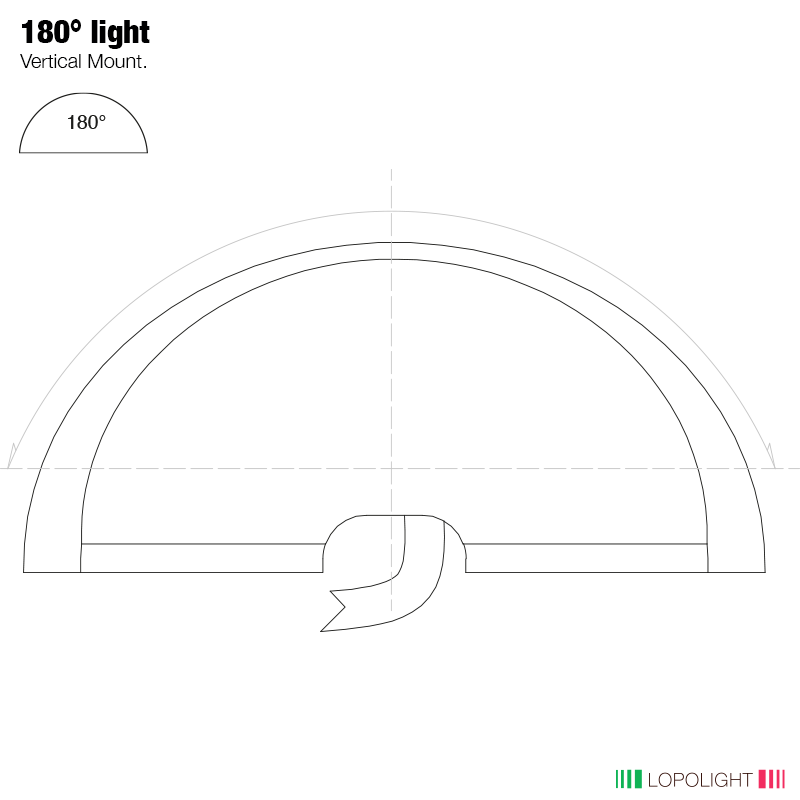

Its vertical mounting arrangement and 180° light distribution should be considered when determining the installation position. The fixture is intended for navigation lighting applications on vessels over 50 meters, where the required visibility, light sector, and applicable regulations match its specifications.
