Vimar Eikon F-Type Female Coaxial Socket Outlet, 2400 MHz, End Socket

Overview

The Vimar Eikon 20318 is a coaxial socket outlet with an F type female connector for TV and satellite signal points in an Eikon installation. It supports frequencies up to 2400 MHz and uses an end-socket layout with one outlet, making it suitable as the finished connection point at the end of a coax run.

For boat interiors, this kind of outlet gives you a clean panel-mounted connection for a TV, decoder, or satellite feed instead of leaving a loose coax cable exposed. It is also suitable for remote power supply on the coax line, and the rear in and out connection uses the matching F type male connector 01654.

The range is offered in white, silver, and grey so the visible finish can be matched to the rest of the Eikon switch layout without changing the electrical function of the outlet.

Key features

• F type female coaxial outlet for TV and satellite signal distribution
• Supports frequencies up to 2400 MHz
• End-socket configuration with a single outlet
• Rear in and out connection uses the matching F type male connector 01654
• Suitable for remote power supply through the coax line
• Snap mounting engagement for integration into the Vimar Eikon device range

Variants

This product is available in multiple finish options within the same outlet format.

Across the range, the connector type, frequency rating, end-socket layout, and mounting method remain the same. The visible difference between variants is the finish color.

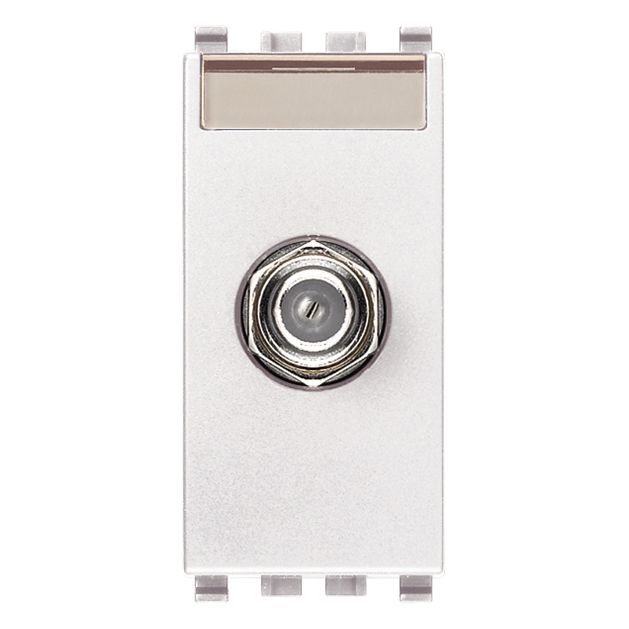

• VM20318.B: White. This version suits lighter switch layouts and interiors where the outlet should blend in with white trim and panel details.

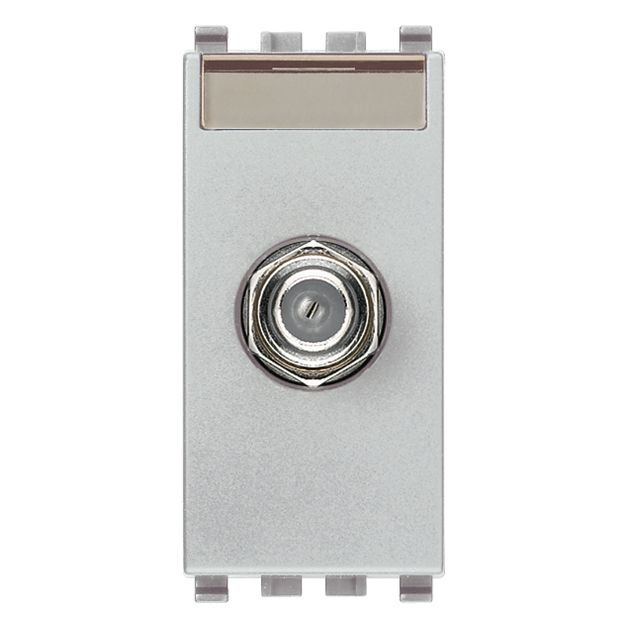

• VM20318.N: Silver. This version works well where the rest of the installation uses silver-toned Eikon components or metallic interior accents.

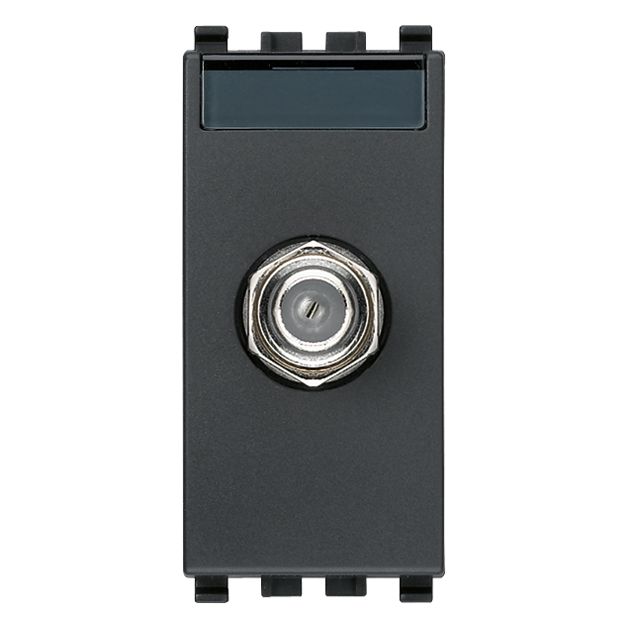

• VM20318: Grey. This version gives a lower-contrast look on darker panels and pairs naturally with grey Eikon devices.

Installation and setup

Before ordering, check that your panel uses the Vimar Eikon modular system and that your coax cable is terminated for the required F type male rear connection. The snap mounting arrangement helps when building a neat flush panel layout inside a cabin, saloon, media cabinet, or other protected interior station.

For marine refits, this outlet makes the most sense where the signal line needs a fixed termination point that stays tidy and easy to access for service. It can also be used in coax lines that pass power through the cable, which is useful in TV and satellite systems that rely on remote feed power.

Compatibility and fit

This outlet is a good match for boats using onboard TV or satellite distribution and already built around Vimar Eikon devices. It is most relevant for owners and installers who want the entertainment connection point to match the rest of the switchgear instead of mixing different wall hardware styles in the same space.
