Lopolight Dimmable LED Boom Light, 6W, 10-32VDC, 6° Beam

Overview

This Lopolight LED boom light is a dimmable, flush-mounted 6W fixture with a focused 6° reflector for directional illumination on board. Operating on 10-32VDC, it produces neutral white light at 4000K, with a rated output of 1200 lumens. Its narrow beam concentrates illumination into a defined area rather than spreading light across a wide surface.

The compact aluminum housing features an anodized finish and an IP68 waterproof rating for exposed marine installations. Available in silver and black, the fixture combines adjustable light output with a flush-mount configuration suitable for boom lighting applications.

Key features

• 6W LED light with dimming capability for adjustable illumination.

• 10-32VDC operating range for compatibility with common 12V and 24V marine electrical systems.

• 6° reflector produces a narrow, concentrated beam with 1200 lumens of neutral white 4000K light.

• IP68 waterproof construction with an anodized aluminum housing.

• Flush-mount configuration with a compact 42 mm diameter housing.

• Operating temperature range of -25°C to +55°C.

Variants

This boom light is available in two housing finishes, silver and black, allowing the exterior appearance to match the surrounding installation.

Both configurations retain the same 6W power rating, 6° reflector, dimming capability, 10-32VDC operating range, and flush-mount design. The supplied cable length also differs between finishes.

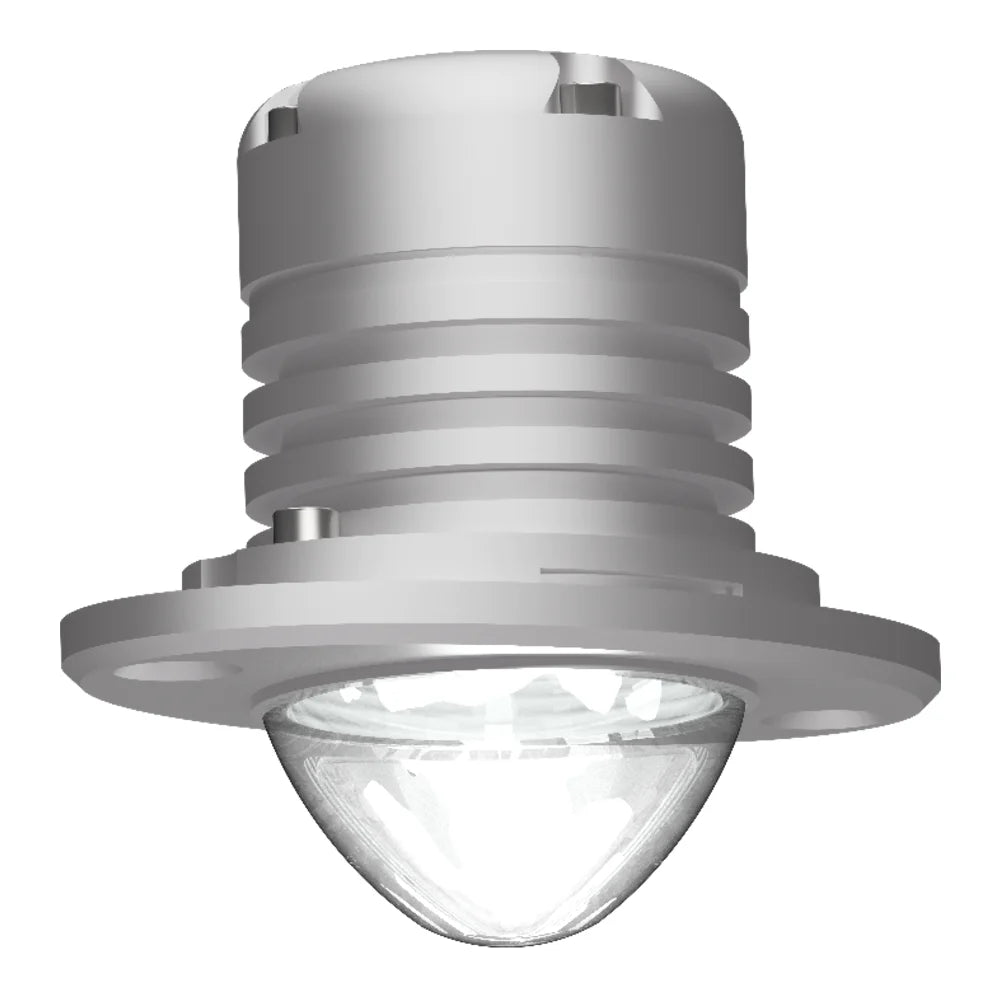

• 400-083-06, Silver Finish: Silver anodized aluminum housing with a 2.5 m connection cable.

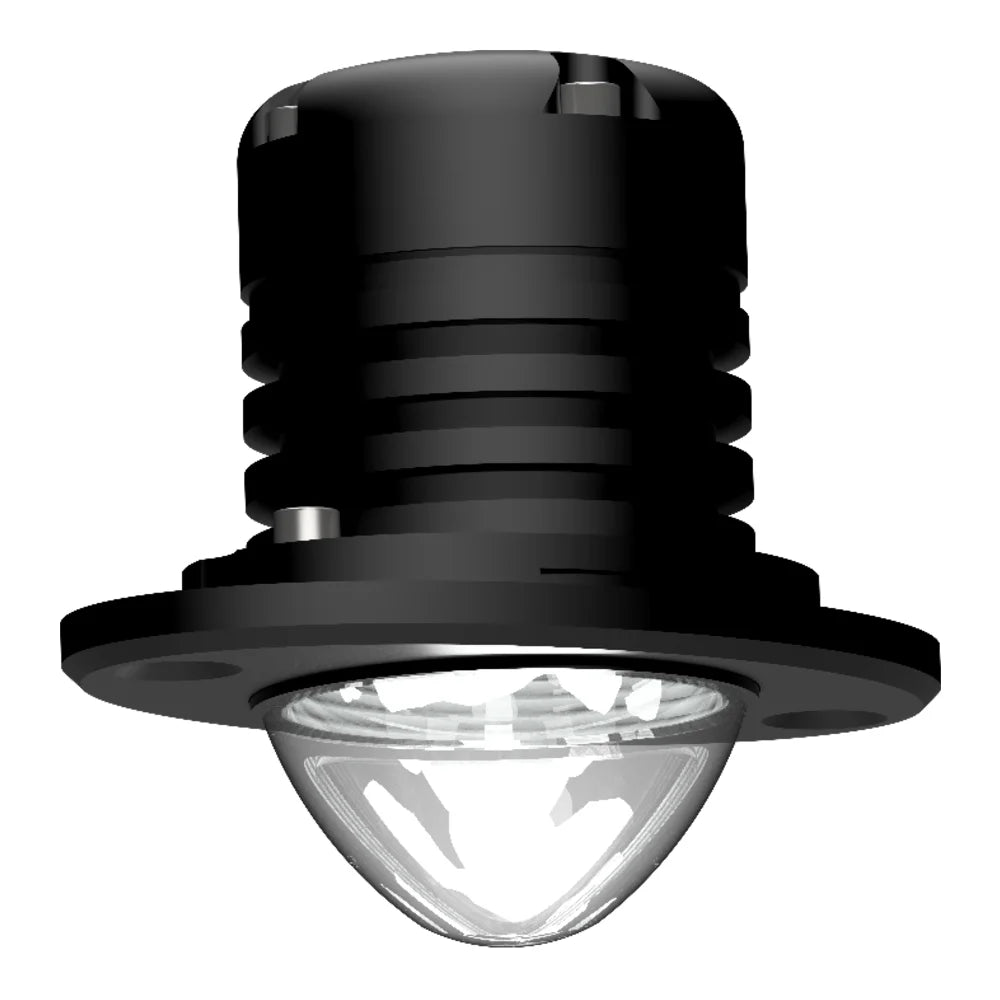

• 400-083-06-B, Black Finish: Black hard-coat anodized aluminum housing with a 0.7 m connection cable.

Installation and electrical requirements

The flush-mount design requires a suitable mounting location and clearance for the fixture body and cable routing. A minimum feed wire size of 0.5 mm² (AWG 22) is specified, with current consumption of 500 mA at 12VDC and 270 mA at 24VDC. The different cable lengths should be considered when planning the connection to the vessel's electrical supply.
