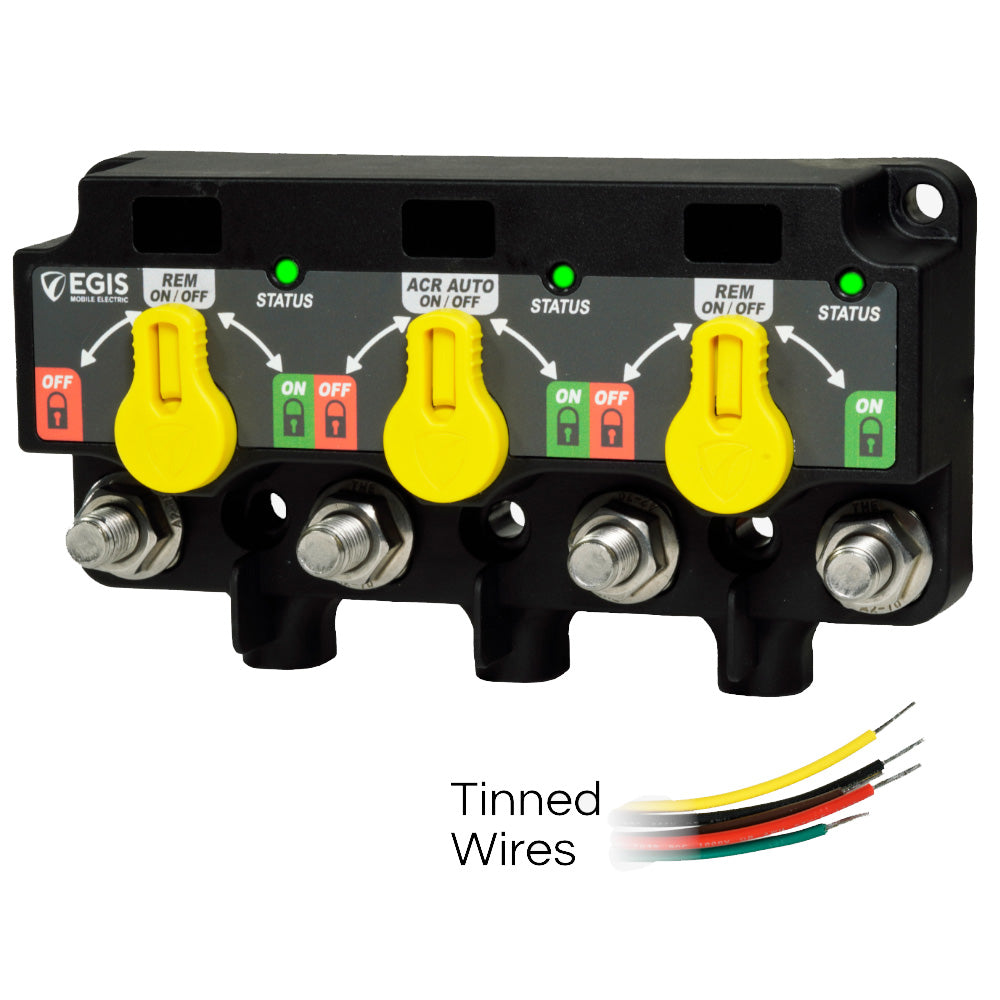

Egis Mobile Electric - XD Series Triple Flex 2 Relay-ACR-Relay - With Knobs Tinned Wires

Streamline Your Marine Electrical System with the Egis XD Series

The Egis XD Series Triple Flex 2 Relay-ACR-Relay is designed to replace three individual high-amp relays with a single, compact module. This innovative solution reduces space, eliminates the need for external link cable connections, and provides clear, unambiguous control and state awareness. Perfect for multi-battery switching and charge management in marine applications, this relay is built to withstand harsh environments while ensuring optimal performance.

General Description

The Egis XD Series Triple Flex 2 Relay-ACR-Relay integrates multiple automatic charging relays (ACR) into one device, significantly improving space efficiency and reducing interconnection cables. Its robust construction and intuitive manual control options make it ideal for multi-battery systems, ensuring reliable and efficient power management. The relay is expandable with link and cross-link busbars to support larger battery systems, making it a versatile solution for marine electrical setups.

Key Features and Benefits

• Compact Design: Replaces three high-amp relays with one module, reducing space and weight by 35-75%.
• Robust Construction: Sealed to IP67/IP6K9K standards, with high-temperature electronics and materials, and stainless steel cable lug studs.
• Intuitive Control: Manual control options simplify operation and increase awareness of relay state.
• Simple Programming: Easy-to-use dip switches allow for flexible relay function customization.
• Energy Efficient: Reduces off-state current draw by 90-95% compared to competitive products.
• Easy Integration: Plug and play compatibility with legacy competitor products and standard connector pins.

Bullet Points Summary

• Compact design reduces space and weight
• Robust construction with IP67/IP6K9K sealing
• Intuitive manual control options
• Simple dip switch programming
• Energy-efficient with low off-state current draw
• Easy integration with legacy products
• Expandable with link and cross-link busbars

Technical Specifications

• Total Continuous Current Amps: 500
• Max Cranking Current (Amps): 1500
• Mechanical Switching Life: 1,000,000 Cycles
• Voltage Range (VDC): 8-36
• Off-State Current Draw (mA): 1.3
• State Change Current: 5A @ 12 VDC; 3A @ 24 VDC

Focal Features

LED Status Display

Front-facing LED indicator provides visual device status, with a remote LED replicating the on-device LED.

3-Position Manual Override

Allows for forcing each relay open or closed, with the option to lock the relay in either position.

40 Circuit Label Sheet Included

Includes weatherproof labels for easy circuit and relay identification, with blank labels for custom applications.

Protective Cover Included

Protects terminal studs and cable terminal edges from accidental shorts.

Stainless Hardware

High-quality stainless steel studs and self-locking flanged nuts resist corrosion.

Programmable via Dip Switches

Located under the protective cover, with an easy-to-use configuration guide for custom settings.

Smaller Footprint

High amp rating in a smaller package, reducing installation space requirements.

Integrated Vent

High-quality Gortex vents regulate internal device pressure to prevent moisture entry and ensure long product life.

Dimensions

• Size (L x W): To be provided if available

The Egis XD Series Triple Flex 2 Relay-ACR-Relay is an essential component for efficient and reliable battery management in marine applications. Its innovative design, robust construction, and user-friendly features make it the ideal solution for modern marine electrical systems.
