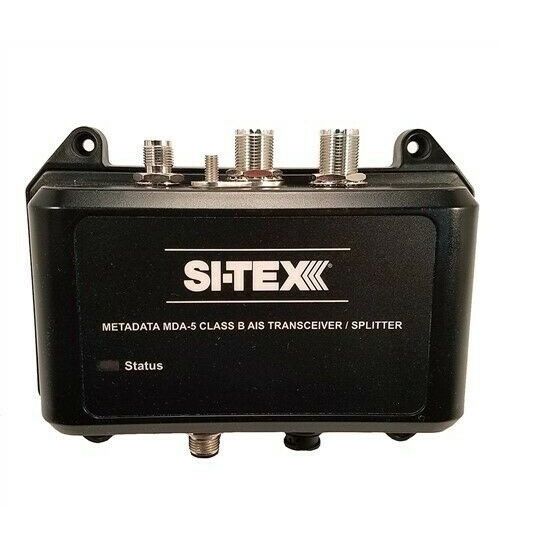

SI-TEX - MDA5H Class B AIS - No Wifi

Advanced Class B+ AIS Transceiver for Reliable Marine Navigation

The Sitex MDA-5H Class B+ SOTDMA AIS Transceiver is one of the most advanced AIS modules available, offering high-performance vessel tracking and seamless integration with marine systems. Designed for professional and recreational mariners alike, this AIS transceiver ensures superior visibility on AIS networks, even in highly congested waterways. With 5-watt transmission power, it provides extended range and priority broadcasting over traditional Class B units.

The unit is fully waterproof (IPX7 certified) and features an integrated zero-loss VHF antenna splitter, eliminating the need for a second antenna. With multiple connectivity options, including NMEA-0183, NMEA-2000, and USB, it easily interfaces with onboard navigation and communication systems. A built-in GPS & GLONASS receiver ensures accurate positioning, while dual receivers decode all DSC & AIS messages, including MOB (Man Overboard) and SART (Search and Rescue Transponder) alerts.

High-Performance Technical Specifications

• Transmitter Output Power: 5 Watts
• VHF Antenna Connector: SO-239 UHF
• GPS Antenna Connector: TNC
• Frequency Range: 156.025 - 162.025 MHz
• Input Voltage: 9.6-31.2 V DC
• Current Draw: 220mA Average Power Consumption
• Operating Temperature Range: -25°C to +55°C
• Ingress Protection: IP67

Compact and Durable Design

• Transceiver Dimensions: 6.8" W x 5.0" H x 2.0" D

Key Features and Benefits

• 5-Watt Transmission Power – Ensures your vessel is seen at greater distances.
• SOTDMA Class A Priorities – Maintains transmission priority in busy harbors.
• Zero Loss VHF Antenna Splitter – No second antenna required.
• Waterproof (IPX7 Certified) – Built for rugged marine conditions.
• Integrated GPS & GLONASS Receiver – Provides precise location data.
• Dual AIS Receivers – Decodes all DSC, MOB, and SART messages.
• NMEA-0183, NMEA-2000 & USB Connectivity – Seamless integration with bridge systems.
• Ultra Power Efficient – Designed for long-term, energy-conscious operation.
• Certified for Marine Use – Meets IEC-62287-2, FCC, and USCG standards.

Included in the Box

• MDA-5H Transceiver
• Commercial Grade External GPS Antenna with Coax Cable
• Mounting Hardware
• Power & Data Interface Cable
• VHF Radio Connection Cable
• Product Information DVD with ProAIS2 Software
• User Manual & Quick Start Guide

The Sitex MDA-5H delivers superior AIS performance, ensuring maximum safety and efficiency for marine navigation. Its advanced SOTDMA technology, robust design, and easy integration make it an essential addition to any vessel's communication system.
