Lopolight 360° Red and Green LED Navigation Light, 2nm, IP68

Overview

This Lopolight 360° red and green LED navigation light combines two separate lights in one assembly, each with all-round visibility and a 2 nautical mile range. Operating on 10-32V DC, it features an IP68-rated aluminum base and is available with a silver or black anodized finish.

The assembly measures 92.5 mm in diameter by 96.5 mm and features a PMMA lens, A4 stainless steel screws, a plug connector, and downward cable routing through M16 glands. Its horizontal mounting configuration supports installation on vessels up to 50 meters, with a common electrical and optical configuration across both finishes.

Key features

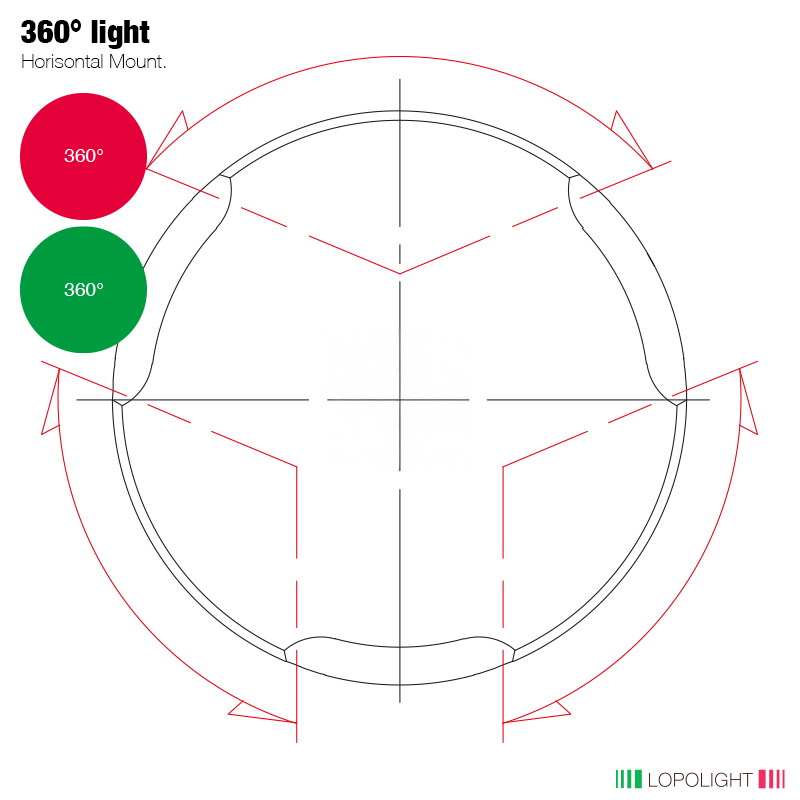

• Combined red and green LED navigation lights with 360° visibility and a 2 nautical mile range.

• 10-32V DC operating range with current consumption of 150 mA at 12V DC and 85 mA at 24V DC.

• IP68-rated aluminum base with a 25-micron anodized finish.

• Light intensity greater than 5.4 candela.

• Horizontal mounting with a plug connector and cable-down M16 glands.

• 92.5 mm diameter x 96.5 mm overall dimensions.

• PMMA lens and A4 stainless steel screws.

• DNV-certified, with listed approvals including COLREG 72, EN 14744, IEC 60945, and USCG.

Variants

This navigation light assembly is available in two exterior finishes: Silver and Black.

Both configurations retain the same red and green light output, 2nm visibility, 10-32V DC operating range, IP68 rating, dimensions, and connection arrangement. The difference is the anodized aluminum exterior finish.

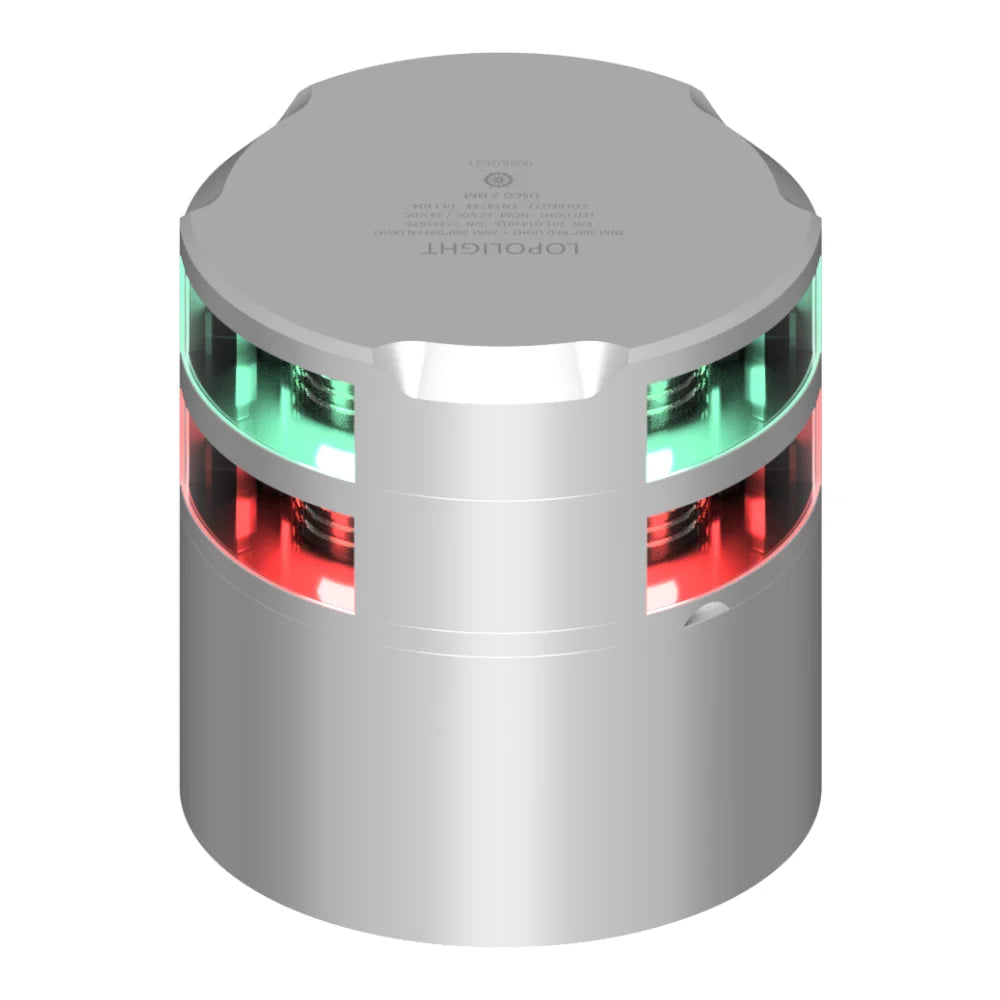

• 201-014+015-CD - Silver: Silver anodized aluminum finish, providing a metallic silver exterior appearance.

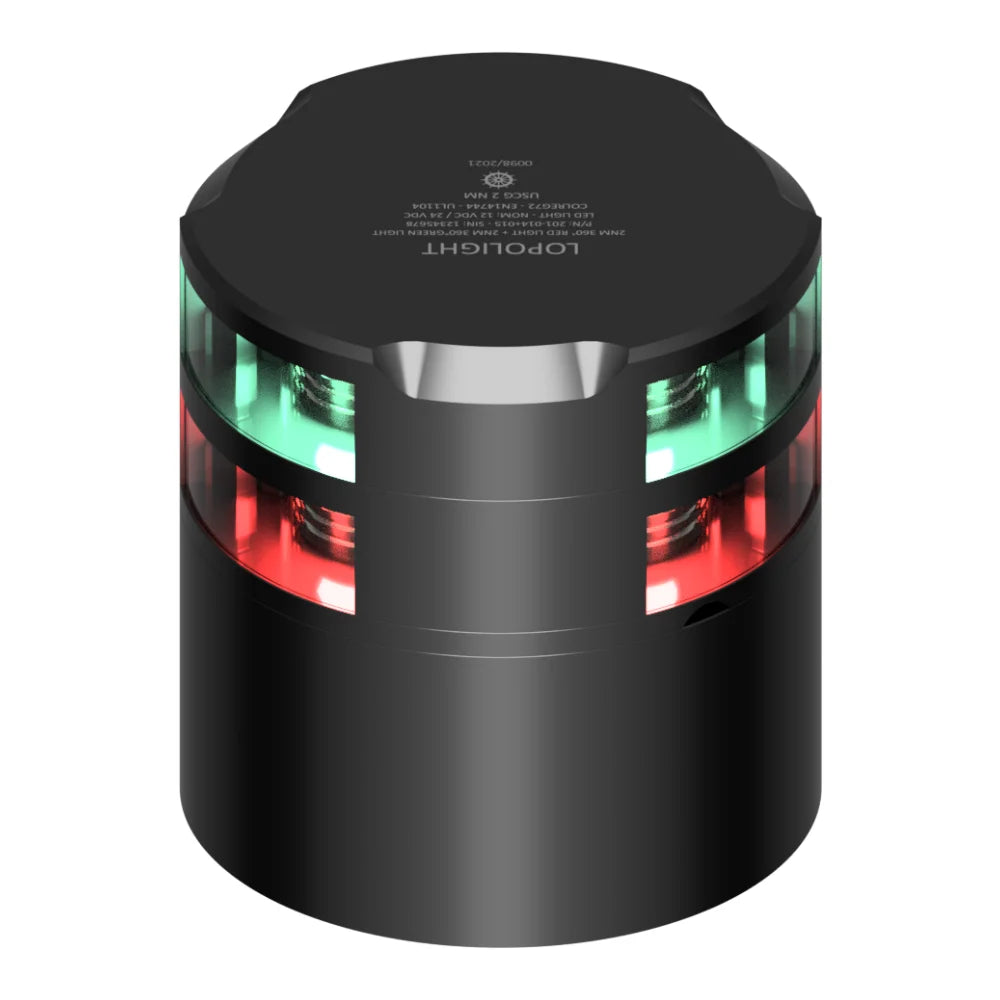

• 201-014+015-B-CD - Black: Black anodized aluminum finish, providing a black exterior appearance.

Installation and setup

The assembly is configured for horizontal mounting, with electrical connections made through a plug connector and cables routed downward through M16 glands. The installation location must accommodate the fixture dimensions and maintain the required visibility for the red and green navigation lights. The 10-32V DC operating range supports compatible marine DC electrical systems.

What's included

• 1 combined red and green LED navigation light assembly in the selected finish.
