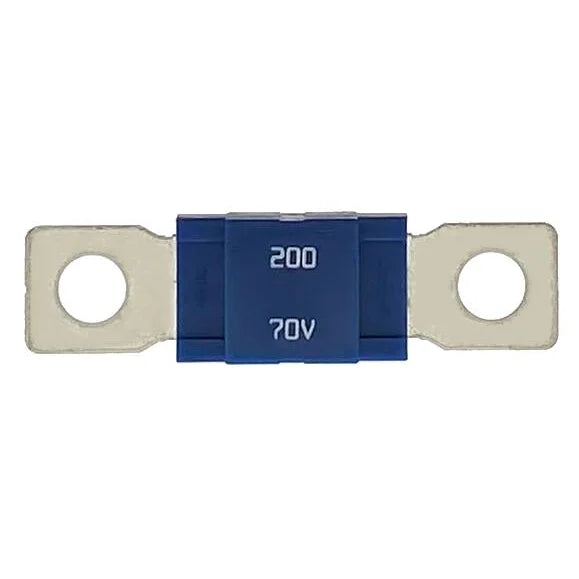

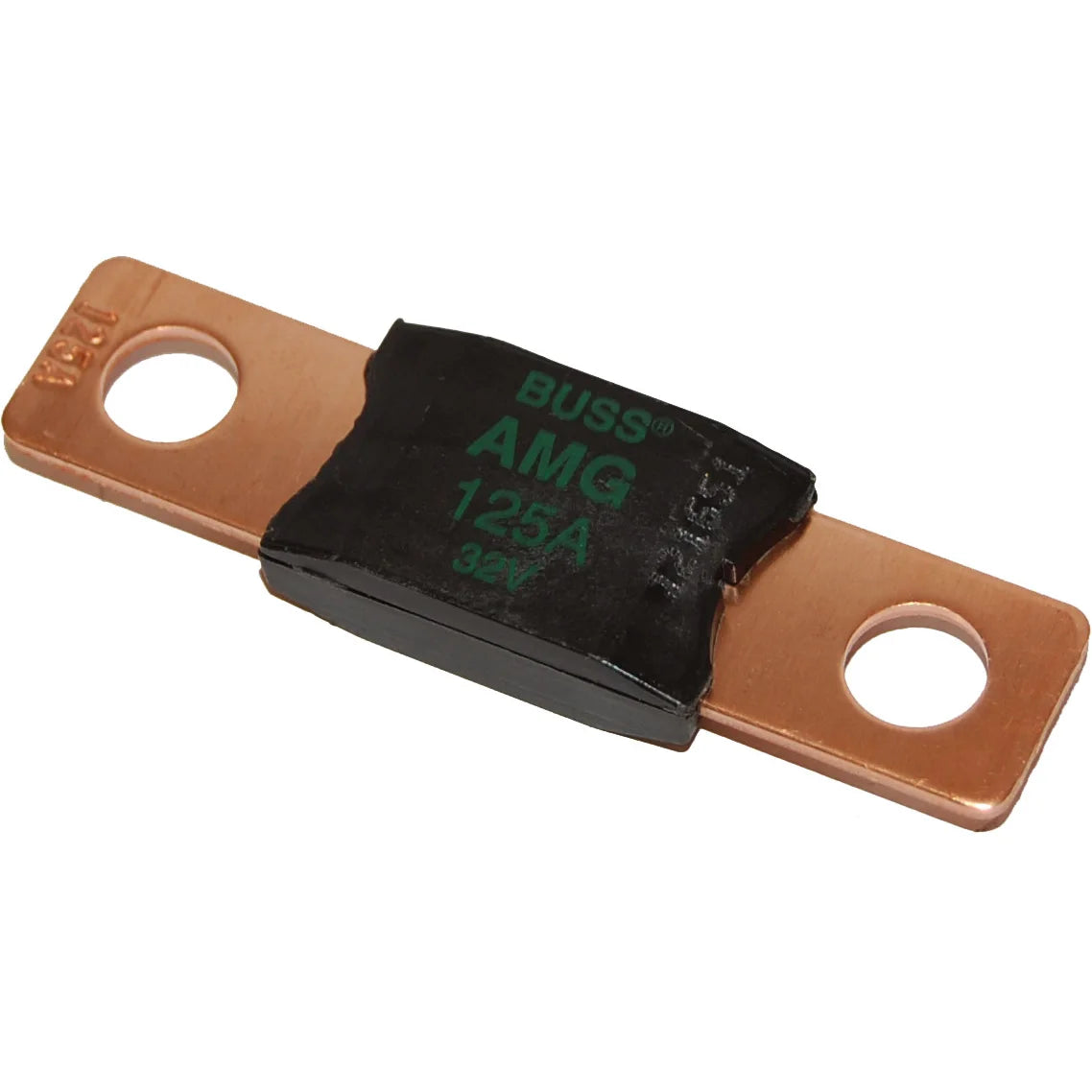

Blue Sea Systems MEGA/AMG Fuse, For AMG Fuse Blocks, 70V DC, Ignition Protected, 2500A Interrupt Capacity

Overview

The Blue Sea Systems MEGA / AMG Fuse is a bolt-down DC fuse for Blue Sea Systems AMG fuse blocks, covering high-current circuit protection from 100A to 300A. It is rated for a maximum voltage of 70V DC and has an interrupt capacity of 2500A at 70V DC, which makes it suitable for many marine DC distribution jobs where large battery cables, charging circuits, inverters, windlasses, thrusters, or other high-load equipment need proper overcurrent protection.

This fuse family is ignition protected and works with Blue Sea Systems AMG fuse blocks, including the AMG Safety Fuse Block 7721. The compact bolt-down format helps keep high-current connections secure in areas that see vibration, such as battery compartments, machinery spaces, and protected electrical panels.

Key features

• Available amperage ratings from 100A to 300A for matching the fuse to the protected cable and load.
• 70V DC maximum voltage rating for use in common low-voltage marine DC systems.
• 2500A interrupt capacity at 70V DC for fault protection in high-current DC circuits.
• Ignition protected construction for use in marine electrical installations where ignition protection is required.
• Works with Blue Sea Systems AMG fuse blocks, including the 7721 AMG Safety Fuse Block.
• Bolt-down fuse format helps maintain a firm connection in boats that see vibration and repeated movement.
• Supplied one fuse per retail package.

Variants

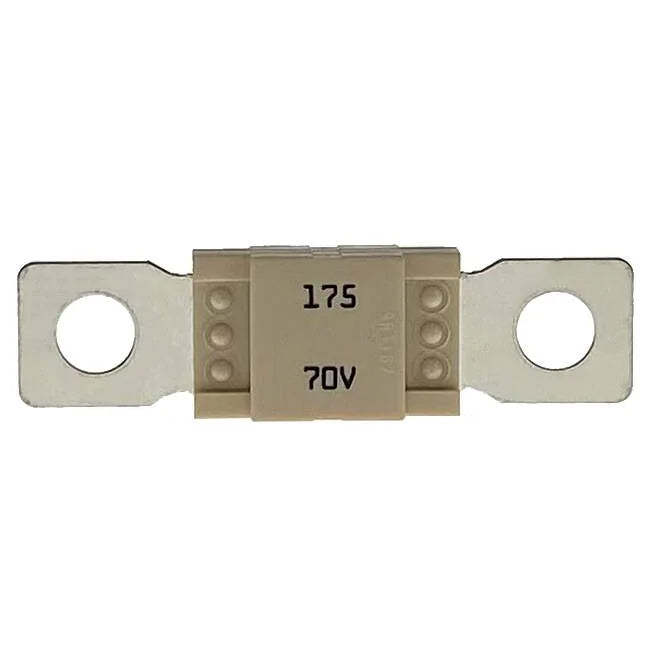

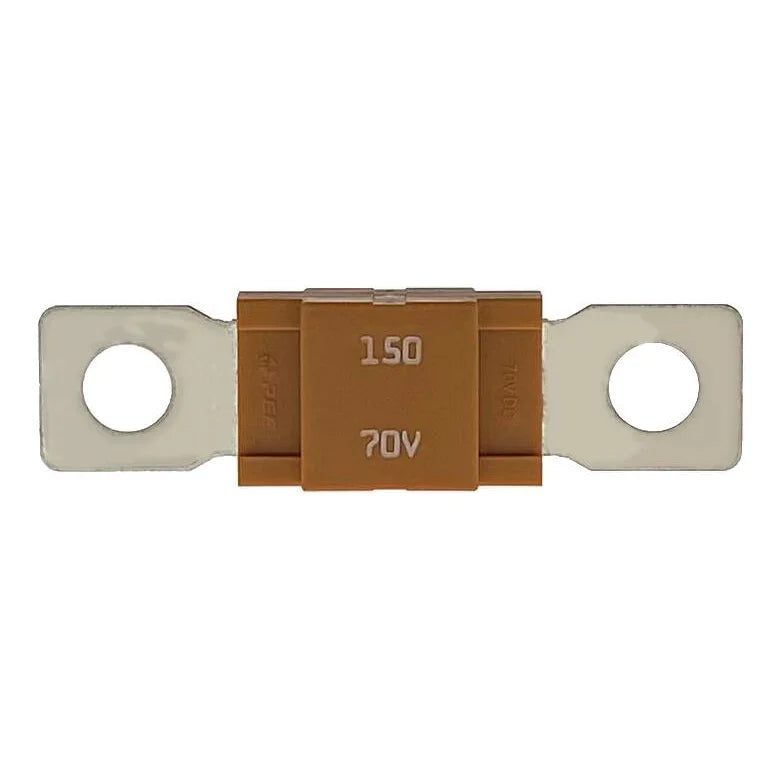

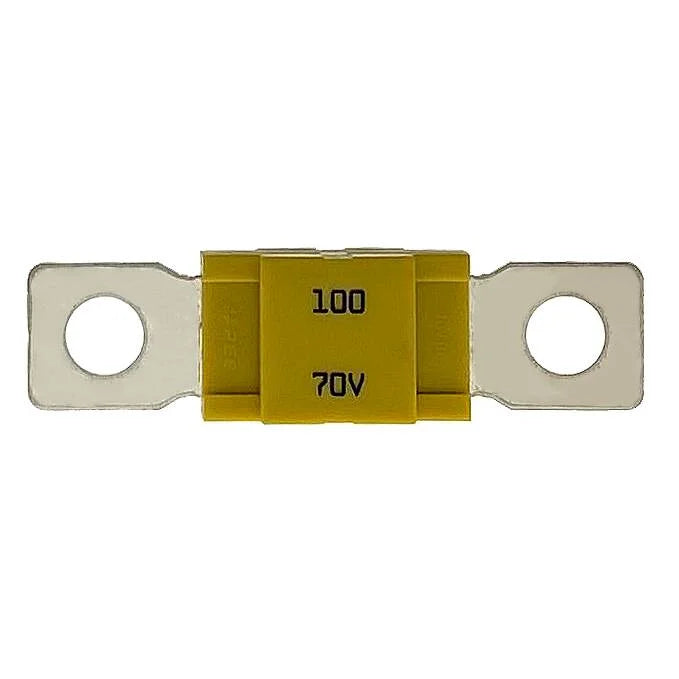

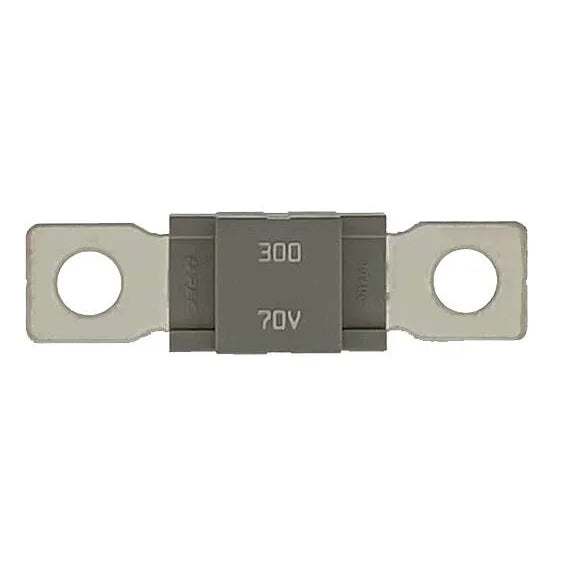

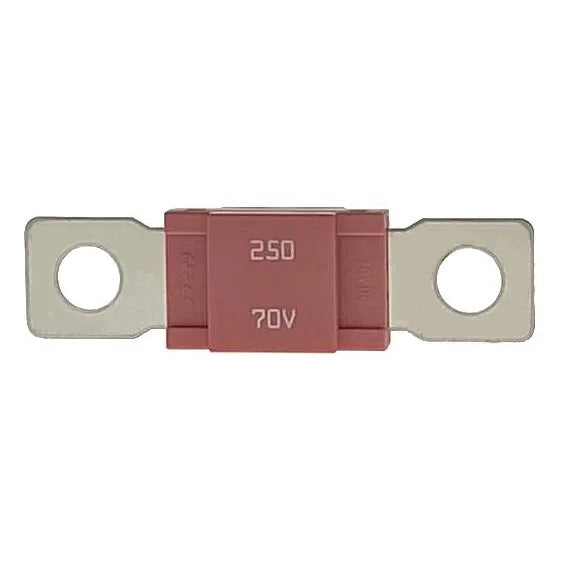

This fuse range varies by amperage rating. The available configurations are 100A, 125A, 150A, 175A, 200A, 250A, and 300A, giving the installer options for different high-current circuits on board.

The shared specifications across the range include the 70V DC maximum voltage rating, 2500A interrupt capacity at 70V DC, ignition protected rating, and compatibility with Blue Sea Systems AMG fuse blocks. Fuse selection should be based on the cable size, circuit load, and the protection requirements of the equipment being connected.

Installation and setup

Install this fuse in a compatible AMG fuse block with clean contact surfaces and properly sized conductors. In a marine DC system, the fuse should be placed close to the source of power when it is protecting a battery-fed circuit, while still allowing safe access for inspection and replacement.

High-current DC connections need careful preparation. Use correctly crimped lugs, protect the circuit from moisture where practical, and torque the hardware according to the fuse block requirements. Undersized cable, loose terminals, or poor crimps can create heat under load, even when the fuse rating itself is correct.

Use cases on board

This fuse family is a good match for boat owners and installers building or servicing high-amperage DC circuits where reset capability is not required and a bolt-down fuse is preferred. Typical applications include battery distribution, charge paths, inverter feeds, windlass wiring, bow thruster circuits, and other DC loads that fall within the proper amperage range for the selected variant.

Because the amperage changes by variant, it is important to match the fuse to the conductor and the equipment rather than choosing by load alone. A correctly selected fuse helps protect the wiring first, then the connected equipment, which is the right priority in a safe marine electrical system.
