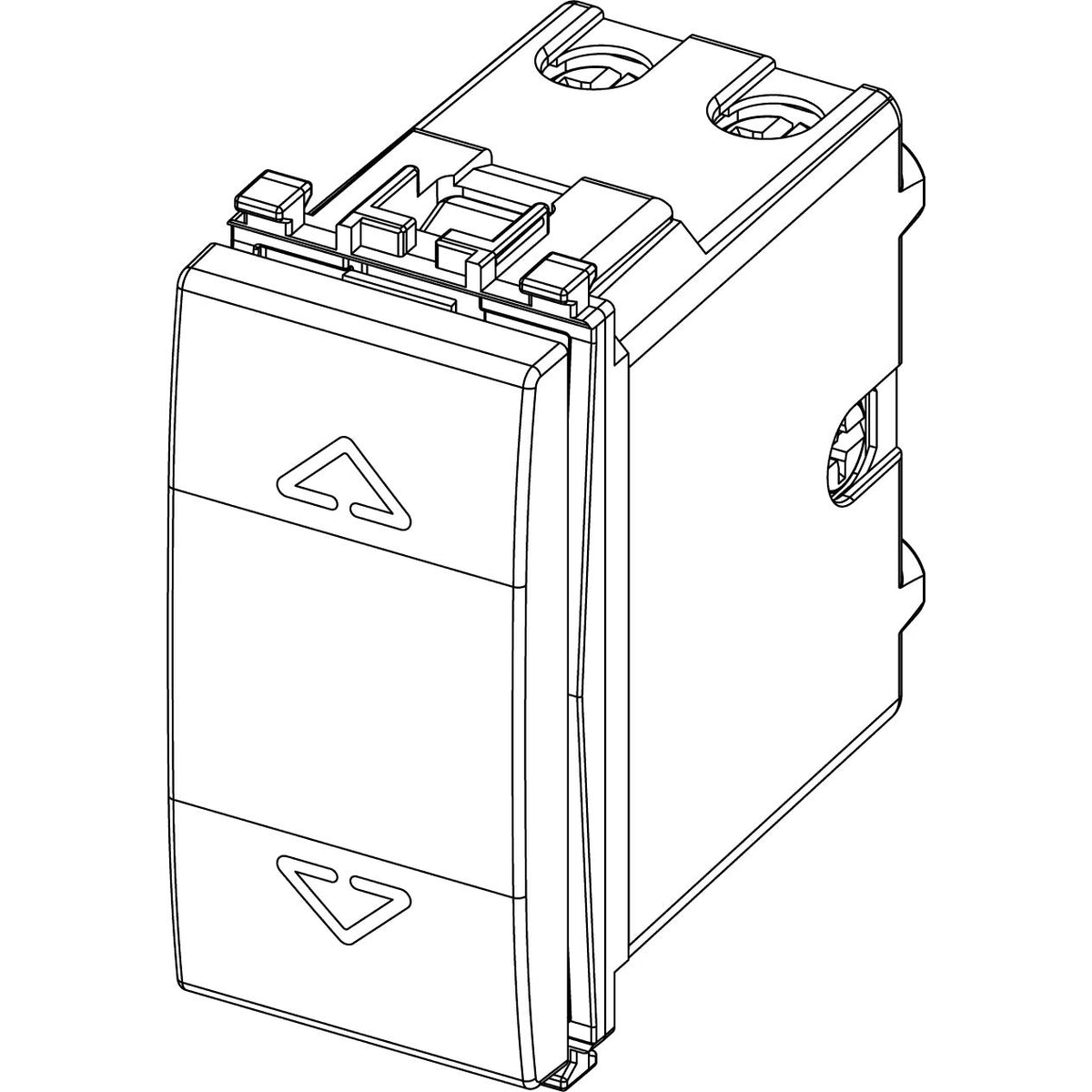

Vimar EIKON 2P 10A 2-Way Push Button, 250V, 6-Terminal, IP40, Central OFF Position

Overview

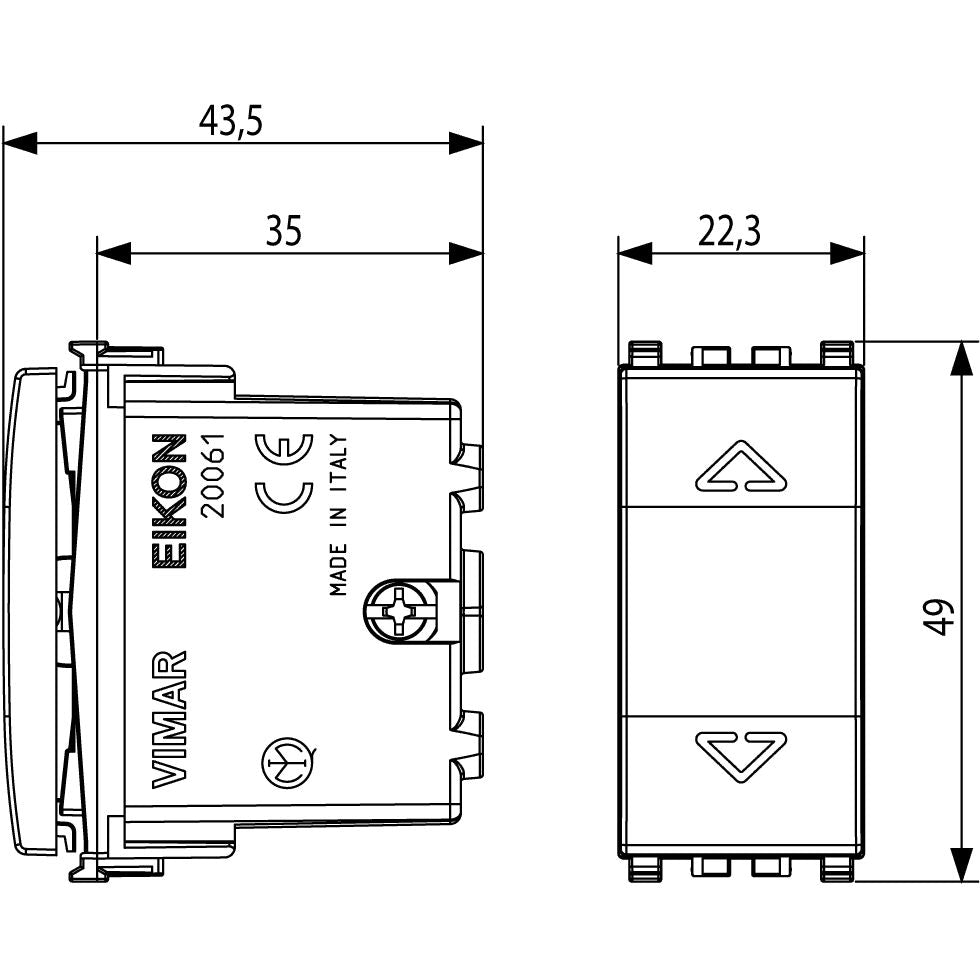

The Vimar EIKON Series is a 2P 10A 2-way push button range for modular flush-mounted installations where a centered OFF position and directional control are needed. These devices are rated at 10A and 250V, use a 6-terminal layout, and fit the EIKON device format with a body that is 22.3 mm wide and 49 mm high.

The push button face carries directional arrows with a central OFF position, which makes it a practical choice where the control action needs a clear neutral point rather than a standard on or off switch feel. The housing is thermoplastic, halogen-free, and finished in matt color options across the range.

On board, this type of device makes the most sense in protected interior spaces such as cabins, enclosed helm areas, and service panels where a flush modular switch is needed and the surrounding trim already follows the EIKON format. With an IP40 rating, it is better suited to dry interior mounting locations than exposed weather areas or washdown zones.

Key features

• 2P 10A 250V push button for switching duties within the device rating
• 2-way operation with directional arrows and a central OFF position

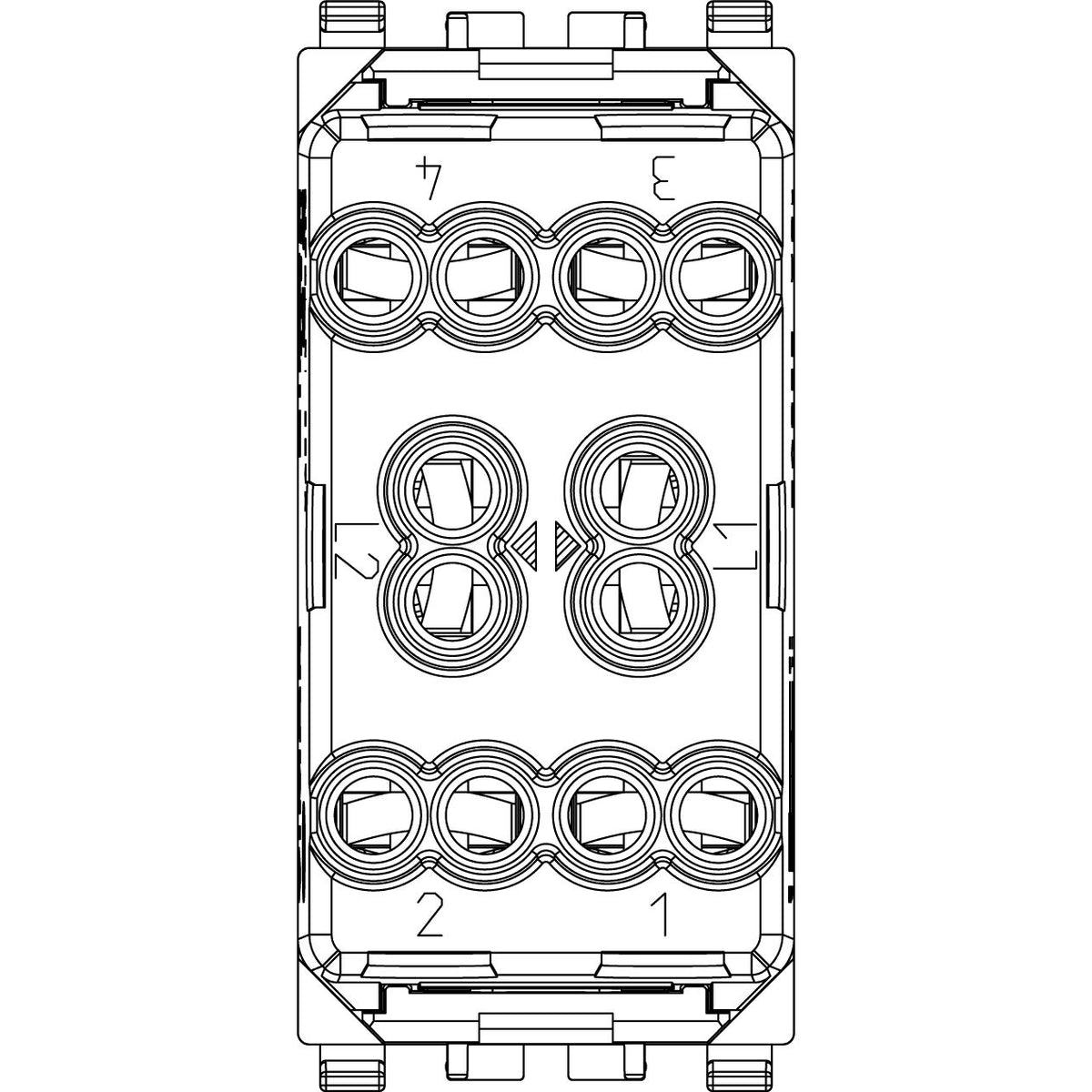

• 6-terminal configuration for the required control wiring layout
• Flush-mounted modular body for EIKON series installations
• Thermoplastic construction that is halogen-free with a matt surface finish
• IP40 protection for protected interior mounting locations
• Compact front format at 22.3 mm wide and 49 mm high

Variants

This product is offered in three color configurations within the same EIKON 2P 10A 2-way push button format.

What changes between the variants is the visible color and surface treatment. The electrical rating, two-pole 2-way push button function, 6-terminal layout, and central OFF position remain the same across the listed options.

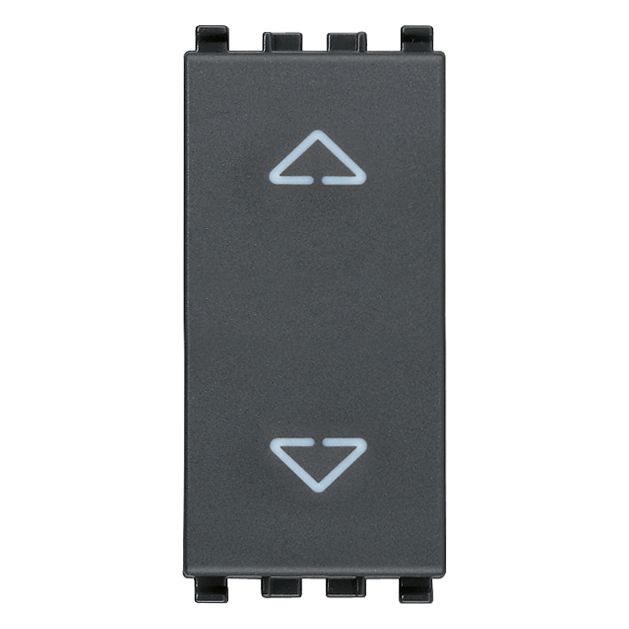

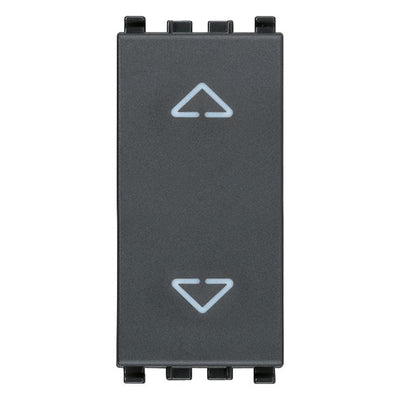

• VM20061: Grey. This finish works well where the switch should blend into darker panels or trim.

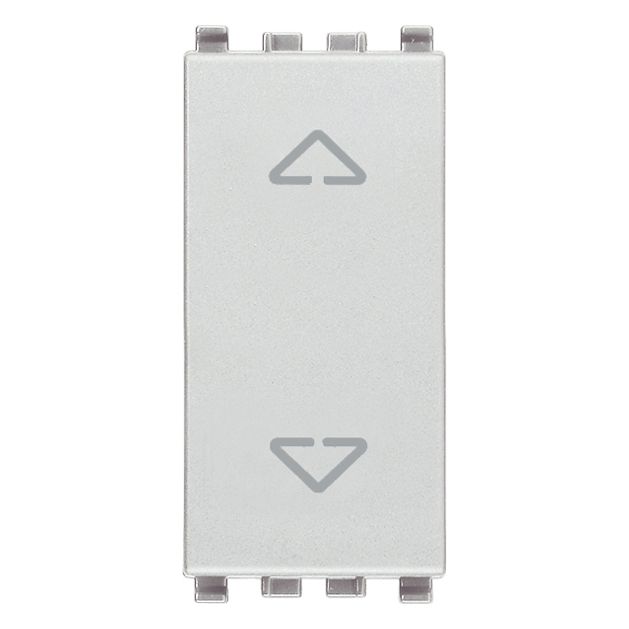

• VM20061.N: Color Silver. This version changes the appearance to a lighter metallic-style finish for matching modern interior surrounds.

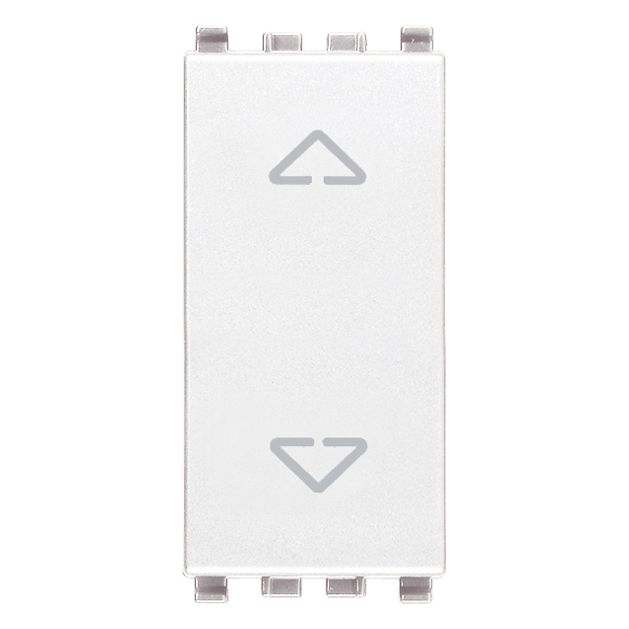

• VM20061.B: Color White. This finish is easier to pair with light liners, white panels, and bright interior joinery.

Compatibility and fit

This is an EIKON device module, so fit should be checked against the existing frame, support, and box arrangement on the vessel before ordering. It is a sensible match for refits or new interior builds that already use Vimar EIKON hardware and need a momentary directional control with a neutral center position.

Installation and setup

The unit is intended for built-in mounting in a flush modular installation. Because it is a 250V switching device, it belongs in a correctly planned onboard electrical system with the right enclosure, circuit protection, and panel support for the location where it will be installed.
